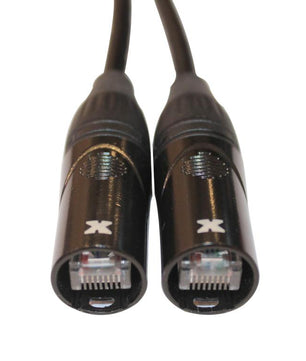

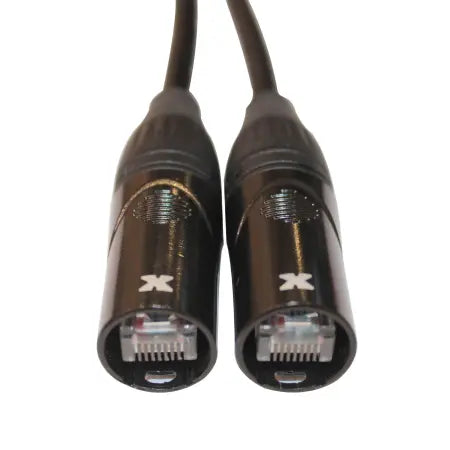

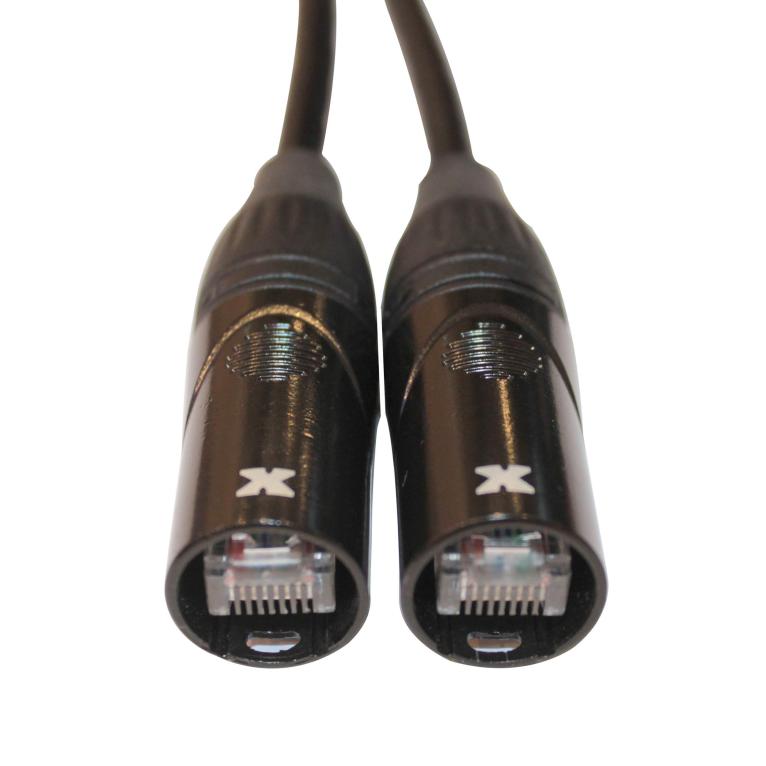

ProX XC-CAT6-10 | 10ft Shielded Cat 6 STP Cable with RJ45 for Network & Stagebox

High-Quality Shielded Cat 6 Cable for Networking & Stage Applications

The ProX XC-CAT6-10 is a professional-grade 10 ft Shielded Twisted Pair (STP) Category 6 cable designed for touring sound, permanent installations, A/V stage technology, and DMX systems. Engineered for digital snake applications, stagebox connectivity, and high-speed data transmission, this cable provides superior shielding against external interference, ensuring optimal signal clarity.

ProX XC-CAT6-10 Competitive Differences

• 10 ft STP Cat 6 Ethernet cable with high-quality ProX RJ45 connectors
• 550MHz bandwidth for ultra-fast data transmission
• Shielded system with aluminum foil and braided/woven screen for superior EMI protection
• 100% pure copper inner conductor for optimal signal integrity
• Complies with CAT6 specifications (TIA/EIA 568B, ISO/IEC 11801, EN 50173)
• Thermoplastic polyolefin insulation with a lead-free jacket for enhanced durability
• Compact cable diameter to minimize interference and maximize performance
• IP65-rated for dust and waterproof protection in mated condition
• Individually tested for quality assurance

ProX XC-CAT6-10 Description

The ProX XC-CAT6-10 is built to deliver reliable and high-performance data transmission for professional audio, video, and networking applications. Compared to Cat 5 and Cat 5e, Cat 6 cables offer significantly higher bandwidth and stricter noise resistance standards, ensuring a clean and uninterrupted signal. This 10 ft STP cable is perfect for short-distance stage and network applications where signal integrity is critical. The shielded design minimizes crosstalk and electromagnetic interference, making it ideal for use in professional AV installations, digital snakes, and data transfer scenarios. Made with 100% pure copper wire, it meets UL Code 444 and National Electrical Code TIA-568-C.2 compliance for safety and performance.

XC-CAT6-10 Features

• Shielded Twisted Pair (STP) Category 6 Ethernet cable
• Genuine ProX XC-RJ45M connectors for secure and reliable connections
• 19 x 0.12 Copper OFC Inner Conductor for pure signal transfer
• 6 x 16 x 0.12 braided TC shield for superior noise reduction
• Aluminum foil shielding for extra protection against external interferences
• Cotton & PP Cross shielding for improved durability
• Thermoplastic polyolefin insulation with a lead-free jacket
• Outer Diameter (O.D.): 6.8mm (1/4”+)
• Capacitance: 46 pF/ft.
• Bending Radius: 1” minimum
• Pulling Tension: 25 ft-lb (110 N) maximum
• IP65-rated for dust and water resistance
• Complete Coil™ technology for precise accuracy and detailed clarity
• Individually tested to ensure quality and performance

XC-CAT6-10 Specifications

• Bandwidth: 550MHz
• Maximum 10GBASE-T length: 180 ft (55m)
• Compliance: TIA/EIA 568B, ISO/IEC 11801, EN 50173
• Material: 100% pure copper wire (not copper-clad aluminum)
• UL Code 444 and National Electrical Code TIA-568-C.2 compliant
• Product Dimensions: 10 ft length
• Shipping Dimensions: 1.00"H x 4.00"W x 8.00"L
• Shipping Weight: 0.90 lbs
• UPC: 019372410058

The ProX XC-CAT6-10 is a high-performance, professional-grade Ethernet cable designed for network reliability, speed, and durability. Ideal for stage, studio, and networking applications.
