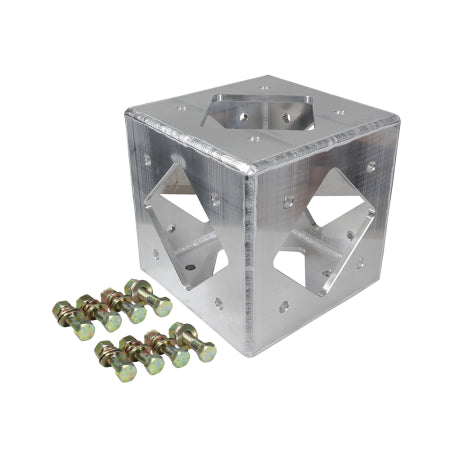

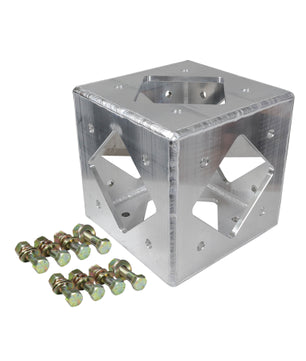

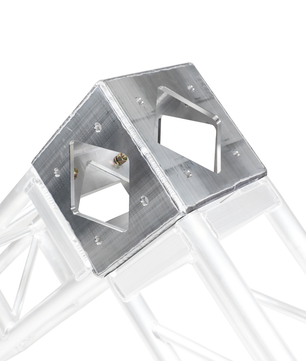

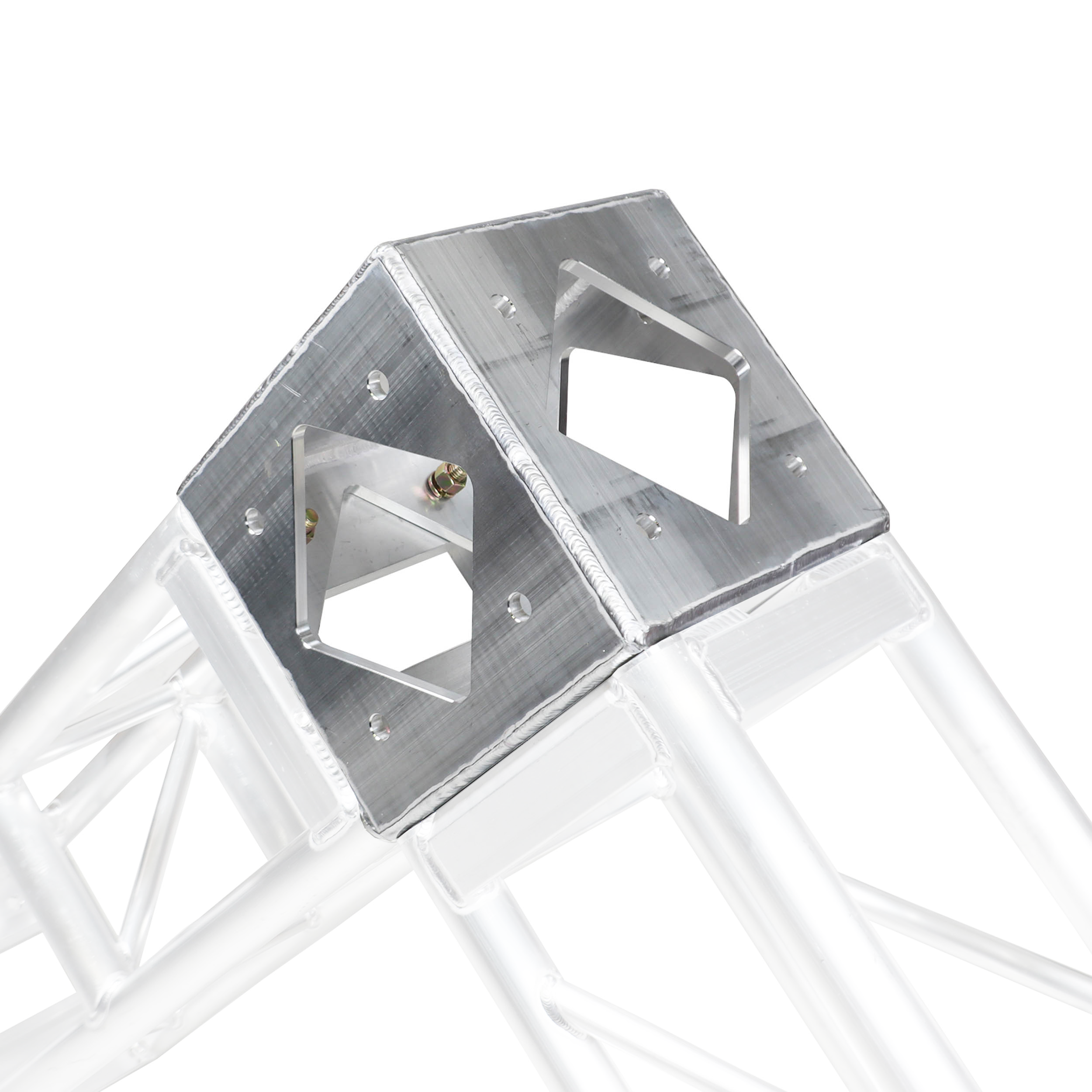

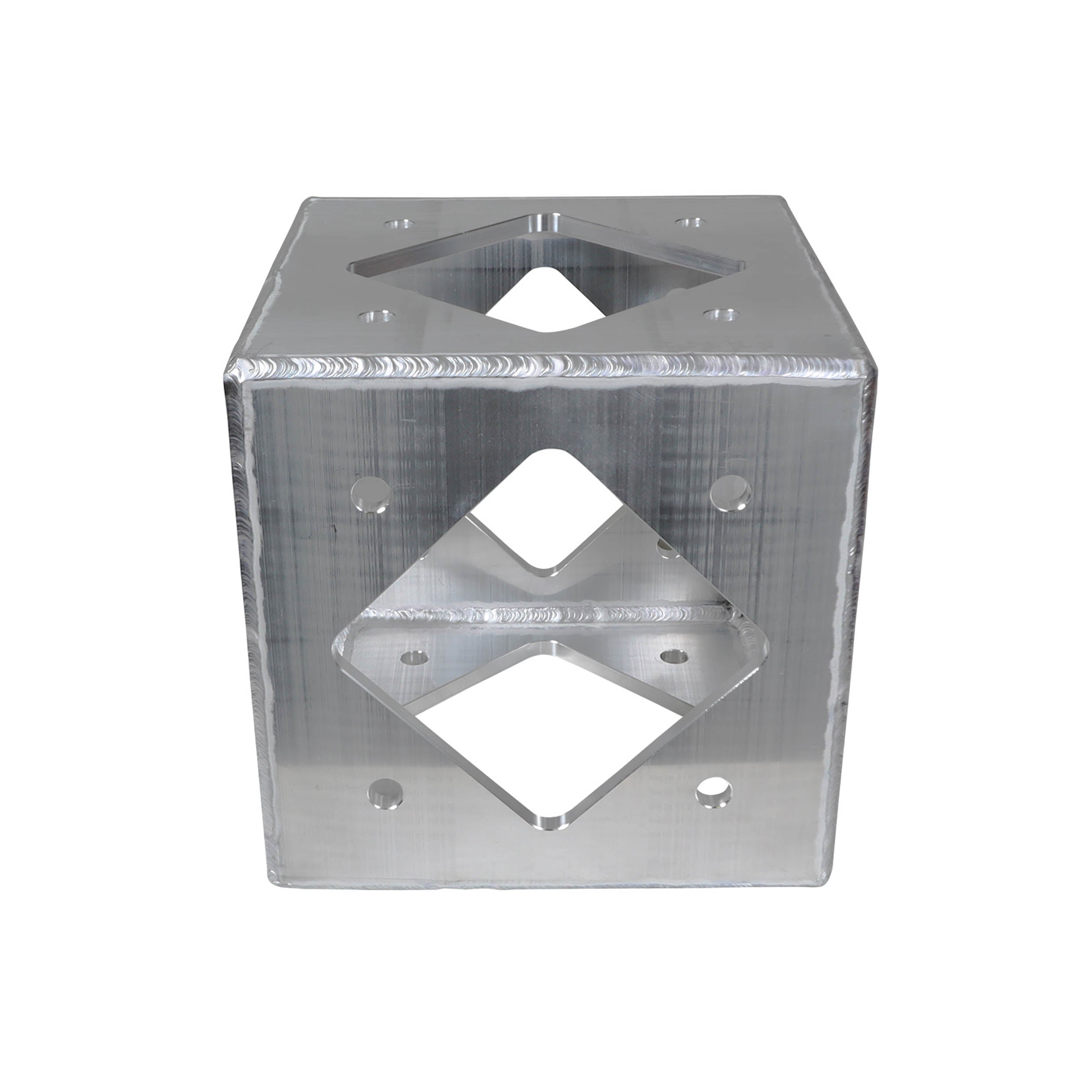

ProX XT-BT12-6WMK2 | 12in BoltX 6 Way Corner Block | Flushed Plates with Bolt Connection

6 Way Box Truss Corner Block

ProX XT-BT12-6WMK2 is a 12 in BoltX 6 way flushed corner block designed for professional bolted box truss systems used in stage lighting, concert production, event structures, and similar applications. Its welded flush plates, 6082-T6 aluminum construction, and industry-standard bolt pattern make it a durable connection point for multi-directional truss builds.

ProX XT-BT12-6WMK2 Competitive Differences

• 12 in x 12 in x 12 in BoltX 6 way corner block for professional box truss systems
• Welded flush plates for clean, secure bolted connections
• Industry-standard 6.75 in x 6.75 in bolt pattern with 5/8 in holes
• 3mm wall thickness on both the 2 in outer tubes and 1 in diagonal bracing
• Includes four sets of attachment hardware for a total of 16 bolts, nuts, flat washers, and lock washers

ProX XT-BT12-6WMK2 Description

The ProX XT-BT12-6WMK2 is built for professionals who need a strong 6 way truss connection block for complex lighting grids, stage structures, event displays, and compatible 12 in bolted box truss systems. Its 6 way design allows truss sections to connect from multiple directions while maintaining the BoltX system’s secure bolted connection format.

This corner block is constructed from 6082-T6 aluminum alloy and welded to TÜV standards by GSI SLV-certified welders. The 2 in outer tubing, 1 in diagonal bracing, and 3mm wall thickness provide dependable strength and consistency for demanding production environments.

ProX BoltX truss products use industry-standard dimensions to help connect with many other 12 in bolted box truss products that use a 6.75 in bolt center pattern. Each XT-BT12-6WMK2 is load tested and inspected during manufacturing and quality control for dependable professional use.

XT-BT12-6WMK2 Features

• 12 in BoltX professional 6 way corner block
• 12 in x 12 in x 12 in bolted box truss design
• Welded flush plates
• Compatible with most 12 in professional box truss using a 6.75 in bolt center pattern
• Industry-standard 6.75 in x 6.75 in bolt pattern with 5/8 in holes
• Load tested and inspected during manufacturing and quality control
• Natural aluminum finish
• Recommended for use with proper load calculations and qualified engineering review for complex configurations

XT-BT12-6WMK2 Specifications

• Truss Type: 6 way flushed corner block
• Exterior Dimensions: 12.00 x 12.00 x 12.00 in
• Weight: 29.00 lb
• Outer Tube Diameter: 2 in
• Outer Tube Wall Thickness: 3mm / 1/8 in
• Diagonal Tube Diameter: 1 in
• Diagonal Tube Wall Thickness: 3mm / 1/8 in
• Bolt Pattern: 6.75 x 6.75 in
• Bolt Hole Size: 5/8 in
• Material: 6082-T6 aluminum alloy
• Finish: Natural aluminum
• Shipping Dimensions: 14.00 x 14.00 x 14.00 in
• Shipping Weight: 31.00 lb
• UPC: 804589620907

What's In The Box

• ProX XT-BT12-6WMK2 BoltX 12 in 6 way flushed corner block
• Sixteen 5/8 in - 11 x 2.5 in attachment bolts
• Nuts
• Flat washers
• Lock washers
