24 Inch BoltX Base Plate for 12 Inch Bolted Box Truss

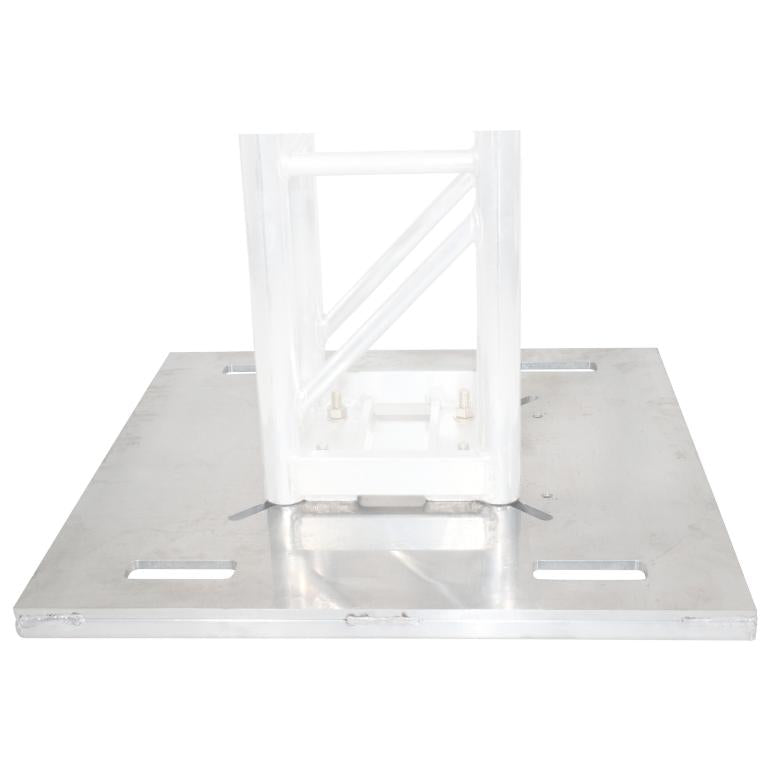

ProX XT-BTBP24A 24 Inch BoltX™ Base Plate for 12 Inch Bolted Box Truss

Description
The ProX XT-BTBP24A BoltX™ Professional Box Truss Base Plate is designed and engineered for many applications like stage lighting, concerts, Ninja Obstacle Course type construction, and similar uses.  Setting ourselves apart from other box truss manufacturers BoltX™ has an innovative end plate designed and manufactured with heavy-duty aluminum material, welded on both sides, and our exclusive circular rings at each corner of the truss to reduce or eliminate damage to the main chord ends.  The XT-BTBP24A mates perfectly with the BoltX™ Truss sections.  Our outstanding quality control and manufacturing techniques assure excellent fitment at every connection to expedite your setups.   The base plate has four hand holes for easy lifting and carrying.  The plate is drilled for an offset position and has a slotted X for quick center mounting.

Compatible with most other 12″ Professional Box Truss Manufacturers utilizing a 6.75" bolt center pattern.  Each base plate includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.

IMPORTANT: Always know your load weight for your equipment.  Download Loading Chart

Features
ProX Live Performance Gear® recommends that you engage the services of a licensed engineering professional for complex loading configurations and/or conditions.

Mates to 12″ H x 12” W Professional Box Truss W/Bolt Connection.
Also Drilled to Fit F34 Trussing (Conical Connectors NOT Included)
Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
Four Convenient Hand Holes for Lifting
Slotted and Drilled for Easy Mounting
Load Tested & Inspected During Manufacturing and Quality Control
Includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
Compatible with most other 12″ Professional Box Truss Manufacturers
Aluminum 1/2" Plate welded to 1" x 1.5" Solid Aluminum Extrusions for ultimate strength
Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
Finish: Natural aluminum

TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX BoltX™ Truss products utilize industry standard dimensions to be compatible to connect to/ and work with many other manufacturers 12 In. Bolted Box trussing products.

To Fit
Compatible with most other 12″ Professional Box Truss Manufacturers

Dimensions
2.00"L x 25.00"W x 3.00"H
Shipping Weight: 40.00 lbs

Suggested Shipping Method: Parcel

UPC
019372412298
