ProX XT-JB6W-4W | F34, 6-Way Junction Box (16x Conicals)

ProX XT-JB6W-4W | F34, 6-Way Junction Box (16x Conicals)

$354.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

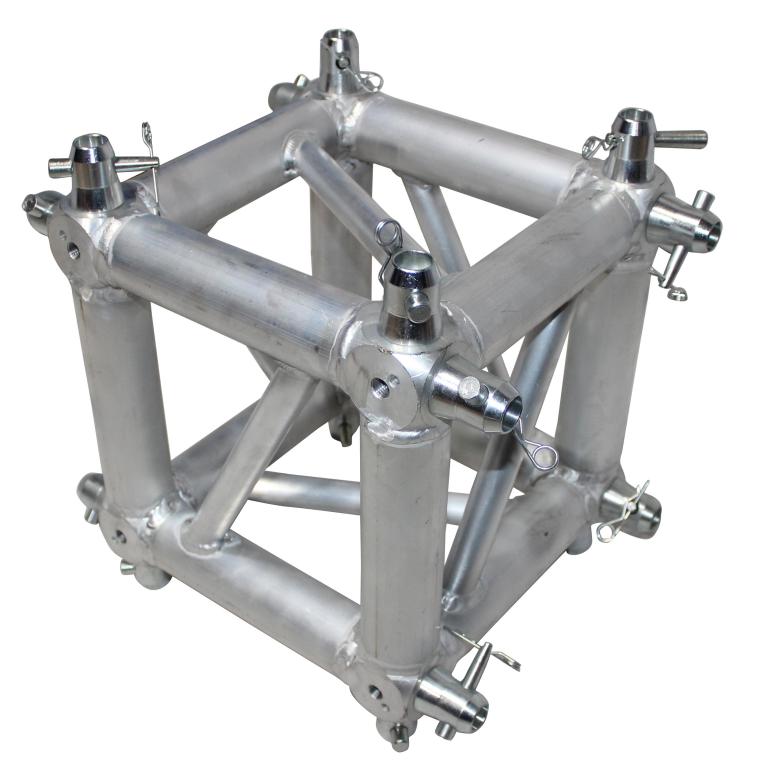

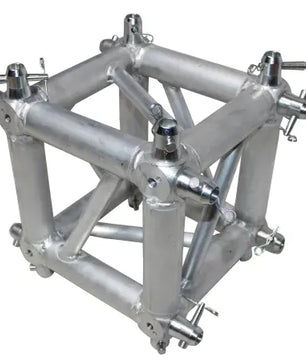

6 Way Square Truss Junction Block - Includes 4 Way 16 Half Conical Couplers

The ProX XT-JB6W-4W Square Truss Junction Block is a universal connecting point for F34 trusses, and it's equipped with connecting hardware for use with ProX XT F34 square truss components.  It features 2" outer diameter tubing and 3/4" diagonal bracing. It has XT Series 2mm thick tube walls, this truss junction block is strong and can be used for many applications.  It is built to the highest standards of safety and performance.

16 Half Conical couplers included.

Tolerance Free Standard Conical connector
Main tube wall thickness of .08in
XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm

Includes Half Couplers for 4 Side Connections

Manufactured in our Own Factory!
Material: EN-AWT6 6082 Aluminum
TUV Certified Aluminium Welding

TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

To Fit
Standard F34 Square Truss Configurations.

Dimensions
11.45"L x 11.45"W x 11.45"H
Weight: 17.00 lbs

Shipping Dimensions
12.50"L x 12.50"D x 12.50"H
Shipping Weight: 17.50 lbs

Suggested Shipping Method: Parcel

UPC
741459147372
