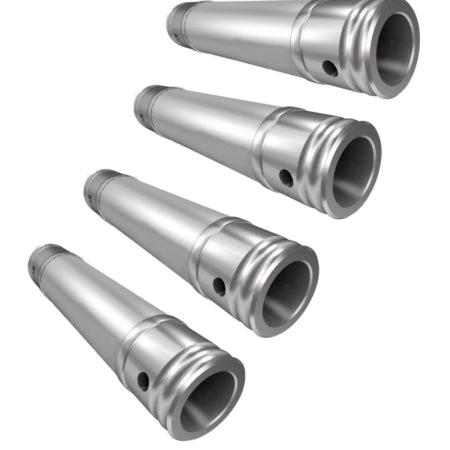

ProX XT-S164X4 | 4-Pack 1.64ft F31 Tube Truss | 2mm Wall Aluminum Segments

Tube Truss Segment Pack

ProX XT-S164X4 is a 4-piece pack of 1.64 ft (0.5 m) F31 single tube truss segments designed for building lightweight truss structures in event production, exhibitions, retail displays, and installations. Built from EN-AWT6 6082 aluminum with 2mm wall thickness, these segments provide a practical balance of strength and portability for modular truss systems.

ProX XT-S164X4 Competitive Differences

• Includes four 1.64 ft (0.5 m) F31 single tube truss segments for modular builds
• 2 in (50 mm) outer diameter tubing with 2mm wall thickness
• Standard conical connector system for compatibility with similar truss systems
• Manufactured from EN-AWT6 6082 aluminum with TUV certified aluminum welding

ProX XT-S164X4 Description

The ProX XT-S164X4 is designed for staging, lighting support, and structural builds where compact single tube truss segments are needed. With four 0.5 meter sections included, it offers flexibility for creating custom layouts in both temporary and permanent installations.

These F31 tube segments use a standard conical connector system, allowing integration with compatible truss components of the same size and connector type. This makes them suitable for expanding existing systems or building new configurations using available corners, base plates, and accessories.

Constructed from EN-AWT6 6082 aluminum, each segment is engineered for durability while remaining lightweight for easy transport and setup. The ProX XT-S164X4 is suitable for indoor and outdoor productions, trade shows, retail displays, nightclubs, and other rigging applications where modular truss solutions are required.

XT-S164X4 Features

• 4-pack of F31 single tube truss segments
• 1.64 ft (0.5 m) length per segment
• 2 in (50 mm) outer diameter tubing
• 2 mm wall thickness
• Standard conical connector system
• Compatible with similar truss systems using matching connectors
• Manufactured from EN-AWT6 6082 aluminum
• TUV certified aluminum welding
• Suitable for indoor and outdoor use
• Ideal for staging, lighting, exhibitions, and installations
• Includes one connecting hardware set

XT-S164X4 Specifications

• Truss Type: F31 single tube truss segment
• Quantity: 4 pieces
• Length per Segment: 1.64 ft (0.5 m)
• Outer Diameter: 2 in (50 mm)
• Wall Thickness: 0.079 in (2 mm)
• Material: EN-AWT6 6082 aluminum
• Connector Type: Conical connector
• Compatibility: Industry-standard F31/F34 style truss systems with matching connectors
• Shipping Dimensions: 5.00 x 23.00 x 8.00 in
• Shipping Weight: 6.00 lb
• Master Box Quantity: 4 pcs
• Number of Boxes: 1
• UPC: 80458961924604

What's In The Box

• Four ProX XT-S164X4 truss segments
• One set of connecting hardware
