ProX XT-SQ164-2W90-RC | Square Truss Corner 2 Way 90 Degree Round

ProX XT-SQ164-2W90-RC | Square Truss Corner 2 Way 90 Degree Round

$280.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

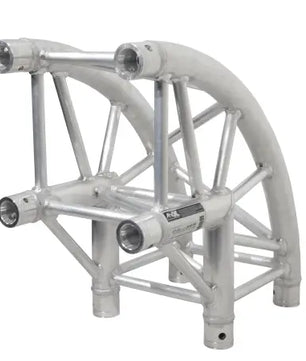

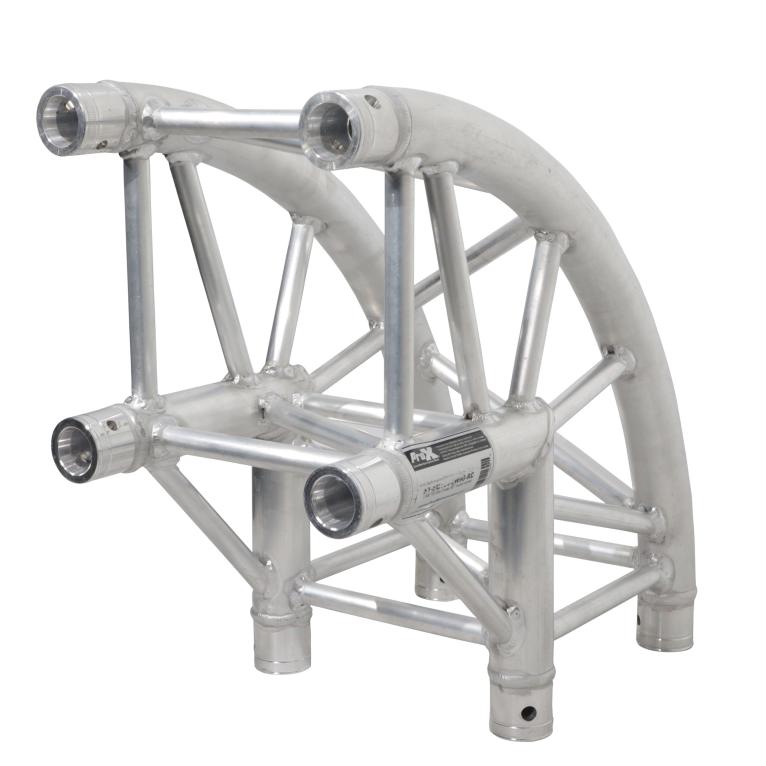

The ProX XT-SQ164-2W90-RC 2-way 90° Rounded Corner, 1.64 ft. (0.5 meters), truss corner helps you easily make soft squares or rectangles and works with the ProX XT Series box truss.

ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect formobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.

Tolerance Free Standard Conical connector
Main tube wall thickness of .08in
Includes connecting hardware set.
XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm

ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.

Features
ProX Trussing provides high strength with exceptional quality control and excellent pricing.

We own the factory, not generic trussing!
Built to exacting specifications
TUV Certified Welding & Processes
Compatible with most Conical Coupled trussing
Includes tapered shear pins with clips and 4 conical couplings

Exterior Dimensions & Weight
11.42"H x 19.68"W x 19.68"L - Weight: 15.00 lbs

Shipping Dimensions & Weight
Box 1 of 1: 12.00"H x 20.00"W x 21.00"L - Shipping Weight: 14.00 lbs

Suggested Shipping Method: Parcel

UPC
019372406440
