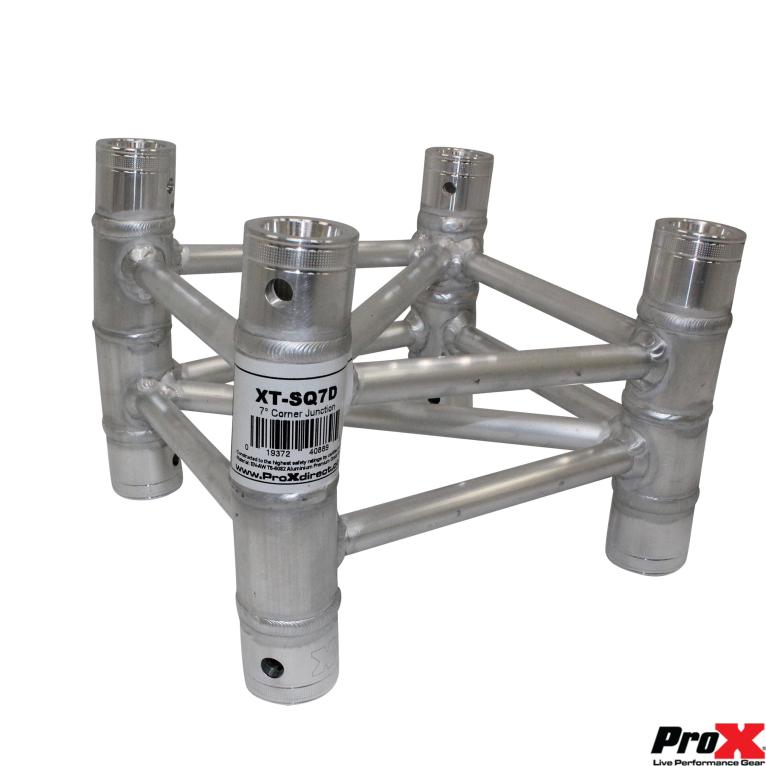

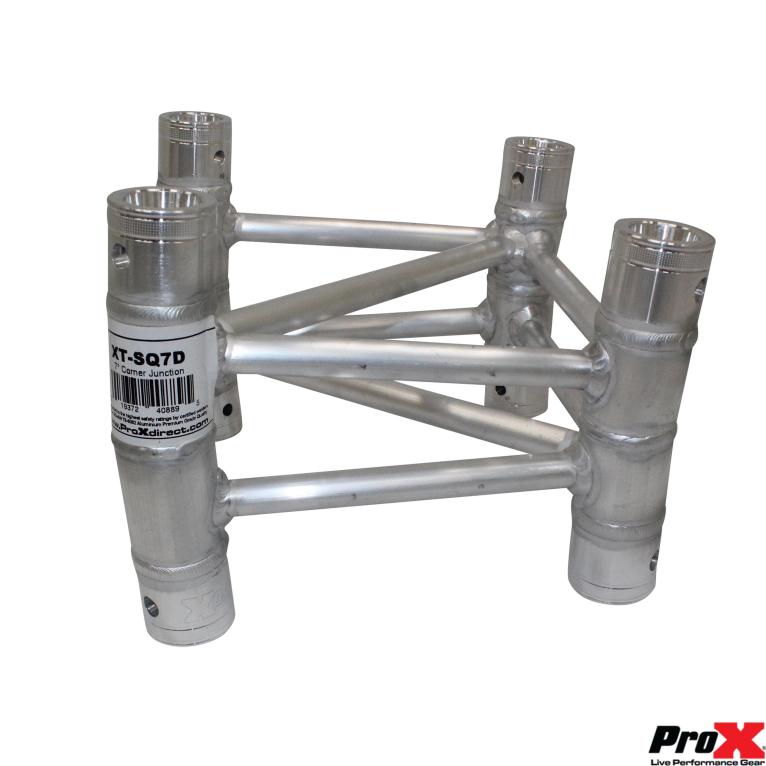

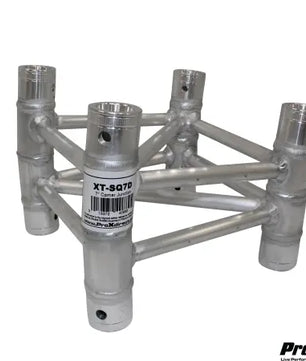

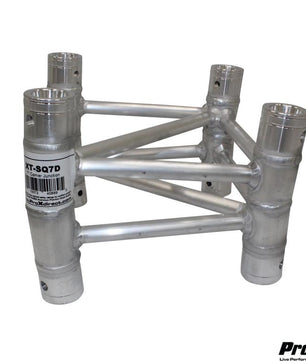

ProX XT-SQ7D | 7 Degree F34 Square Truss Angle Connector

ProX XT-SQ7D | 7 Degree F34 Square Truss Angle Connector

$160.99

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

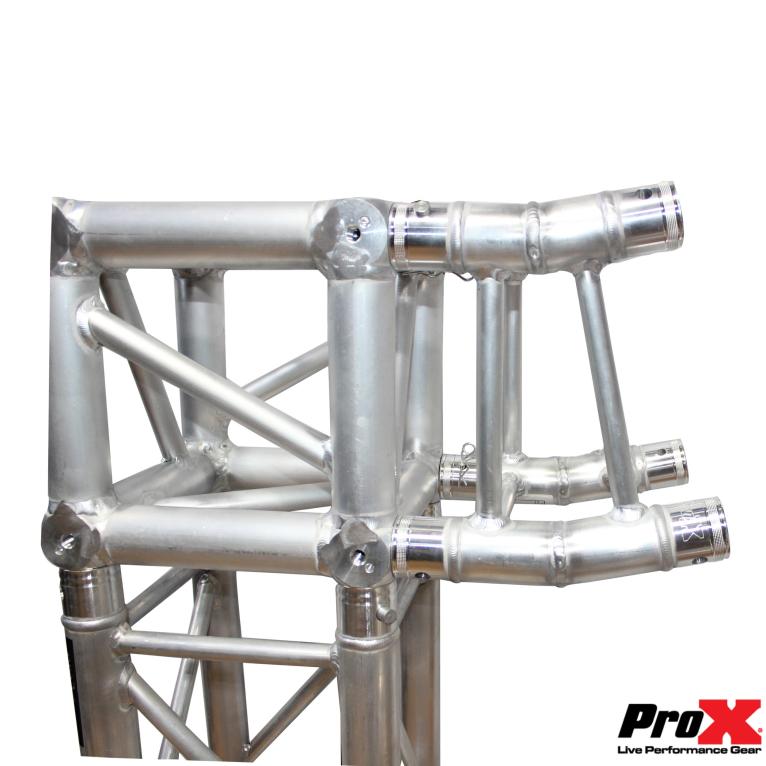

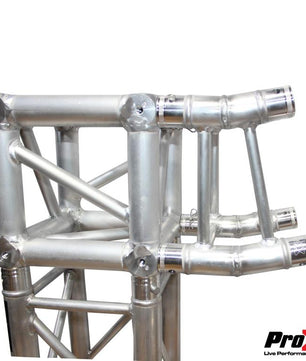

The ProX XT-SQ7D 7 Degree F34 Square Truss Angle Connector | 2mm Wall two way, fixed angle connector can be used singularly or in multiples to create angles and decorative designs not available with normal 90-degree box units while still maintaining excellent weight loading capabilities. This is excellent for building roof structures and unique designs.

ProX Truss specializes in high-quality, general-purpose aluminum lighting and stage trussing designed for live stages, theaters, nightclubs, church installations, mobile applications, trade shows, and retail applications. Our products are built using 6082-T6 Aluminum Alloy compositions. This lightweight, corrosion-resistant aluminum has a very high tensile strength, giving you the support and stability you need. The ProX Truss Conical Coupling System allows for genderless trusses, providing a more precise line up of chords and fastening points, while the conical shape of the couplers helps to maintain overall rigidity at the stress points and makes parts harder to damage. This system also makes assembly quick and easy with very few tools needed to complete set up.

ProX F34 Truss provides high strength with exceptional quality control and excellent pricing.

We own the factory, not generic trussing!
Built to exacting specifications
TUV Certified Welding & Processes
Compatible with most Conical Coupled F34 trussing
Includes tapered shear pins with clips and 4 conical couplings

FEATURES:

Fabricated by certified TUV welders
Equipped with connecting hardware
Overall width-11 7/16" (290mm)
Outer diameter tubing-2" (50mm)
Diagonal bracing-3/4" (20mm)
Wall thickness-0.08" (2mm)
Unit weight-8 lbs.
Aluminum Alloy EN AW-6082 T6
F34 Square Aluminum Truss
TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturer's F34 trussing products.

To Fit
Standard Conical Connection F34 Trussing

Dimensions
10.00"L x 11.42"W x 11.42"H
Weight: 8.50 lbs

Shipping Dimensions
13.50"L x 11.00"D x 13.50"H
Shipping Weight: 10.00 lbs

Suggested Shipping Method: Parcel

UPC
019372408895

Shipping

Orders ship from our northern NJ warehouse the same day if ordered by 3:30PM EST. Transit time ETA's are listed in the image below:

Return Policies

All orders come with our industry leading 90-Day return policy.

Cash Back or Store Credit available for returns within 30 days.
Store Credit available for returns within 31-90 days.

Restocking fees

Unopened Items: 5%
Opened but Mint Condition: 15%
Blemished, Missing/Damaged Packing or Accessories: 25%

Shipping Costs

Buyer is responsible for return shipping costs
If "Free" or discount shipping was provided with original order, our actual shipping cost will be deducted from the amount refunded/credited

Damages & Defects

We will swap any item reported as damaged or defective within 7 days of delivery for free. All transportation and replacement costs will be covered by us (within US48 states).
