ProX XTF-FT5323 Fantek Compact (16.3ft Max Height)

FANTEK Compact Front Loading Lifting Tower - 518 lb Capacity - Max Height 16.33ft | From Spain

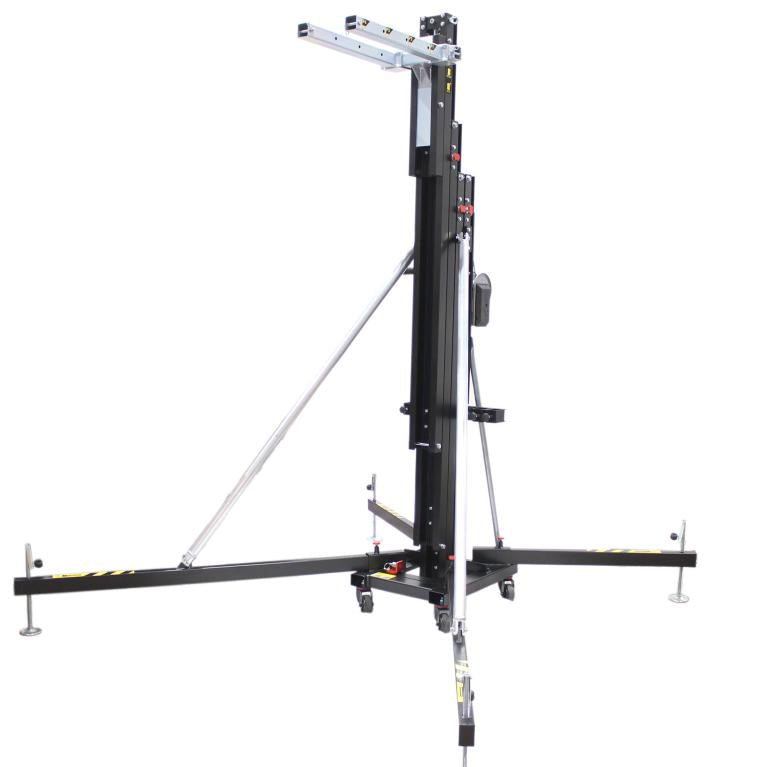

ProX XTF-FT5323 FANTEK® Compact Front Loading Lifting Tower - 518 lb Capacity - Max Height 16.33ft | From Spain

Description
The ProX XTF-FT5323 FANTEK® Lifting Tower is Front Loading and allows raising the load from the floor, avoiding any single effort and specially designed for a reliable lifting of Line Array Systems of up to 235 kg (518 lbs) to a maximum height of 4.98 meters / 16.33 Ft. This product is perfect to fly line array systems, trusses and LED screens. The compact design with castors gives the XTF-FT5323 tower easy handling and maneuverability, reducing storage space and it is the ideal solution for touring, rental and event production (concerts, events, trade fair stands, stage construction, fitting-out discos, theaters, broadcasting, TV, etc.).  This Compact model is only  5.62ft (1.71 m) folded height.

These Patented Dynamic Overlap® stacking trusses (4 Masts) are manufactured with extruded aluminum (Alloy: EN-AW according to 6082 T6) and TIG welded by Certified Welders for maximum safety, are specially designed to be compact when folded, reducing storage space and making it easier to handle.   FANTEK® towers use a reinforced steel base with outriggers that support heavy loads and high heights.

During lifting, the tower telescopic mechanism lift can stop safely at any of the Pin Locking System positions. These pins take the load off the wire rope.  Additionally, the DYNSYS® is a system designed to guarantee the “health” and good operation of the tower, since it accomplishes many functions, all focused on maximizing user safety.  Each Dynsys system is adjusted to control the torque that is applied on the winch and, when this is exceeded, the system acts and does not allow to continue the lifting process. The WIREDRIVE® is a multidirectional grooved pulley that reduces the wire angle between the winch drum and its entry to the first mast. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling.  Always secure loads at a locking point and never on the winch alone!

Use with:

XTF-ATF16PA Line Array Adapter  W/Hanging Ring
XTF-ATF17PAM Movable Line Array Adapter
XTF-ATF1DS Reversible Truss Adapter

Features
Design to fly line array systems, trussing and LED screens
Built from quality components to ensure maximum safety
Raise the load from the floor.
CE - DGUV V17/18 Certified Compliant
XT-FT5323  is Made by FANTEK® in Valencia Spain.
Minimum Height - 1.71 meters / 5.62 Feet
Max Height - 4.98 meters / 16.33 Feet
Max Load - 235 kg / 518 lbs
Winch - 500 kg / 1003.10 lbs
Steel Loading Forks - 500 mm / 19.68 Inches
DGUV is a 3rd Party Certification Body and provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.   CE marking is a certification mark that indicates conformity with health, safety, and environmental protection standards for products sold/manufactured within the European Economic Area (EEA).

FANTEK® was founded in 1940 and with a major expansion in 1984 and with many years of experience is the manufacturer of lifting towers in Valencia Spain, offers innovative high-end quality, reliable and efficient products to all customers worldwide. ProX Live Performance Gear is the only distributor of Fantec® Lifting Towers in the USA. The XTF-FT5323 Meets strict European standards. Certified to current standards [CE - DGUV].


To Fit
Line Array Systems, Trussing and LED Screens


Dimensions
21.50"L x 17.00"W x 67.00"H
Weight: 188.00 lbs

Shipping Dimensions
24.00"L x 18.00"D x 69.00"H
Shipping Weight: 198.00 lbs

Suggested Shipping Method: LTL

UPC
019372413493
