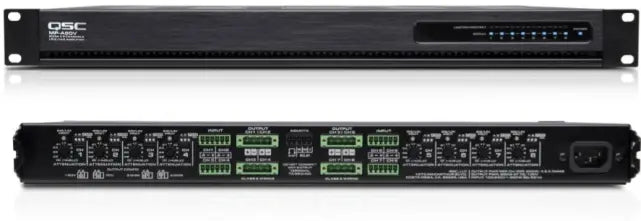

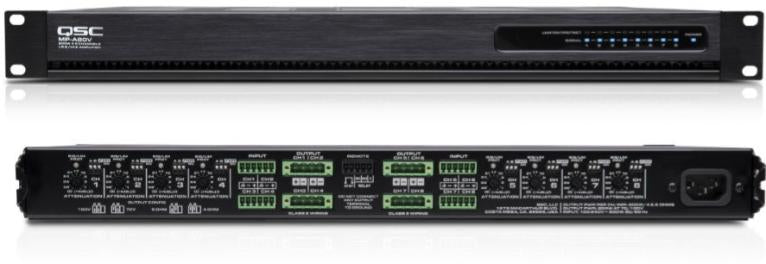

QSC MP-A40V | 4-Channel 200W Power Amplifier for Music & Paging

QSC MP-A40V

The QSC MP-A40V is a versatile 4-channel, 200W power amplifier designed specifically for music and paging applications. This amplifier is part of the MP-A Series, offering reliable performance and exceptional audio quality for various installed sound environments.

Key Features

• 4 channels of 200W output power
• Class-D amplification for high efficiency
• Flexible configuration for low impedance (4/8Ω) and 70V/100V systems
• Independent and bridged channel operation
• Euroblock input and output connectors
• Integrated high-pass filters on each channel
• Energy-efficient design with automatic standby mode
• Comprehensive protection circuitry
• Compact 1U rack-mountable design
• Front panel indicators for channel status and protection

Specifications

• Power Output: 4 x 200W
• Amplifier Class: Class-D
• Frequency Response: 20 Hz – 20 kHz (+0.2 dB, -0.5 dB)
• THD: < 0.1%
• Signal to Noise Ratio: > 100 dB
• Input Sensitivity: 1.2V (+4 dBu)
• High-Pass Filter: 70 Hz, selectable
• Input Connectors: Euroblock
• Output Connectors: Euroblock
• Standby Power Consumption: < 0.5W
• Dimensions: 1.75" x 19" x 15.9" (44 x 483 x 405 mm)
• Weight: 13.6 lbs (6.2 kg)

What's in the Box

• 1 x QSC MP-A40V Amplifier
• 1 x Power Cord
• 1 x User Manual
• 1 x Rack Mount Kit

NOTE: The QSC MP-A40V is perfect for commercial spaces requiring high-quality audio distribution for background music and paging systems.
