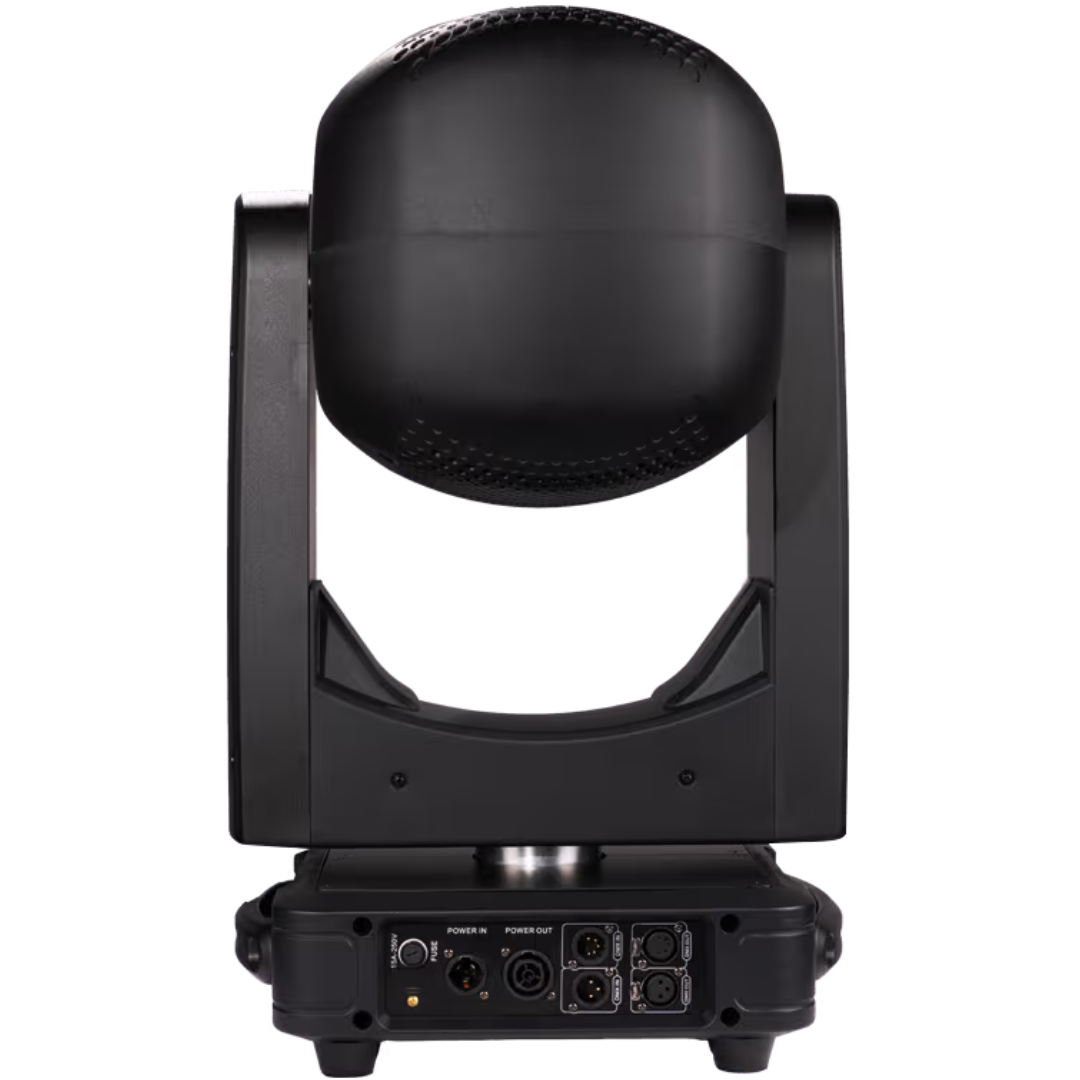

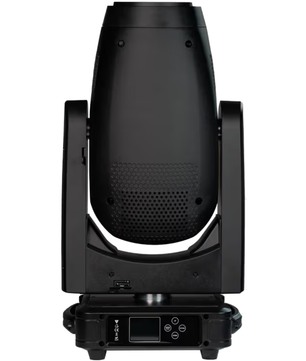

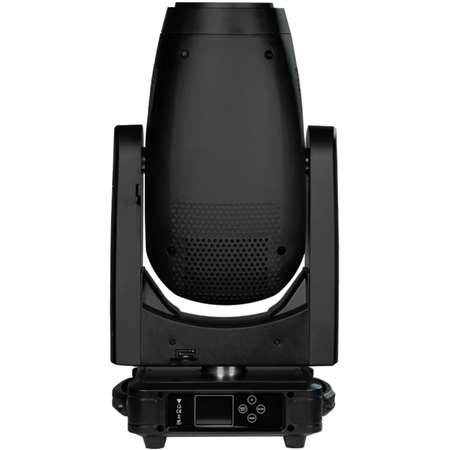

Rasha Photon Hybrid | Beam, Spot & Wash in One | 600W Moving Head with Zoom & FX

Hybrid Moving Head Fixture

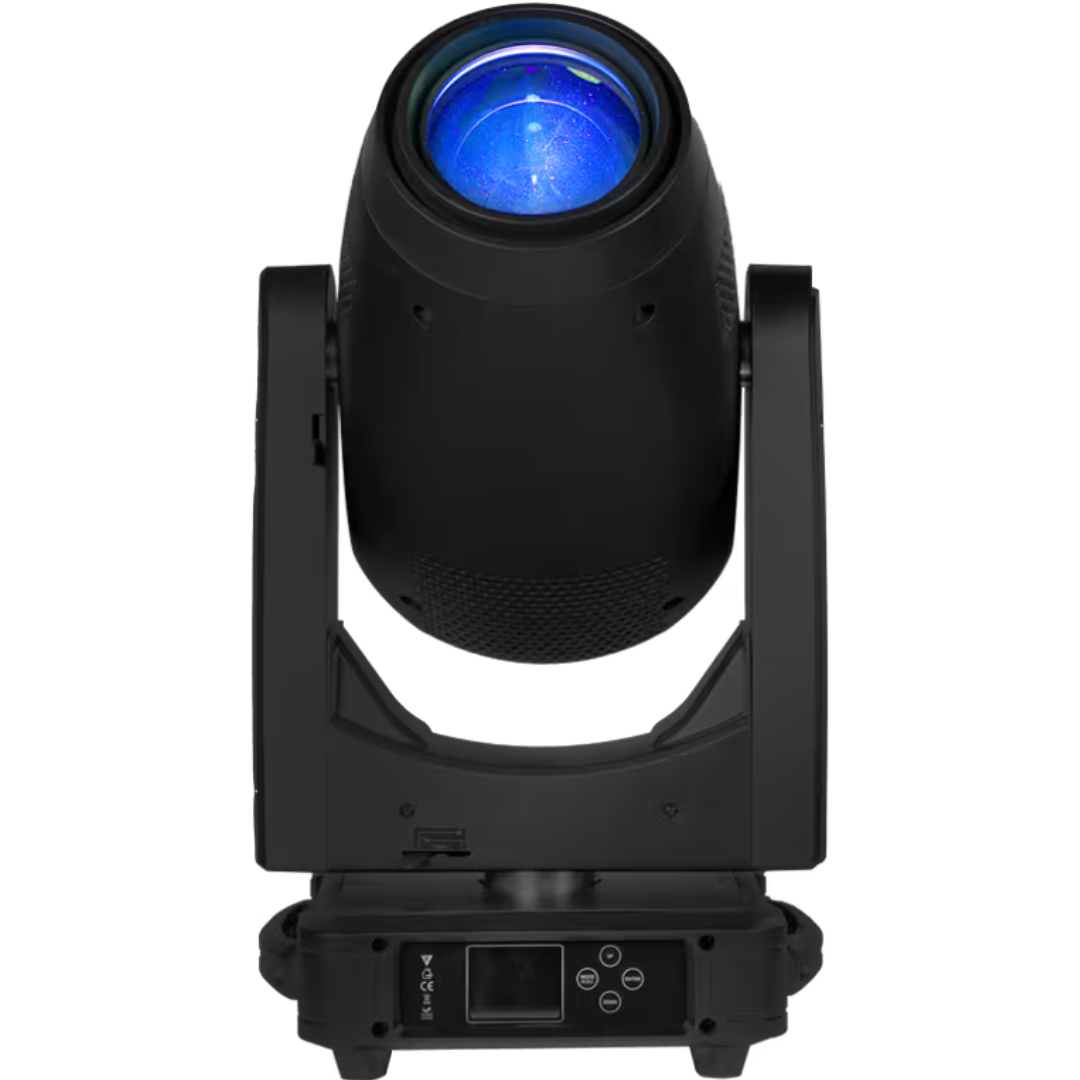

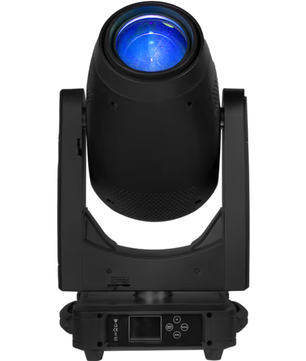

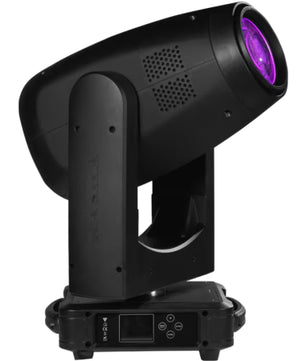

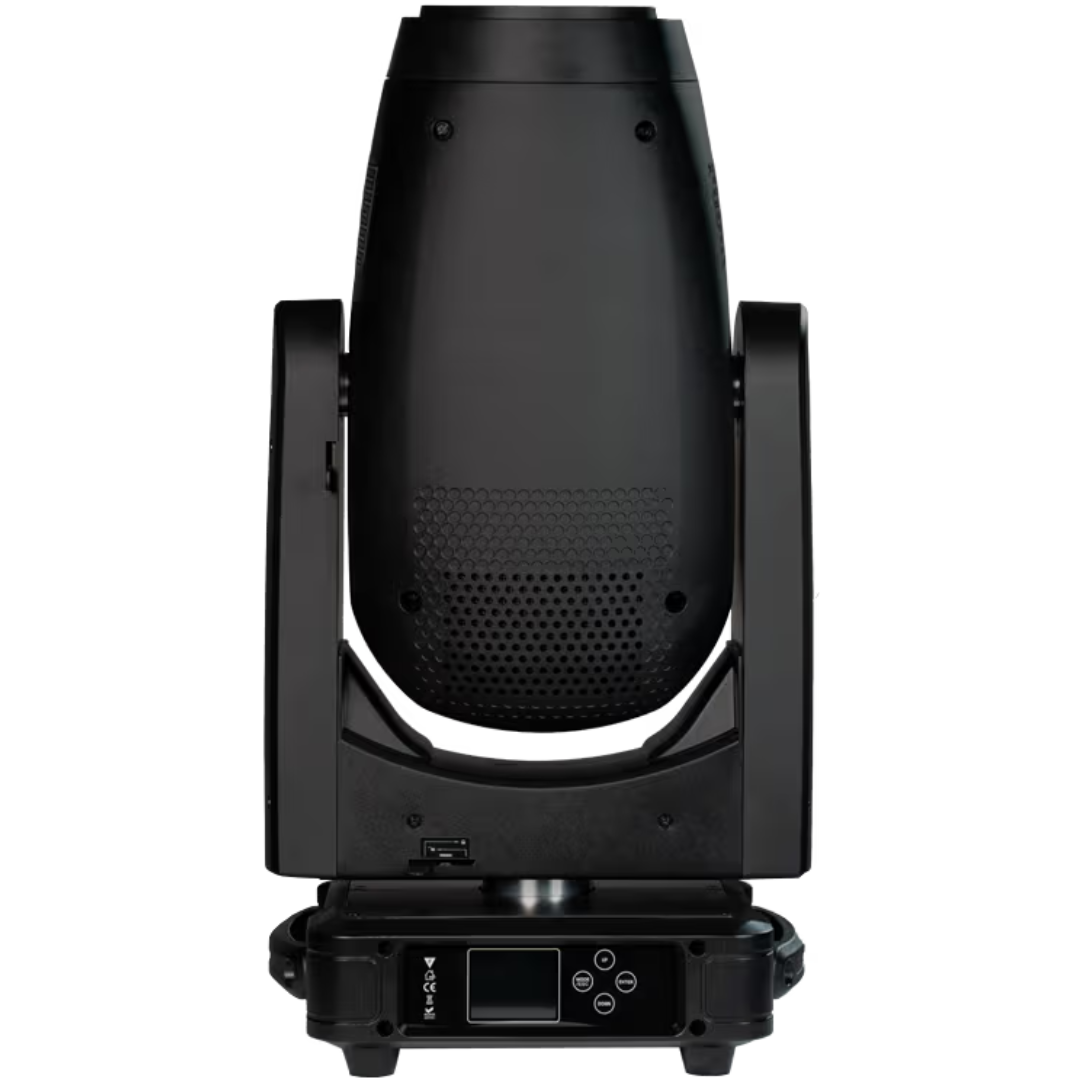

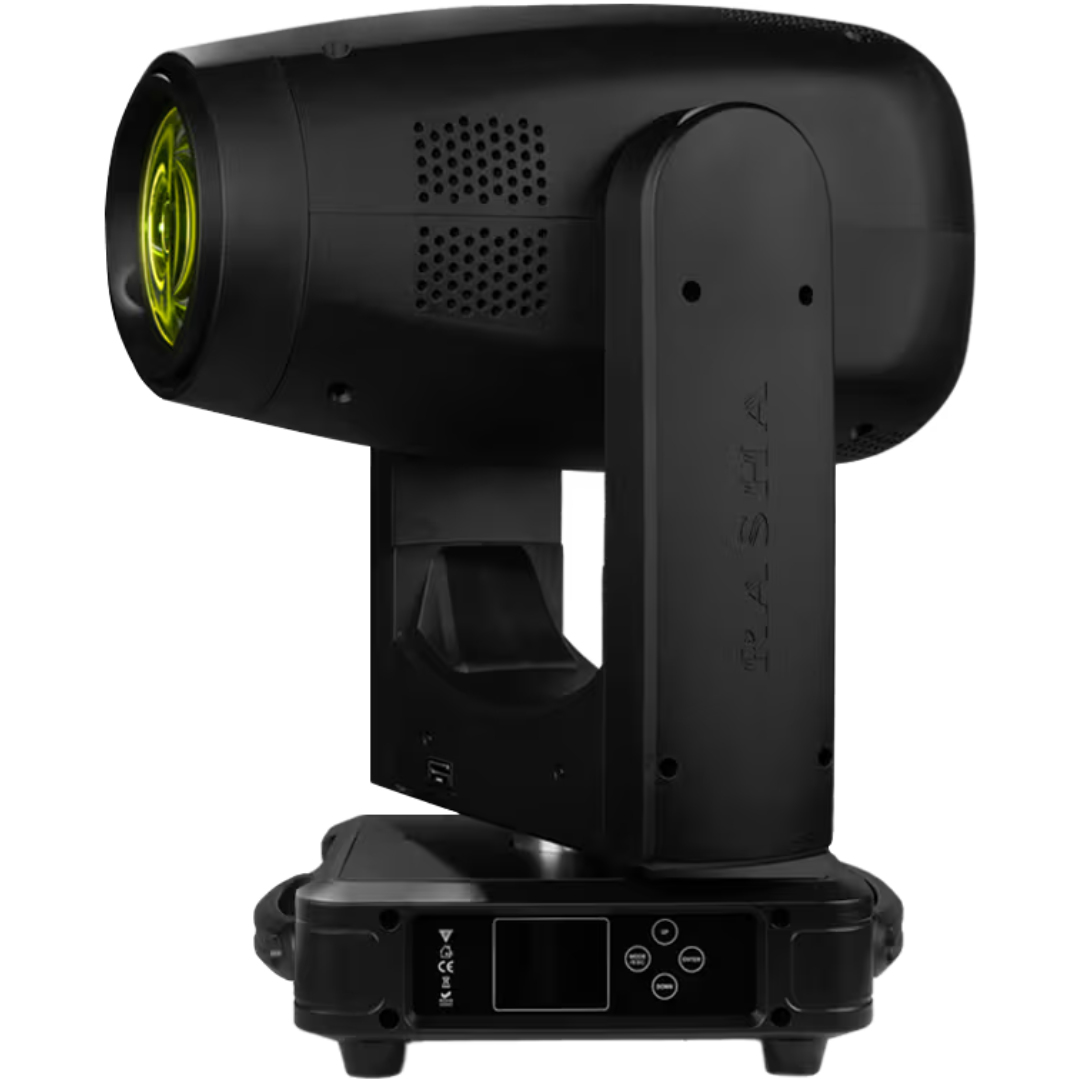

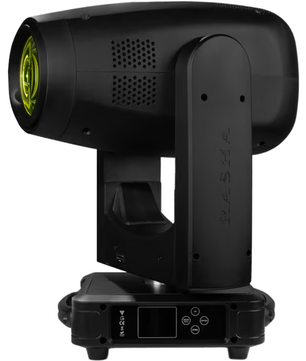

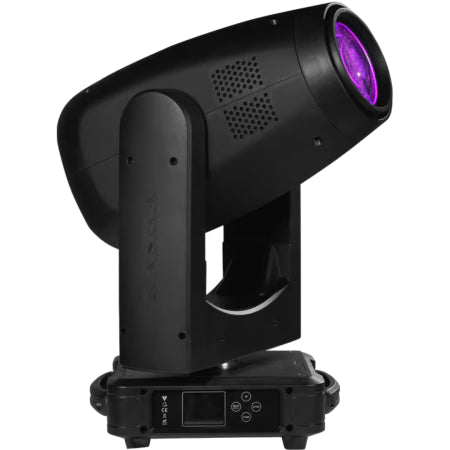

The Rasha Photon Hybrid is an all-in-one moving head fixture that combines beam, spot, and wash modes in a single rugged body. Built for venues, productions, and tours requiring both creative flexibility and consistent performance, it features a 600W LED engine, motorized zoom (6°–42°), and advanced optics that deliver stunning visuals at every angle. Whether you're crafting tight beams or broad washes, this hybrid fixture delivers brilliant results with pinpoint control.

Rasha Photon Hybrid Competitive Differences

• All-in-one Beam, Spot, and Wash functionality
• 600W cool white LED with 91,509 lux @ 5m

Rasha Photon Hybrid Description

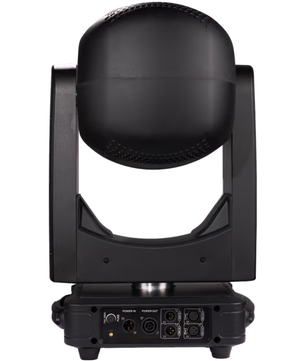

The Photon Hybrid by Rasha is a next-generation hybrid moving head built for high-output applications. Featuring a 600W cool white LED and 7:1 zoom ratio, it transitions smoothly between tight beams and wide washes—perfect for events that demand both energy and elegance. At narrow zoom, it outputs over 91,000 lux at 5 meters, ensuring visibility even in large venues or bright stage environments. This fixture includes a rotating 5-facet prism, motorized iris and focus, and a high-speed strobe (1–25 Hz) for impactful aerial and texture effects. With both CMY color mixing and a color wheel offering split and scrollable hues, the Photon Hybrid delivers rich, dynamic visuals. The motorized heavy frost filter also allows for smooth wash transitions when needed. Control options include DMX, RDM, Auto, and Sound modes with 25- and 36-channel profiles. The fixture supports both 3-pin and 5-pin DMX connectors, and includes IP65 True1 power in/out for easy daisy-chaining. The full-color LCD menu is reversible for any orientation, and dual omega brackets make rigging fast and secure. Thanks to its IP20-rated housing, active cooling system, and robust thermoplastic body, the Photon Hybrid is engineered for reliability in demanding production environments from concerts to churches and beyond.

Model Features

• Beam, Spot, and Wash hybrid fixture in one unit
• 600W CW LED with high-output performance
• Motorized zoom (6°–42°), focus, iris, and frost
• CMY color mixing and CTO flag
• 7-color + white wheel with split and scroll functions
• Rotating and static gobo wheels with indexing
• Animation wheel, 5-facet rotating prism, 16-bit dimming
• 540° pan / 270° tilt with 16-bit resolution
• DMX, RDM, Auto, and Sound control modes
• Full-color reversible LCD menu with 4-button control

Model Specifications

• Light Source: 600W CW LED
• Zoom Range: 6°–42° motorized
• Illuminance (Narrow): 91,509 lux @ 5m
• Color Temperature: 2,500K–7,200K
• Pan/Tilt: 540° / 270°
• Control: DMX (25ch, 36ch), RDM, Auto, Sound
• Dimensions: 10.5 x 15.4 x 28.9 in (267 x 393 x 736 mm)
• Weight: 57.6 lb (26.1 kg)
• Power: 863W max @ 120V
• IP Rating: IP20

What's In The Box

• Photon Hybrid fixture
• (2) Omega brackets
• Power cable (Edison to True1)
• 3-pin XLR DMX cable
• User manual
