Powered PA Speaker

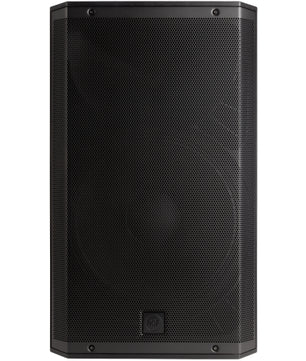

RCF ART 815-A is a 15-inch powered PA speaker designed for DJs, musicians, live sound, portable systems, venues, and installed applications. With 1400W peak Class D bi-amplification, FiRPHASE processing, XBOOST low-frequency enhancement, and a True Resistive Waveguide, it delivers high-output sound with consistent 100° x 60° coverage.
RCF ART 815-A Competitive Differences
- 15-inch powered speaker with 130dB max SPL for strong full-range output
- 1400W peak Class D bi-amplification with 1000W peak LF and 400W peak HF power
- FiRPHASE technology supports phase-coherent sound, clarity, and imaging
- XBOOST low-frequency enhancement adds extra bass depth when more impact is needed
- True Resistive Waveguide provides consistent 100° x 60° coverage across the listening area
RCF ART 815-A Description
The RCF ART 815-A is a portable 2-way active speaker built for users who need professional sound, strong output, and everyday versatility. Its 15-inch woofer and 1-inch compression driver with 1.75-inch voice coil provide full-range performance for DJs, musicians, live events, rehearsal spaces, venues, and installed audio systems.
The 1400W peak two-channel Class D amplifier delivers 1000W peak power to the low frequencies and 400W peak power to the high frequencies. With a maximum SPL of 130dB and a frequency response of 45Hz - 20kHz, the ART 815-A is suitable for full-range PA use, music playback, vocal reinforcement, stage monitoring, and systems where extra low-frequency presence is useful.
RCF FiRPHASE processing is designed to improve sound coherence, clarity, and imaging while maintaining low system latency. The rear-panel XBOOST control adds extra depth and impact to the low-frequency response, making it easy to adapt the speaker to the room, performance, or listening level.

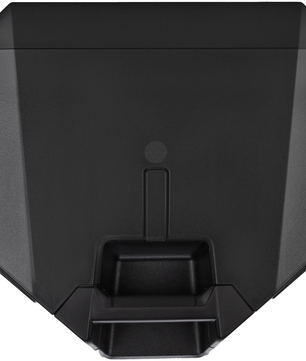

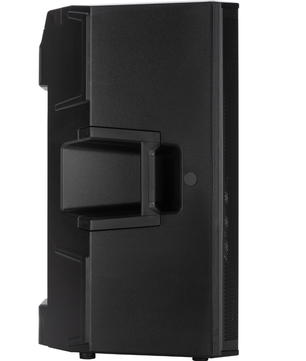

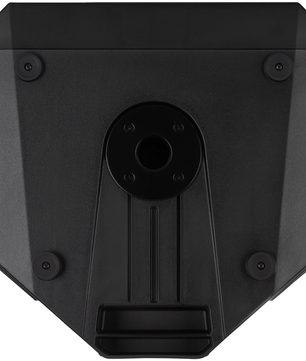

The reinforced polypropylene composite enclosure uses internal M-Brace reinforcement to increase rigidity and reduce unwanted vibration at high volume. With a heavy-duty steel grille, three M10 rigging points, side and top handles, and a 35 mm pole mount, the RCF ART 815-A is ready for portable deployment, pole mounting, wall or truss installation, and flown setups.
ART 815-A Features
- 15-inch 2-way powered PA speaker
- 130dB maximum SPL at 1 meter
- 1400W peak Class D bi-amplification
- 1000W peak low-frequency amplifier power
- 400W peak high-frequency amplifier power
- 1-inch compression driver with 1.75-inch voice coil
- 15-inch woofer with 2.5-inch voice coil
- FiRPHASE digital processing for phase-coherent sound
- XBOOST low-frequency enhancement
- True Resistive Waveguide for consistent coverage
- 100° x 60° coverage pattern

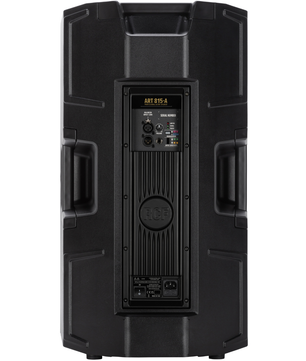

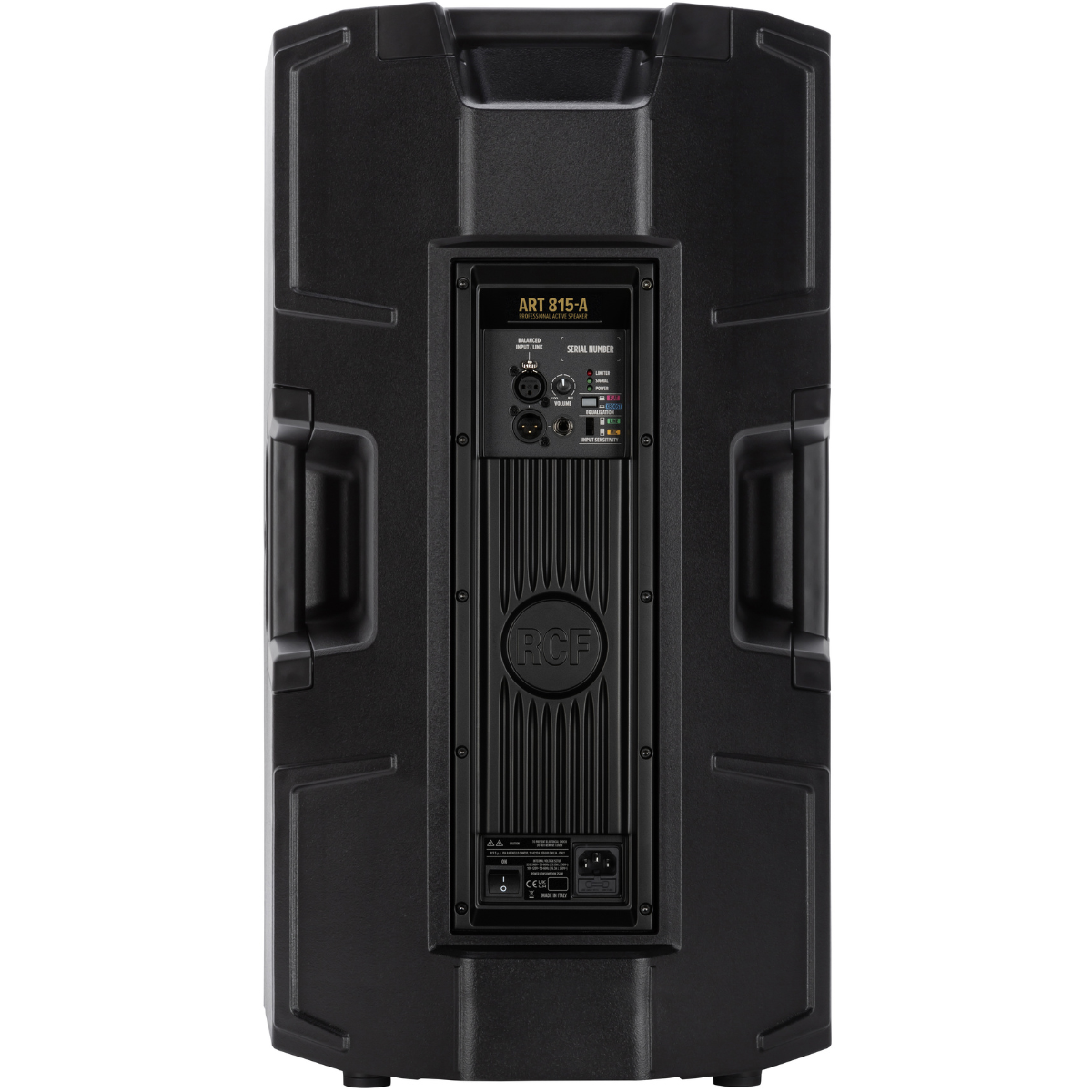

- Volume, Boost, and MIC/Line controls
- Balanced and unbalanced input support
- XLR and jack input connectors
- XLR output connector
- Thermal and RMS protection
- Soft limiter processing
- Convection cooling
- Reinforced polypropylene composite cabinet
- Internal M-Brace reinforcement

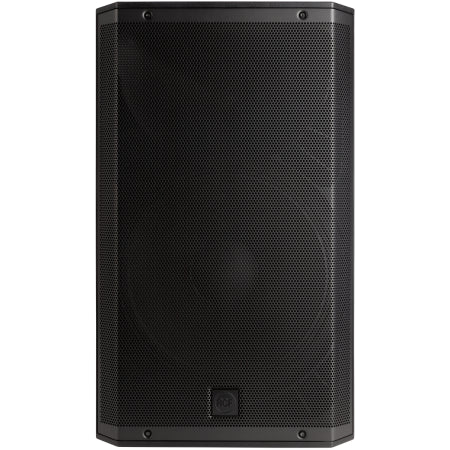

- Heavy-duty steel grille

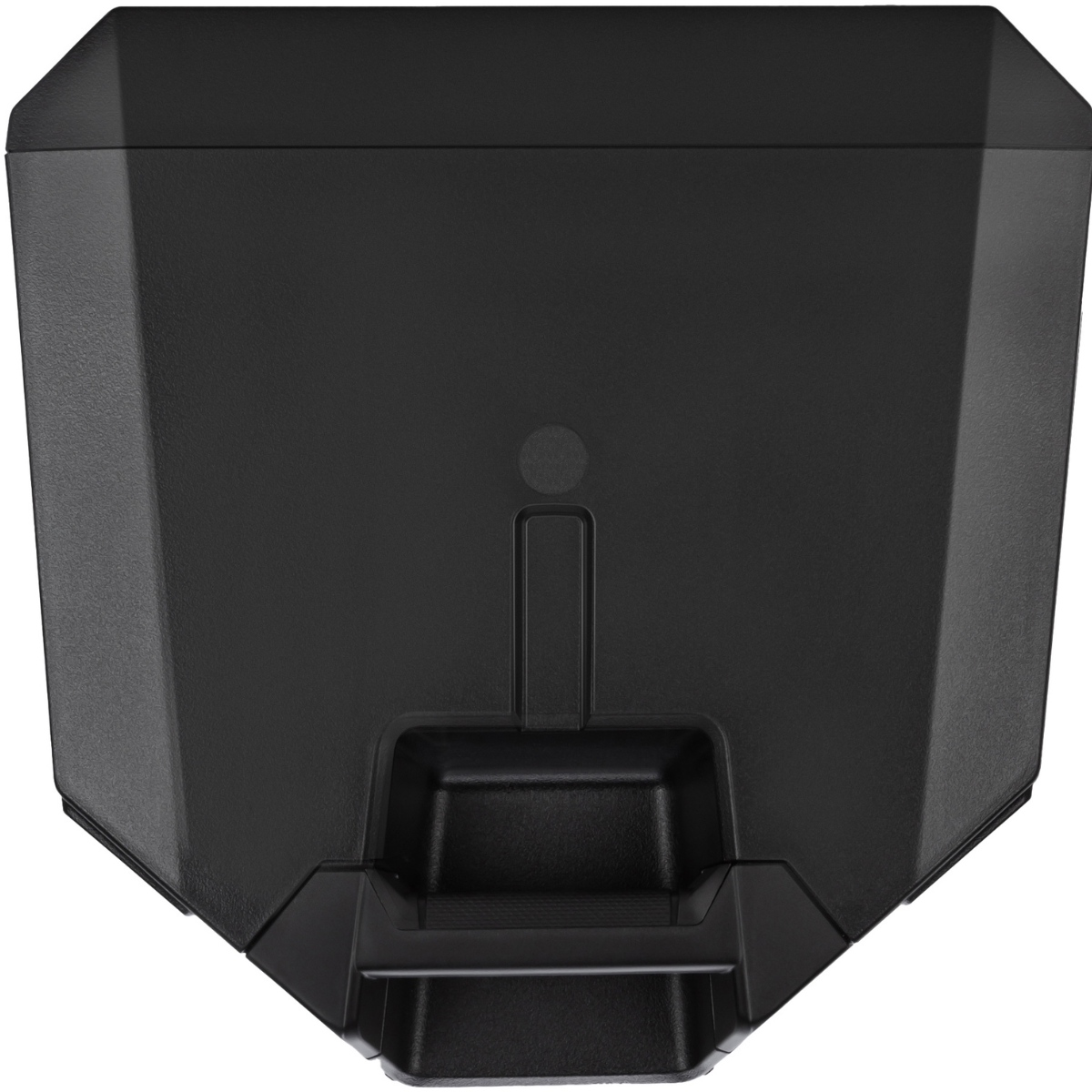

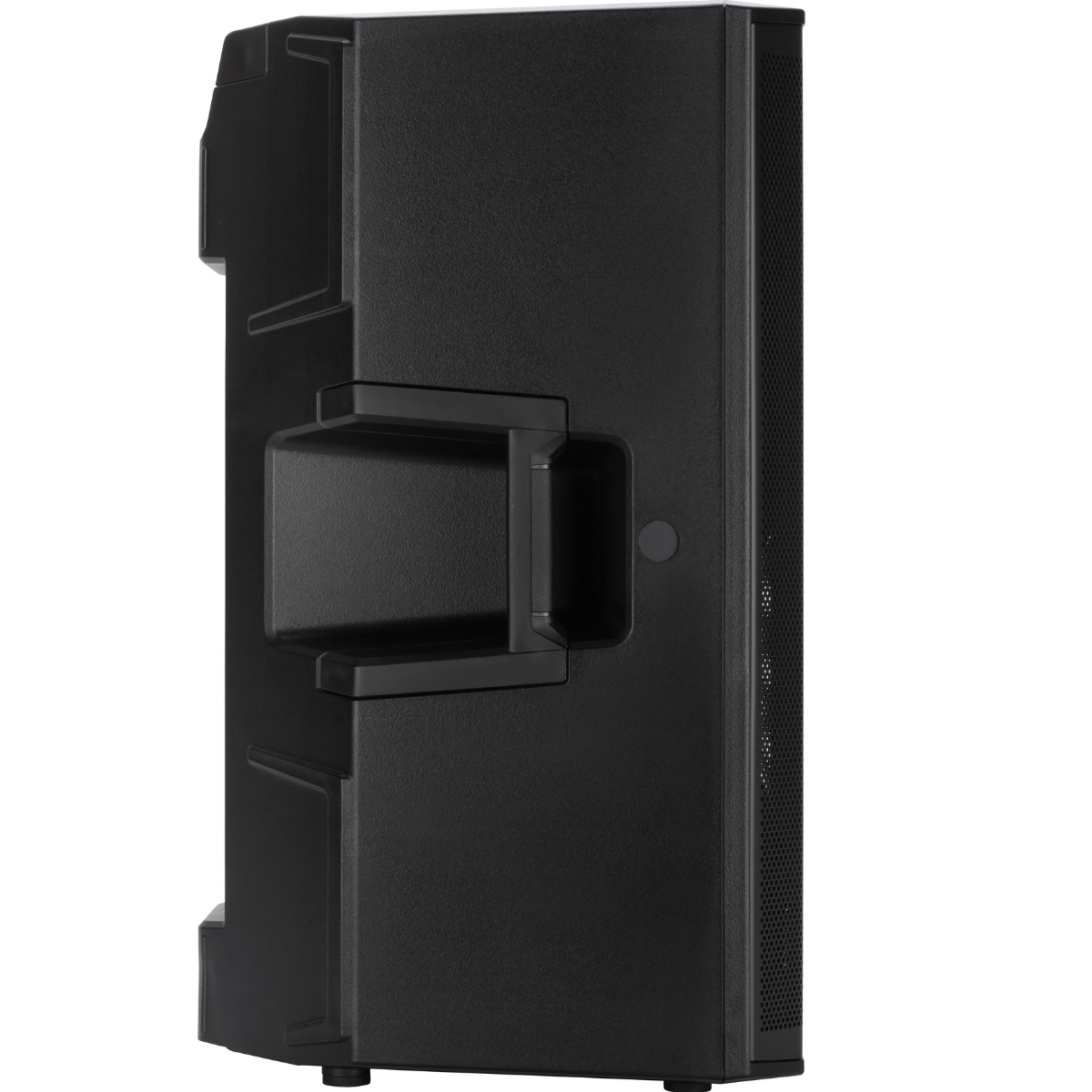

- One top handle and one handle on each side

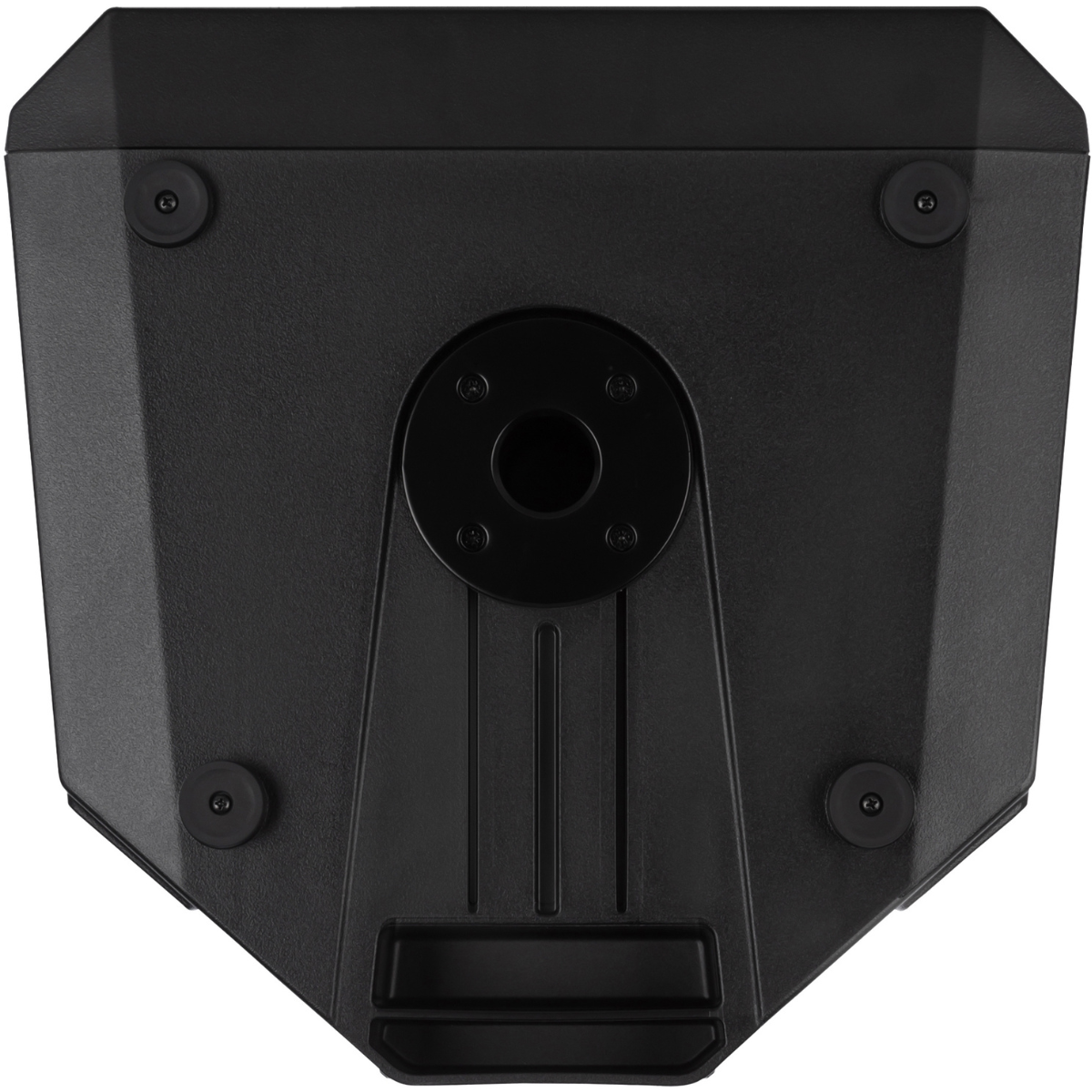

- 35 mm pole mount insert
- 3 x M10 mounting points, 1 on top and 1 on each side
ART 815-A Specifications
- System Type: Powered PA Speaker
- Configuration: 2-way active
- Frequency Response: 45Hz - 20kHz
- Max SPL: 130dB @ 1m
- Horizontal Coverage Angle: 100°
- Vertical Coverage Angle: 60°
- Compression Driver: 1 x 1.0 in, 1.75 in voice coil
- Woofer: 15 in, 2.5 in voice coil
- Input Signal: Balanced / unbalanced
- Input Connectors: XLR, jack
- Output Connector: XLR
- Input Sensitivity: -2dBu / +4dBu
- Microphone Input Sensitivity: -32dBu
- Crossover Frequency: 1600Hz
- Protections: Thermal, RMS
- Limiter: Soft limiter
- Controls: Volume, Boost, MIC/Line
- Total Power: 1400W peak
- High-Frequency Power: 400W peak
- Low-Frequency Power: 1000W peak
- Cooling: Convection
- Power Connection: VDE
- RCF Technology: FiRPHASE, XBOOST
- Safety Agency: CE compliant
- Cabinet Material: Polypropylene composite
- Hardware: 3 x M10, 1 on top and 1 each side
- Handles: 1 on top, 1 each side
- Pole Mount: 35 mm insert
- Grille: Steel
- Color: Black
- Height: 27.95 in (709.9 mm)
- Width: 16.33 in (414.9 mm)
- Depth: 16.15 in (410.2 mm)
- Weight: 49.38 lb (22.4 kg)
- Part Number 100-120V: 13000996
- EAN Code: 8024530025151
