Two-Way Passive Installation Speaker

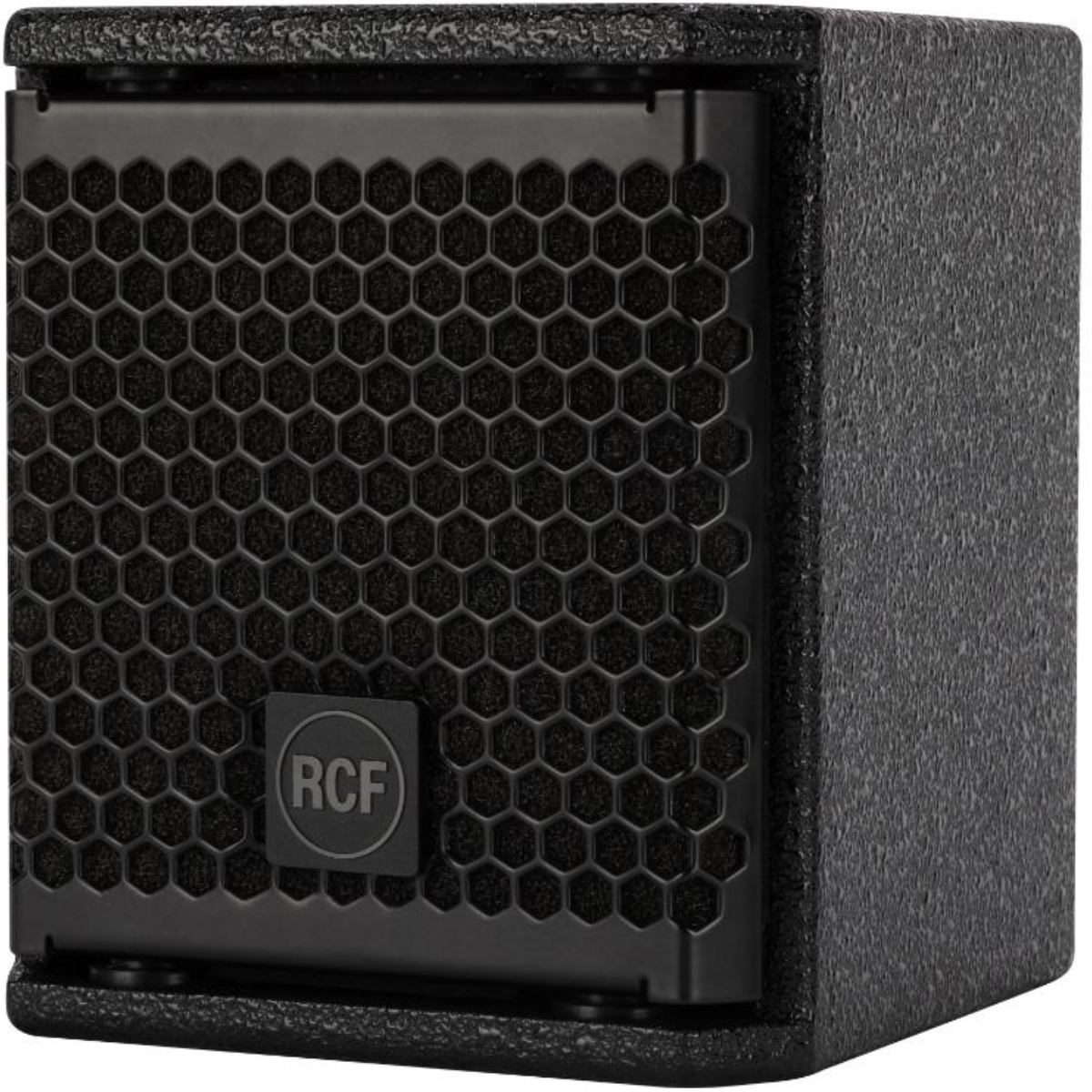

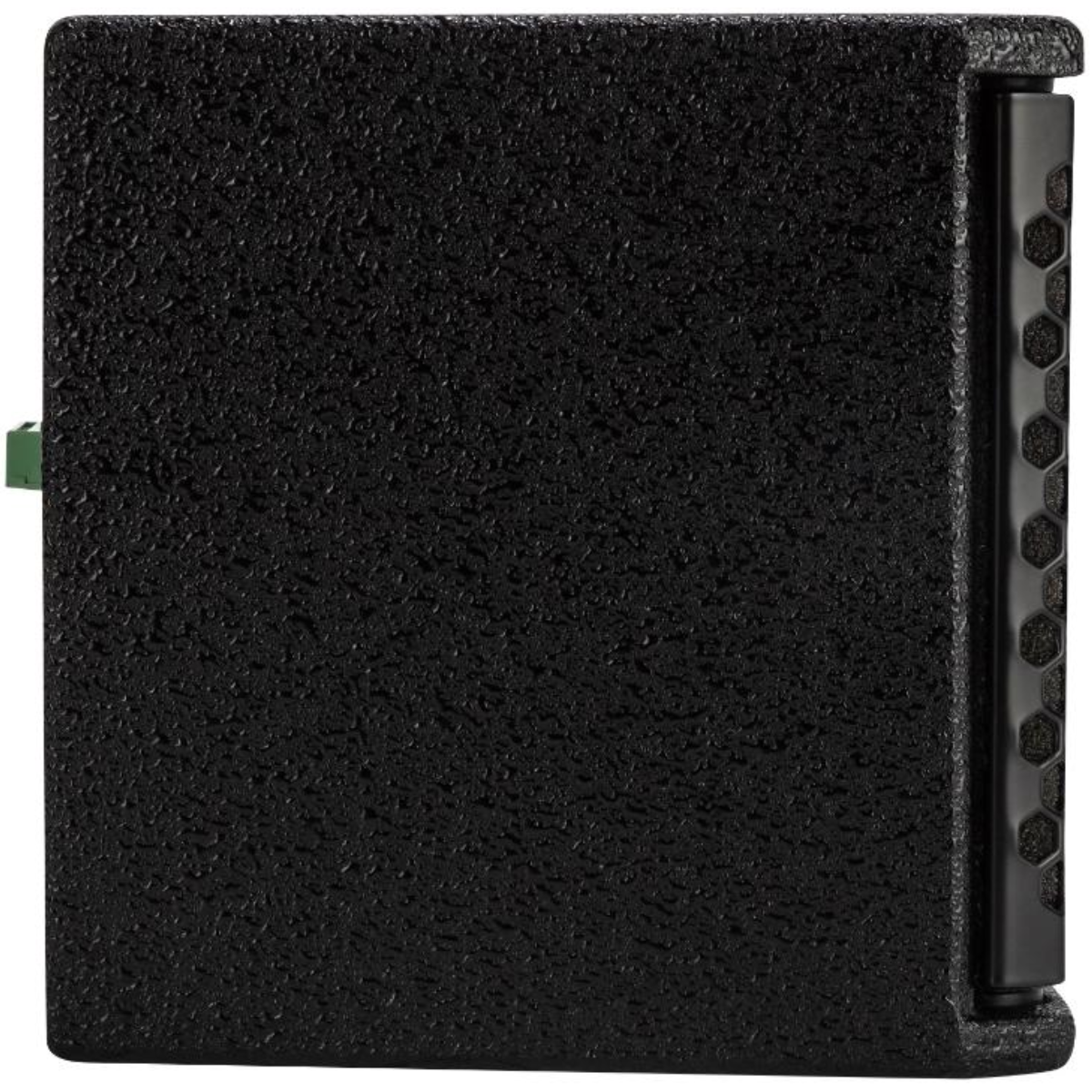

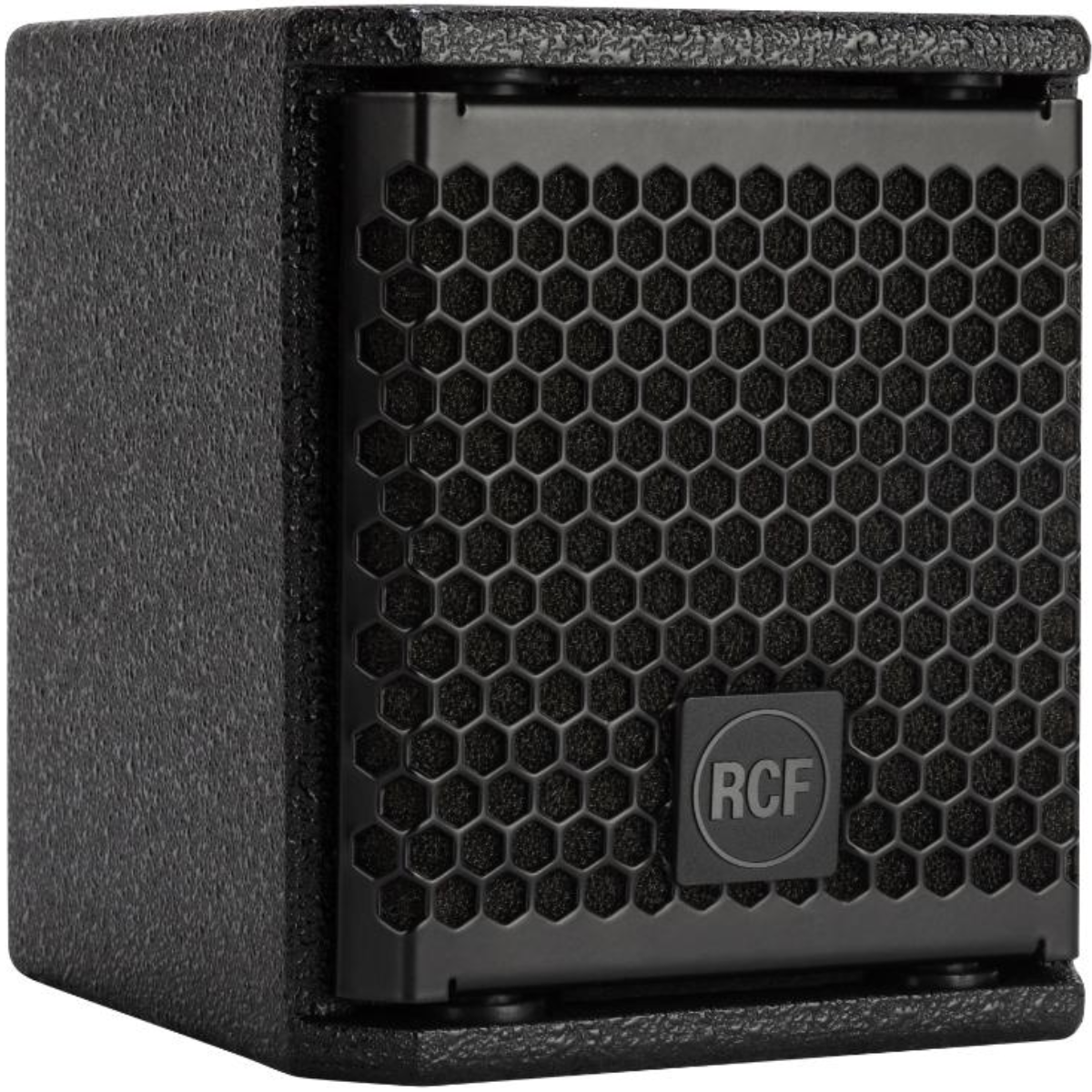

RCF COMPACT M 04 is a compact two-way passive coaxial speaker system engineered for installation and near-field applications. Featuring a 4" woofer and 1" neodymium dome tweeter, it delivers balanced full-range sound with wide 120° x 120° coverage in an elegant, space-saving enclosure.

Ideal for restaurants, retail stores, corporate spaces, houses of worship, and hospitality venues, it provides clear intelligibility and smooth frequency response in both background and foreground audio applications.

RCF COMPACT M 04 Competitive Differences

4" coaxial design with 113 dB max SPL in a compact plywood cabinet
Wide 120° x 120° constant directivity coverage with included wall bracket

RCF COMPACT M 04 Description

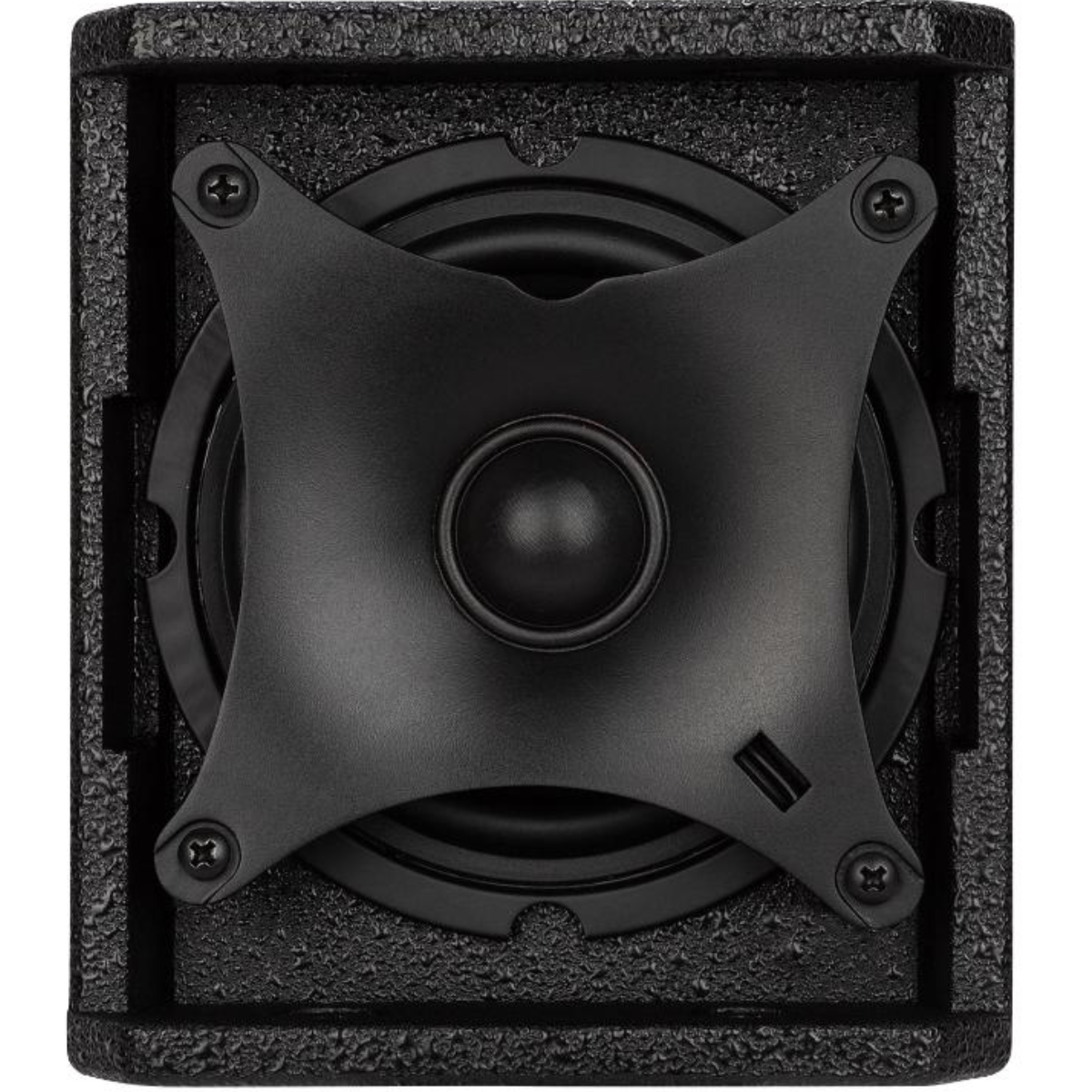

The RCF COMPACT M 04 is built as a multipurpose full-range loudspeaker suitable for a wide variety of fixed installation environments. Its coaxial configuration pairs a 4" woofer with a 1" voice coil and a 1" neodymium dome tweeter, crossed over at 1800 Hz for smooth, consistent response from 90 Hz to 20 kHz.

With 60W RMS power handling (240W peak) and a maximum SPL of 113 dB, the M 04 delivers low-distortion audio that exceeds expectations for its compact size. A system sensitivity of 89 dB and 16-ohm nominal impedance make it ideal for distributed audio systems and multi-speaker installations.

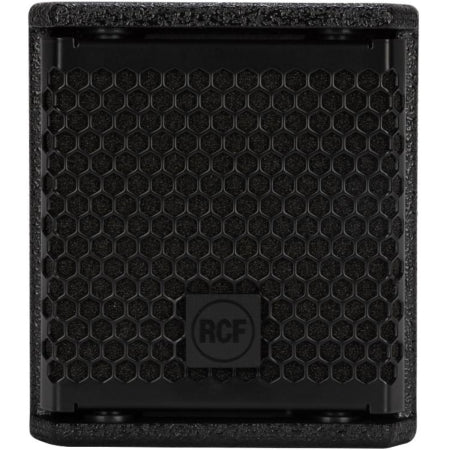

The high-quality plywood cabinet ensures durability and enhanced acoustic performance, while the steel grille with protective cloth maintains a clean, professional appearance. Available in black (RAL 9005) and white (RAL 9003), the M 04 blends seamlessly into modern architectural spaces.

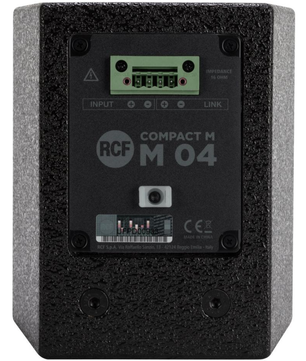

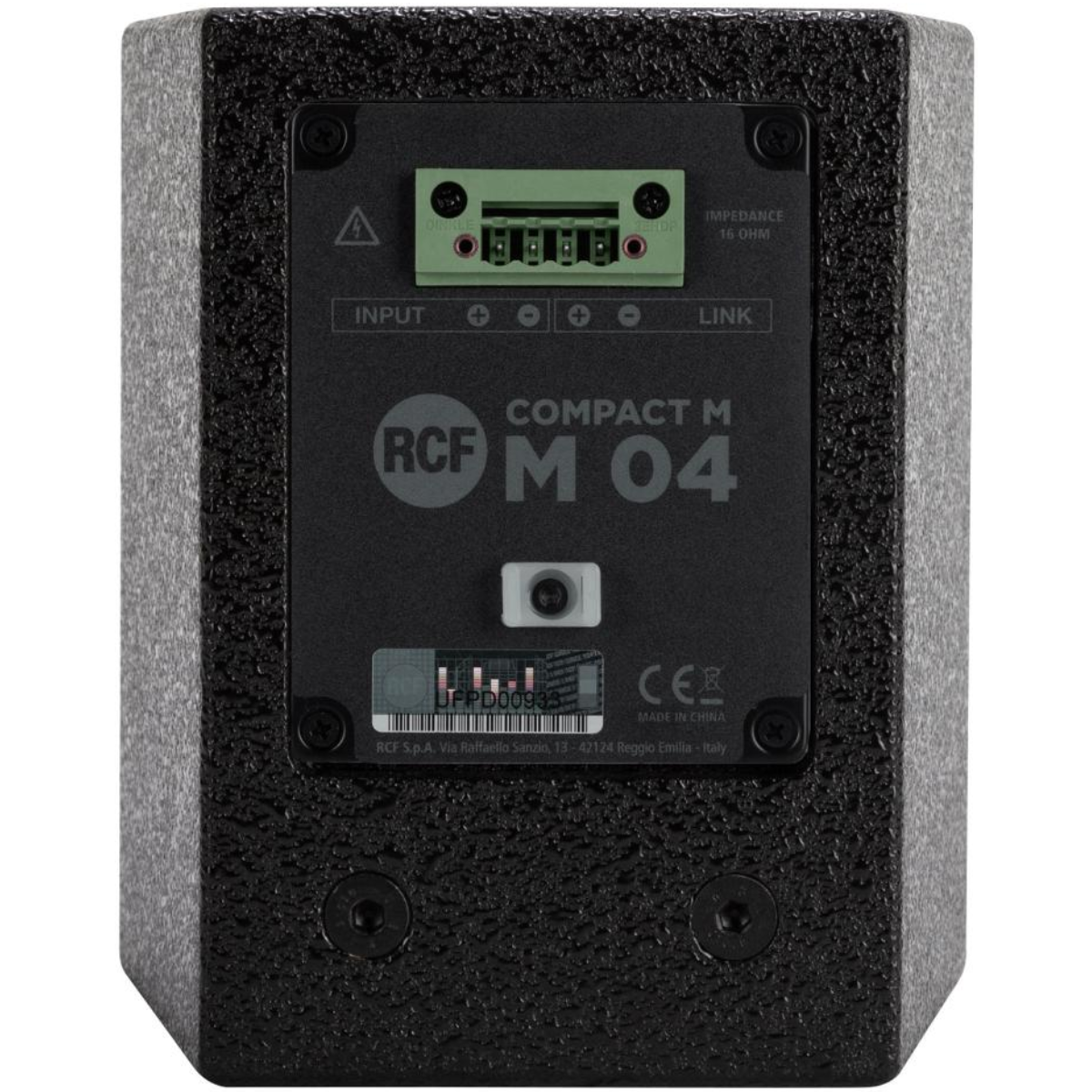

Installation is streamlined with included wall mount bracket and multiple rigging points (2 x M6, 2 x M8). Euroblock input and output connectors allow for clean, secure wiring in commercial applications, making the COMPACT M 04 an efficient and elegant solution for permanent audio systems.

COMPACT M 04 Features

Two-way passive full-range coaxial speaker
60W RMS power handling (240W peak)
Maximum SPL: 113 dB
Frequency response (-10 dB): 90 Hz – 20 kHz
120° x 120° constant directivity coverage
1 x 4" woofer with 1" voice coil
1 x 1" neodymium dome tweeter
16-ohm nominal impedance
System sensitivity: 89 dB
Crossover frequency: 1800 Hz
Euroblock input and output connectors
High-quality plywood cabinet
Steel grille with cloth backing
Wall mount bracket included
Available in black (RAL 9005) and white (RAL 9003)

COMPACT M 04 Specifications

Speaker Type: Two-Way Passive Full-Range
Power Handling: 60W RMS / 240W Peak
Maximum SPL @ 1m: 113 dB
Frequency Response (-10 dB): 90 Hz – 20 kHz
Coverage Angle (H x V): 120° x 120°
Nominal Impedance: 16 ohms
System Sensitivity: 89 dB
Crossover Frequency: 1800 Hz
Woofer: 1 x 4.0" with 1.0" voice coil
Tweeter: 1 x 1.0" neodymium dome with 1.0" voice coil
Input Connectors: Euroblock
Output Connectors: Euroblock
Cabinet Material: Plywood
Grille: Steel with cloth
Mounting Hardware: 2 x M6, 2 x M8
Height: 5.83" (148 mm)
Width: 5.2" (132 mm)
Depth: 5.71" (145 mm)
Weight: 5.07 lb (2.3 kg)

What's In The Box

RCF COMPACT M 04 speaker
Wall mount bracket
