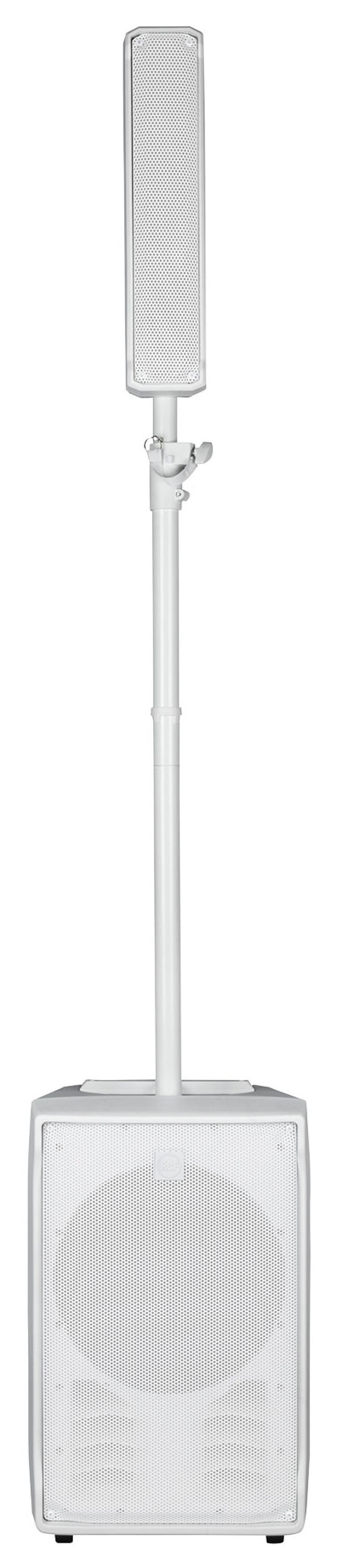

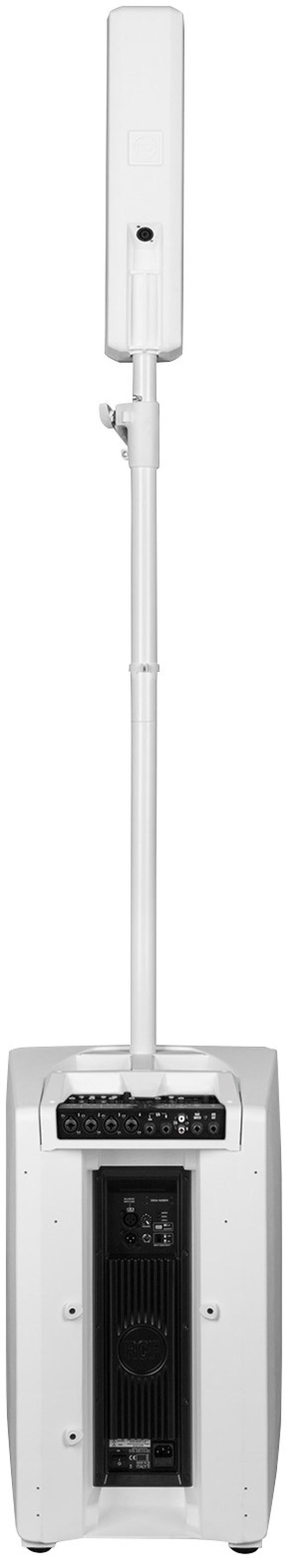

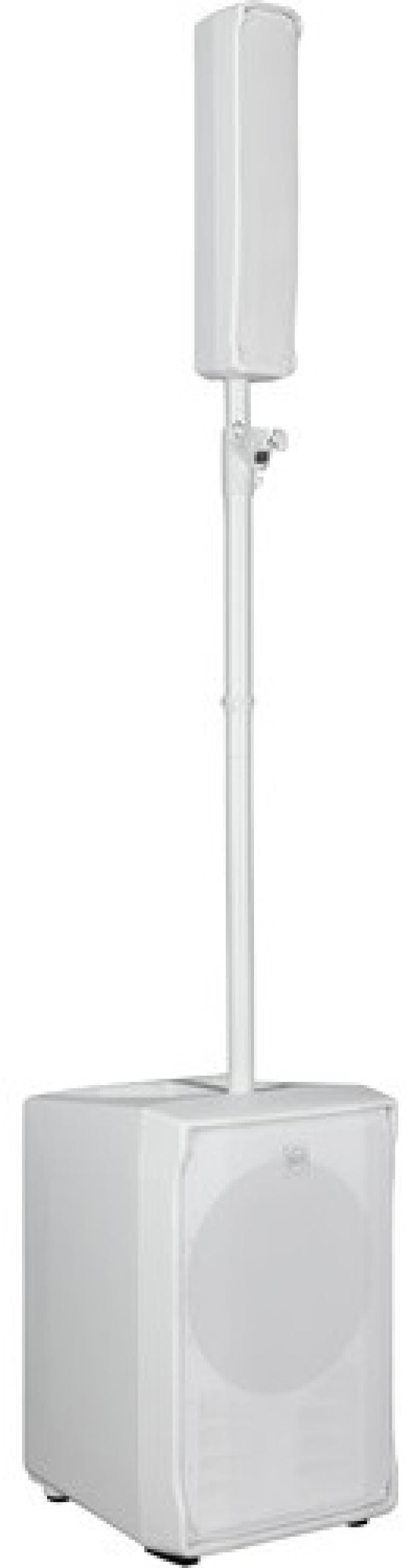

RCF Evox J8W | 12in Woofer – 128 dB | White Column PA System with Built-In DSP

Portable and Powerful White Column Array PA System

The RCF Evox J8W is a high-performance, portable column array PA system designed for crystal-clear vocal reproduction, deep bass, and a wide dispersion pattern. Featuring a 12” high-powered woofer and eight 2” full-range drivers, this system delivers a well-balanced sound with an impressive 128 dB max SPL. With 1400W peak power and advanced DSP processing, the Evox J8W ensures powerful and accurate audio for DJs, live performances, corporate events, and more.

RCF Evox J8W Competitive Differences

• 1400W Class-D Amplification – Delivers 128 dB SPL with clear mids and deep bass.
• 12” High-Excursion Woofer – Provides impactful low-frequency response.
• 8 x 2” Ultra-Compact Full-Range Drivers – Ensures detailed highs and midrange clarity.
• Wide 120° x 30° Coverage – Ideal for large areas and wide audience dispersion.
• FiRPHASE DSP Processing – Optimizes phase alignment for high-definition sound.
• Lightweight & Durable Composite Cabinet – Easy to transport and set up.
• Stylish White Finish – Perfect for elegant events, weddings, and corporate settings.

RCF Evox J8W Description

The RCF Evox J8W maintains the renowned sound quality of the Evox series in a more portable, lightweight composite enclosure. Engineered with a line source satellite module, the system offers exceptional vocal clarity and extended low-frequency response. The built-in 1400W Class-D amplifier powers the system efficiently, ensuring robust sound projection with minimal distortion.

Designed for versatility, the Evox J8W’s wide 120° horizontal coverage and 30° vertical dispersion provide consistent sound distribution in any venue. Whether used for mobile DJs, live musicians, conferences, or houses of worship, this system ensures clear, powerful, and immersive sound.

RCF Evox J8W Features

• 1400W peak power, 700W RMS
• 128 dB max SPL
• 40 Hz – 20 kHz frequency response
• 12” high-power woofer with a 2.5” voice coil
• 8 x 2” ultra-compact full-range drivers
• 120° x 30° dispersion for wide sound coverage
• Advanced DSP processing with FiRPHASE technology
• Lightweight, durable PP composite cabinet
• Integrated top handle for easy transport
• Elegant white finish (RCF J8W model)

RCF Evox J8W Specifications

• Acoustical:
  • Frequency Response: 40 Hz – 20 kHz
  • Max SPL: 128 dB
  • Horizontal Coverage: 120°
  • Vertical Coverage: 30°
• Transducers:
  • 8 x 2” full-range drivers with 1.0” voice coil
  • 12” woofer with 2.5” voice coil
• Input/Output:
  • Balanced/unbalanced input signal
  • XLR and Jack input connectors
  • XLR output connectors
  • Input sensitivity: -2 dBu / +4 dBu
• Processor Section:
  • Crossover Frequency: 220 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Volume, Boost, Mic/Line
• Power:
  • 1400W Peak (700W RMS)
  • HF: 400W Peak, 200W RMS
  • LF: 1000W Peak, 500W RMS
  • Cooling: Convection
• Physical Specs:
  • Cabinet Material: PP Composite
  • Color: White
  • Grille: Steel
  • Handles: 1 Top
  • Pole Mountable: Yes
• Dimensions & Weight:
  • Height: 24.53 inches (623 mm)
  • Width: 15.75 inches (400 mm)
  • Depth: 18.11 inches (460 mm)
  • Weight: 52.47 lbs (23.8 kg)

What's in the Box?

• (1) RCF Evox J8W Active Column Array System
• (1) Power Cable
• (1) User Manual
