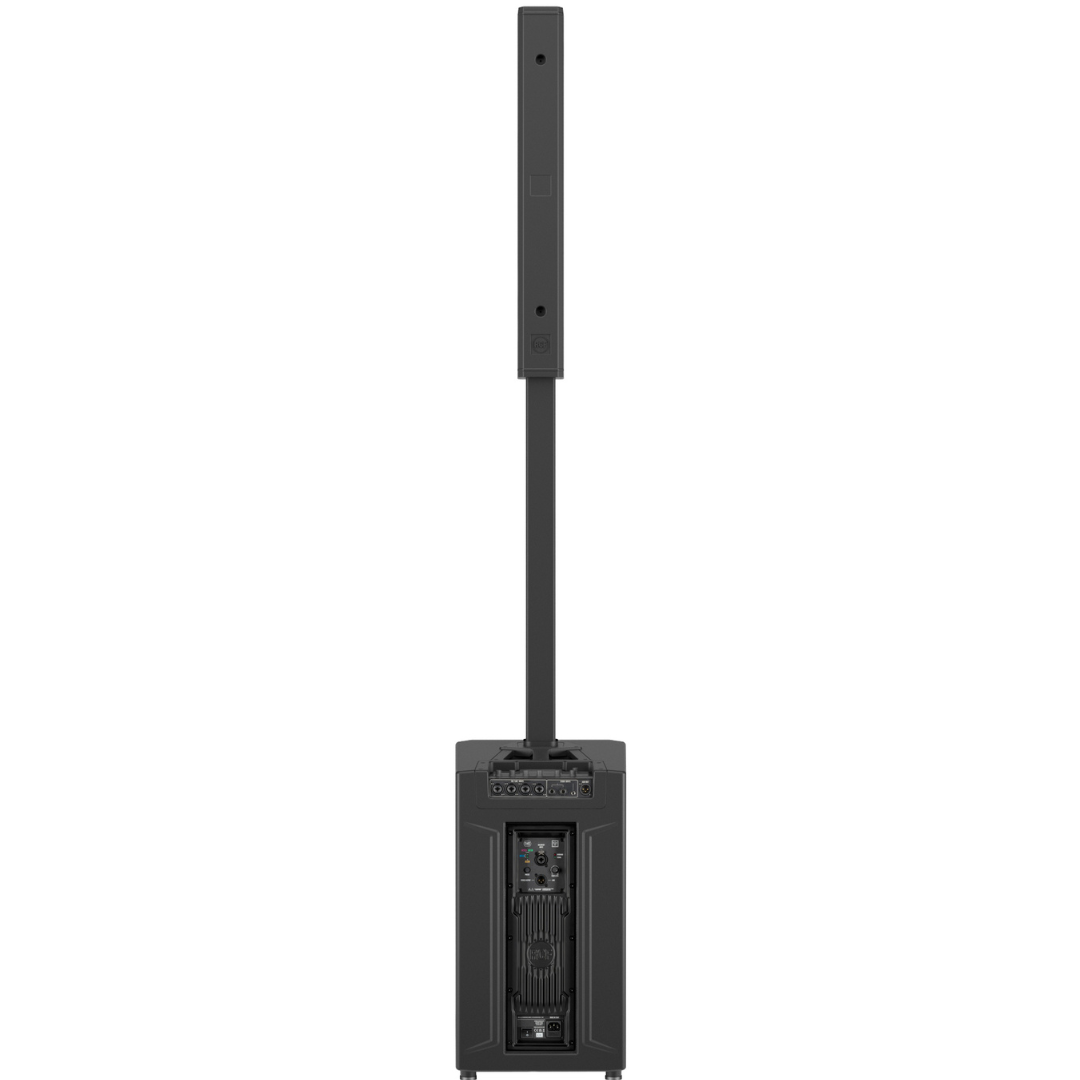

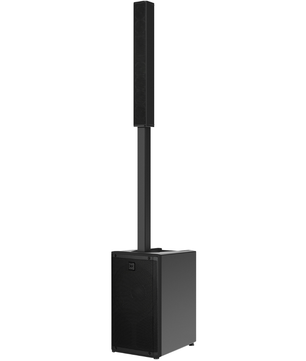

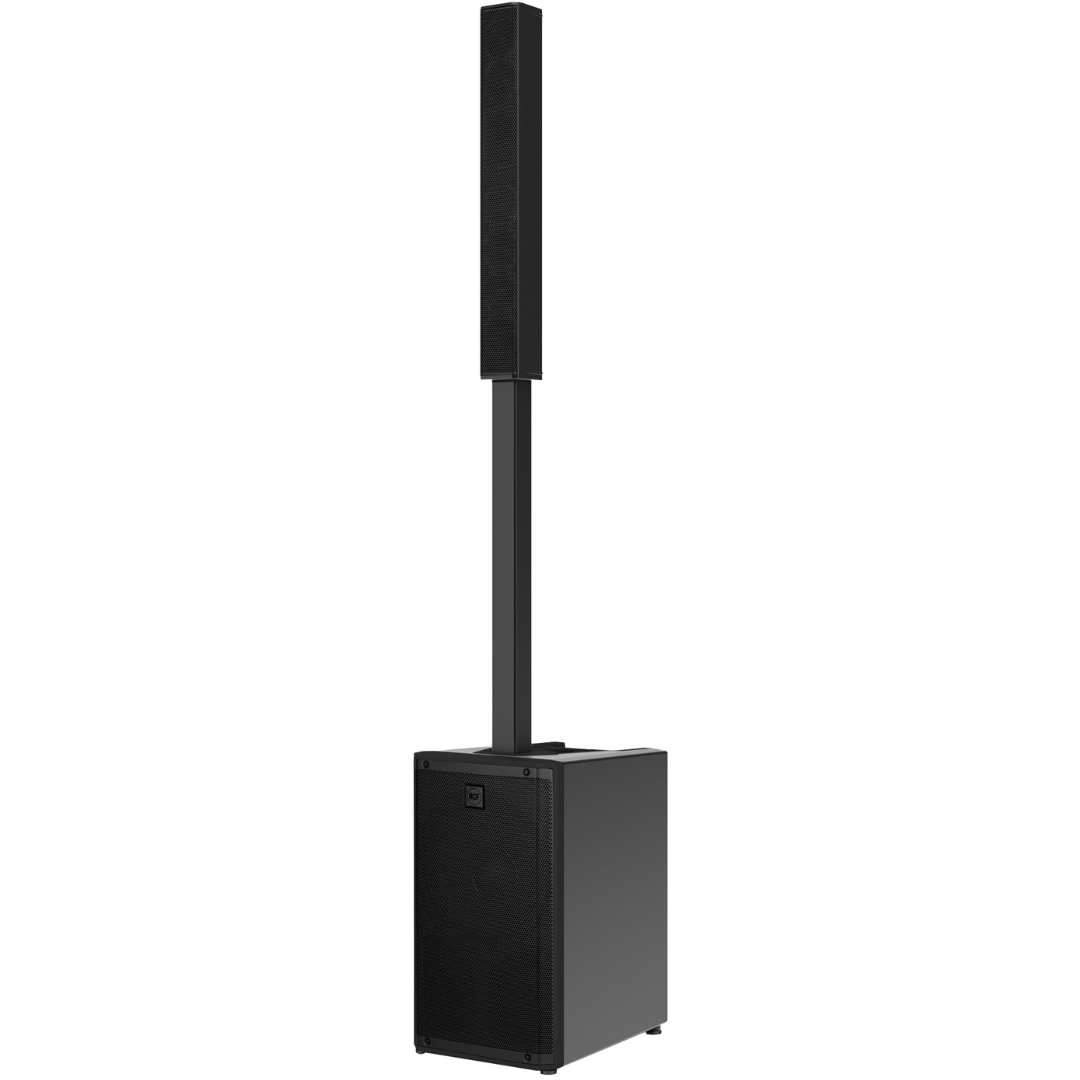

RCF EVOX JMIX9 | 12in - 130dB | 3-Way Column PA System with Digital Mixer, Bluetooth, DSP & BMC

Portable Column PA System

RCF EVOX JMIX9 is a compact, all-in-one portable sound solution combining high-output audio with full-featured digital mixing. Designed for performers, DJs, and presenters, it delivers professional-grade sound, wireless control, and intuitive operation — all in a sleek, portable package.

RCF EVOX JMIX9 Competitive Differences

• Integrated 8-channel stereo digital mixer with color touchscreen and Bluetooth audio
• RCF Class-D amplifier with 2100W peak power and 130 dB max SPL output

RCF EVOX JMIX9 Description

The RCF EVOX JMIX9 expands on the proven EVOX J9 platform by integrating a studio-quality 8-channel digital mixer with onboard DSP, EQ, compression, and effects. Ideal for mobile entertainers and small-format performers, this system provides a clean, powerful sound with unmatched flexibility. The onboard mixer features four mic/line combo inputs with compression, phantom power, and stereo linking. Inputs 5–8 include stereo TRS and 3.5 mm aux with Bluetooth® streaming. Touchscreen controls and endless encoders offer fast, intuitive access to all settings, while the JMixRemote app provides wireless control via smartphone or tablet. For audio performance, the JMIX9 features a 1.75" compression driver with a True Resistive Waveguide for consistent 120° x 40° dispersion, paired with six 3” neodymium drivers and a 12” woofer in a bass-reflex design. The 2100W Class-D amplifier delivers up to 130 dB SPL, ensuring clear highs, defined mids, and deep bass across any venue. The lightweight composite enclosure is easy to transport, includes a mounting pole, and comes with a padded bag for the top speaker array. Whether you’re a solo artist, small band, or AV professional, the EVOX JMIX9 gives you studio-grade sound and full control in a compact format.

Model Features

• 3-way portable column system with 8-channel stereo digital mixer
• Color touchscreen and encoder control with full Bluetooth audio streaming
• 1 × 1.75” compression driver with 120° × 40° True Resistive Waveguide
• 6 × 3” full-range neodymium drivers for articulate mids and highs
• 1 × 12” woofer in bass-reflex cabinet for deep, defined low-end
• 4 mic/line inputs with compressors and phantom power
• Stereo line inputs, aux out, FX send, headphone out
• Internal 32-bit DSP, 24-bit converters, and 3-band input EQ
• Selectable presets: LINEAR, LIVE, CLUB, VOICE
• Padded carry bag for top speaker included

Model Specifications

• Max SPL: 130 dB
• Power Output: 2100W Peak (700W HF, 1400W LF)
• Frequency Response: 40 Hz – 20,000 Hz (System)
• Crossover Frequencies: 200 Hz / 1800 Hz
• Horizontal Coverage: 120°
• Vertical Coverage: 40°
• Compression Driver: 1 × 1.75” VC (0.75” exit)
• Mid Drivers: 6 × 3” neo, 1” VC
• Woofer: 1 × 12” with 2.5” VC
• Inputs: 4 × Mic/Line, 2 × Stereo Line
• Outputs: Main Out, Aux Out, FX Send, Headphones
• EQ: 3-band EQ on inputs, 8-band master EQ
• Mixer Control: Touchscreen + Encoders or Remote App
• Connectivity: Bluetooth, XLR/Jack Combo Inputs, XLR Outputs
• Phantom Power: +48V
• Construction: PP Composite cabinet, steel grille
• Dimensions (H × W × D): 81.89 × 13.78 × 18.11 in (2080 × 350 × 460 mm)
• Weight: 63.49 lb (28.8 kg)
• UPC: 8024530024130

What's In The Box

• RCF EVOX JMIX9 column speaker system
• Padded carry bag for top speaker
• Mounting pole
• Power cable
• Documentation
