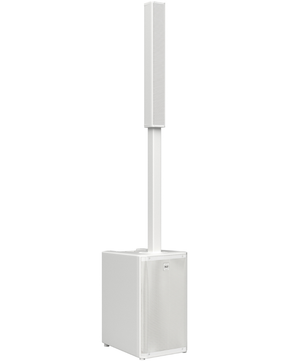

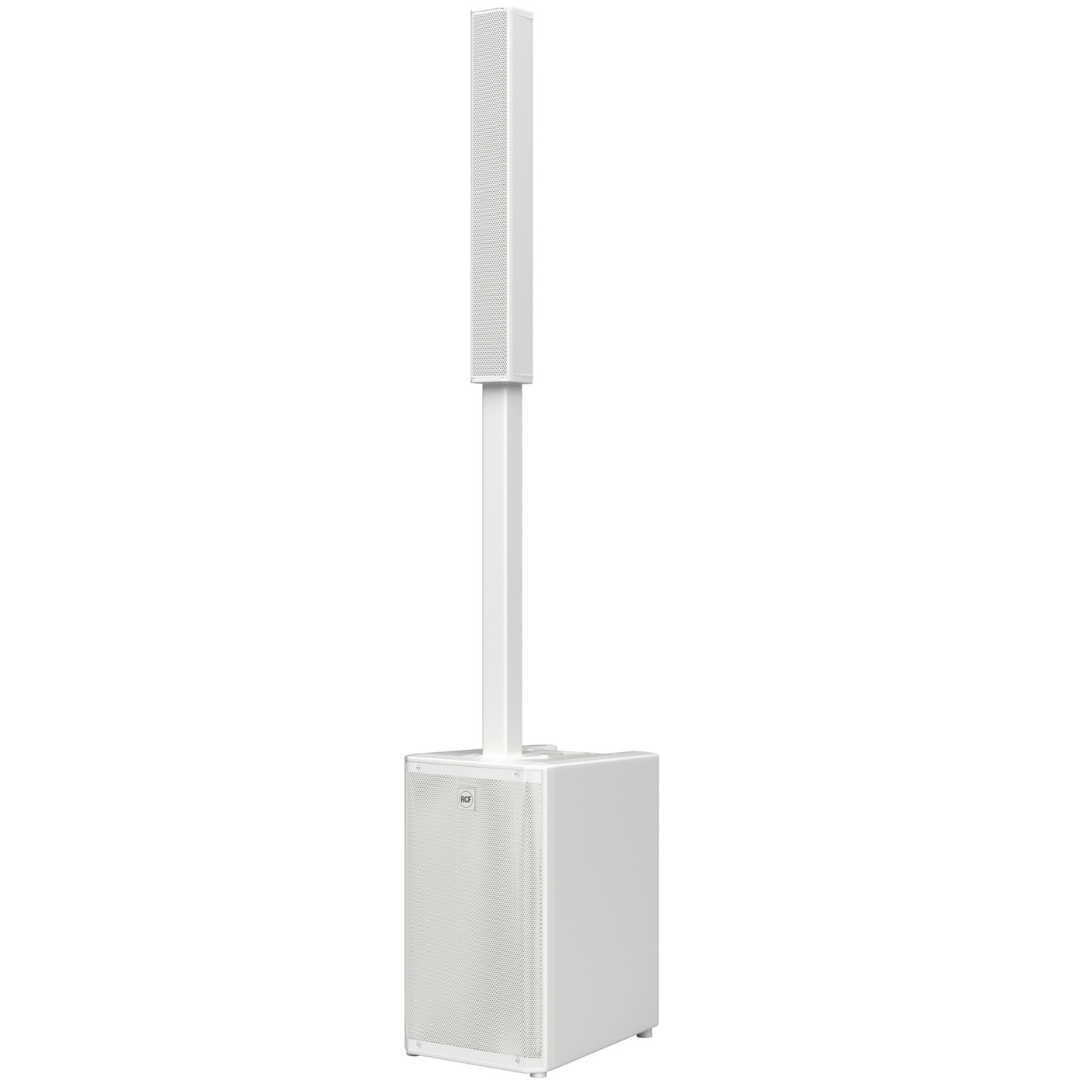

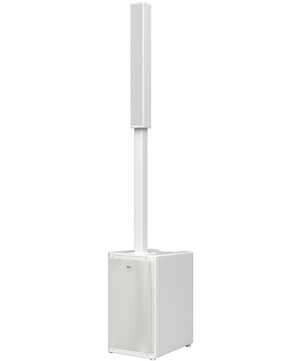

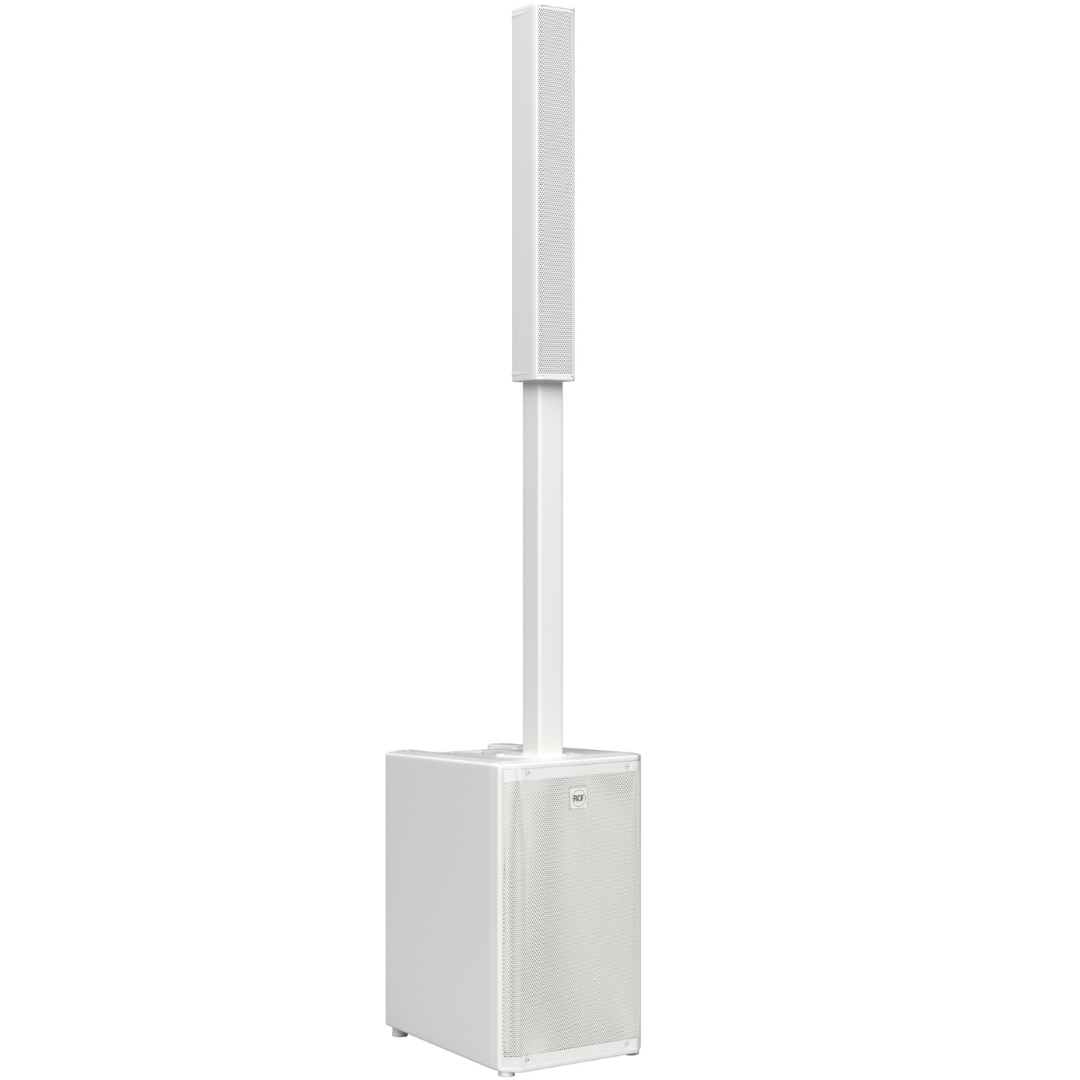

RCF EVOX JMIX9W | 12in - 130dB | White 3-Way Column PA System with Digital Mixer, Bluetooth & DSP

Portable Column PA System

RCF EVOX JMIX9W is a white, all-in-one portable PA system that blends professional-grade sound with modern aesthetics. Designed for performances, events, and venues where visual impact matters, it features high SPL output, built-in digital mixing, and Bluetooth® streaming in a compact column format.

RCF EVOX JMIX9W Competitive Differences

• Elegant white finish with matching column and subwoofer design
• 8-channel stereo digital mixer with color touchscreen and Bluetooth audio

RCF EVOX JMIX9W Description

The RCF EVOX JMIX9W offers the same powerful features as the standard JMIX9, but with a clean white finish that’s perfect for weddings, houses of worship, corporate events, and upscale venues. It integrates a high-output 3-way column PA system with a full-featured digital mixer, including 8 channels, Bluetooth® audio, onboard DSP, and wireless control. Four mic/line inputs come with compressors, phantom power, and stereo linking. Additional stereo line inputs and a Bluetooth-enabled aux input allow flexible source management. The system can be controlled via the built-in 2.4” color touchscreen or remotely through the JMixRemote app. Audio performance is driven by a 1.75" compression driver on a True Resistive Waveguide, six 3" neodymium transducers, and a 12" woofer in a bass-reflex cabinet. The 2100W Class-D amplifier delivers up to 130 dB SPL, ensuring professional clarity and full-range output. Lightweight, visually refined, and fully featured, the EVOX JMIX9W is ideal for anyone needing powerful sound in a visually discreet, high-end design.

Model Features

• White 3-way portable column system with 8-channel stereo digital mixer
• Color touchscreen with encoder control and Bluetooth audio streaming
• 1 × 1.75” compression driver with 120° × 40° True Resistive Waveguide
• 6 × 3” neodymium full-range drivers for detailed mids and highs
• 1 × 12” woofer in bass-reflex cabinet for powerful low-end
• 4 mic/line inputs with compression, gain control, and +48V phantom power
• Stereo TRS and 3.5mm inputs plus Bluetooth streaming
• Internal 32-bit DSP, 24-bit converters, and input/output EQ
• Selectable sound presets: LINEAR, LIVE, CLUB, VOICE
• Padded carry bag for column speaker included

Model Specifications

• Max SPL: 130 dB
• Power Output: 2100W Peak (700W HF, 1400W LF)
• Frequency Response: 40 Hz – 20,000 Hz (System)
• Crossover Frequencies: 200 Hz / 1800 Hz
• Horizontal Coverage: 120°
• Vertical Coverage: 40°
• Compression Driver: 1 × 1.75” VC (0.75” exit)
• Mid Drivers: 6 × 3” neo, 1” VC
• Woofer: 1 × 12” with 2.5” VC
• Inputs: 4 × Mic/Line, 2 × Stereo Line
• Outputs: Main Out, Aux Out, FX Send, Headphones
• EQ: 3-band EQ on inputs, 8-band master EQ
• Mixer Control: Touchscreen + Encoders or Remote App
• Connectivity: Bluetooth, XLR/Jack Combo Inputs, XLR Outputs
• Phantom Power: +48V
• Construction: White PP Composite cabinet, steel grille
• Dimensions (H × W × D): 81.89 × 13.78 × 18.11 in (2080 × 350 × 460 mm)
• Weight: 63.49 lb (28.8 kg)
• UPC: 8024530024444

What's In The Box

• RCF EVOX JMIX9W column speaker system (white)
• Padded carry bag for top speaker
• Mounting pole
• Power cable
• Documentation
