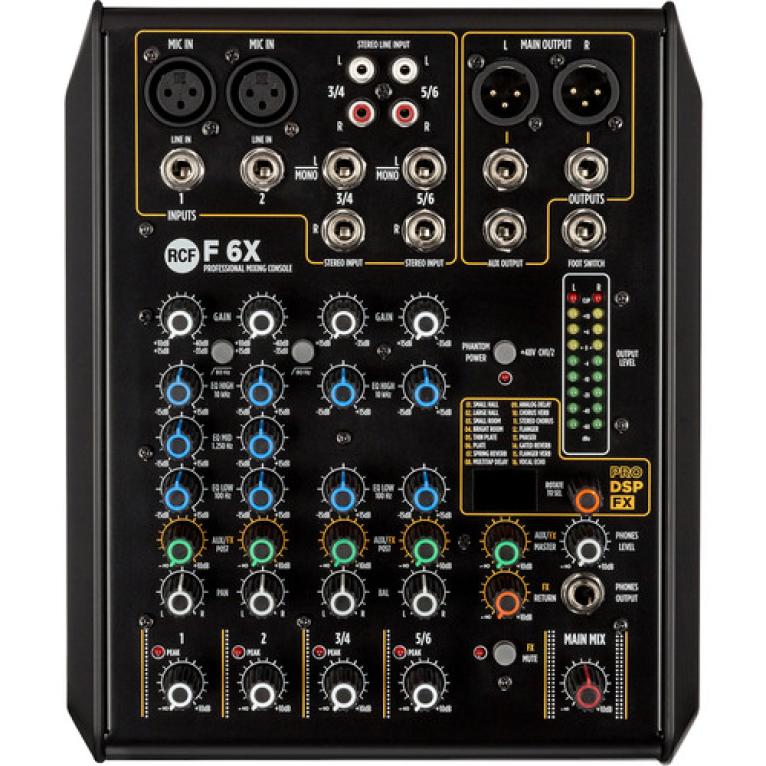

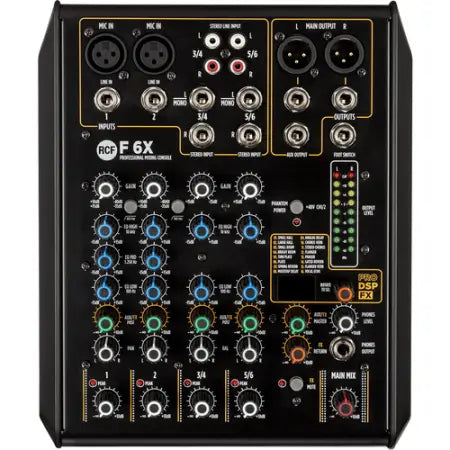

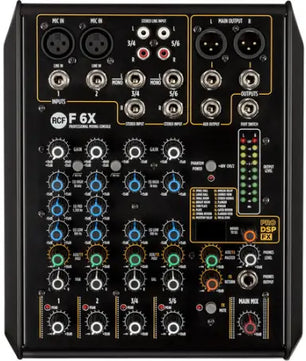

RCF F6 X | 2 Mic, 2 Stereo Inputs – FX Engine | Compact 6-Channel Analog Mixer

Compact 6-Channel Analog Mixer with Effects

The RCF F6 X is a reliable and easy-to-use analog mixer designed for musicians, DJs, and sound enthusiasts needing a compact format with professional-grade sound and effects. Featuring 2 mic/line inputs, 2 stereo inputs, and 16 onboard PRO DSP effects, it's ideal for small setups, rehearsals, and live performances.

RCF F6 X Competitive Differences

• Compact 6-channel format with 2 mic/line and 2 stereo inputs
• High-quality PRO DSP FX with 16 effects (reverb, delay, chorus, flanger, echo)
• Sturdy metal chassis for durability in live and mobile setups
• Balanced main output path from input to output
• Low-noise design with -124 dBu input noise level
• External universal power supply (100V–240V)
• Designed and engineered in Italy for premium analog sound

RCF F6 X Description

The RCF F6 X brings professional analog audio quality to small-scale applications in a portable and rugged form. Inspired by the RCF E Series, the F Series mixers offer a fully balanced audio path, superior dynamic range, and detailed EQ control for fine-tuned mixes. The F6 X includes 2 mic/line inputs and 2 stereo line inputs, plus a 16-preset internal DSP FX engine offering a wide range of reverbs, delays, choruses, and more. The chassis is built with heavy-duty metal for long-term reliability, making it ideal for touring musicians and portable rigs. With an AUX/FX send, headphone output, and versatile input/output connectors including XLR, Jack, and RCA, the F6 X provides everything needed for professional audio in a compact size.

F6 X Features

• 2 Mic/Line inputs
• 2 Stereo line inputs
• One AUX/FX (post) send
• Balanced main output audio path
• 16 internal PRO DSP FX presets
• Sturdy metal construction
• External universal power supply
• Footswitch compatible
• Designed and engineered in Italy

F6 X Specifications

• Frequency Response: 20 Hz – 20 kHz
• THD+N (20dB gain, 0dBu out): < 0.02% A-Weighted
• Dynamic Range: > 85 dB
• Channels: 6 total
• Mic Inputs: 2 (Gain Range: 0 dB to -50 dB, Impedance: 14 kΩ)
• Stereo Line Inputs: 2 (Gain Range: 20 dB to -30 dB)
• Line Input Impedance: 21 kΩ (mono), 15 kΩ (stereo)
• Low Cut Filter: 80 Hz
• Phantom Power: +48V
• Input Connectors: XLR, Jack, RCA
• Main Mix Outputs: 1
• FX Send: 1
• AUX Output: 1
• Phones Output: 1 (150 ohm impedance)
• Output Connectors: XLR, Jack
• Main Out Level: 28 dBu
• Aux Out Level: 28 dBu
• EQ: High ±15 dB @ 10 kHz (shelving), Mid ±15 dB @ 1.25 kHz (bell), Low ±15 dB @ 100 Hz (shelving)
• Internal Effects: 16 presets via 1 send
• Footswitch input: Yes
• Power Supply: External (100V–240V)
• Max Power Consumption: 12 W
• Safety Compliance: CE certified
• Material: Metal
• Color: Black
• Dimensions (H x W x D): 3.11 x 8.27 x 10.04 in (79 x 210 x 255 mm)
• Weight: 3.97 lbs (1.8 kg)
• Shipping Dimensions (H x W x D): 4.8 x 14.88 x 10.24 in (122 x 378 x 260 mm)
• Shipping Weight: 6.06 lbs (2.75 kg)
