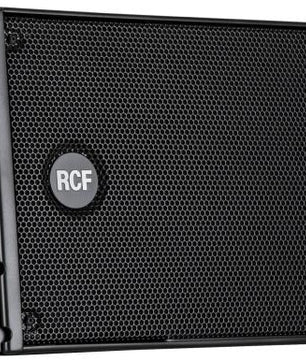

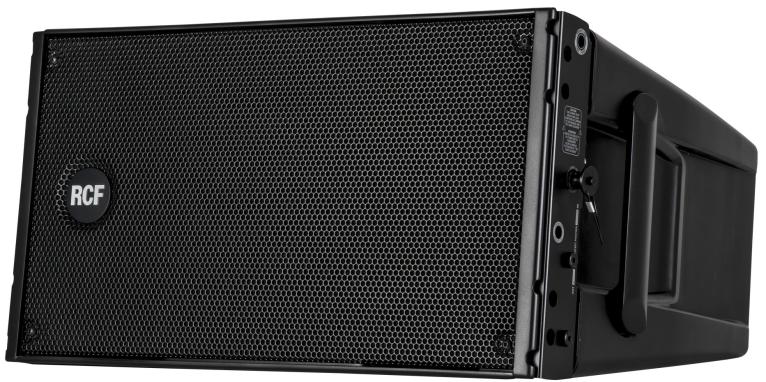

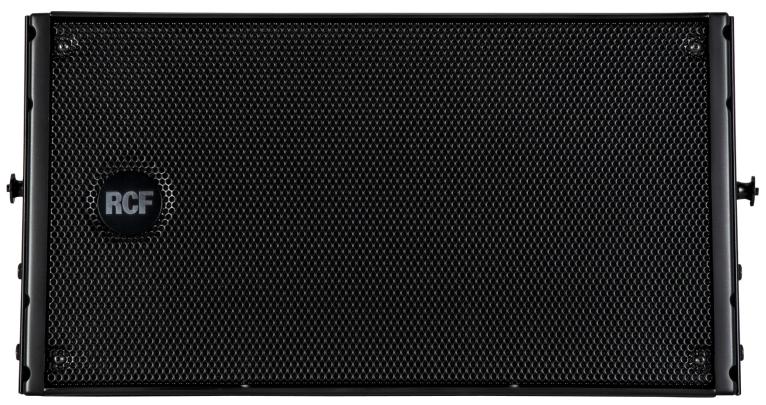

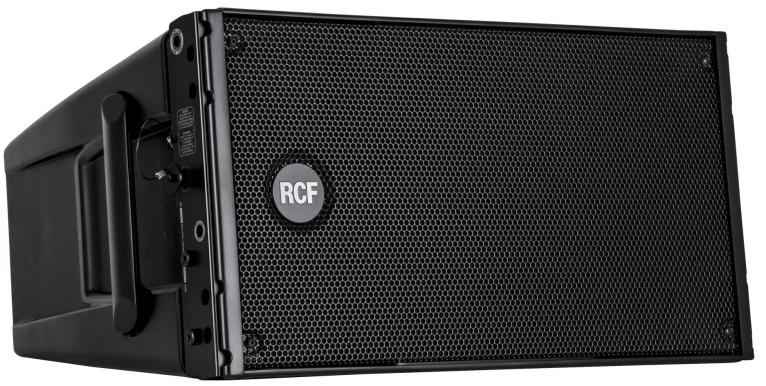

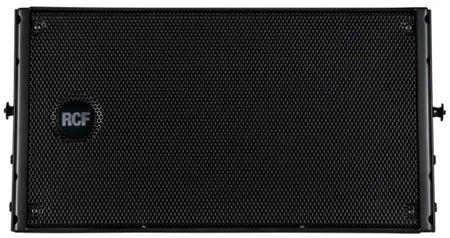

RCF HDL 10-A | 1400W Active Line Array Module

The RCF HDL 10-A is a compact, high-performance active line array module designed for both touring and installed sound applications. Delivering 1400W peak power and a maximum SPL of 133 dB, this system is perfect for live sound reinforcement where high power and fast setup are essential. With dual 8" woofers, a 2" compression driver, and a DSP-controlled input section, the HDL 10-A offers exceptional sound quality in a highly portable package.

HDL 10-A Competitive Differences

1400W Peak Power, 700W RMS
133 dB Max SPL for High Sound Pressure Levels
2 x 8" Woofers and 1 x 2" Compression Driver
Tour-grade build with composite and wooden-reinforced enclosure
DSP with selectable presets for different acoustic environments
Efficient Class-D amplifier with convection cooling

Full Product Description

The RCF HDL 10-A is a versatile active line array module that combines power, precision, and portability. Ideal for both live touring and installed sound, the HDL 10-A features RCF's advanced transducer technology, including a large format 2.5” voice coil compression driver that delivers clear and precise high frequencies. Its dual 8” woofers provide controlled bass response, making it suitable for a wide range of audio applications. The system's Class-D amplifier ensures high efficiency and reliable performance, while the integrated DSP offers easy-to-use presets for quick setup and optimization.

Features

1400W Peak Power, 700W RMS
133 dB Max SPL
Frequency Response: 65 Hz – 20 kHz
Horizontal Coverage: 100°
Vertical Coverage: 15°
Composite PP enclosure with wooden reinforcement
DSP with selectable presets

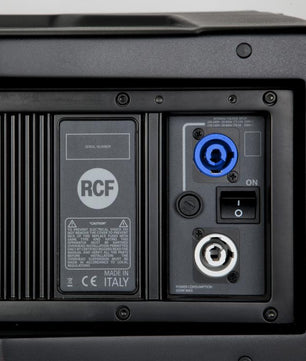

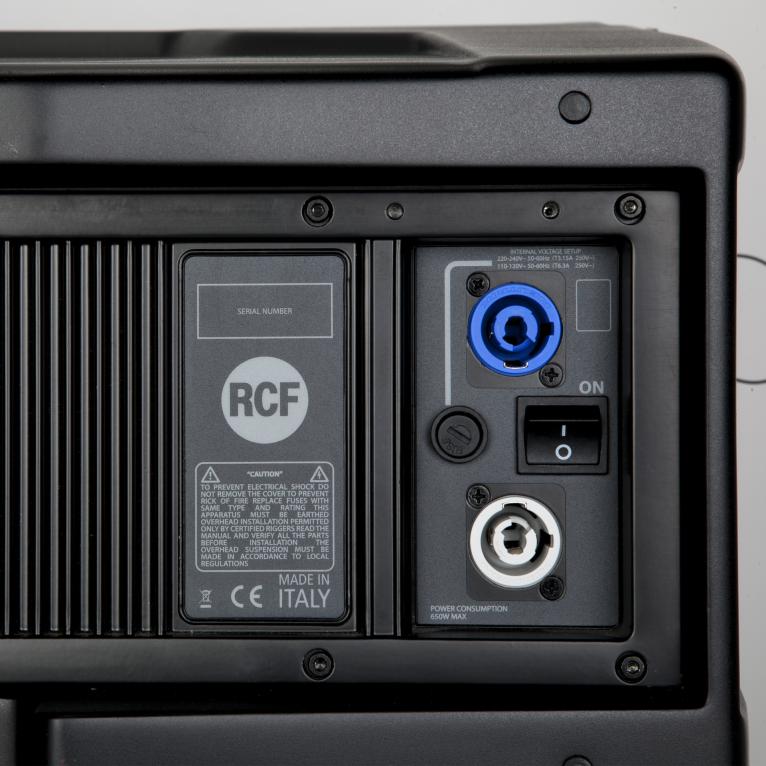

Powercon IN/OUT connections

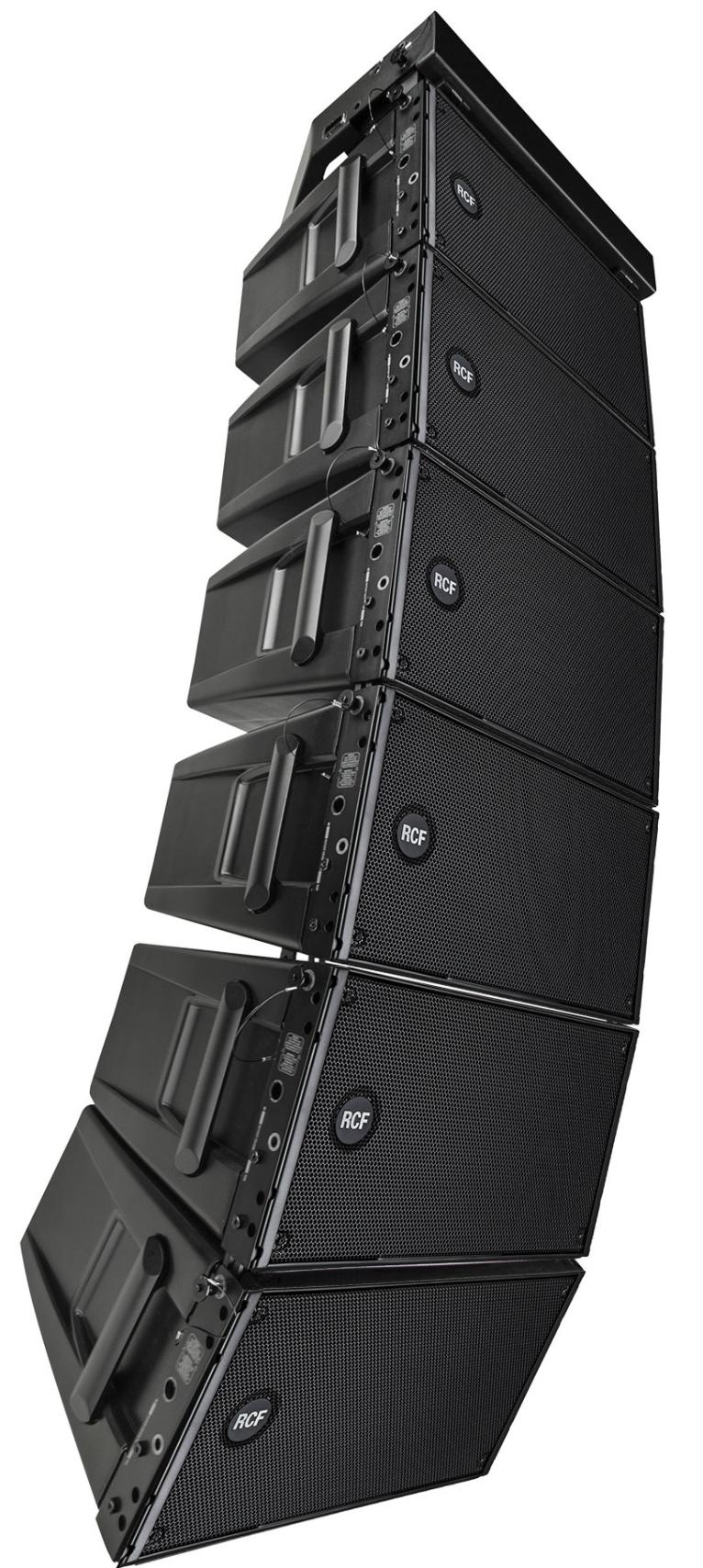

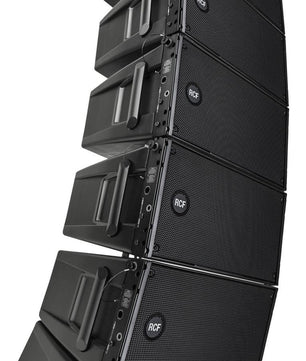

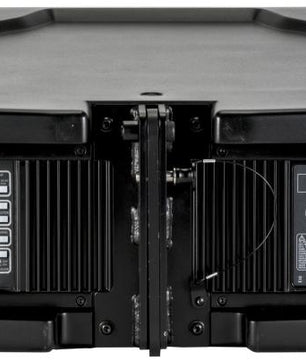

Tour-grade rigging and flyware

Specifications

Frequency Response: 65 Hz – 20 kHz
Max SPL @ 1m: 133 dB
Horizontal Coverage: 100°
Vertical Coverage: 15°
Compression Driver: 1 x 2.0", 2.5" v.c
Woofer: 2 x 8", 2.0" v.c

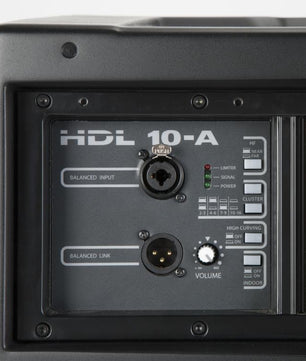

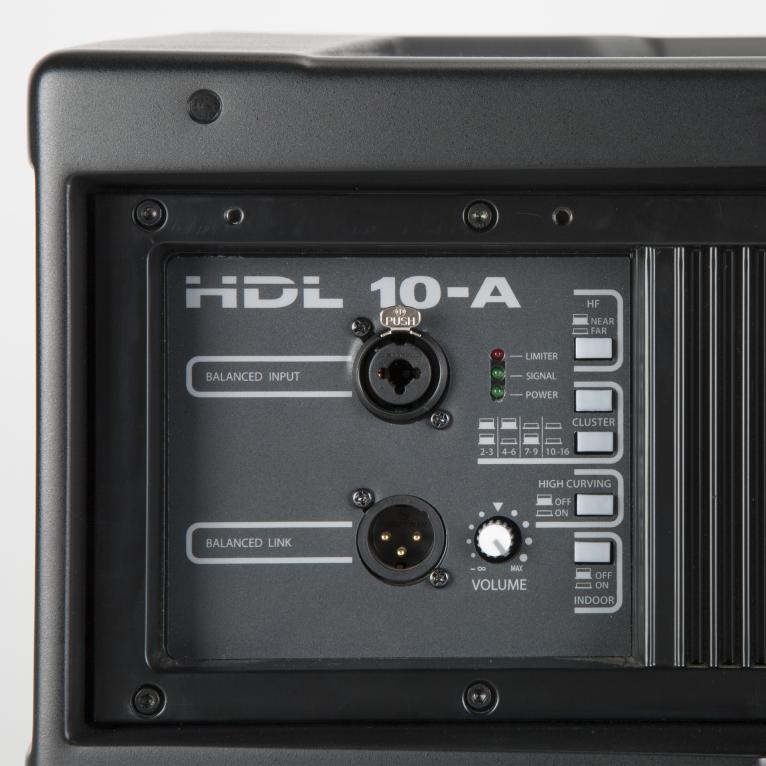

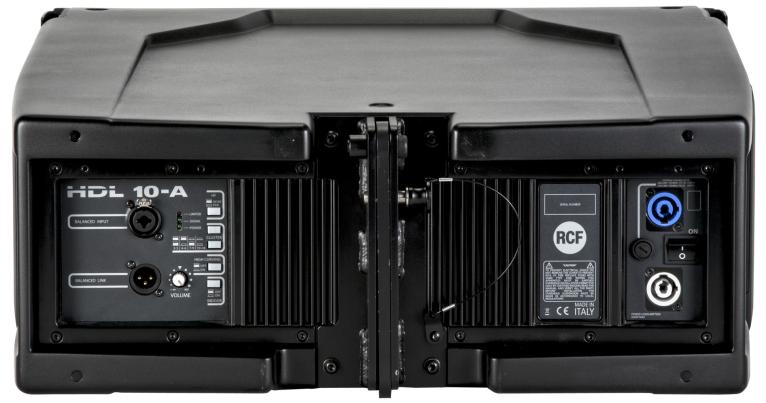

Input Connectors: XLR
Output Connectors: XLR
Power Supply: 1400W Peak, 700W RMS
Cooling: Convection
Cabinet Material: PP Composite
Color: Black, White
Dimensions (H x W x D): 11.57" x 22.4" x 17.09"
Weight: 44.97 lbs
