USB Interface for RDNet Device Monitoring & Control

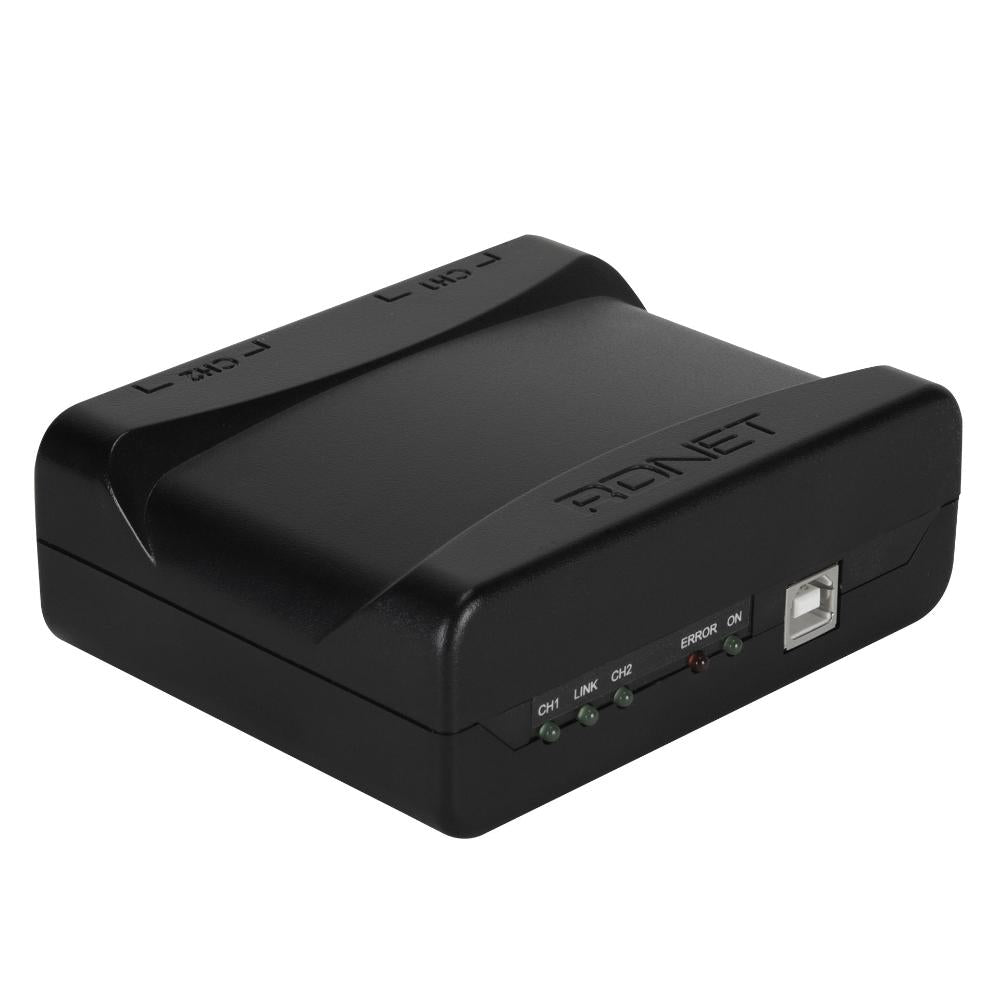

The RCF RDNet Control 2 is a hardware interface designed to connect RDNet-compatible devices, such as TTL55-A, TTL33-A II, and TTL31-A II, to a PC via USB. This device enables real-time monitoring and control of up to 64 devices across two subnets. With automatic device addressing, intuitive PC software integration, and seamless operation within a Microsoft Windows® environment, the RDNet Control 2 is essential for managing and optimizing professional audio systems.

RCF RDNet Control 2 Competitive Differences

Supports up to 2 subnets with a total of 64 RDNet-compatible devices
Real-time monitoring and control via USB connection
Automatic device detection and addressing for streamlined setup
10-time-per-second polling rate ensures up-to-date system status
PC software allows configuration storage and recall for efficient workflow
Compact and lightweight ABS construction for portability
USB-powered design eliminates the need for external power

RCF RDNet Control 2 Description

The RCF RDNet Control 2 is a powerful interface designed to connect RDNet-compatible devices to a PC for real-time monitoring and control. With support for two independent subnets, each handling up to 32 devices, this system provides extensive network control for professional audio setups. The RDNet software allows users to monitor and adjust various parameters, including output level, mute, equalization, and delay. This interface features automatic device addressing, ensuring seamless integration without manual configuration. The polling system scans all connected devices 10 times per second, allowing for immediate response to any system adjustments. The RDNet Control 2 is powered via USB, simplifying connectivity and eliminating the need for external power sources. Its compact, ABS-constructed design makes it a reliable and portable solution for live events, installations, and touring applications.

RDNet Control 2 Features

Real-time USB interface for RDNet-compatible devices
Supports 2 subnets, each managing up to 32 devices (64 total)
Automatic device detection and addressing
High-speed polling (10 times per second) for immediate status updates
Integrated PC software for full system control and configuration storage
USB-powered for convenience and portability
Onboard RDNet compatibility
Durable and lightweight ABS construction
CE compliant for safety and reliability

RDNet Control 2 Specifications

Number of Subnets: 2
Max Number of Devices (per Subnet): 32

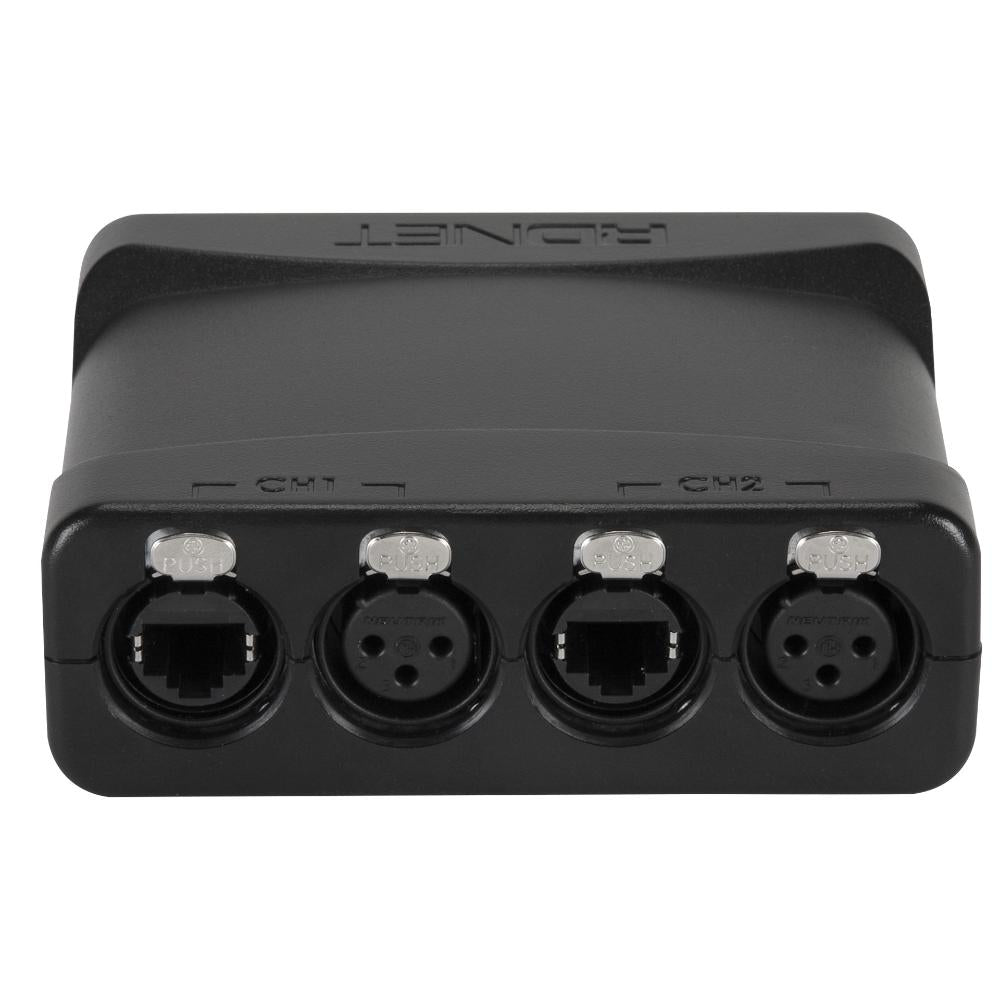

Connectors: RJ45, XLR
Configuration: PC software

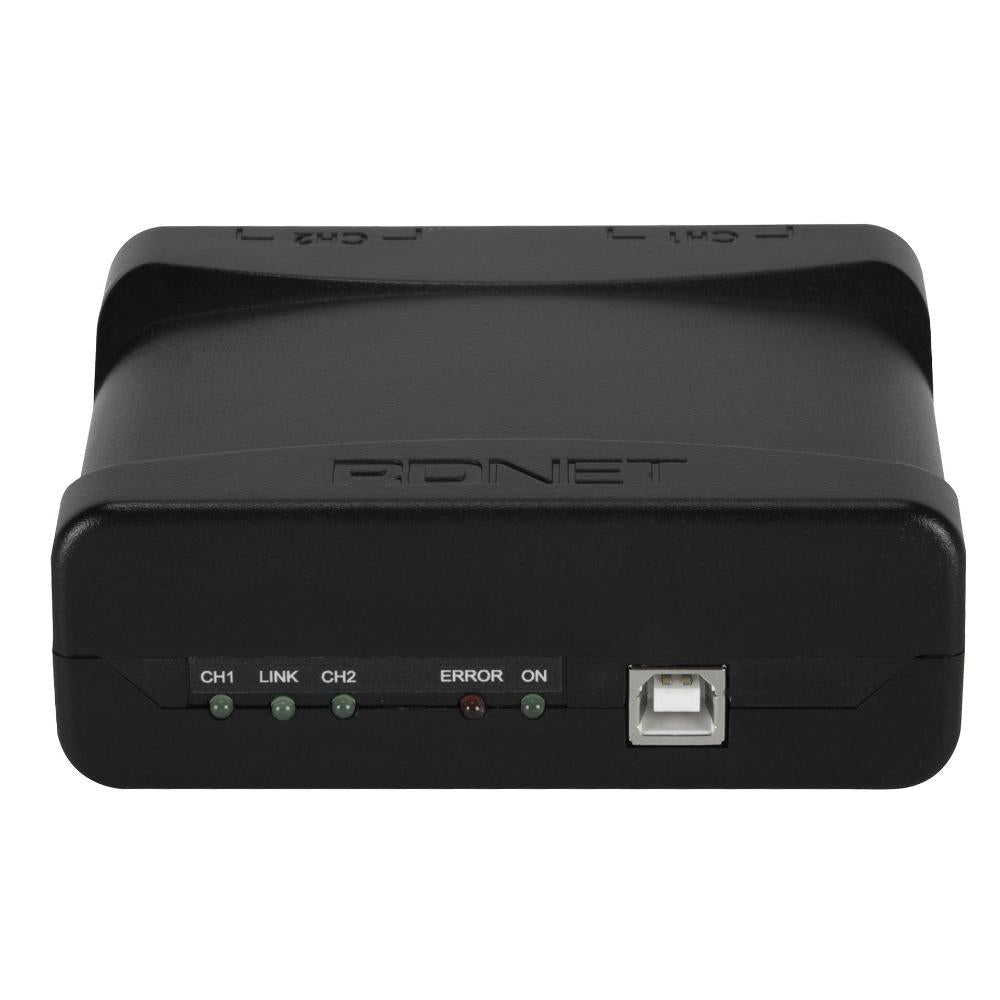

PC Connection: USB (Type B)
Power Supply: USB-powered
RDNet Compatibility: Onboard
Standard Compliance: CE compliant
Cabinet/Case Material: ABS
Color: Black
Dimensions:
- Height: 41 mm / 1.61 inches
- Width: 111 mm / 4.37 inches
- Depth: 90 mm / 3.54 inches
Weight: 0.17 kg / 0.37 lbs
Package Dimensions:
- Height: 58 mm / 2.28 inches
- Width: 205 mm / 8.07 inches
- Depth: 134 mm / 5.28 inches
Package Weight: 0.25 kg / 0.55 lbs
