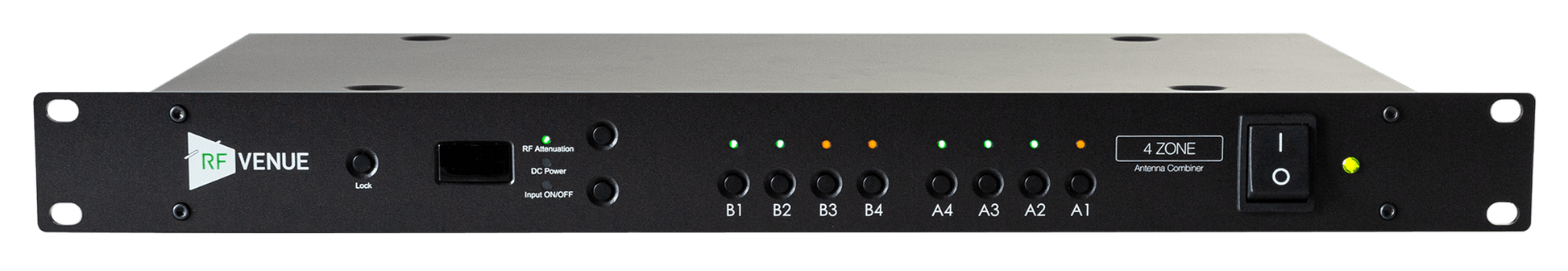

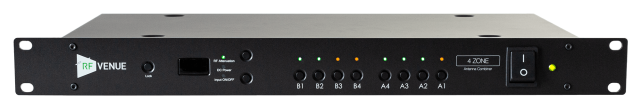

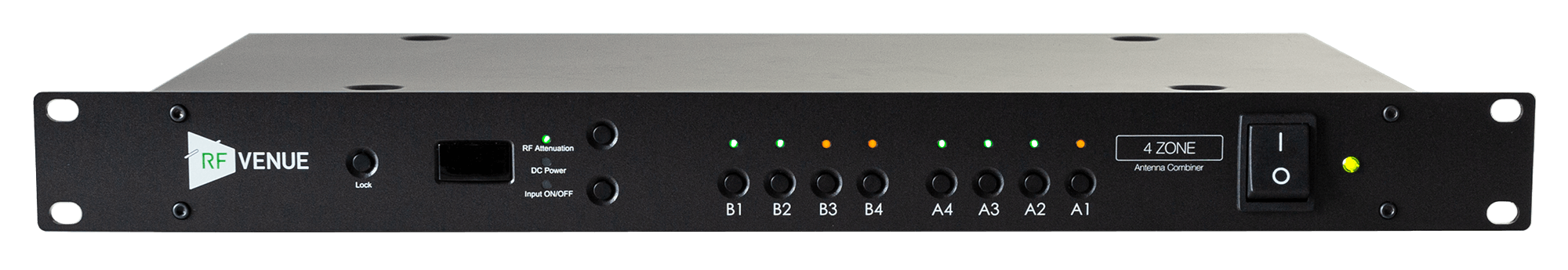

Streamlined Multi-Zone Antenna Combiner for Wireless Microphone Systems

The 4ZONE Antenna Combiner simplifies multi-zone wireless microphone setups by combining up to four separate pairs of diversity antenna connections. Perfect for multi-purpose rooms, indoor-outdoor spaces, or stages with breakout rooms, it provides seamless coverage and expands your wireless microphone system's reach without breaking the bank.

4ZONE Competitive Differences

Single rack space design, enabling streamlined integration into professional setups.
Supports up to four separate coverage zones for enhanced microphone coverage.
User-configurable zone activation for tailored operation.
Compatible with a wide range of antennas and distribution systems for versatile use.
Ideal for indoor-outdoor setups or multi-building configurations.

4ZONE Description

The 4ZONE Antenna Combiner is a must-have for wireless microphone systems that demand coverage across multiple zones. This innovative solution integrates up to four diversity antenna pairs into a single rack unit, optimizing space and minimizing complexity. Whether you're connecting main stages to secondary breakout rooms or bridging indoor and outdoor spaces, the 4ZONE ensures uninterrupted performance. When paired with Diversity Fin Antennas, DISTRO4 or DISTRO9HDR antenna distributors, and other compatible systems, the 4ZONE delivers a turnkey solution for any brand wireless audio system. It also pairs seamlessly with advanced products like the OPTIX2-S3 RF over Fiber for extended coverage in larger areas.

Key Features

Combines up to four diversity antenna pairs for multi-zone configurations.
User-configurable settings for RF input signal and attenuation control.
DC over coax power supply for external antennas (12V/200mA per input).
Compatible with D-ARC, CP-ARC, and RF Spotlight antennas.
Rugged 1RU design for professional installations.

Specifications

Carrier Frequency Range: 470-960 MHz
System Gain: 3 dB (±3 dB)
Input/Output Impedance: 50 Ω
Antenna Inputs: 8x (A/B pairs)
Outputs: 2x
RF Input Attenuation: -31 to 0 dB (1 dB steps)
Functions:
- DC Power Control for In-Line Amplifiers
- RF Input Attenuation Control
- RF Input Signal ON/OFF Control
DC Over Coax Power: 12V/200mA per input
Power Supply: 100-240VAC, 50/60 Hz, Max 2A
Dimensions: 19" W x 2" H x 10" D (480 x 45 x 250 mm)
Weight: 5.5 lbs (2.5 kg)

What's In The Box

4ZONE Antenna Combiner
(2) BNC Jumpers
(1) AC Power Cord

Note: Pictured devices are for reference only and are not included.
