Digital UHF Wireless Microphone System

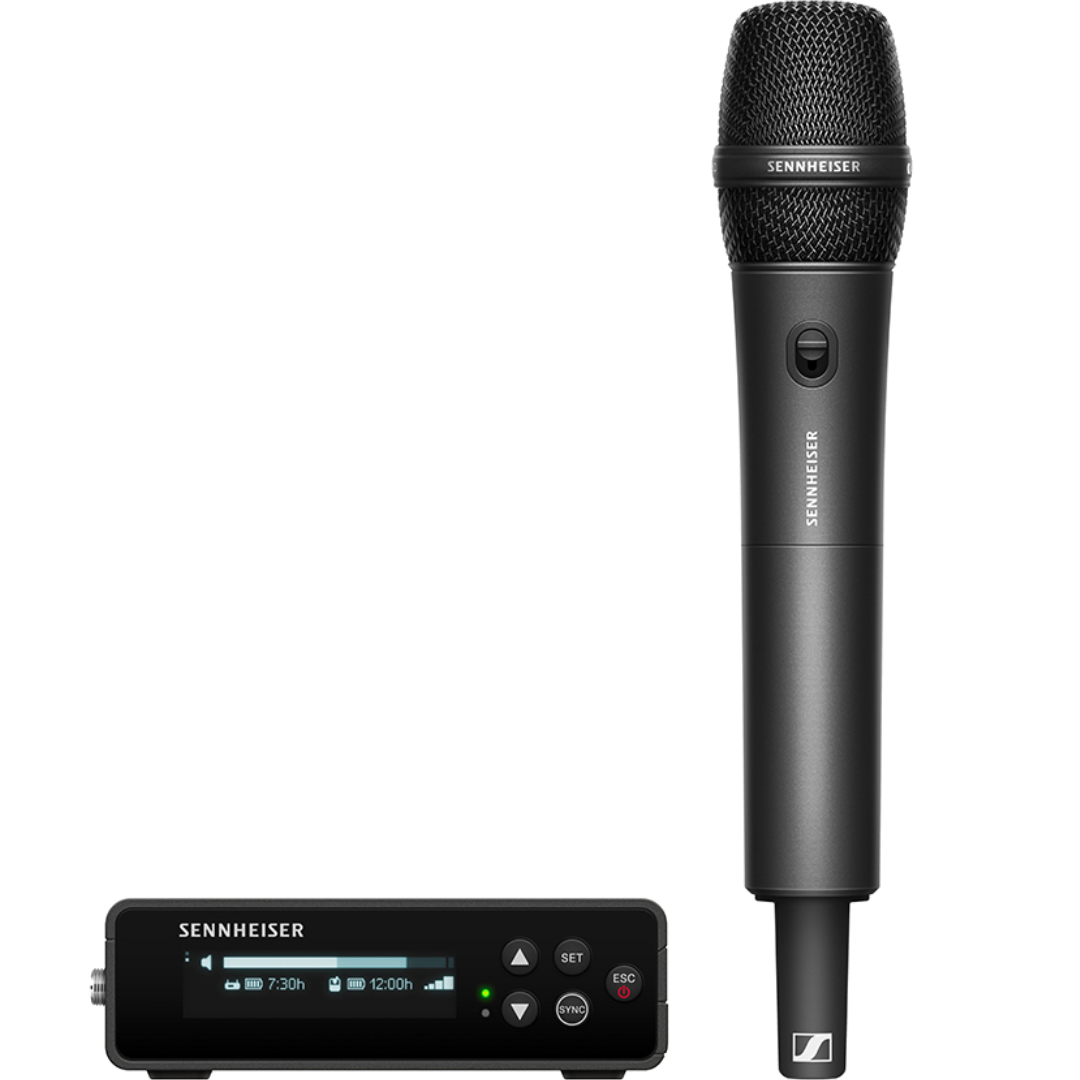

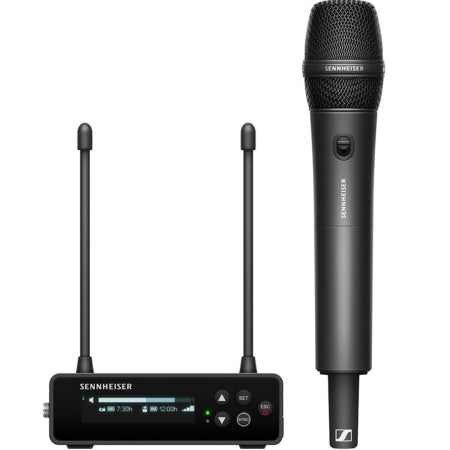

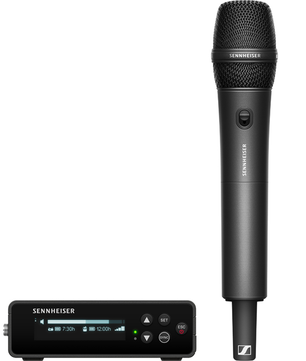

The Sennheiser EW-DP 835 Set (R4-9) is a fully digital UHF wireless microphone system designed for filmmakers, content creators, and broadcast professionals. Featuring a dynamic MMD 835 cardioid microphone capsule, rugged handheld transmitter, and compact camera-mount receiver, it offers professional-grade sound, advanced connectivity, and ultra-low latency in a portable, field-ready form.

Sennheiser EW-DP 835 Set (R4-9) Competitive Differences

134 dB dynamic range with ultra-low 1.9 ms system latency
Bluetooth-enabled syncing and control via Smart Assist app

Sennheiser EW-DP 835 Set (R4-9) Description

The EW-DP 835 Set brings Sennheiser’s acclaimed digital wireless technology to video and field audio applications. It operates in the 552–607.8 MHz frequency range (R4-9) with up to 56 MHz of tuning bandwidth, allowing flexibility in crowded RF environments. The handheld transmitter features the robust MMD 835 capsule, known for its cardioid pickup pattern and high feedback rejection—ideal for vocals and on-location voice capture. Its compact receiver is designed for camera or rig-mounted use, with magnetic stackability, onboard display, and intuitive controls. Built-in Bluetooth Low Energy (BLE) supports pairing, syncing, and system configuration via the Smart Assist mobile app, while smart notifications offer real-time troubleshooting and status updates. Battery performance is optimized for production workflows, offering up to 12 hours on the transmitter and 7 hours on the receiver with the included BA 70 Li-ion battery. USB-C charging, rack-mount compatibility, and dual analog output options (XLR and 3.5 mm TRS) ensure smooth integration into both mobile and studio setups.

Model Features

Digital UHF wireless microphone system (552–607.8 MHz range)
MMD 835 cardioid dynamic microphone capsule
134 dB dynamic range with distortion-free transmission
1.9 ms ultra-low latency for real-time audio monitoring
Bluetooth sync and configuration via Smart Assist app
Up to 12 hours transmitter / 7 hours receiver battery life
USB-C power and charging on receiver
Magnetically stackable receiver design for rig or camera mount
Smart Notifications for real-time system guidance
High-pass filter, EQ, polarity, and crossover control

Model Specifications

Operating Frequency (R4-9): 552 – 607.8 MHz
Audio Frequency Response: 20 Hz – 20 kHz
Dynamic Range: 134 dB
Latency: 1.9 ms
Transmitter Power: 10 mW ERP
Battery Life: Up to 12h (transmitter), 7h (receiver)
Receiver Dimensions: 3.39 x 2.64 x 1.1 in (86 x 67 x 28 mm)
Transmitter Dimensions (with mic): 1.97 x 10.55 in (50 x 268 mm)
Receiver Weight: 0.31 lb (140 g)
Transmitter Weight: 0.67 lb (304 g)
Mic Capsule: MMD 835 dynamic, cardioid, 154 dB SPL
Charging: USB-C PD (receiver)
Output Connectors: 3.5 mm TRS, XLR

What's In The Box

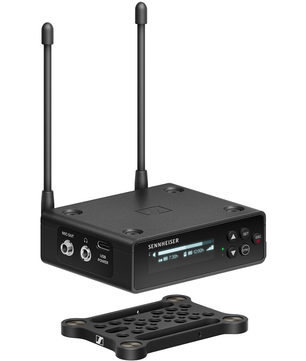

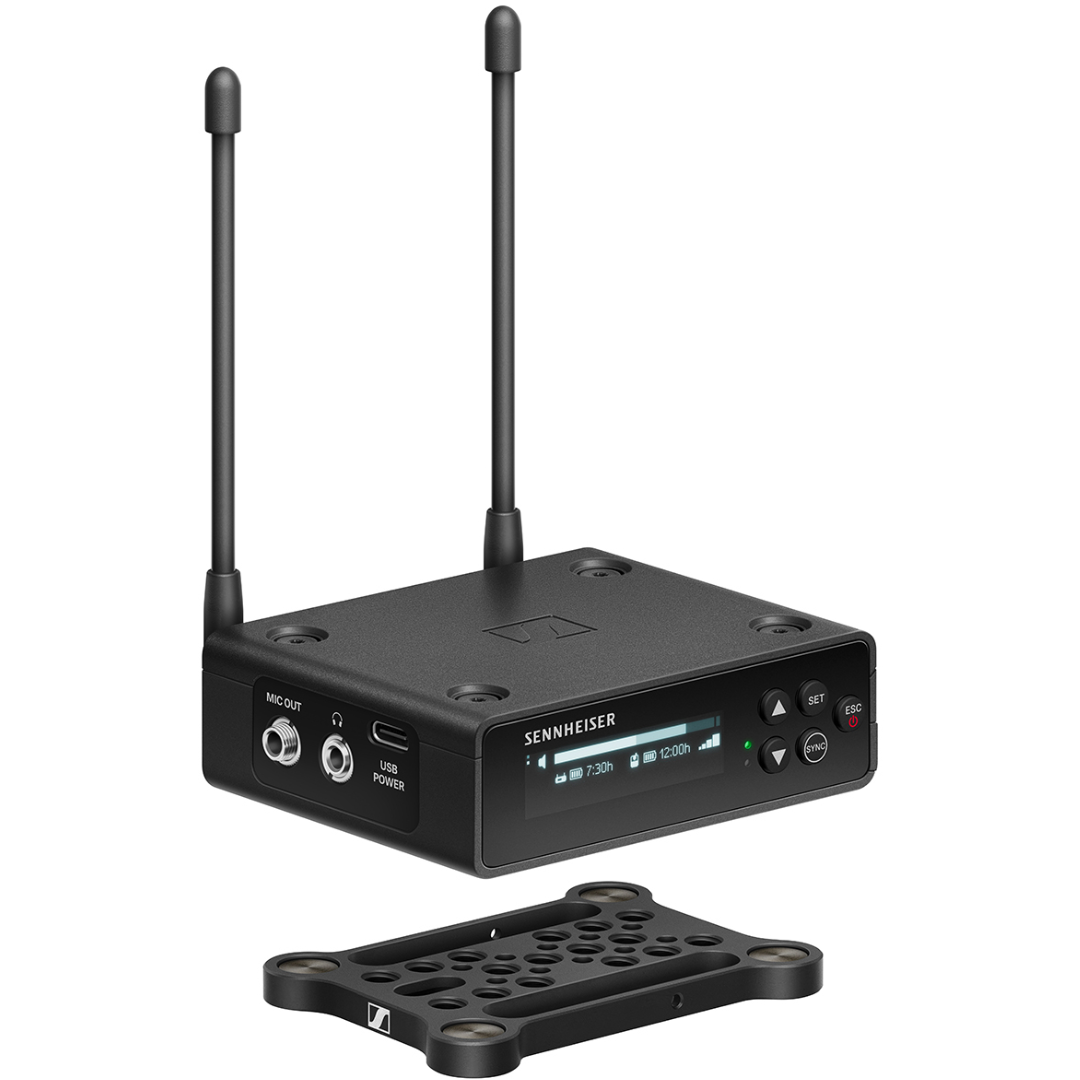

EW-DP EK digital portable receiver

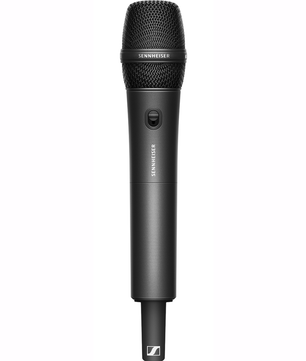

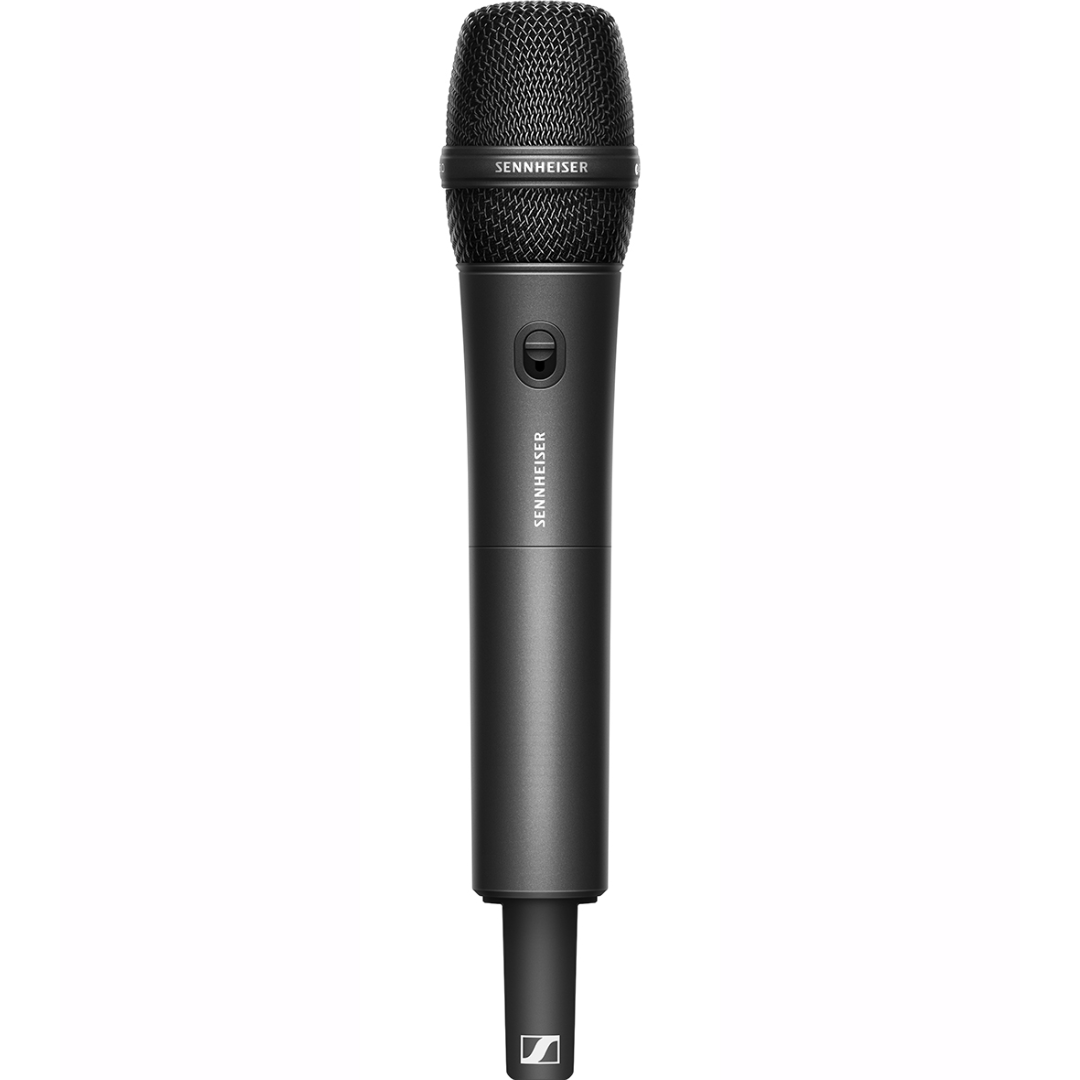

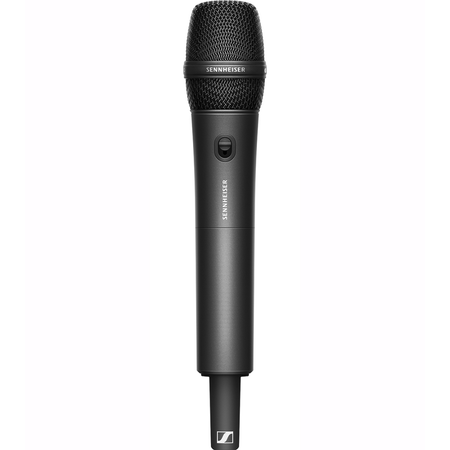

EW-D SKM-S handheld digital transmitter
MMD 835 dynamic cardioid microphone capsule

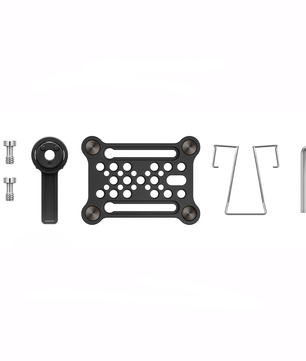

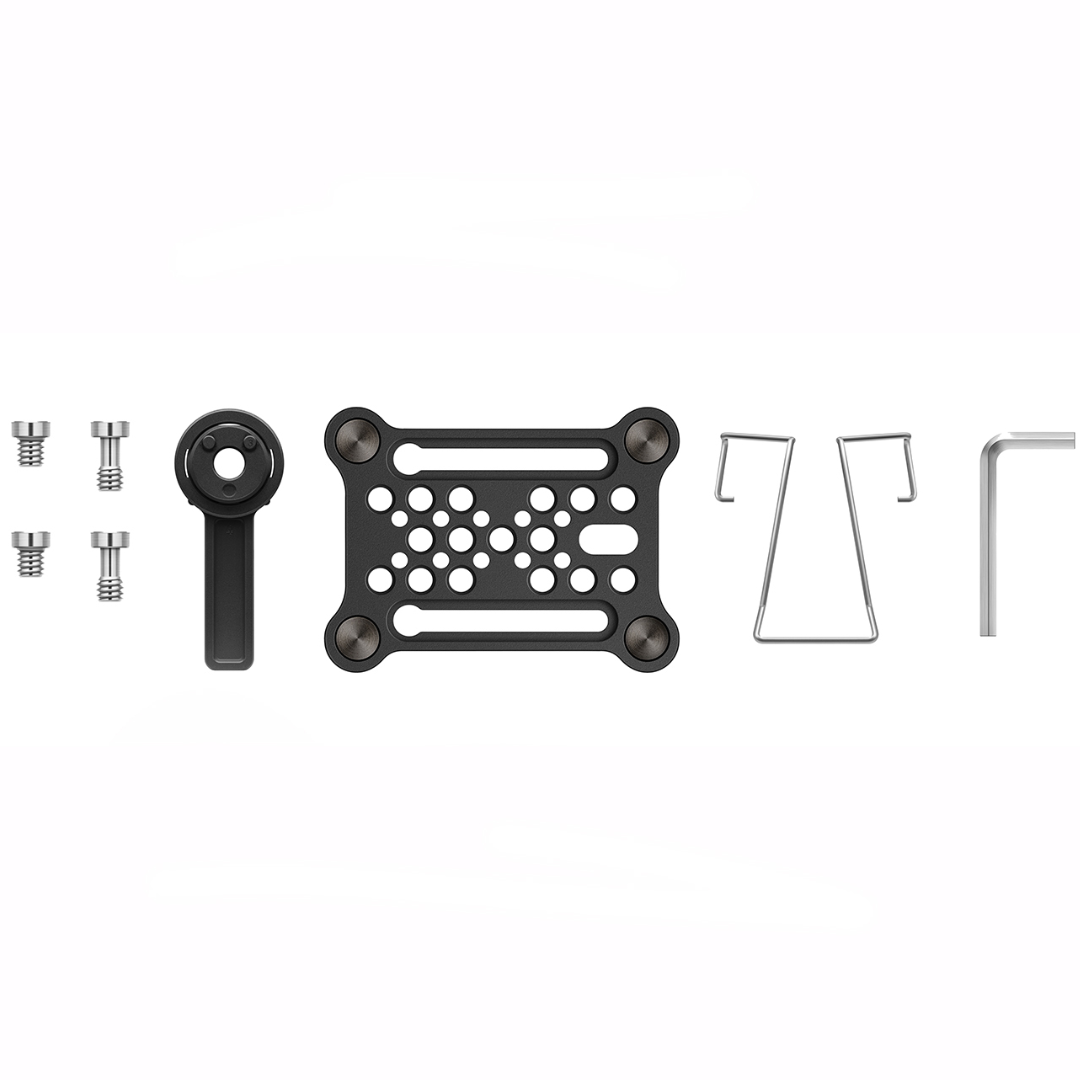

Mounting kit (cold shoe, belt clip, mounting plate, screws)
BA 70 Li-ion rechargeable battery
(2) AA batteries

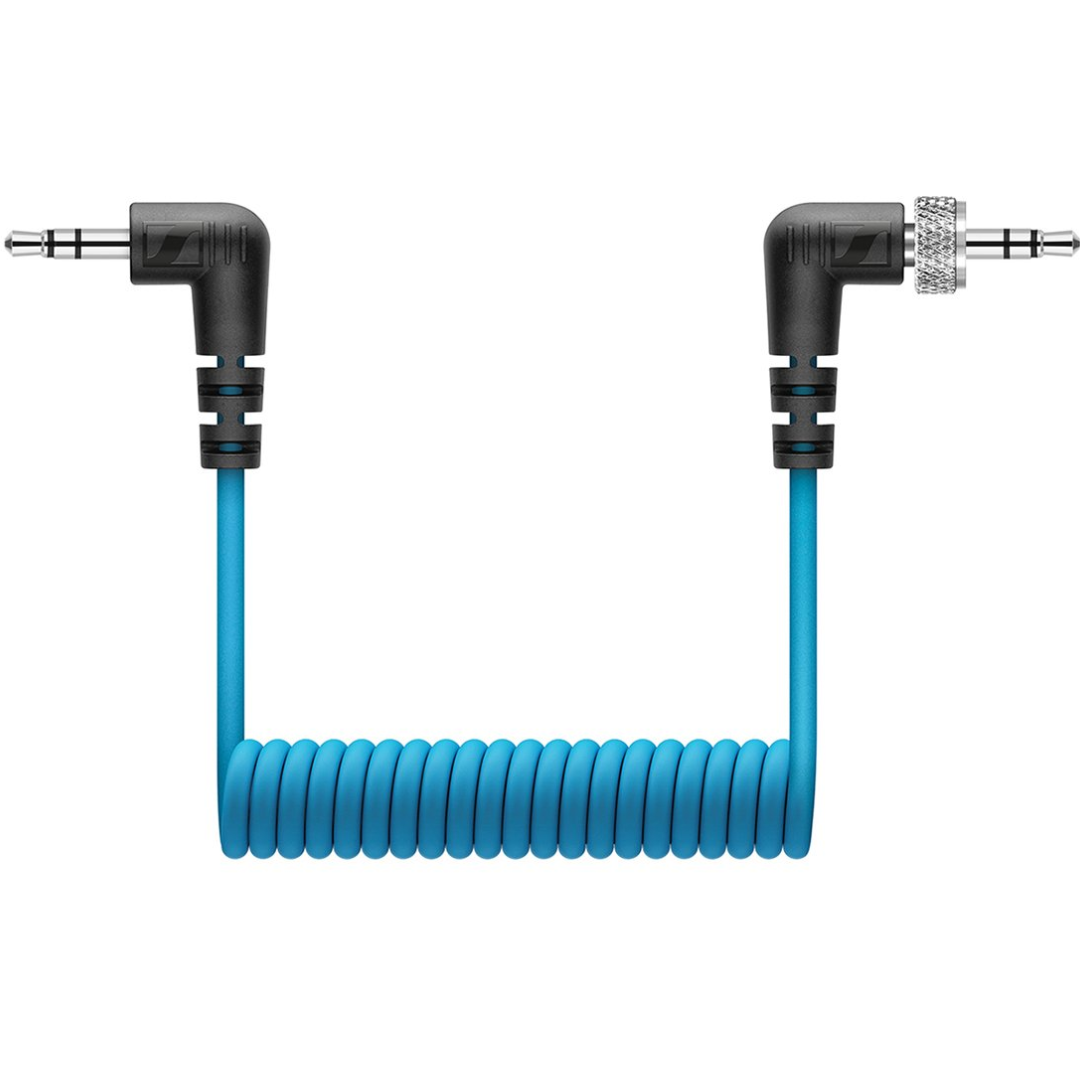

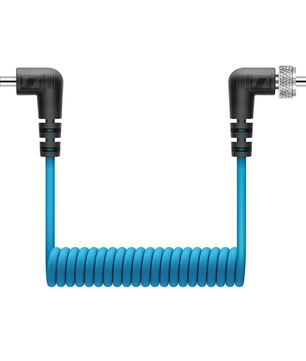

3.5 mm TRS to TRS cable

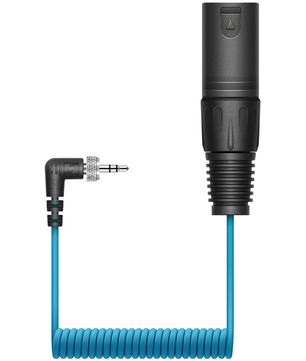

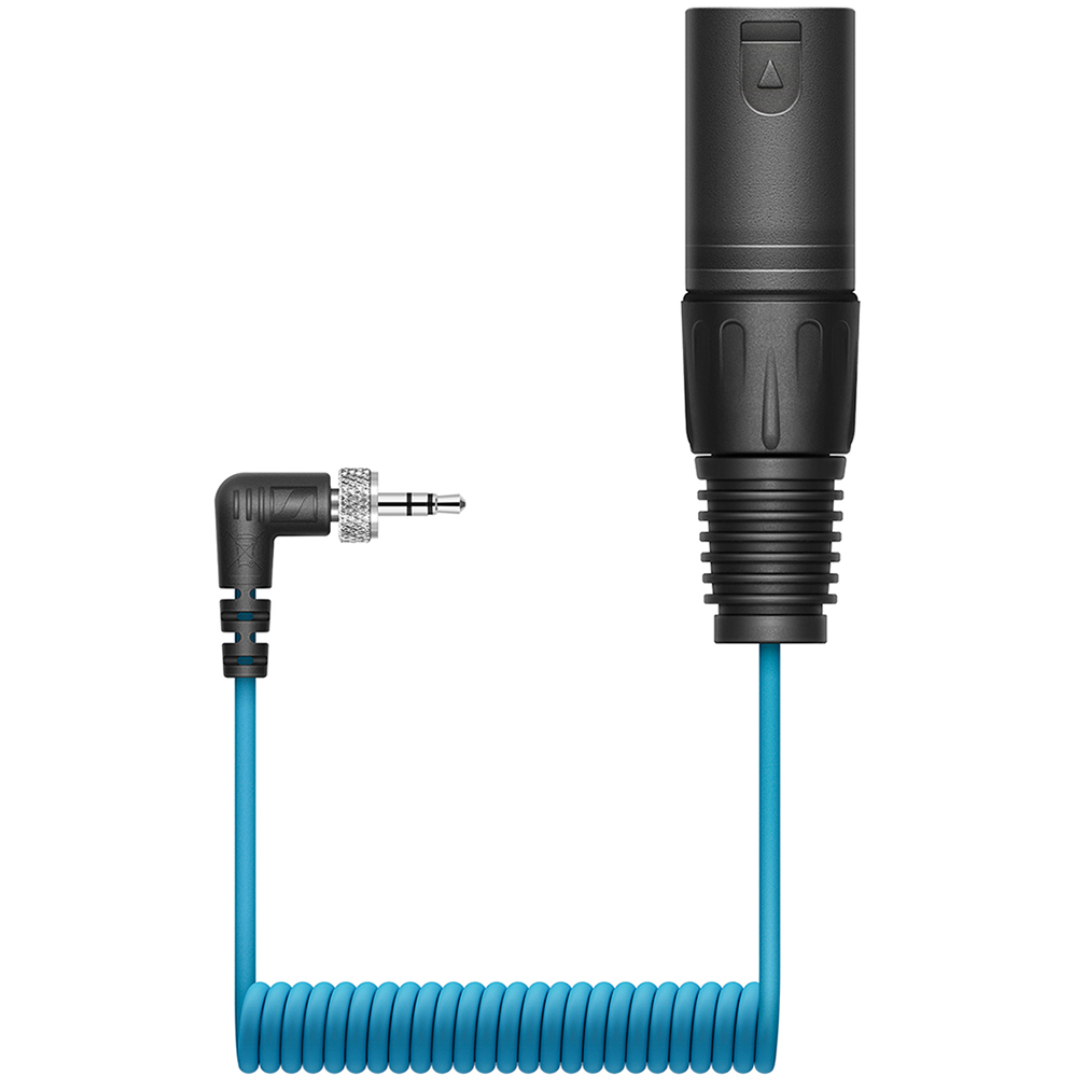

3.5 mm TRS to XLR cable
USB-C charging cable
