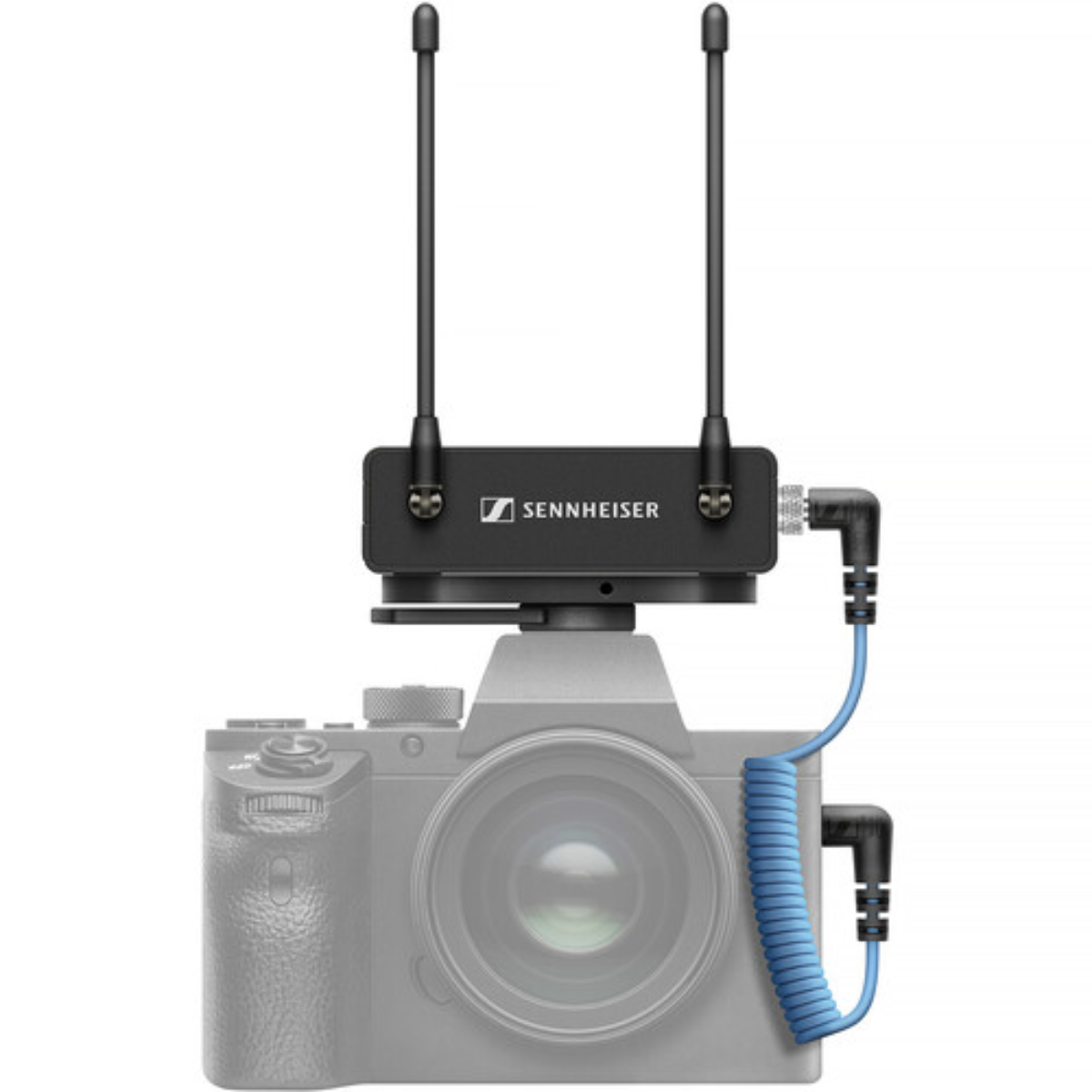

Camera-Mount Digital Wireless Receiver
Sennheiser EW-DP EK (Q1-6) is a compact single-channel digital UHF receiver built for camera-mounted wireless audio in videography, filmmaking, journalism, and content creation. Designed for use with compatible Sennheiser EW-D transmitters, it combines professional wireless performance with fast setup, Bluetooth control, and flexible powering options for field production.
Sennheiser EW-DP EK (Q1-6) Competitive Differences
- Camera-mount digital UHF receiver compatible with EW-D SK bodypack, EW-D SKM-S handheld, and EW-D SKP plug-on transmitters
- 56 MHz tuning bandwidth with 2240 selectable frequencies for reliable operation in changing RF environments
- True-diversity reception with two fixed 1/4-wave antennas for stable wireless performance
- 134 dB dynamic range and 24-bit digital audio for clean, detailed sound capture
- Bluetooth 5.1 LE control via the Sennheiser Smart Assist app for setup, monitoring, and remote adjustments
- OLED display and Smart Notifications provide clear system status and guided troubleshooting
Sennheiser EW-DP EK (Q1-6) Description
The Sennheiser EW-DP EK (Q1-6) is made for creators and production teams who need dependable wireless audio without a complicated setup process. Its camera-mount form factor is ideal for DSLR, mirrorless, cinema camera, and mobile field recording rigs.
With digital UHF transmission, true-diversity reception, and a wide 56 MHz bandwidth, this receiver is designed to maintain strong signal performance in demanding RF environments. Auto-scan frequency selection, 2240 available frequencies, and support for up to 58 mic channels per band make it suitable for everything from solo shooting to larger wireless setups.
For fast operation on set, the receiver includes a front-facing OLED display, onboard controls, and Bluetooth connectivity for the Sennheiser Smart Assist app. The app allows setup, remote control, monitoring, and frequency coordination from an iOS or Android device, while Smart Notifications help identify issues such as clipping, low battery, muted transmitters, or blocked frequencies.
The Sennheiser EW-DP EK (Q1-6) also offers flexible power options for long production days. It can run on two AA batteries, the included BA 70 rechargeable battery pack, or USB-C bus power, making it easy to keep the receiver powered on location, in the studio, or during extended shoots.
EW-DP EK (Q1-6) Features
- Single-channel camera-mount digital UHF receiver
- Compatible with Sennheiser EW-D SK, EW-D SKM-S, and EW-D SKP transmitters
- Designed for videography, filmmaking, newsgathering, and content creation
- True-diversity reception with two fixed antennas
- 56 MHz bandwidth with 2240 selectable frequencies
- 134 dB dynamic range with 24-bit digital audio
- Bluetooth 5.1 LE connectivity for Smart Assist app control
- Auto frequency coordination for fast wireless setup
- Smart Notifications for setup guidance and troubleshooting

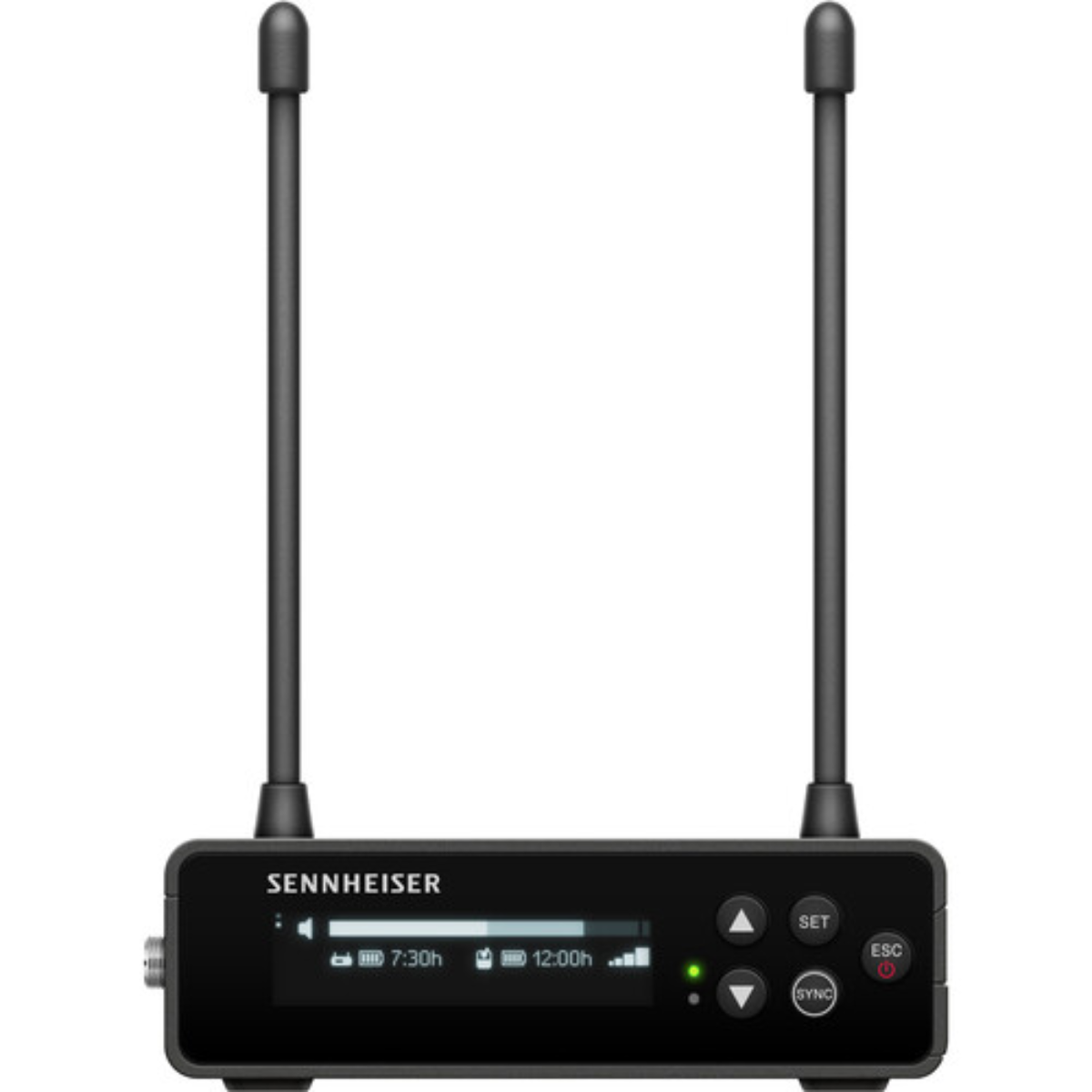

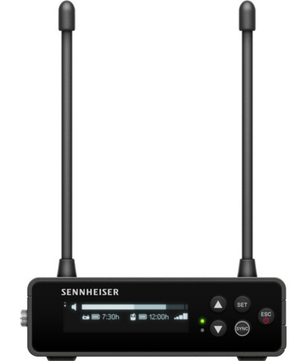

- Front-facing OLED display for clear system monitoring

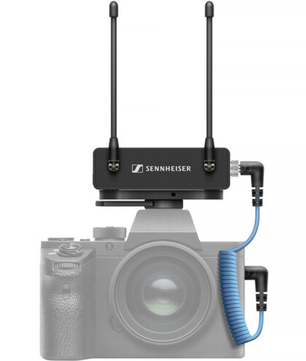

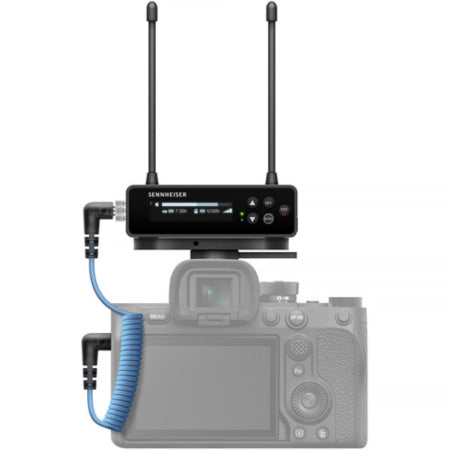

- Cold shoe mount, 1/4"-20 mounting thread, belt clip, and magnetic cheese plate mounting options
- USB-C port for bus power and charging
EW-DP EK (Q1-6) Specifications
- Wireless Technology: Digital UHF / Bluetooth 5.1 LE
- RF Frequency Band: 470 to 526 MHz
- Bandwidth: 56 MHz
- Number of RF Channel Frequencies: 2240
- Max Operating Range: 328.1 ft / 100 m line of sight
- Max Transmitters per Band: 58
- Audio Channels: 1
- Dynamic Range: 134 dB
- Audio Resolution: 24-bit
- Latency: 1.9 ms
- Frequency Response: 20 Hz to 20 kHz ±3 dB
- Receiver Type: Camera-mount

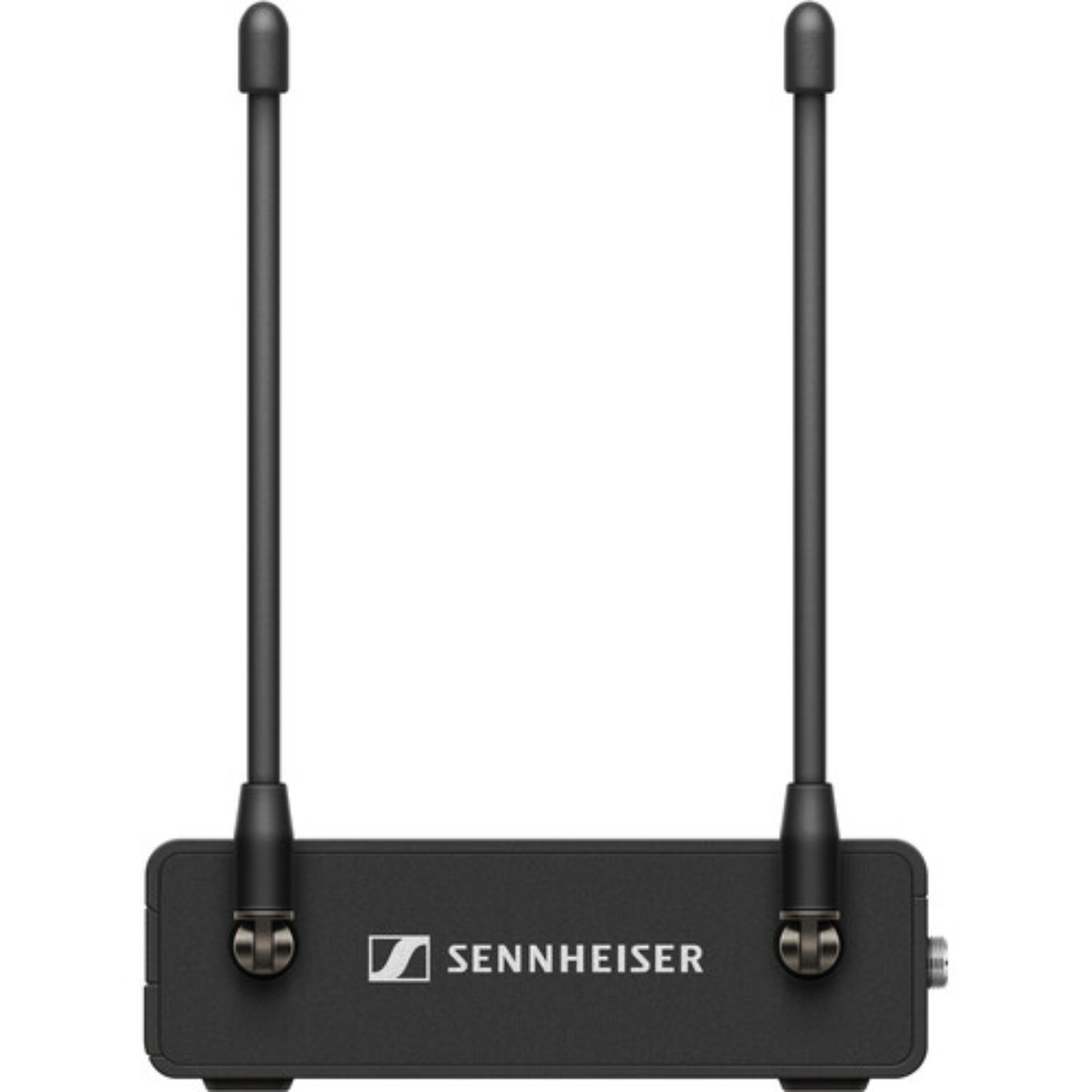

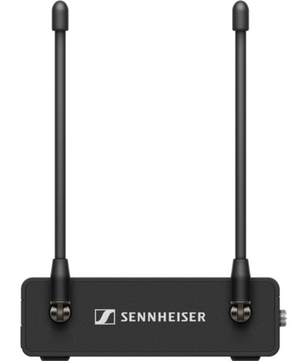

- Antenna: 2x fixed 1/4-wave rod antennas

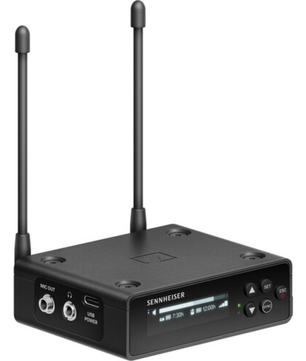

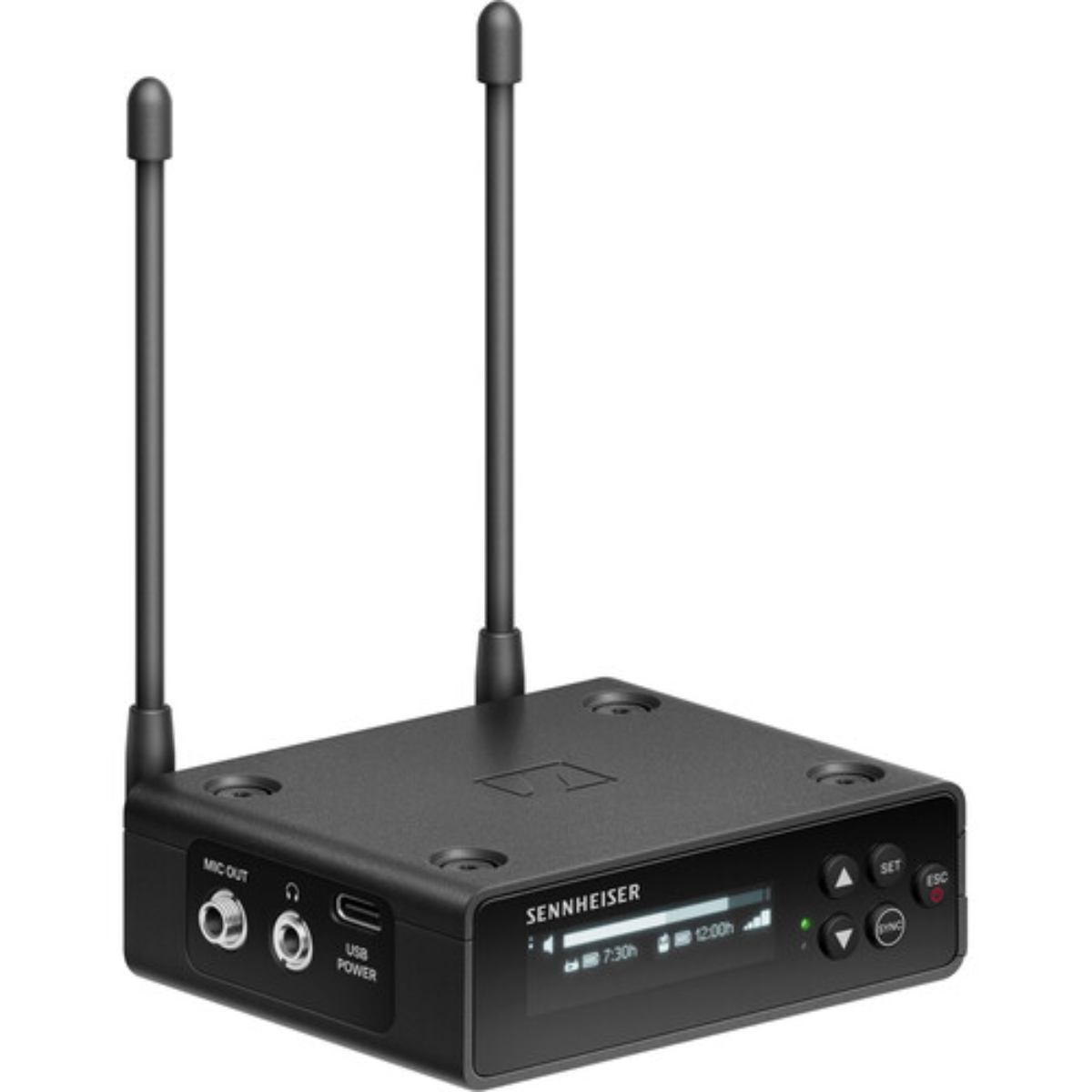

- Audio Output: 1x 1/8" / 3.5 mm locking TRS unbalanced output
- Headphone Output: 1x 1/8" / 3.5 mm locking TRS output
- USB Connectivity: 1x USB-C female for bus power and charging
- Display: OLED
- Power Requirements: 2x AA batteries, Sennheiser battery pack, or USB bus power
- Receiver Battery Life: Up to 7 hours
- Mobile App Compatible: Sennheiser Smart Assist for Android and iOS
- Dimensions: 3.4 x 2.6 x 1.1 in / 86 x 67 x 28 mm
- Weight: 0.3 lb / 140 g
- Package Weight: 1.31 lb
- Box Dimensions: 12.8 x 8.2 x 2.9 in
What's In The Box
- Sennheiser EW-DP EK camera-mount receiver
- BA 70 lithium-ion rechargeable battery pack
- 2x AA batteries
- Cold shoe mount
- Magnetic cheese plate
- Belt clip
