Sennheiser EW-DX 835-S Set (R1-9 Band) | Dual Handheld Wireless System

ennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.

Perfect for Presenters and Singers.
All-in-one digital wireless handheld set for those who sing or speak - featuring Sennheiser's renowned e 835 capsule.

FEATURES:

134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)

AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge

Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in

Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in late 2023)

Secure transmission of confidential content using AES 256 encryption

Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)

Function buttons - control all the transmitter settings directly from the handheld including button lock function

Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries

Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels

Up to 88 MHz switching bandwidth

Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)

Digital audio trim

Transmitters with charging contacts for in-device charging with CHG 70N charger (sold separately)

Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)

Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)

Worldwide usage (specific frequencies subject to local RF regulations)

SPECIFICATIONS:

System
Audio link frequency ranges
Q1-9: 470.2 - 550 MHz
R1-9: 520 - 607.8 MHz
S1-10: 606.2 - 693.8 MHz
S2-10: 614.2 - 693.8 MHz
S4-10: 630 - 693.8 MHz
U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
V3-4: 925.2 - 937.3 MHz
V5-7: 941.700- 951.800 & 953.050 - 956.050 & 956.650-959.650 MHz
Y1-3: 1785.2 - 1799.8 MHz

Bluetooth® Low Energy (BLE) frequency range
2405 - 2480 MHz

Audio frequency response
20 Hz - 20 kHz (-3 dB) @ 3 dBfs

Total harmonic distortion (THD)
≤ -60 dB for 1 kHz @ -3 dBfs input level

Dynamic range
134 dB

System Latency
1.9 ms

RF technology
Intelligent Switching Diversity

Operating temperature
-10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity
5 - 95 % (non-condensing)
EW-DX EM 2 (Rack Receiver)
Input voltage range
11 - 13 V ⎓ or PoE IEEE 802.3af Class 0

Input Current
≤ 1A

Transmission power
BLE: max. 10 mW EIRP

Audio output power
18 dBu max.

Ethernet
RJ-45 socket, IEEE802.3
100Base-TX (half+full duplex)
10Base-T (half+full duplex)
(CAT5e or higher)

Dimensions
212 x 44 x 189 mm

Weight
approx. 1000 g (without antennas and power supply)
EW-DX SKM (Handheld Transmitter)
Input voltage
2.0 - 4.35 V

Input Current
≤ 300 mA

Power supply
2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack

Occupied bandwidth
200 kHz

Transmit power (radiated)
Audio link: 10 mW ERP
(Range Y1-3): 12 mW ERP
LD mode: 10 mw ERP
BLE: max. 10 mW EIRP

Dimensions
50 x 268 mm (incl. MMD 835 microphone module)

Weight w/o batteries
approx. 304 g (incl. MMD 835 microphone module) approx. 195 g (without microphone module)
MMD 835 (Microphone Module)
Transducer principle
Dynamic

Sensitivity
2,1 mV/Pa

Sound pressure level (SPL)
154 dB SPL

Pick-up pattern
Cardioid

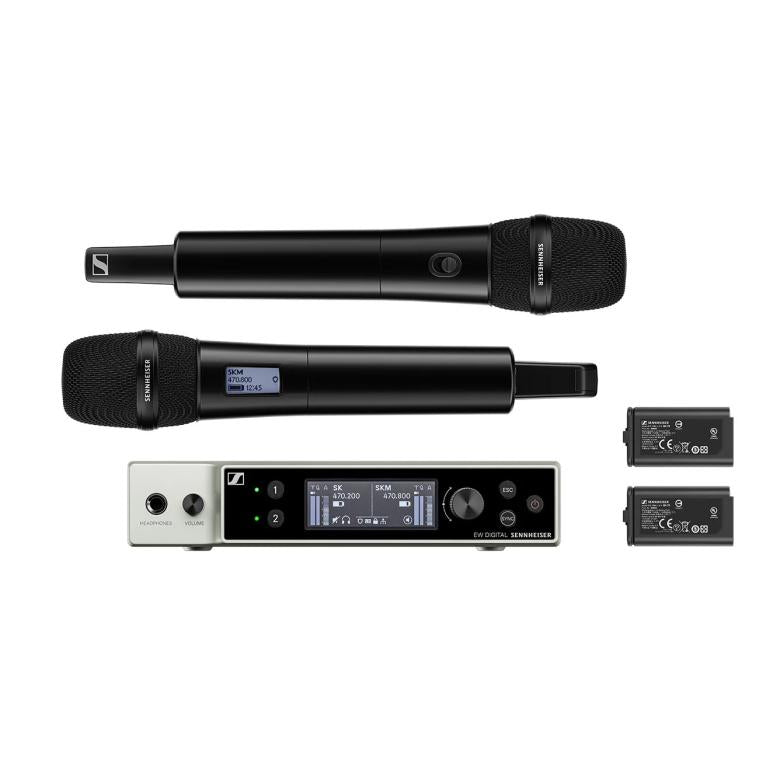

What's in the Box
EW-DX EM 2 rack receiver
2 EW-DX SKM-S handheld transmitter
2 MMD 835 microphone module
EW-D Power Supply with country adapters
2 BA 70 rechargeable battery packs
2 MZQ 1 microphone clamp
2 rod antennas
GA 3 rack mount Kit
4 rubber feet
