Sennheiser XSW-D XLR Base Set

The XS Wireless Digital XLR Base Set features one-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution makes going wireless with a dynamic vocal microphone easier than ever before while maintaining a reliable connection.

Features:

One touch ease-of-use
2.4 GHz digital transmission for worldwide operation
75 m range (250 ft) in optimal conditions
Up to 5 hours battery life on a single charge
Switch between multiple transmitters linked to one receiver
Mix and match different connector types
Mute from either transmitter or receiver

XS Wireless Digital
Wireless means never missing the moment. It means powering on and getting straight to work. Be it a complication-free lavaliere for the one-person video team, a wireless mic that’s up and running right out of the bag, or something entirely different—it’s a quick sync and you’re good to go. Enter the world of wireless without the burden of a complex setup. An all new way to capture audio. An instant connection.

An instant connection.
XS Wireless Digital. Like any classic romance, it’s elegant to see, complex in theory, but intuitive in action. These might sound like strong words for a wireless solution to your audio needs, but like any love story, you know it when you experience it. It’s an instant connection.

But what does it do? How does it work?
XS Wireless Digital is your entry point into the world of wireless audio. It works digitally, using a 2.4 GHz transmission to create a wireless peer-to-peer connection. That’s it in two sentences—but what does it mean?

Freedom.
With the simple touch of a button, focus on your subject and maintain a faithful connection. It means powering on and getting straight to work. Be it a complication-free lavaliere for the one-person video team, a wireless mic that’s up and running right out of the bag, or something entirely different—it’s a quick sync and you’re good to go. It’s the power to turn audio limitations into audio opportunities.

Frankly, it’s a simple but versatile tool that means more than we’ve had the time to discover. What we do know is that it works, and if you’re looking to change your relationship with your viewers by enhancing your audio, then you need to try it out.

Enter the world of wireless audio
Wireless means never missing the moment. XS Wireless Digital brings great audio within reach; an ideal tool to effectively capture sound for videographers and mobile journalists alike. Enhance your work with consistent, clean audio without the burden of a complex set-up.

One touch ease-of-use
It’s simple, each XS Wireless Digital has only one button. Press to power up and link simultaneously, click once to mute, and hold to power down. Reduce your set-up time and never miss a moment, it’s ready when you are.

Digital for worldwide operation
Your sound should be as boundless as your ideas. Forget about having to set frequencies and step into the world of digital. Using a 2.4 GHz transmission, sync and go anywhere, anytime—effortlessly.

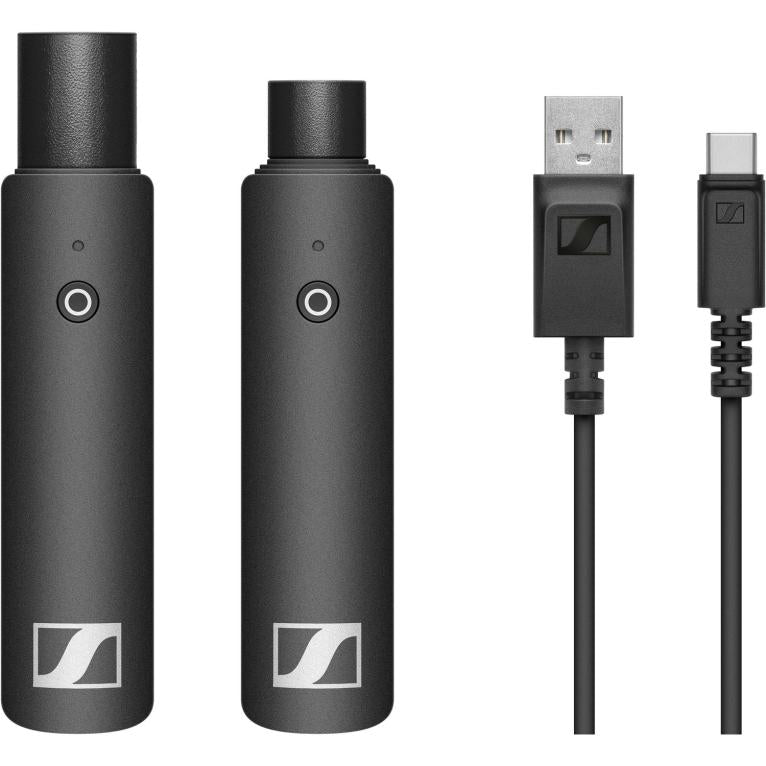

Includes:

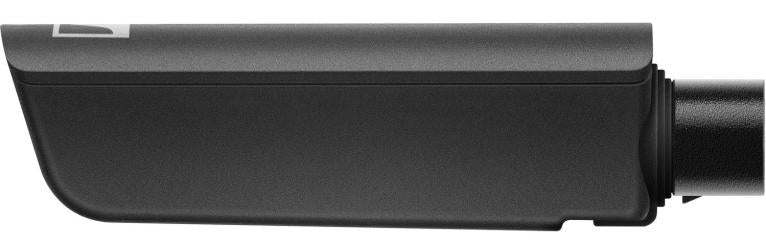

XSW-D female XLR transmitter

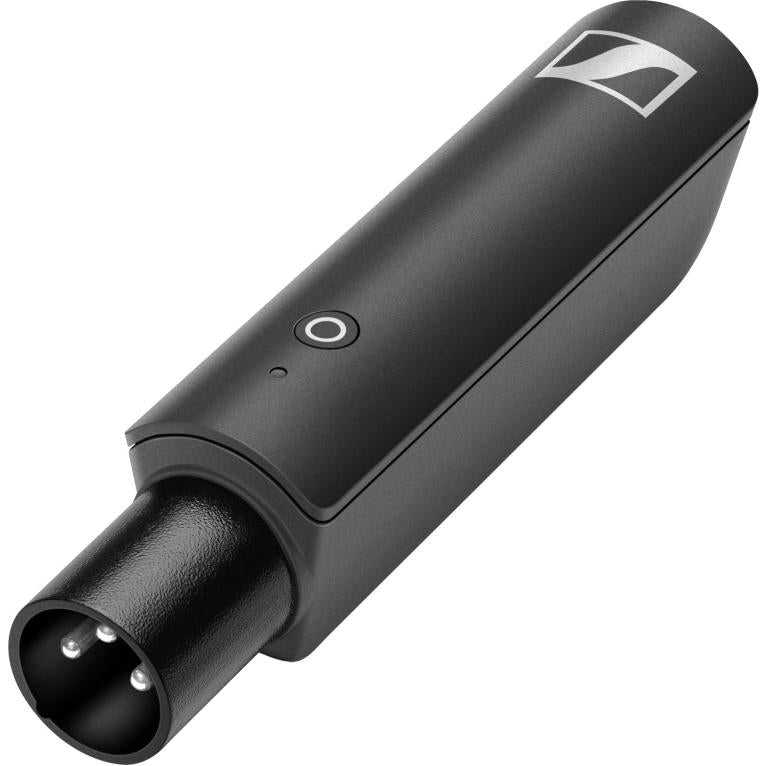

XSW-D male XLR receiver

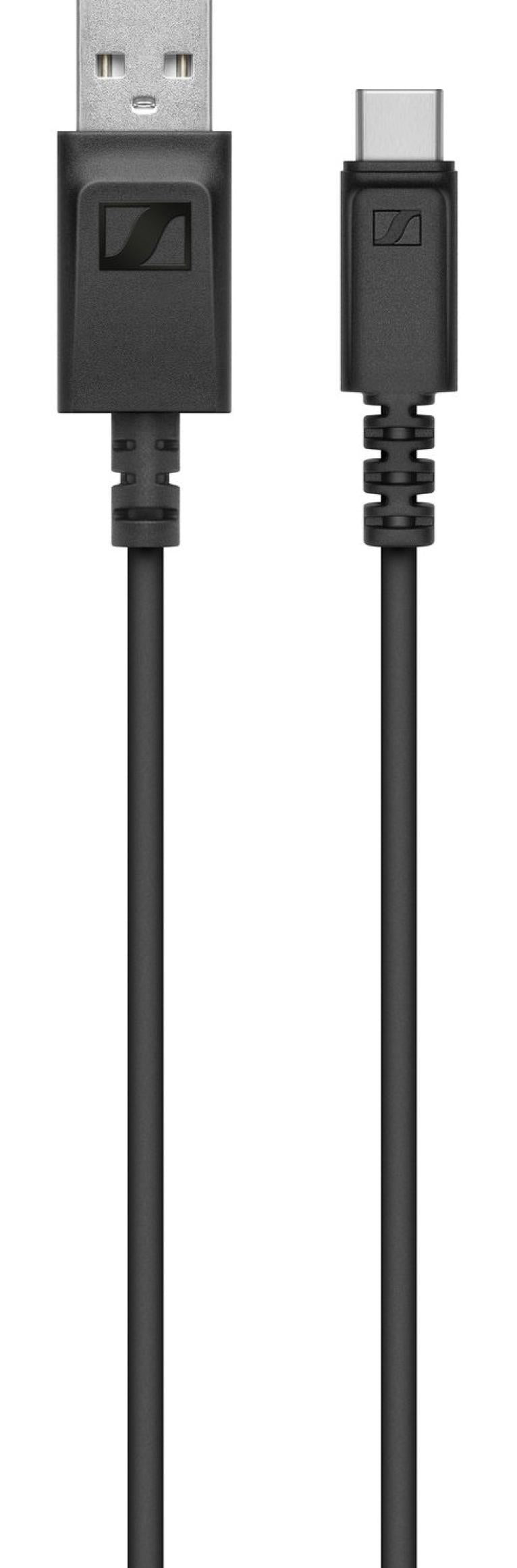

USB-A to USB-C charging cable
Colored stickers for labeling
Quick guide
Safety guide

Specifications:

USB C interface for charging:
Input voltage typ. 5.0 V
Charging temperature 0 °C - 60 °C (32 °F - 140 °F)
Charging time typ. 3 h

Battery pack:
Cell type Li-Ion
Nominal voltage 3.7 V
Cell capacity 850 mAh
Operating time up to 5 h

AF characteristics:
Codec aptX Live

Audio frequency response:
3.5 mm Jack/XLR: 80 - 18,000 Hz
6.3 mm Jack: 10 - 18,000 Hz
Audio output max.: 12 dBu
Signal-to-noise ratio: = 106 dB
THD: < 0.1 %
Audio latency: < 4 ms

Product properties/Dimensions:
XSW-D XLR FEMALE TX- approx. 102 x 24 x 28 mm
XSW-D MINI JACK TX- approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT TX- approx. 122 x 24 x 28 mm
XSW-D XLR MALE RX- approx. 109 x 24 x 28 mm
XSW-D MINI JACK RX- approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT RX- approx. 122 x 24 x 28 mm
XSW-D PEDALBOARD RX- approx. 130 x 82 x 51 mm

Frequency range: 2,400 - 2,483.5MHz
Transmission power (EIRP) max.: 10 mW
Modulation: GFSK with TDMA
Environmental conditions:
Operating temperature -10 °C to +55 °C / (14 °F to 131 °F)
Relative humidity: 95 % (non-condensing)
