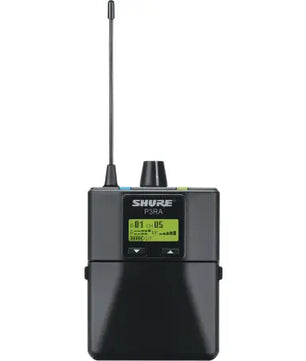

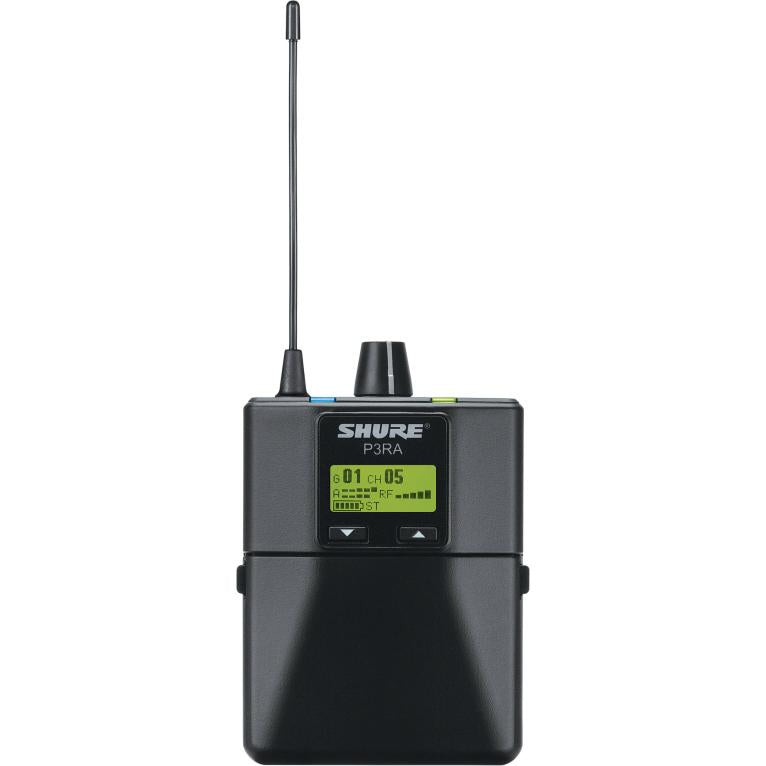

Shure P3RA-G20 | PSM300 Wireless Bodypack Receiver

Shure P3RA-G20

The Shure P3RA-G20 is a professional wireless bodypack receiver designed for use with the PSM300 in-ear monitoring system. It delivers enhanced audio quality, reliability, and durability, making it ideal for live performances and demanding environments.

Key Features

• Robust metal body for increased durability
• Advanced audio processing with Audio Reference Companding
• MixMode® technology for personalized monitoring
• High-contrast LCD display for easy navigation
• Precision front-end RF filtering
• Wide tuning range for reliable signal
• Up to 6 hours of continuous operation with 2 AA batteries
• Optional SB900 rechargeable battery for extended runtime
• Quick frequency scanning and IR sync
• Volume limiter for hearing protection
• Power-save mode to extend battery life

Specifications

• Frequency Range: 488-512 MHz (G20)
• RF Sensitivity: 2.2 µV for 12 dB SINAD
• Signal-to-Noise Ratio: > 90 dB
• THD: < 0.5%
• Frequency Response: 38 Hz – 15 kHz
• Adjacent Channel Rejection: > 60 dB
• Intermodulation Attenuation: > 50 dB
• Blocking: > 60 dB
• Audio Output Power (1 kHz @ < 1% distortion, peak power, @ 32 Ohms): 80 mW (per output)
• Minimum Load Impedance: 16 Ohms
• Headphone Output: 1/8" (3.5 mm) stereo
• Operating Range: Up to 300 feet (90 meters)
• Dimensions: 4.3 x 2.6 x 0.9 in (110 x 65 x 23 mm)
• Weight: 6.9 oz (196 g) with batteries

What's in the Box

• 1 x P3RA-G20 Bodypack Receiver
• 2 x AA Batteries
• 1 x User Manual
• 1 x Zipper Bag

NOTE: The Shure P3RA-G20 is ideal for musicians and performers seeking reliable and high-quality wireless monitoring in live performance settings.
