UA845UWB
Antenna Distribution System

Antenna distribution system expands a wireless microphone system by splitting 1 pair of antennas and amplifies RF signals.

Ultra-Wide Band Antenna and Power Distribution System

Key Features
LED Overload Indicators
Front Panel Band Selection
Splits Signal and Power to 4 Receivers
Amplifies RF Signals

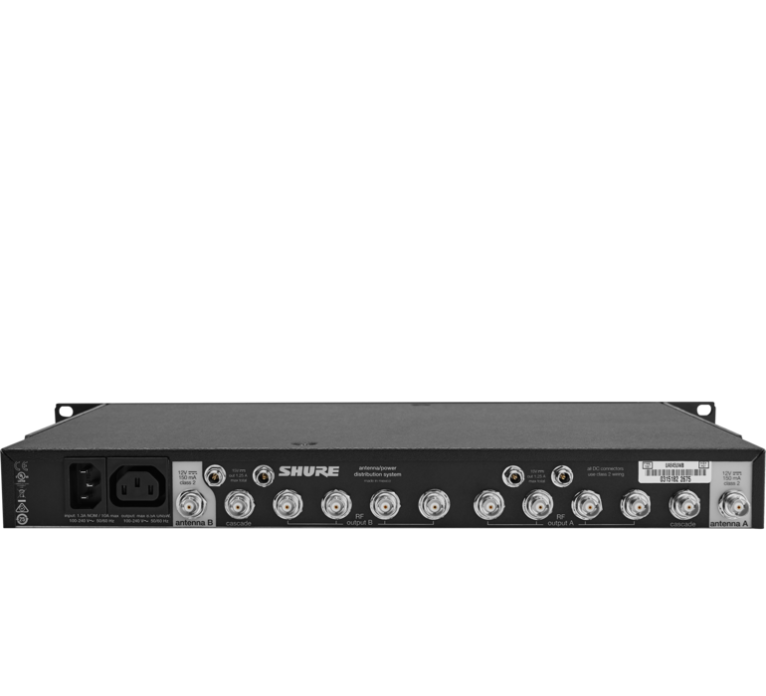

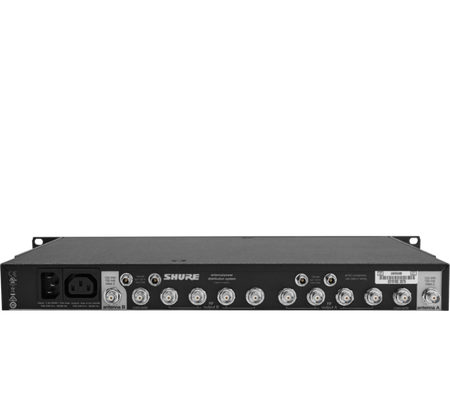

The UA845UWB Ultra-Wide Band Antenna and Power Distribution System from Shure is a five-way active antenna splitter and power distribution system for Shure's wireless UHF-R, QLX-D, ULX, ULX-D, SLX, and BLX (BLX4R only) receivers. It allows four wireless receivers to use the same set of antennas, and cascade connectors allow connections to a fifth receiver or a second UA845UWB.

Featuring power connectors for distributing power to each receiver, the antenna system's RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of the five frequency bands from 174 to 1805 MHz. In addition, the unit comes complete with DC cables, bulkhead adapters, twelve BNC cables, a power cable, and a rackmount hardware kit.

5-selectable frequency ranges
Antenna A and B input overload LED indicators
Five-way RF signal output
Supports UHF-R, QLX-D, ULX, ULX-D, SLX, and BLX (BLX4R only) receivers
Front-mounting antenna hardware
Rack-mounting hardware
Internal power supply
Four DC power feeds for receivers (15V, 2.5A max)
DC outputs for antenna bias (12V, 300mA max)
