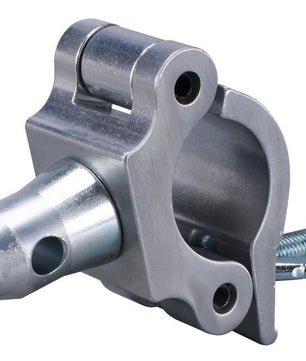

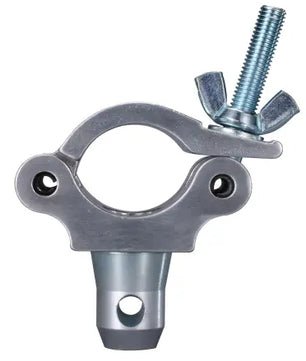

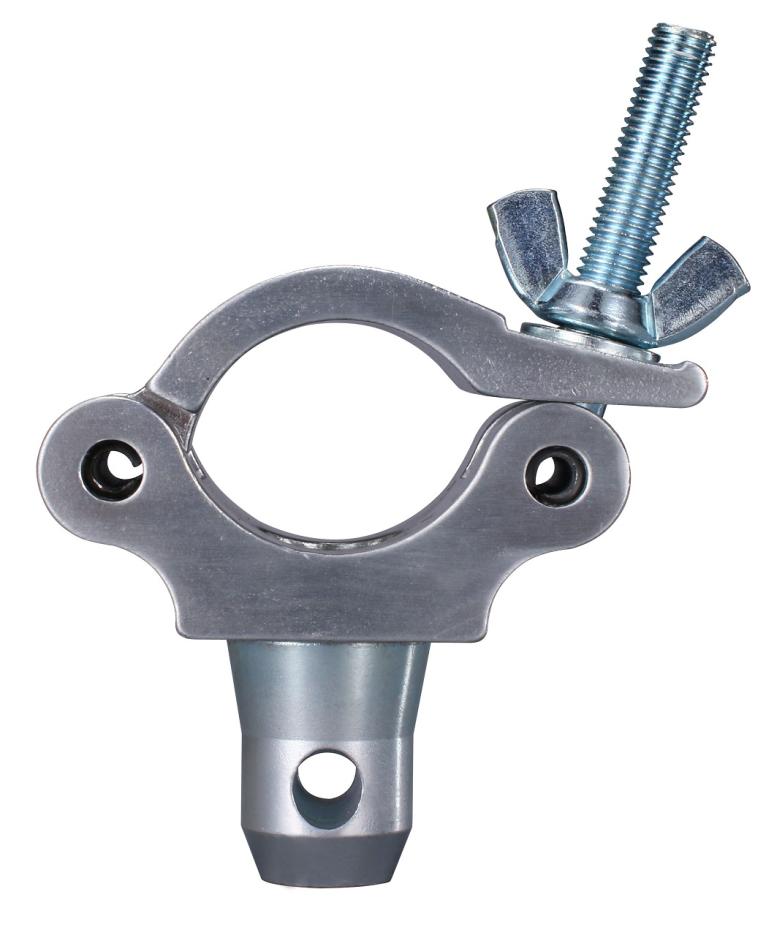

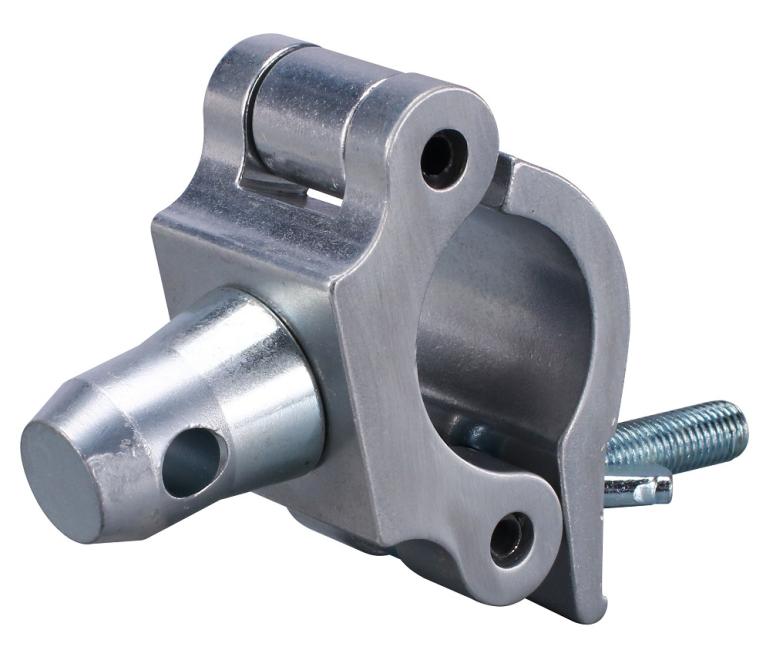

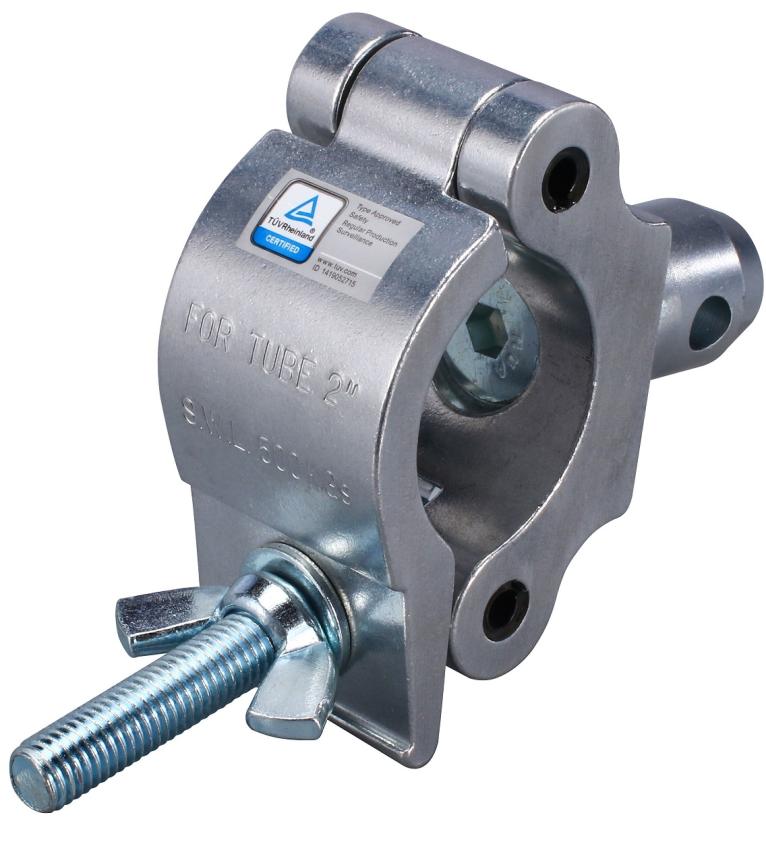

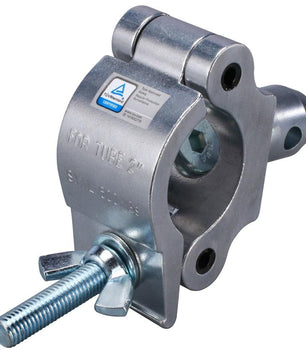

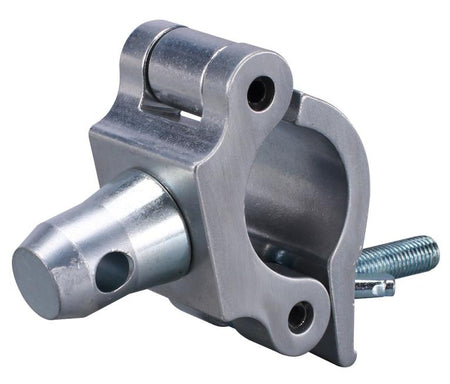

SquareCable COUPLER CLAMP | F34, 1100lb Truss Clamp + Half Coupler

F34 Coupler Clamp

Load Rating: 500kgs / 1,100lbs

Square Truss segments are fabricated by TUV certified welders. The trussing factory is held to strict standards for safety, performance, and welding. Third party engineering and testing have been completed and load charts are available.

Features

• Material: Al 6061-T6 Aluminum
• Compatible with F34 Trussing from Other Brands
• 2in Standard Truss Clamp
• Integrated Half Coupler Will Connect to F34 Trussing

Dimensions

• Width: 2 in / 50 mm
• Diameter: 1.5 - 2 in (DIA: 38-51mm)
• SWL: 1,100 lbs / 500 kgs
• Weight: 1.5 lbs
