Studio Master DigiLive 16RS | 16-Channel Digital Rack Mixer with Touchscreen & iOS Control

Rackmount Digital Mixer with Touchscreen and iPad Control

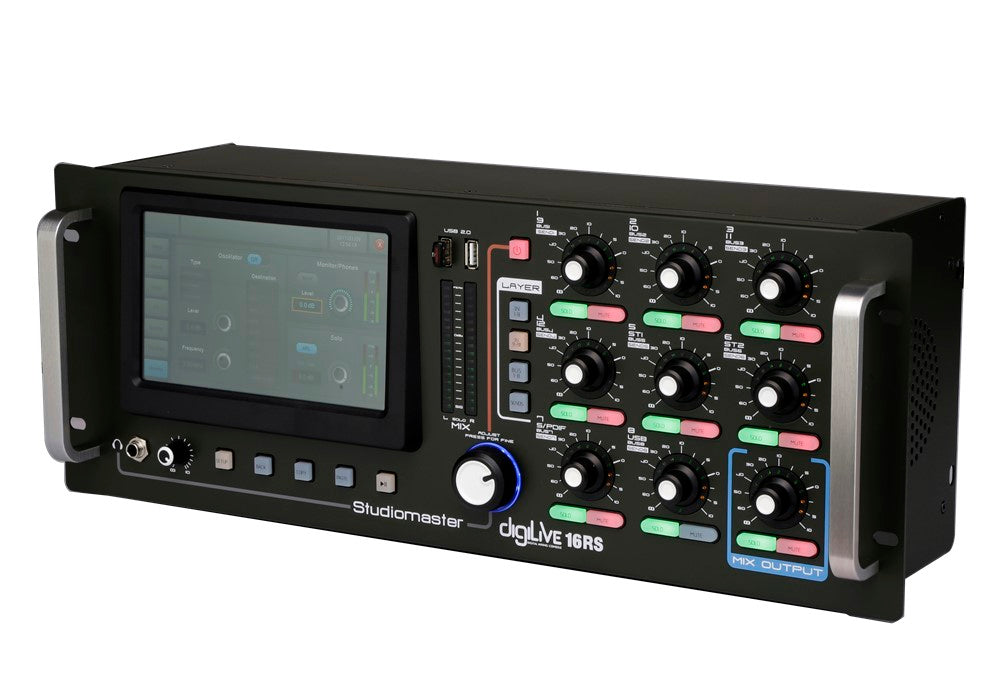

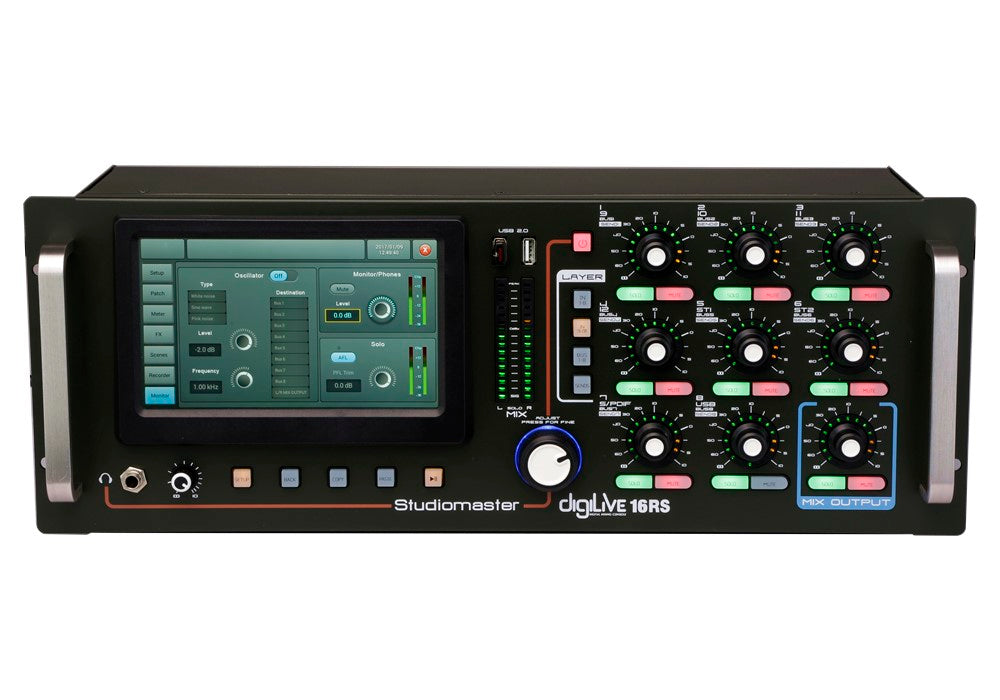

The Studiomaster DigiLive 16RS is a powerful 16-input rackmount digital mixer designed for professional audio applications in live, studio, or installation environments. With 16 internal busses, 12 digital mic inputs, and a high-resolution 7" touchscreen, this compact unit delivers advanced control, extensive connectivity, and smooth integration with iOS devices for wireless mixing flexibility.

Studiomaster DigiLive 16RS Competitive Differences

• 16 total input channels, including 12 digitally controlled mic preamps
• 2 stereo line inputs and 8 total outputs including 6 smart configurable XLRs
• 7″ high-resolution touchscreen interface for fast and intuitive control

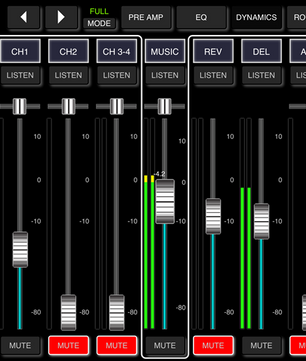

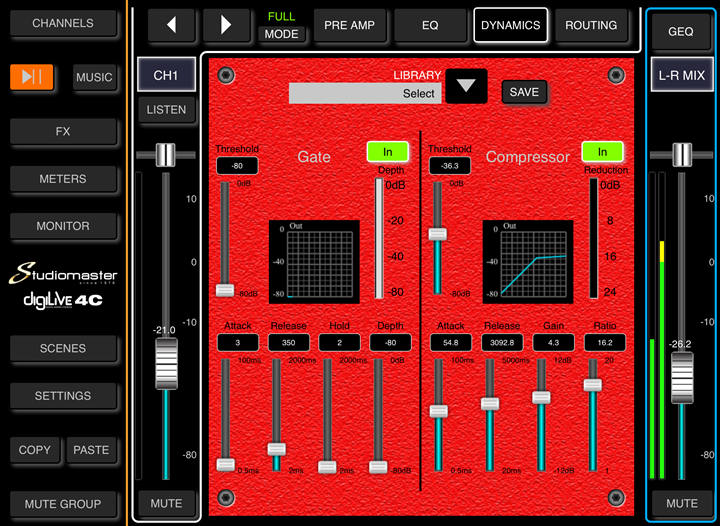

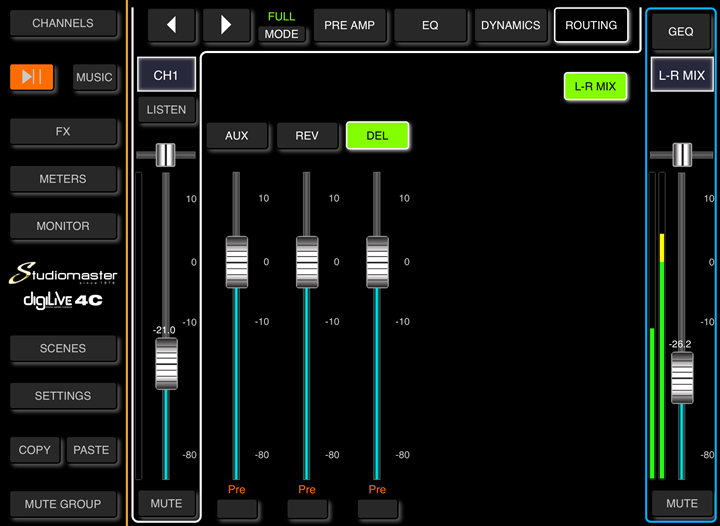

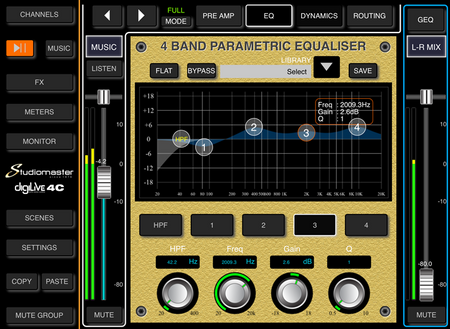

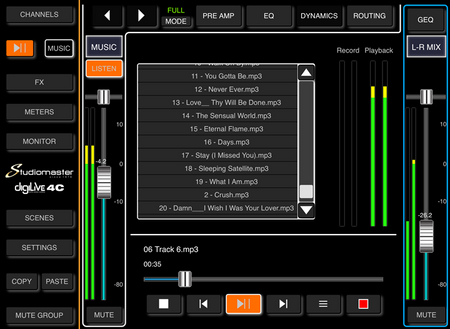

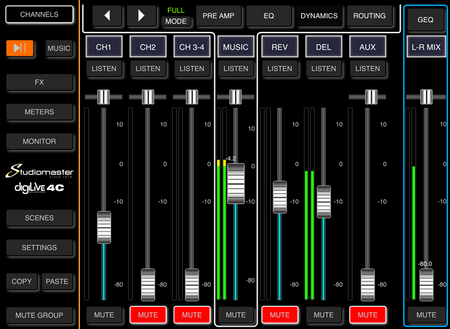

• Remote control via iPad using the dedicated DigiLive Blackbox app
• Advanced hybrid interface for both tactile and touchscreen operation
• Compact rackmount design ideal for touring, fixed installations, and mobile rigs
• Up to 8 assignable effect modules for professional-grade mixing
• High-quality DSP processing with 192 kHz AD/DA and 40-bit SHARC architecture

Studiomaster DigiLive 16RS Description

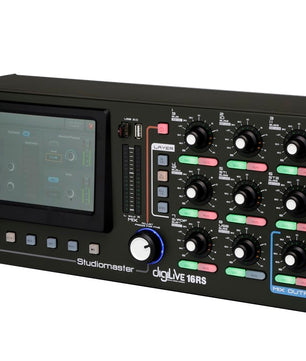

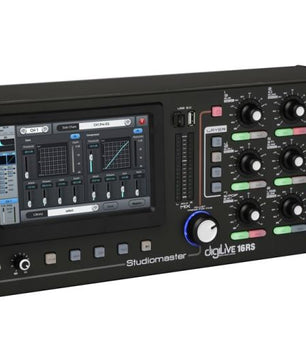

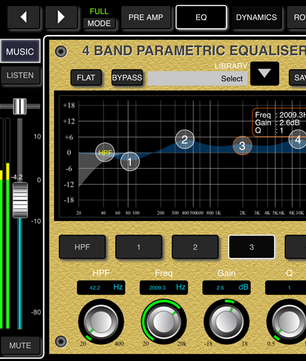

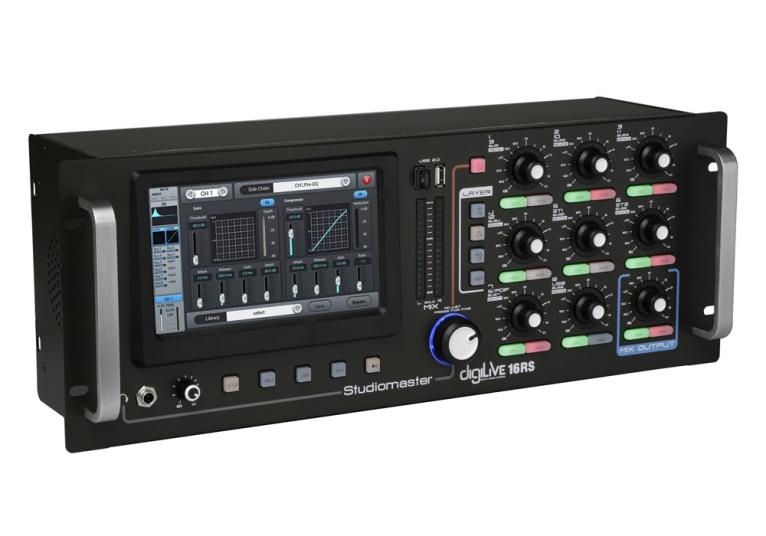

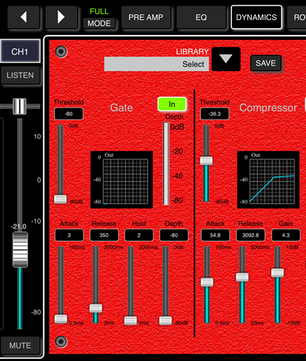

The Studiomaster DigiLive 16RS brings the performance of a full-sized console to an ultra-compact 3U rack format, making it an excellent solution for both mobile sound engineers and fixed venue installs. This versatile digital mixer provides 12 digitally controlled mic inputs (8 XLR and 4 combo XLR/TRS), plus 2 stereo inputs, totaling 16 channels of audio routing flexibility. Featuring a 7-inch high-resolution touchscreen, the DigiLive 16RS offers a fast, intuitive workflow, letting users easily access EQ, dynamics, FX routing, and mix parameters. It supports up to 8 assignable effects modules, enabling deep customization for complex mixes. Control is also available wirelessly through Studiomaster’s ‘DigiLive Blackbox’ iOS app, turning any iPad into a remote mixing surface. With 6 assignable smart outputs, a pair of main XLR outputs, and stage monitoring via TRS, this mixer adapts effortlessly to varying live or recording setups. Powered by a high-performance 40-bit SHARC DSP and offering pristine 192 kHz, 24-bit AD/DA conversion, the DigiLive 16RS ensures exceptional audio clarity and low-latency performance. Connectivity also includes AES/EBU and S/PDIF for digital I/O integration and dual USB ports for recording, playback, system updates, and scene storage.

DigiLive 16RS Features

• 16 input channels (12 mic, 2 stereo)
• 12 digitally controlled mic preamps (8 XLR, 4 combo XLR/TRS)

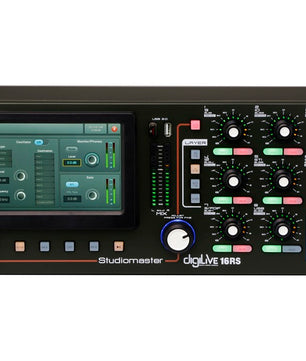

• 7″ high-resolution color touchscreen interface
• Advanced hybrid control surface (touchscreen + hardware interface)

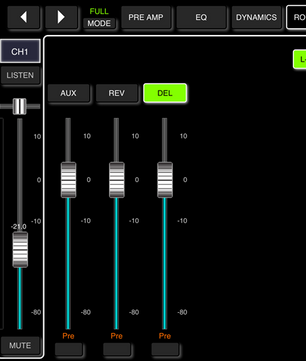

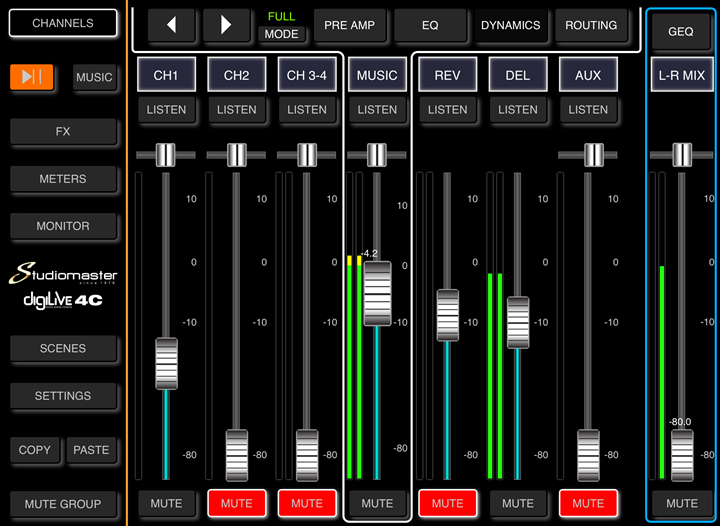

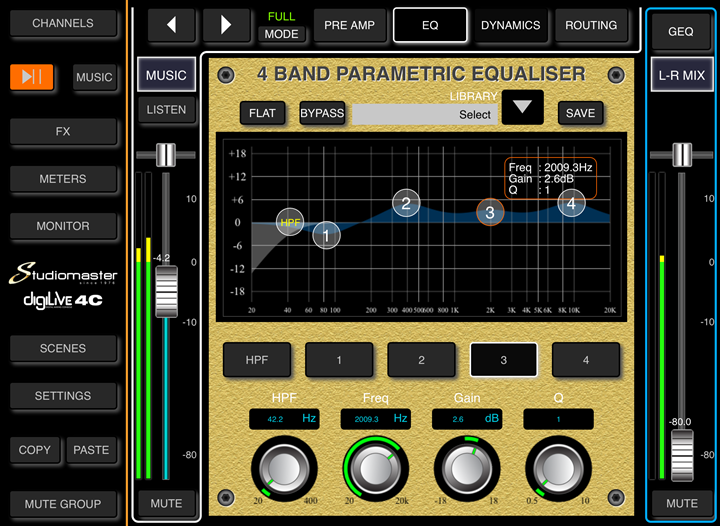

• Remote iOS control via DigiLive Blackbox iPad app
• Up to 8 assignable effect modules
• Assignable smart outputs for flexible routing

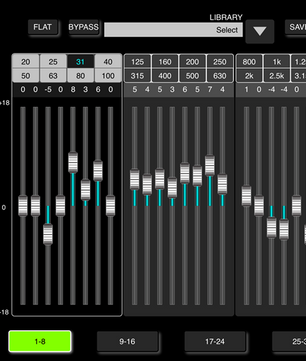

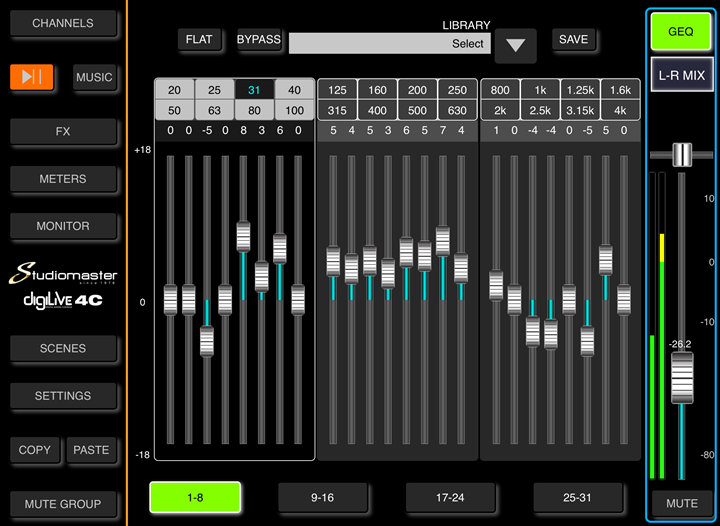

• 31-band graphic EQ available on outputs
• Digital output via AES/EBU (XLR)
• S/PDIF input and output (RCA)

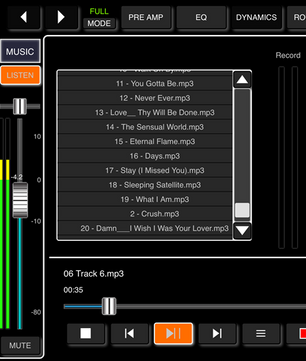

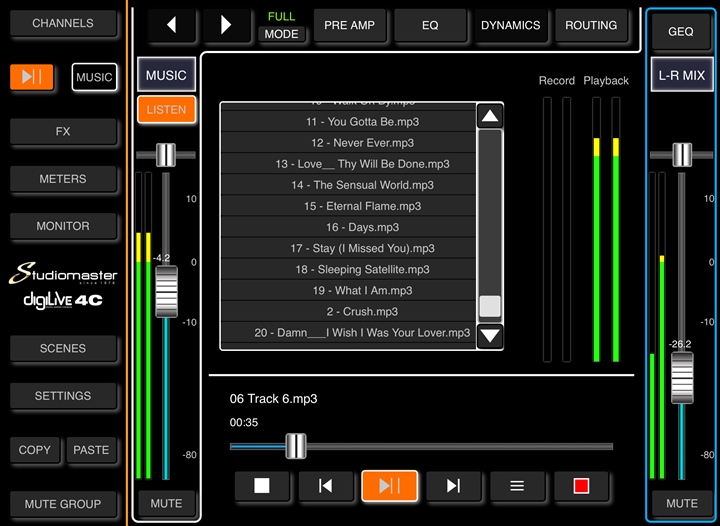

• USB ports for playback, recording, and system management
• Ultra-compact rackmount form factor (3U)

DigiLive 16RS Specifications

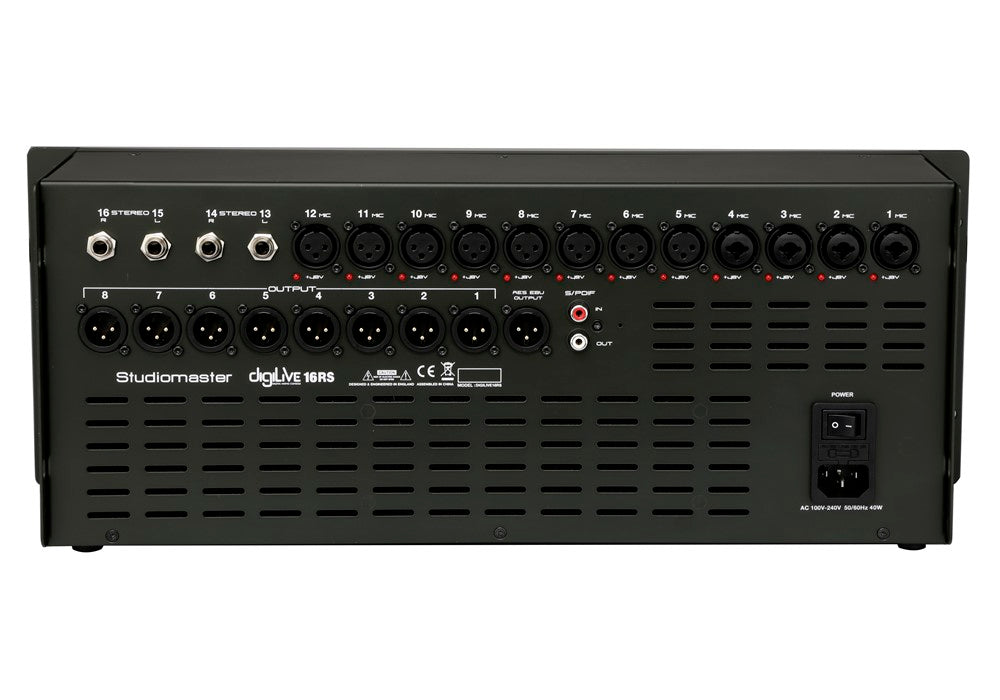

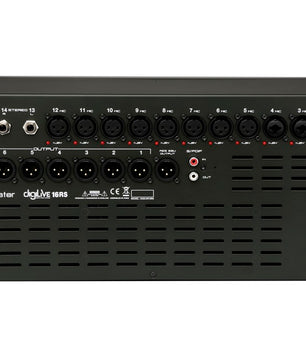

• Mic Inputs: 12 total (8 XLR, 4 combo XLR/TRS)
• Stereo Inputs: 2
• Master Output: 2 balanced XLR (Left/Right)
• Smart Outputs: 6 assignable balanced XLR
• Stage Monitor Output: 1 TRS jack
• Headphone Output: 1 TRS jack
• Internal Busses: 16
• Touchscreen: 7″ high-definition color display
• Operating System: Android-based control system
• Remote Control: iOS via DigiLive Blackbox app
• Sample Frequency: 48 kHz
• AD/DA Conversion: 192 kHz / 24-bit
• DSP: 40-bit floating point SHARC processor
• Digital I/O: AES/EBU (XLR), S/PDIF In/Out (RCA)
• USB: 2 ports for playback, recording, scene storage, and updates
• Network: Wi-Fi module (included)
• Power Supply: 90–240V ~ 50/60Hz via IEC connection
