Vari-Mu Mastering and Bus Compressor

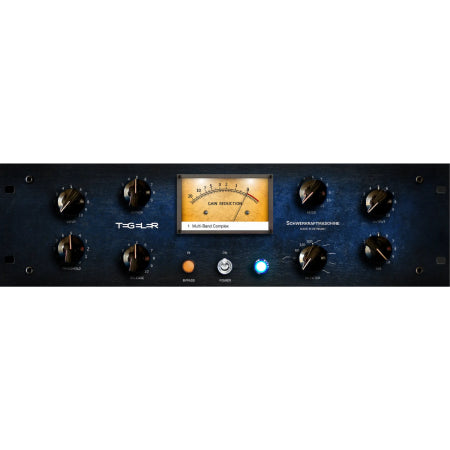

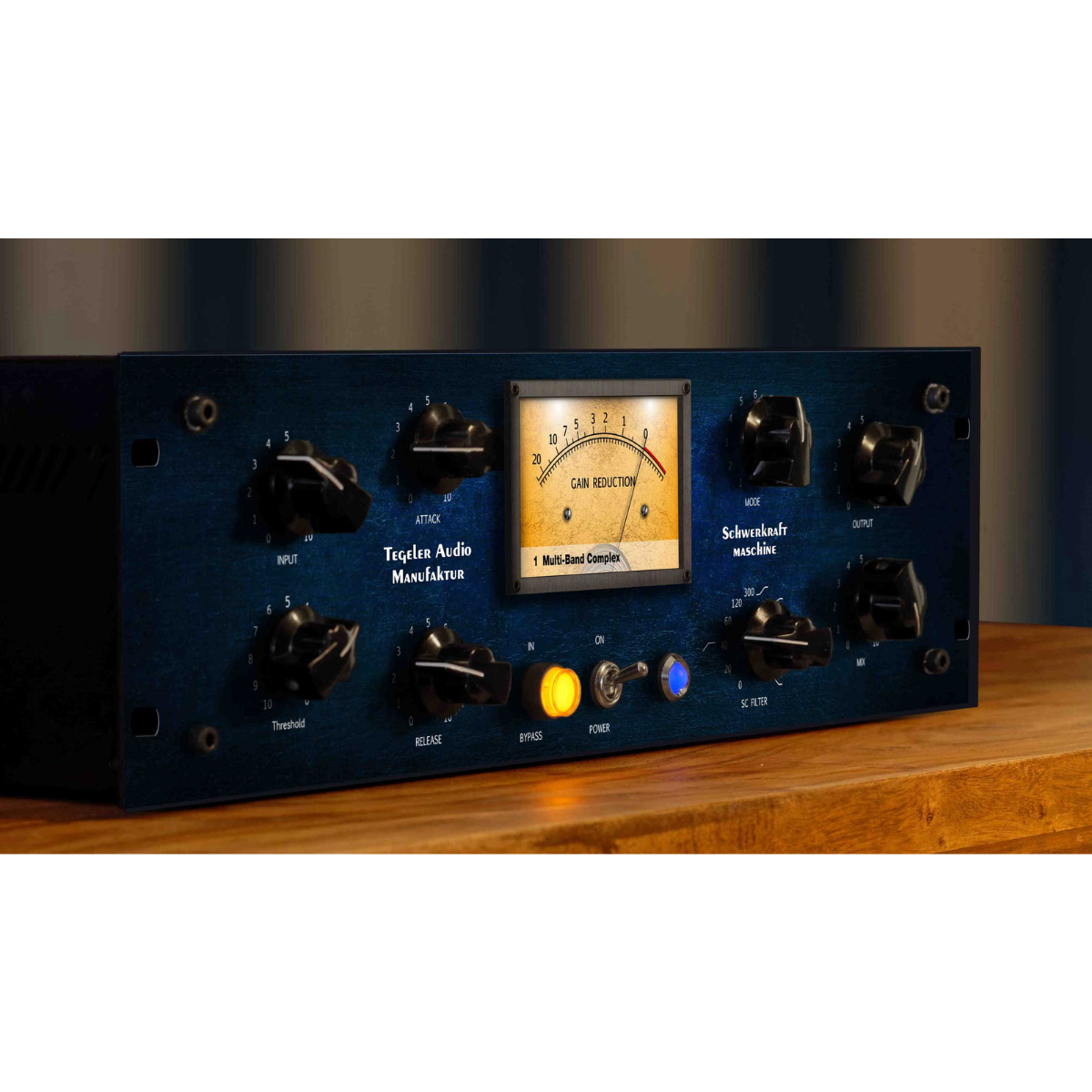

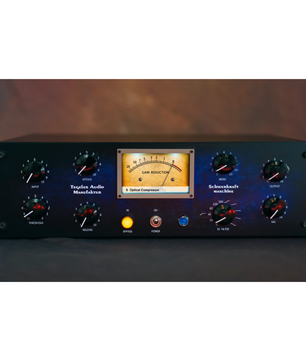

Tegeler Audio Schwerkraftmaschine is a stereo vari-mu mastering and bus compressor built for professional studios seeking refined dynamics control and harmonic enhancement. Using a hybrid approach of tube analog circuitry and digitally controlled side-chain behavior, it delivers everything from smooth glue compression to complex, program-dependent processing for mastering and mix bus applications.
Tegeler Audio Schwerkraftmaschine Competitive Differences
- Combines vari-mu tube compression with digitally controlled side-chain and 11 selectable compression modes
- Remote controllable via plug-in with motorized controls, allowing total recall and DAW integration
Tegeler Audio Schwerkraftmaschine Description

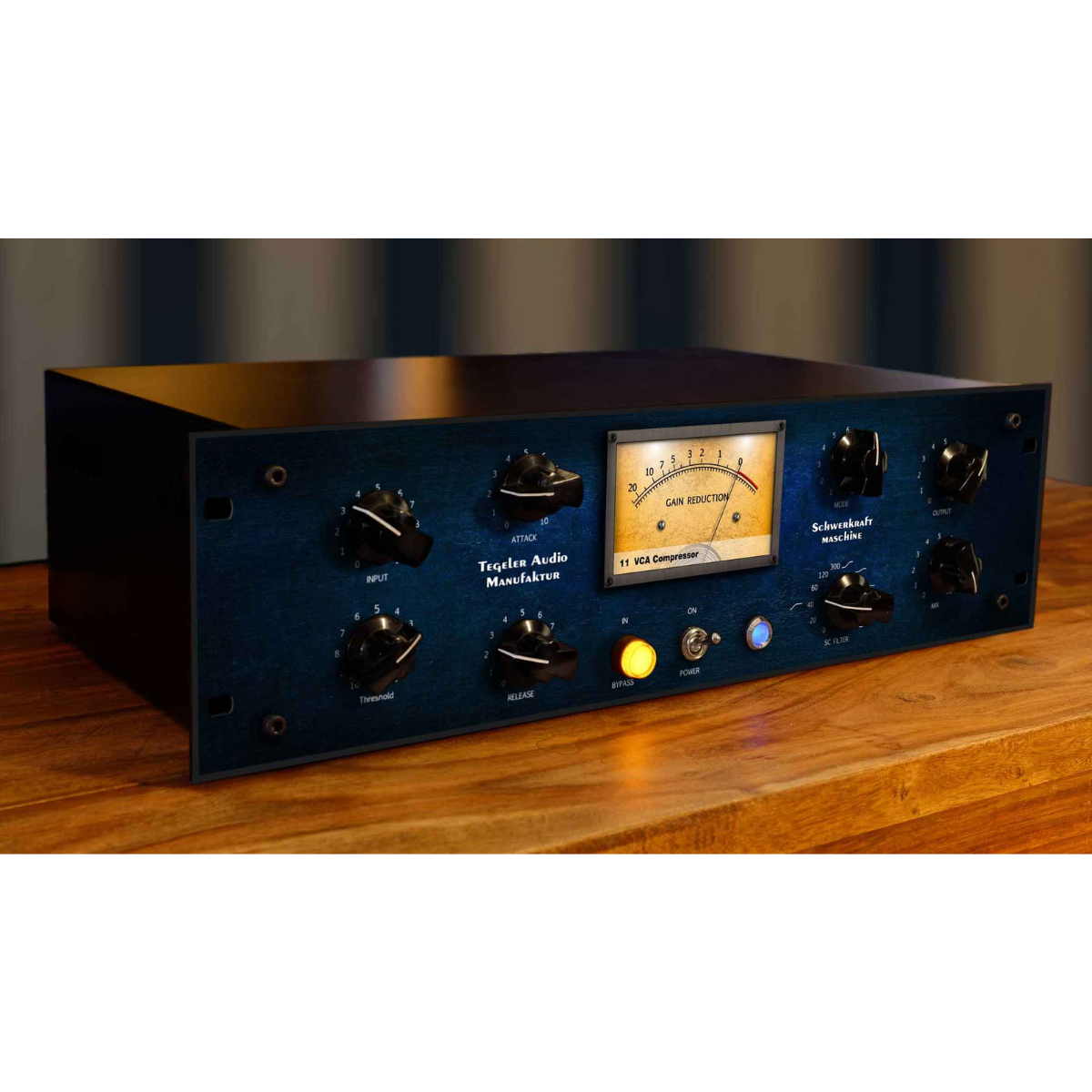

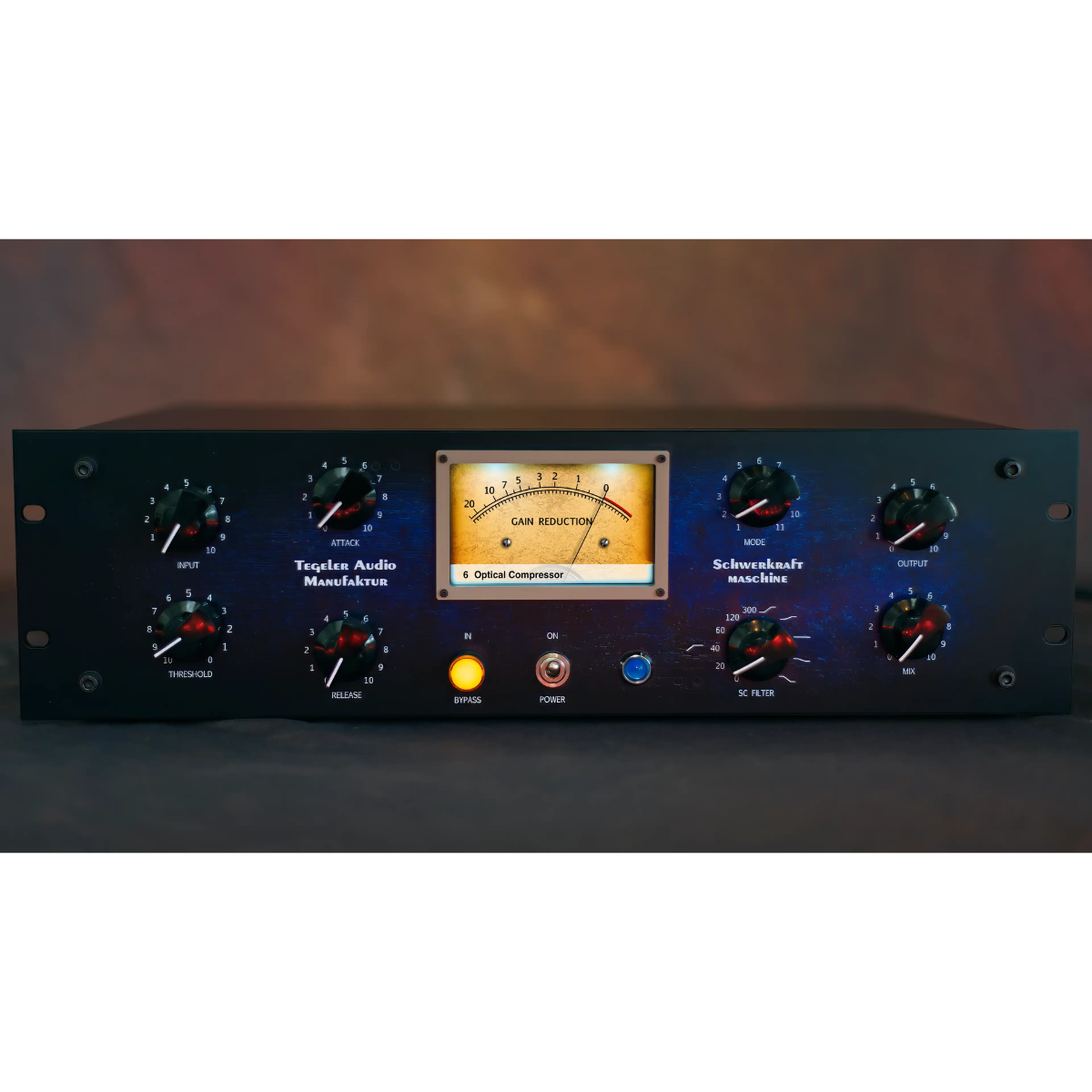

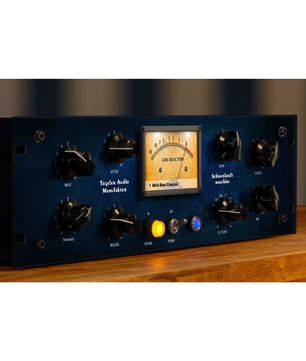

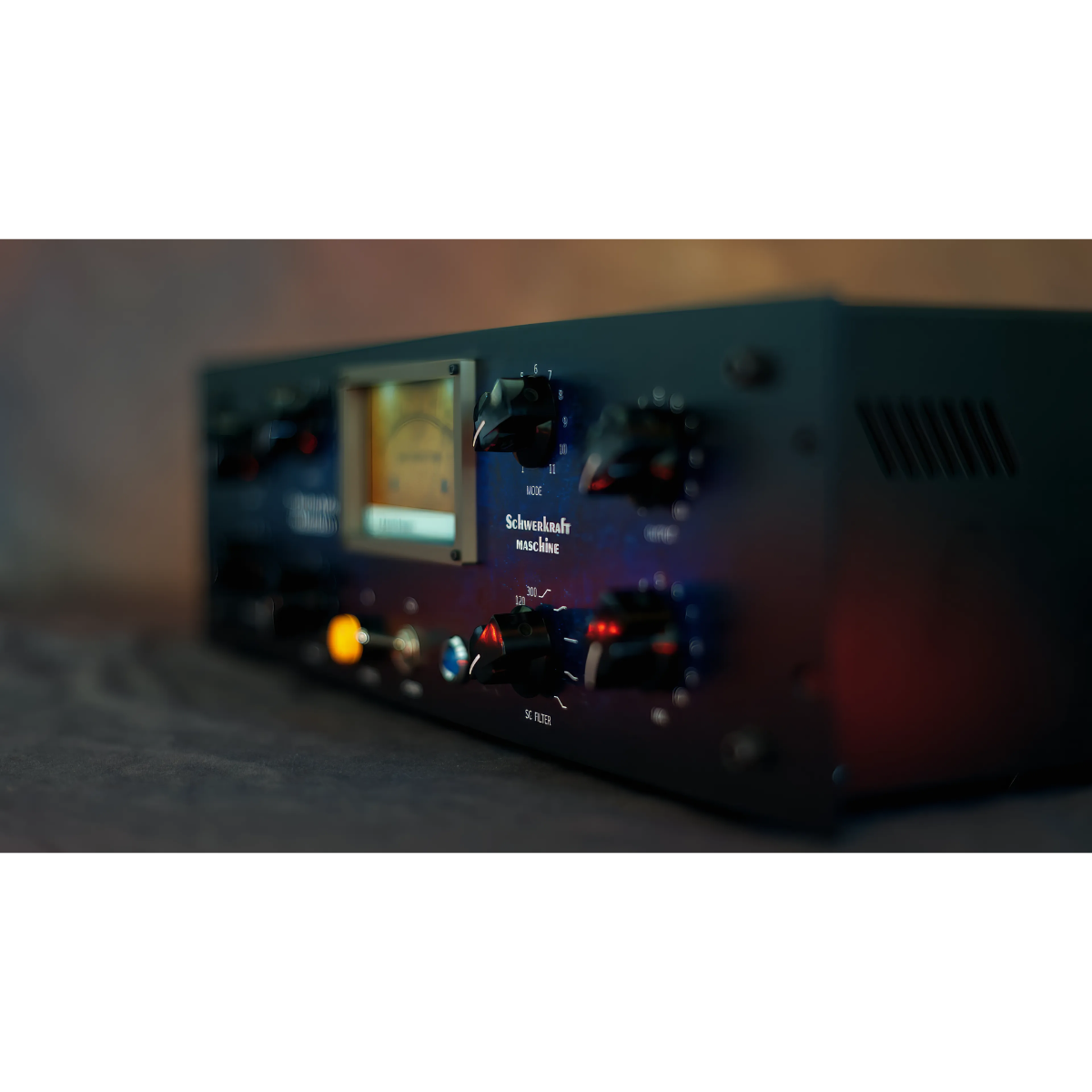

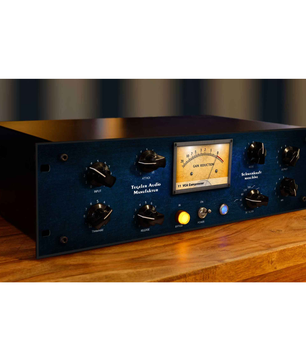

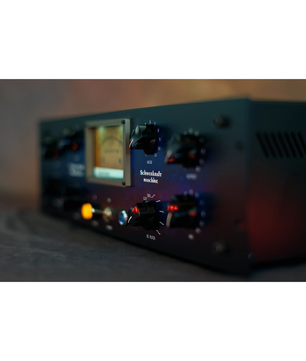

The Tegeler Audio Schwerkraftmaschine represents a flagship dynamics processor designed for mastering engineers and advanced studio users. Each channel features four triode tubes and multiple transformers, shaping the signal with harmonic richness, increased density, and improved clarity before compression is applied. This results in tighter low-end response, smoother highs, and enhanced presence across the mix.
At its core is a vari-mu compressor capable of subtle, musical gain reduction or more assertive dynamic shaping. What sets it apart is the digitally generated control signal, which enables a wide variety of compression behaviors. Users can choose from 11 compression modes, including optical-style response, VCA-like control, vari-mu characteristics, multiband-style processing, and specialized modes like vocal leveling, de-essing, and drum shaping.
The integrated side-chain filter allows precise control over how the compressor reacts to specific frequency ranges. A low-cut filter can prevent low-end pumping, while a tilt filter can shift sensitivity toward high or low frequencies for tonal balance during compression. These tools make the unit highly adaptable for mastering, stereo bus processing, and even detailed corrective work.
Designed for modern hybrid workflows, the unit features servo-controlled potentiometers that mirror adjustments made via hardware or plug-in control. It can be operated locally from the front panel or remotely through a DAW plug-in or web interface over a network connection. Settings are automatically recalled with sessions, making it ideal for professional environments requiring repeatability and precision.
Schwerkraftmaschine Features
- Stereo vari-mu mastering and bus compressor
- Four triode tubes per channel for harmonic enhancement
- Multiple transformer stages for added density and tone shaping
- 11 selectable compression modes
- Digital side-chain control for flexible compressor behavior
- Side-chain filter with low-cut (0–300 Hz) and tilt filter
- Remote controllable via plug-in (VST, AU, AAX) or web interface
- Servo-controlled potentiometers for total recall
- Dual mono operation via plug-in
- Suitable for stereo, dual mono, and M/S processing workflows

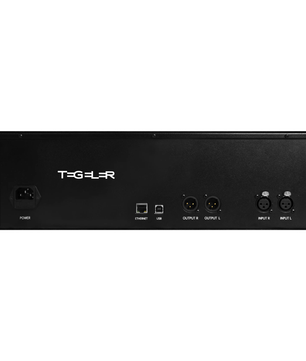

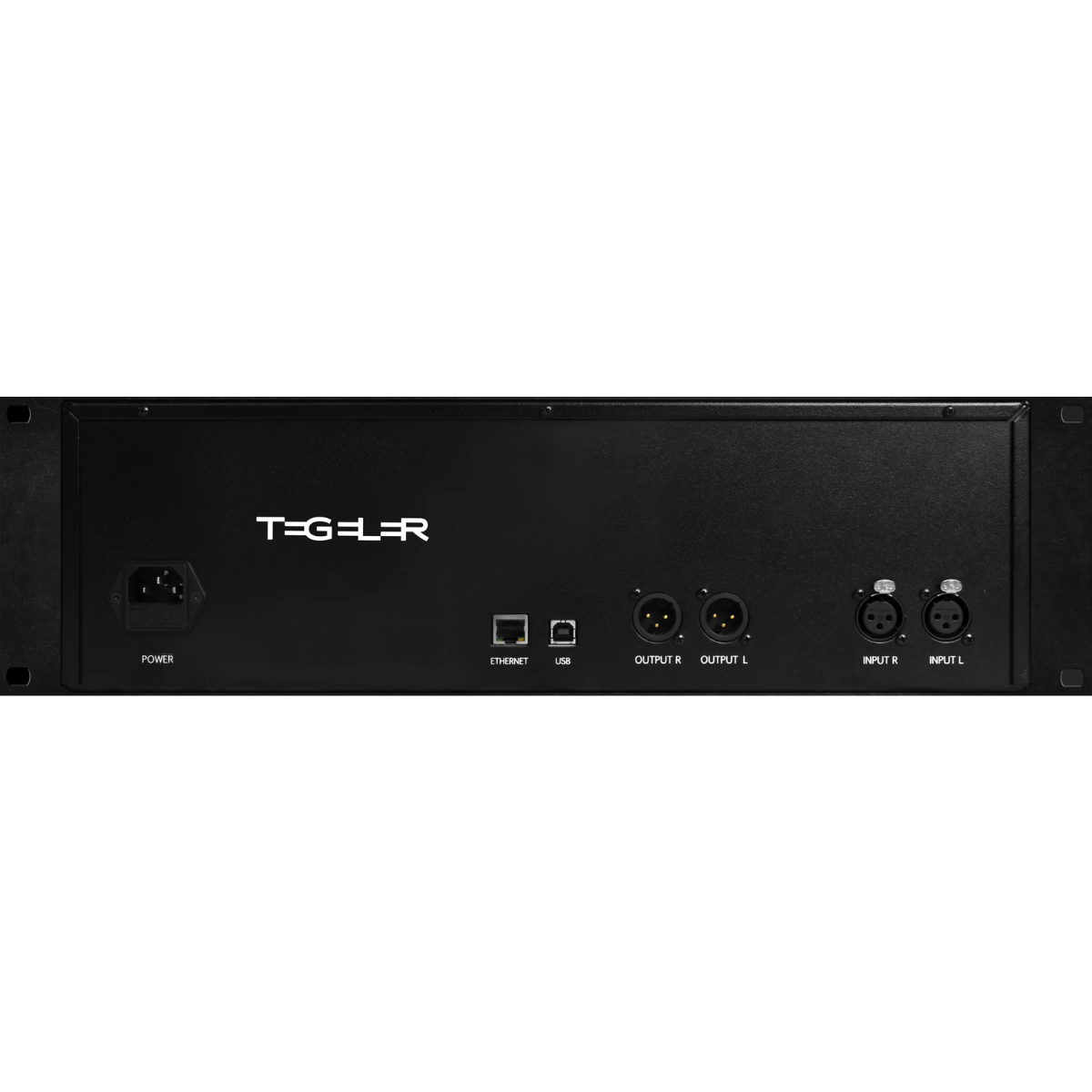

- Transformer-balanced inputs and outputs
- High dynamic range performance
- Internal power supply
Schwerkraftmaschine Specifications
- Product Type: Vari-Mu Mastering and Bus Compressor
- Configuration: Stereo Unit
- Frequency Response: 20 Hz to 24 kHz
- Maximum Input Level: +20 dBu
- Input Impedance: 2.4 kOhms
- Output Impedance: < 600 Ohms
- Maximum Output Level: +24 dBu
- Dynamic Range: 101 dB
- Dynamic (Unweighted): > 110 dB
- Attenuation-to-Crosstalk Ratio: > 90 dB @ 1 kHz
- Compression Modes: 11 selectable programs
- Side-Chain Filter: Low-cut (0–300 Hz) and tilt filter
- Control: Plug-in, web interface, or front panel
- Power Requirement: 110 to 240 V~, 50 to 60 Hz
- Fuse: 2A Slow-Blow
- Maximum Power Consumption: < 25 W
- Rack Size: 3U
- Dimensions: 19 x 9.84 x 5.2 in (483 x 250 x 132 mm)
What's In The Box
- Tegeler Audio Schwerkraftmaschine
