Vari-Mu Mastering and Bus Compressor

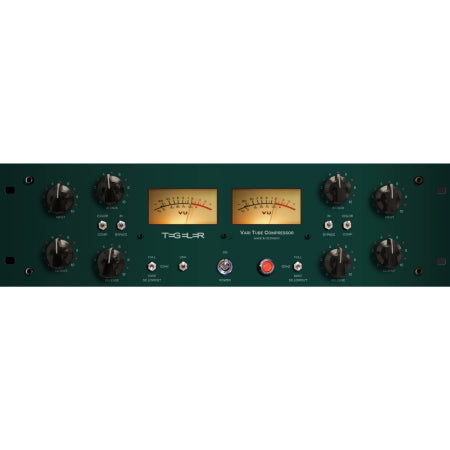

Tegeler Audio Vari Tube Compressor is a stereo vari-mu mastering and bus compressor built to add cohesion, control, and analog color to mixes. Designed with an all-tube signal path, Class-A circuit, and transformer-balanced connections, it helps glue tracks together, tighten the low end, and add a smoother, more polished top end to stereo buses, subgroups, and solo sources.
Tegeler Audio Vari Tube Compressor Competitive Differences
- All-tube vari-mu compressor with Class-A circuit and three transformers plus four triode tubes per channel
- Switchable Color/Comp mode allows tube and transformer coloration without active compression
Tegeler Audio Vari Tube Compressor Description
The Tegeler Audio Vari Tube Compressor is designed for engineers who want musical compression that enhances a mix without flattening its energy. Built around the classic vari-mu principle, it starts compressing gently and increases control more naturally as gain reduction rises, helping preserve liveliness and microdynamics even when compressing more assertively.
This makes the unit especially effective on stereo mix buses, subgroups, and solo instruments where a smooth, cohesive response is more important than hard limiting. Attack and release controls allow users to dial in the right timing for the material, while the output level control makes it easy to match gain after compression.
The signal path uses three transformers and four triode tubes per channel to add harmonic richness, improved source presence, and a more refined tonal balance. According to the product description, this design helps clean up the bass and low-midrange, gives better definition to the low end, and rounds the treble in a pleasing way for a more finished sound.
A sidechain high-pass filter reduces compressor sensitivity to heavy bass frequencies, helping prevent pumping on full mixes. The added Color/Comp switch expands the unit’s usefulness by allowing compression to be disabled so the Vari Tube Compressor can be used as a pure tube and transformer color box. A bypass switch takes the unit fully out of the signal path when needed.
Vari Tube Compressor Features
- Stereo vari-mu mastering and bus compressor
- Suitable for mix bus, solo instruments, and subgroups
- Class-A circuit
- All-tube signal path
- Three transformers and four triode tubes per channel
- Stepped potentiometers with 42 steps for repeatable settings
- Transformer-balanced XLR inputs and outputs
- Sidechain high-pass filter
- Attack and release controls
- Output level control
- Color/Comp switch for transformer and tube coloration without compression
- Bypass switch
- Stereo or dual mono operation
- Link switch for separate channel use
Vari Tube Compressor Specifications
- Product Type: Vari-Mu Mastering and Bus Compressor
- Configuration: Stereo or Dual Mono
- Circuit Type: Class-A
- Signal Path: All Tube
- Frequency Response: 20 Hz to 24 kHz
- Maximum Input Level: +20 dBu
- Input Impedance: 2.4 kOhms
- Output Impedance: < 600 Ohms
- Maximum Output Level: +24 dBu
- Dynamic Range: 95 dB
- Audio Inputs: Transformer Balanced XLR
- Audio Outputs: Transformer Balanced XLR
- Power Requirement: 230V~/50Hz or 115V~/60Hz
- Fuse: 500 mA Slow-Blow
- Maximum Power Consumption: < 25 W
- Rack Size: 3U
- Dimensions: 19 x 9.84 x 5.2 in (483 x 250 x 132 mm)
What's In The Box
- Tegeler Audio Vari Tube Compressor
