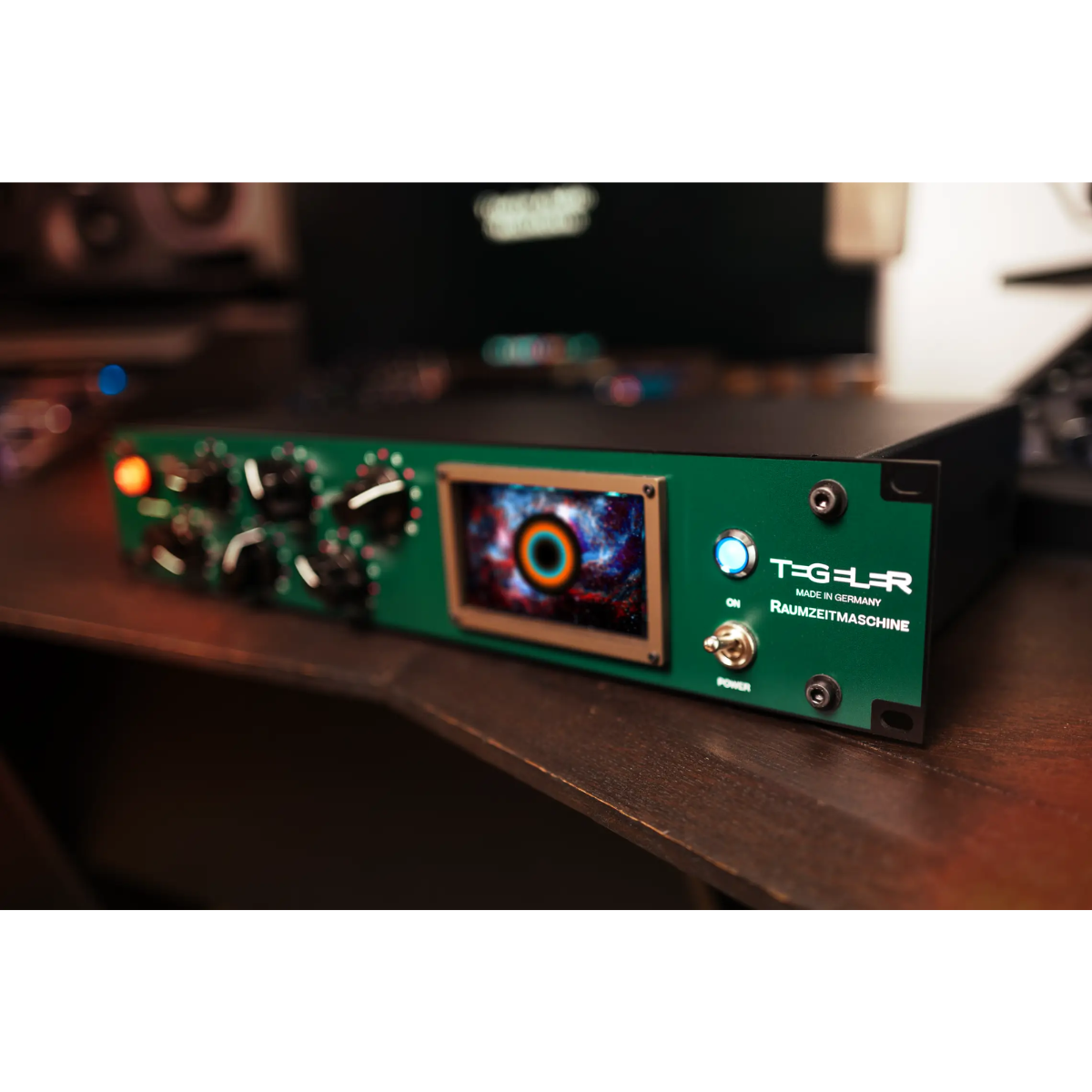

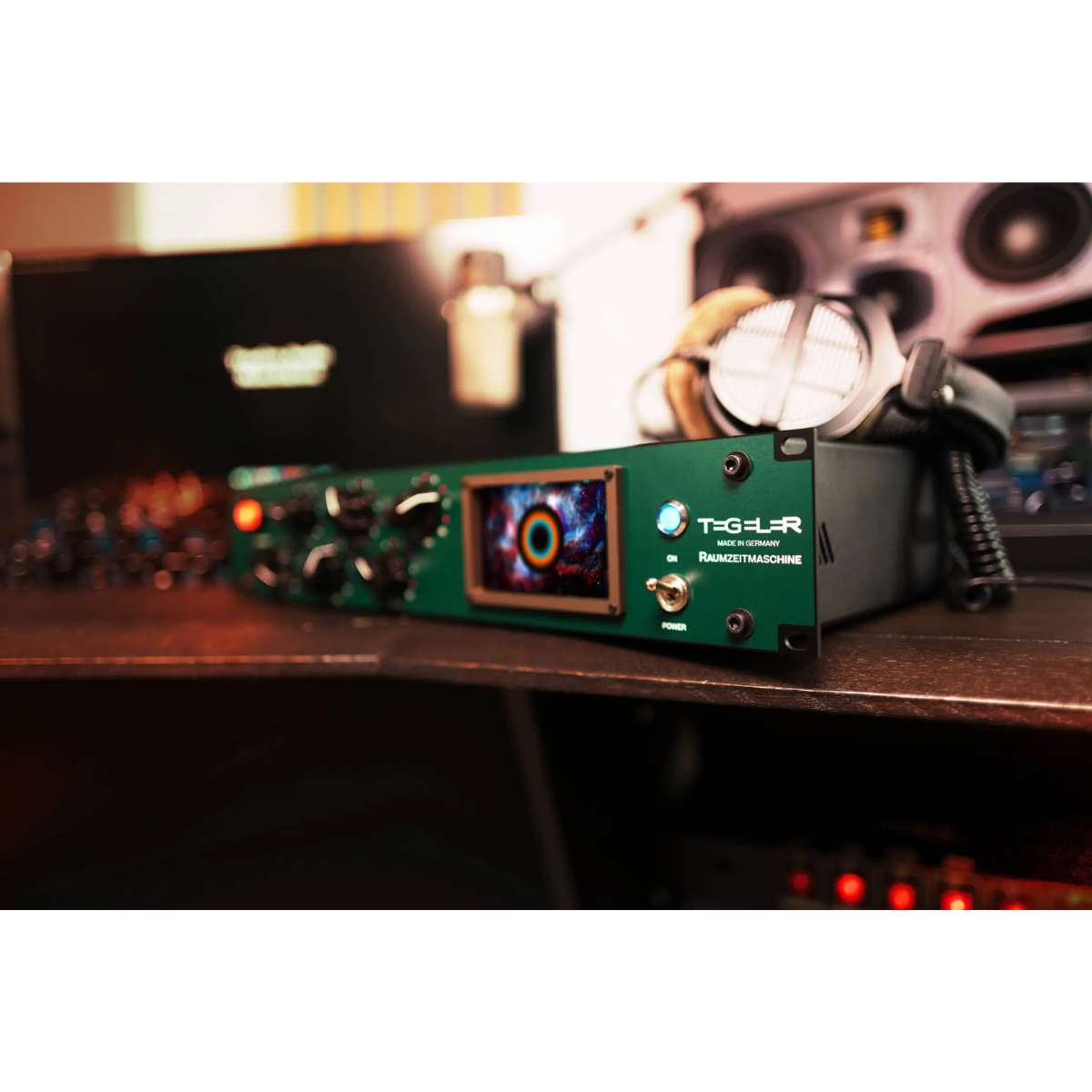

Tegeler Raumzeitmaschine | Tube Reverb with Servo Control | True Stereo Hardware Reverb for DAW Integration

Tube Reverb

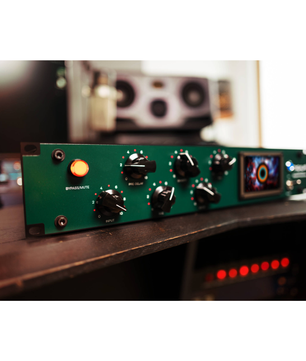

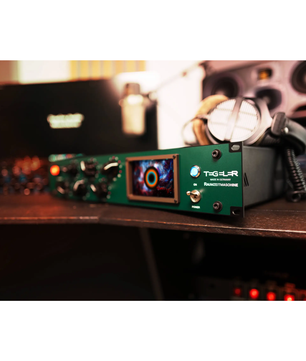

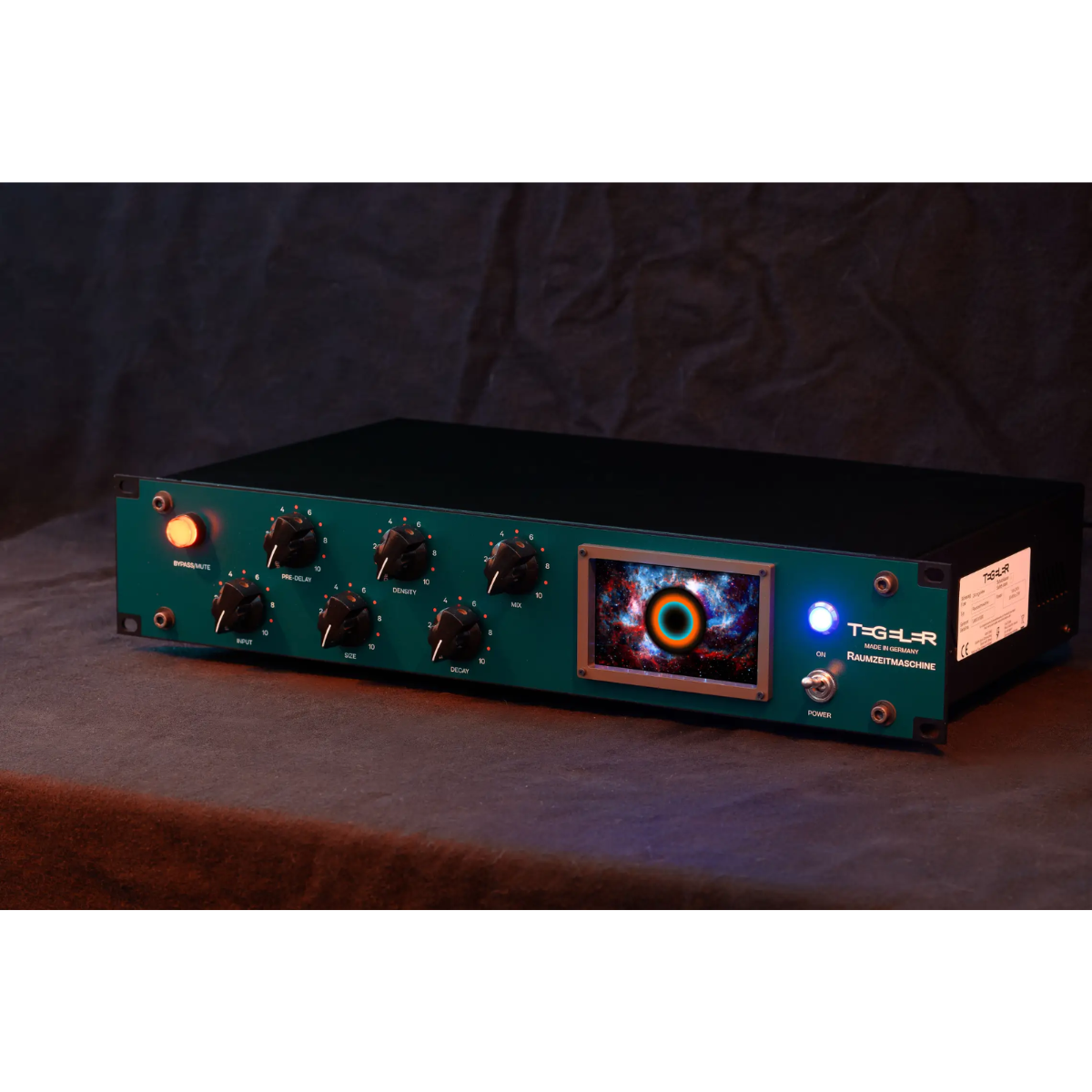

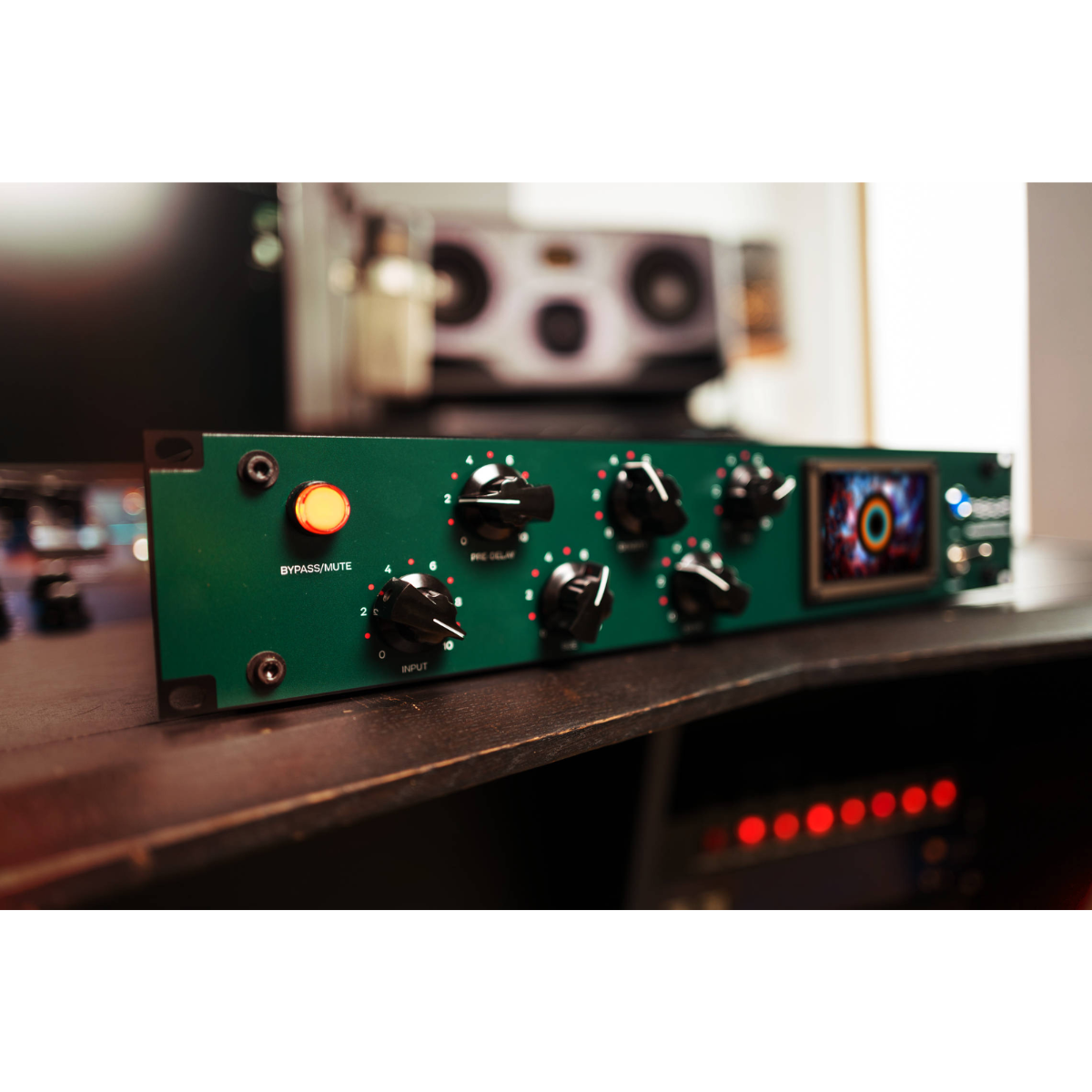

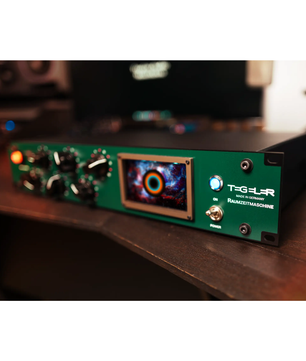

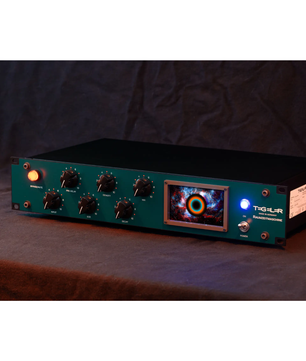

Tegeler Raumzeitmaschine is a true stereo tube reverb designed for engineers and producers who want natural space, analog depth, and hands-on control in a dedicated hardware unit. By combining digital reverb calculation with tube stages and transformer-balanced analog I/O, it delivers a clear and spacious sound with its own distinct sonic character.

Tegeler Raumzeitmaschine Competitive Differences

• Hybrid design combines digital reverb processing with dual-triode tube analog stages and transformers
• Servo-controlled front panel with Ethernet, internal web control, and VST, AU, and AAX plug-in integration

Tegeler Raumzeitmaschine Description

The Tegeler Raumzeitmaschine is built for studios that want the dimensional quality of premium hardware reverb with a streamlined, musician-friendly workflow. Instead of forcing users through deep menu structures, it focuses on direct sound shaping with an intuitive operating concept that makes it easy to dial in the right ambience for a mix.

Its sound comes from a unique hybrid approach. A dedicated reverb processor handles the spatial algorithm, while the analog audio path adds the character Tegeler gear is known for. With two double triodes per channel and transformer-balanced analog inputs and outputs, the unit brings warmth, depth, and a more tactile quality to reverbs that can feel overly clinical in purely digital environments.

The Raumzeitmaschine is also designed for modern recall and remote operation. All controls are fitted with servo motors, allowing changes made from the front panel, the unit’s internal webpage, or the DAW plug-in to stay in sync. This makes it especially attractive for hybrid mixing setups where engineers want the sound of external hardware without giving up session-based workflow convenience.

While it excels at natural and transparent room sounds, it is not limited to subtle ambience. The adjustable reverb parameters also allow more exaggerated and creative spaces, making it useful as both a primary mix reverb and a character effect for more experimental production choices.

Raumzeitmaschine Features

• True stereo tube reverb
• Hybrid digital and analog reverb design
• Two double triodes per channel
• Transformer-balanced XLR input
• Transformer-balanced XLR output
• Adjustable pre-delay, room size, density, and decay time

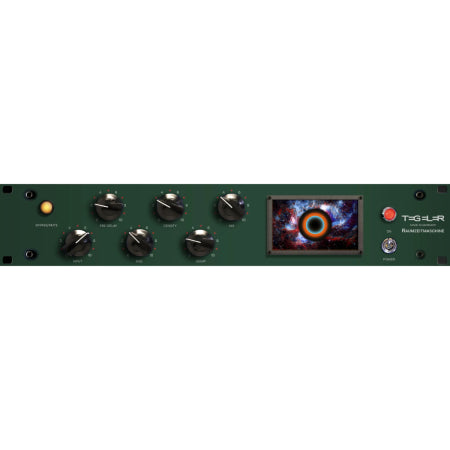

• Servo-controlled front panel controls
• Ethernet connectivity
• Controllable from the device webpage
• DAW plug-in control support for VST, AU, and AAX
• Internal power supply
• Dynamic range greater than 110 dB unweighted
• Attenuation-to-crosstalk ratio L/R greater than 90 dB at 1 kHz

Raumzeitmaschine Specifications

• Type: Tube Reverb
• Channels: True Stereo
• Frequency Response: 10 Hz - 22 kHz
• Maximum Input Level: +22 dBu
• Input Impedance: 10 kOhm
• Output Impedance: < 600 Ohm
• Maximum Output Level: +24 dBu
• Dynamic Range: 110 dB

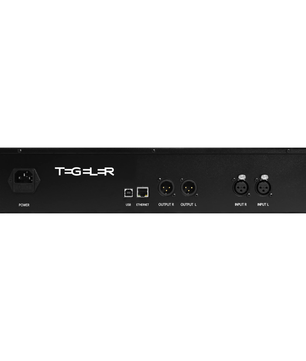

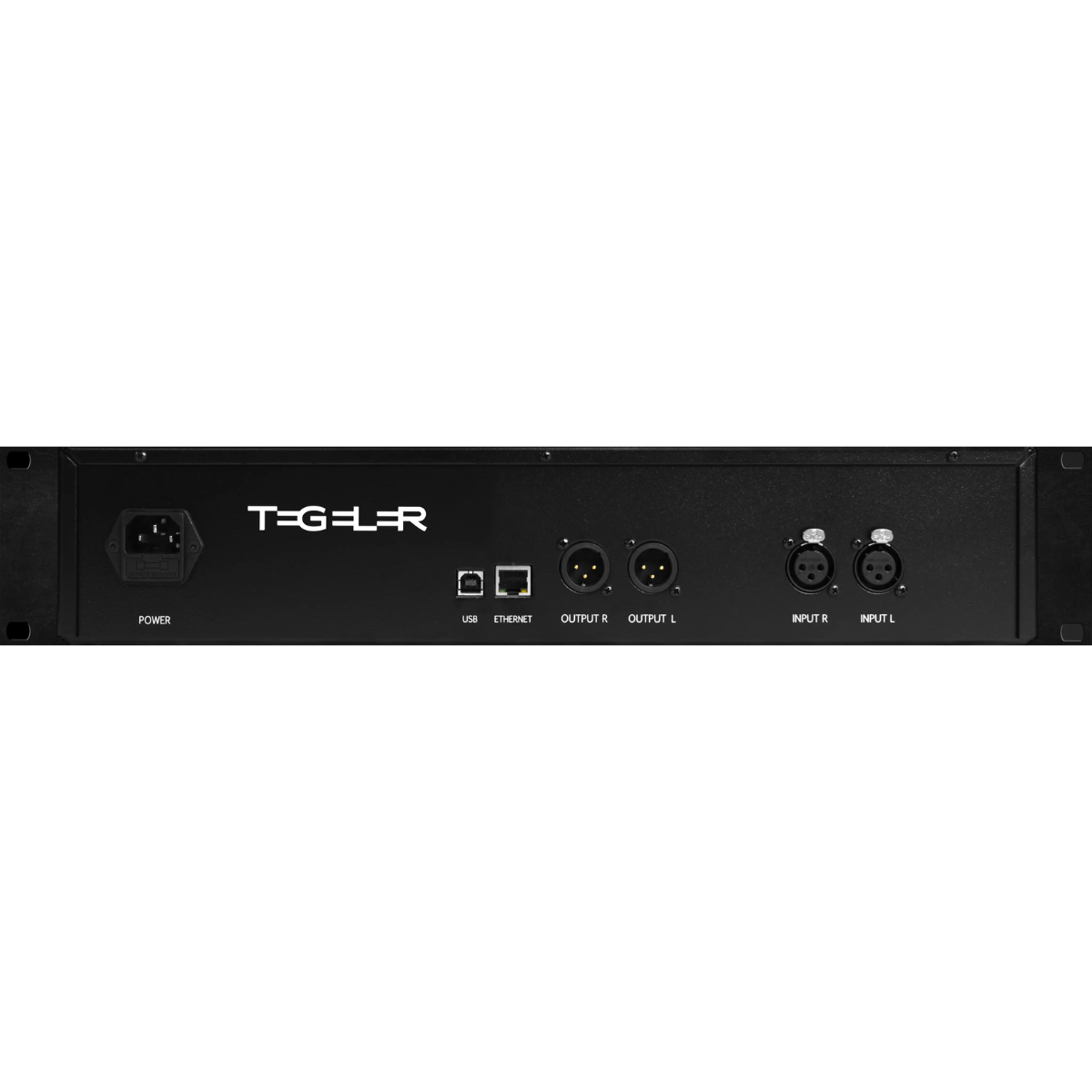

• Inputs: XLR, transformer-balanced
• Outputs: XLR, transformer-balanced
• Control Connectivity: Ethernet
• Plug-in Formats: VST, AU, AAX
• Voltage: 110 - 240 V~, 50 - 60 Hz
• Fuse: 500 mA slow-blow
• Maximum Power Consumption: < 25 W
• Rack Size: 2U
• Dimensions: 3.47 x 19.02 x 9.84 in
• Dimensions: 88.1 x 483 x 250 mm

What's In The Box

• Tegeler Raumzeitmaschine
