Visual Productions CueCore3 | 4-Universe DMX Controller | Standalone Playback & Multi-Protocol Support

$2,220.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

DMX Lighting Controller

The Visual Productions CueCore3 is a versatile and compact DMX lighting controller built for professional show control and architectural installations. Designed for permanent installations or critical environments, this unit is solid-state with no moving parts—ensuring reliable, low-maintenance operation with long-term stability. It supports up to 2048 DMX channels and enables advanced show playback and automation without the need for a computer.

Visual Productions CueCore3 Competitive Differences

Standalone operation with 6GB internal memory for DMX show storage
Multi-protocol compatibility: Art-Net, sACN, KiNet, MIDI, OSC, and more

Visual Productions CueCore3 Description

The CueCore3 is designed for users needing high-channel-count DMX control with extensive automation and protocol support. Whether it’s for a concert venue, broadcast studio, theme park, or architectural installation, this controller can run complex lighting shows on its own or integrate with other networked devices. Its robust 4-universe capacity (2048 channels) and bidirectional DMX512-A ports allow seamless communication with lighting fixtures. Users can trigger playback using internal scheduling, GPI, MIDI, SMPTE timecode, or IP-based commands like OSC and HTTP. A real-time clock and internal battery ensure consistent scheduling, while the embedded web interface allows for remote configuration. Bundled software—CueluxPro, vManager, and Kiosc—makes programming intuitive, while the included power supply and Power over Ethernet support provide flexible installation options. The CueCore3’s desktop housing can also be DIN rail or rack mounted with optional accessories.

Model Features

Standalone DMX lighting controller with no moving parts
4 bidirectional DMX512-A ports (2048 channels total)
Onboard flash memory stores up to 6GB of show data
Trigger playback via GPI, MIDI, SMPTE, OSC, or HTTP
Supports Art-Net, sACN, KiNet, TCP, UDP, and more
Includes CueluxPro, vManager, and Kiosc software

Model Specifications

Max DMX Channels: 2048
Power Input: 9–24 VDC, 500mA
Power over Ethernet: Yes (Class III)
Dimensions: 6.6 x 3.9 x 1.6 in (168 x 99 x 41 mm)
Weight: 1.72 lb (0.78 kg)
Operating Temp: -4 to 122°F (-20 to 50°C)
Certifications: EN55103-1, EN55103-2

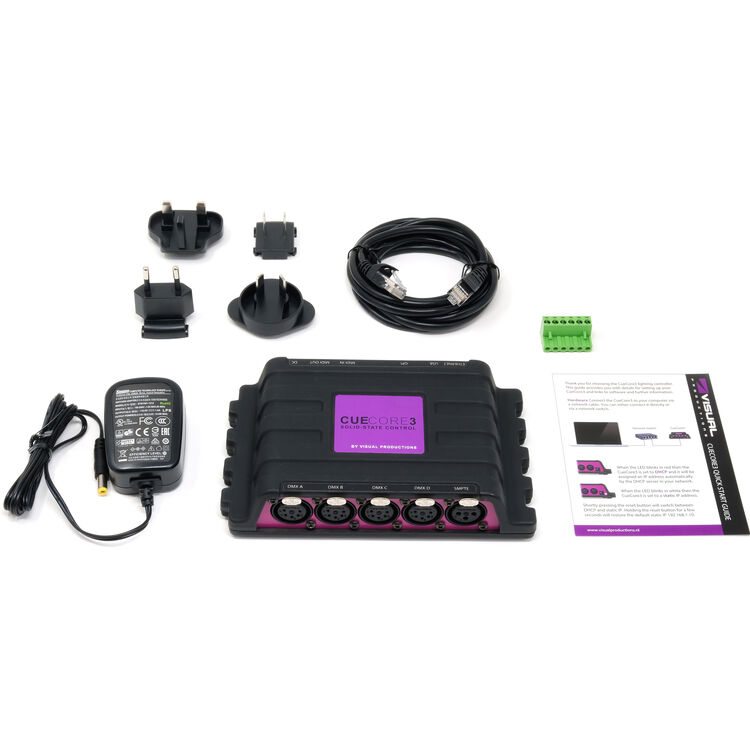

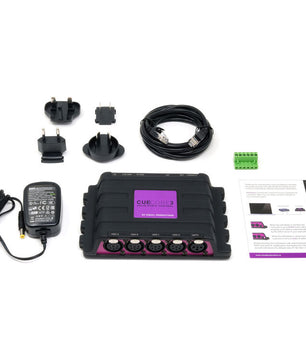

What's In The Box

CueCore3 unit
Power adapter
Quick start guide
