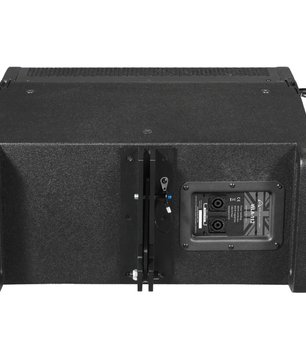

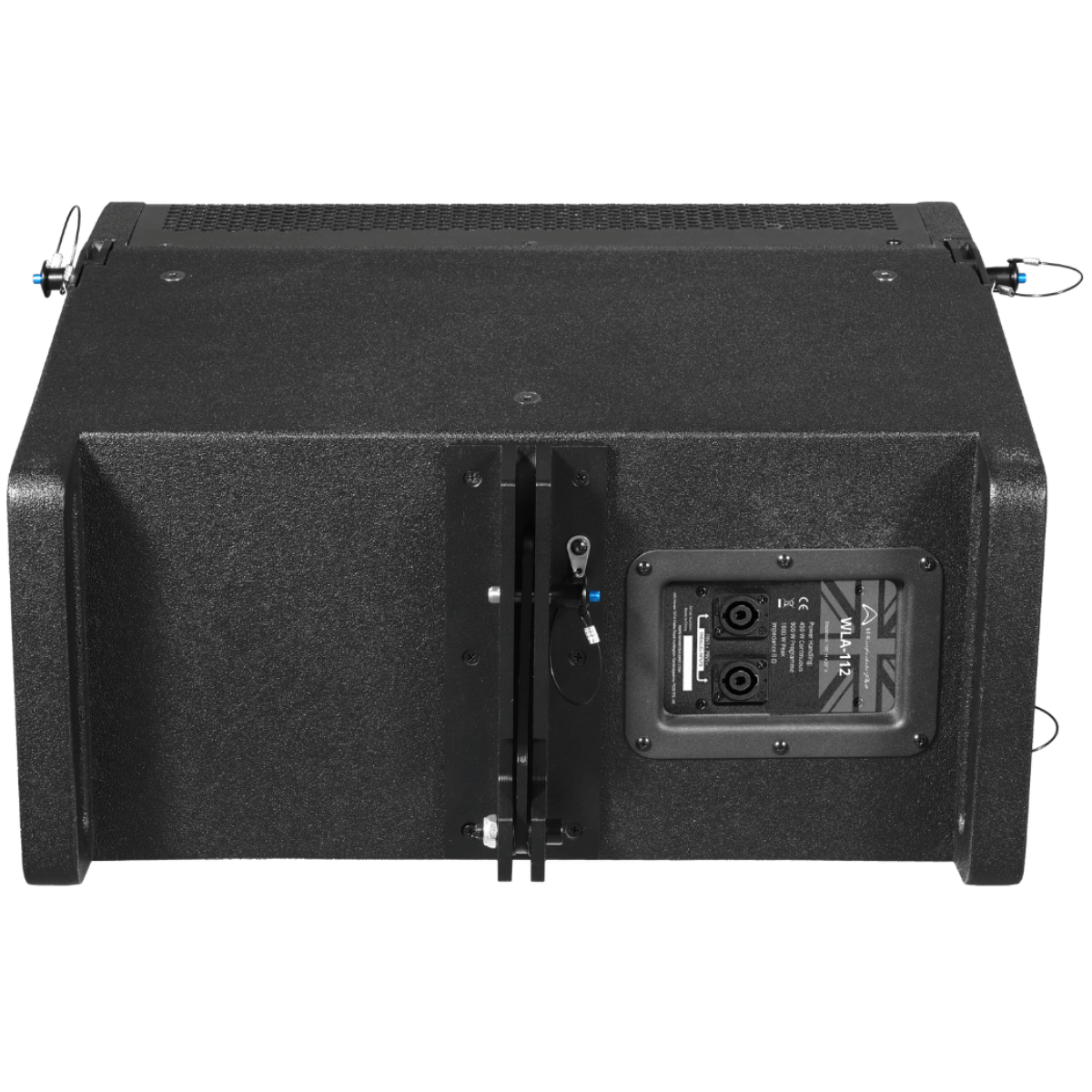

Wharfedale Pro WLA-112 | 12in - 133dB | Coaxial Line Array Element

Wharfedale Pro WLA-112 | 12in - 133dB | Coaxial Line Array Element

$1,469.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Passive Line Array Element

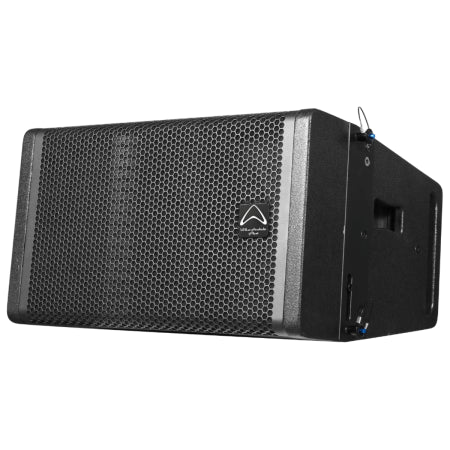

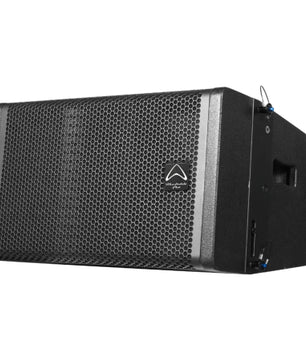

Wharfedale Pro WLA-112 is a 12-inch coaxial hybrid curvature array element designed for professional touring and fixed installation systems. It delivers high-output, controlled coverage from a compact passive enclosure with integrated rigging for flown, ground-stacked, or pole-mounted deployment.

Wharfedale Pro WLA-112 Competitive Differences

Coaxial 2-way design with Beyma driver for coherent point-source performance

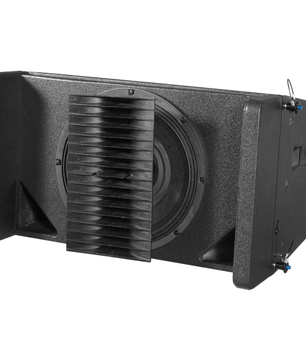

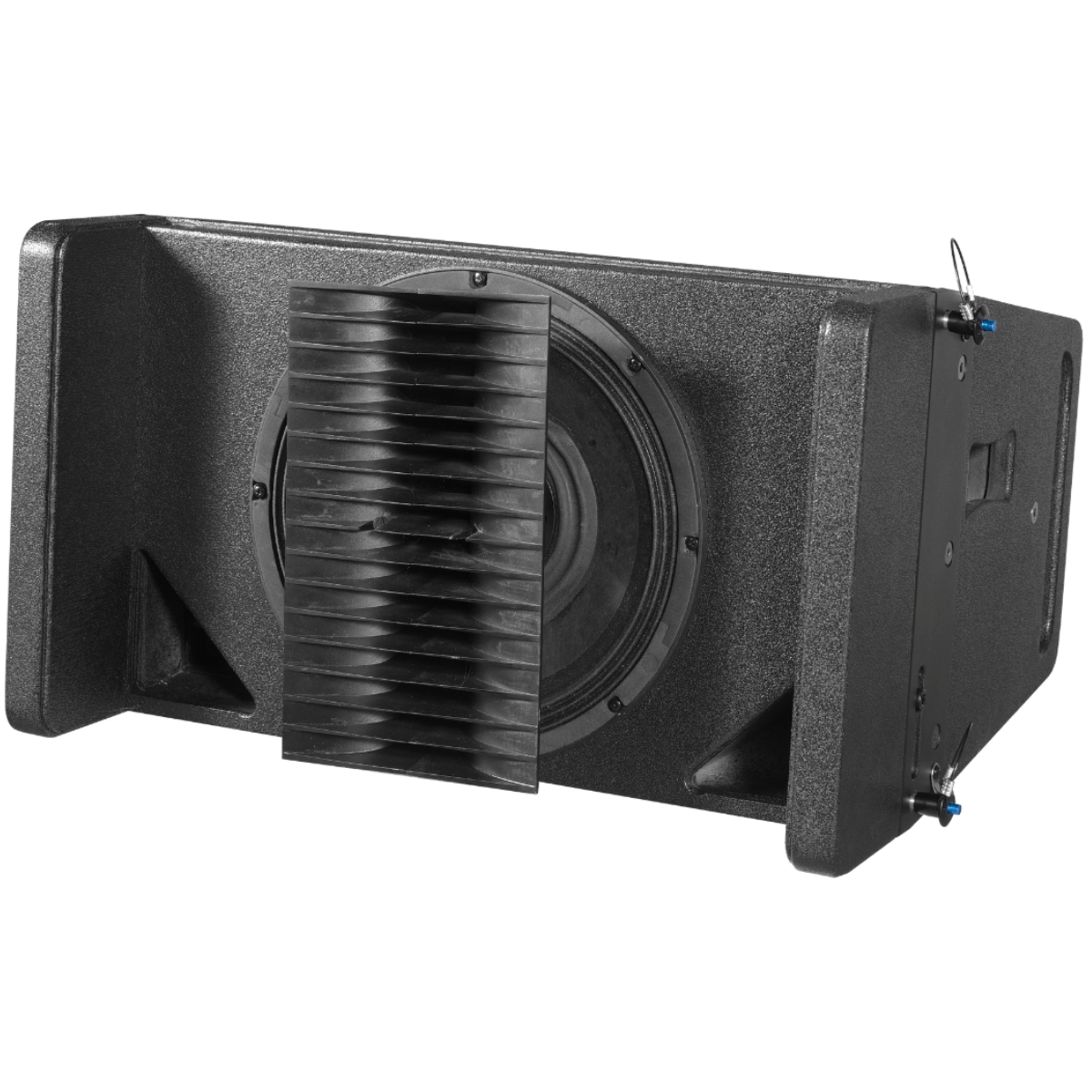

EVO-Fold waveguide delivers controlled 100° x 20° nominal coverage
450W continuous, 900W program, and 1800W peak power handling
133dB max SPL for demanding touring and installation applications
Integrated 3-point rigging with flying, ground, and pole deployment options

Wharfedale Pro WLA-112 Description

The Wharfedale Pro WLA-112 is part of the WLA-1 System and is built for applications where output, precision, and consistent coverage are required. Its coaxial 2-way configuration helps reduce phase and spacing issues associated with traditional separated-driver designs.

At the core of the WLA-112 is a 12-inch Beyma ferrite LF driver with a 4-inch voice coil, paired with a compression driver using a 2.87-inch high-frequency voice coil. Together, the system delivers 450W continuous power handling and a maximum SPL of 133dB at 1 meter.

The EVO-Fold waveguide supports smooth horizontal and vertical dispersion, while dedicated FIR preset support helps provide phase-coherent response. This makes the WLA-112 suitable for live sound companies, production providers, venues, houses of worship, and installed performance spaces.

The birch plywood trapezoid cabinet features a black Tough-Tone finish, powder-coated perforated steel grille, multiple handles, and integrated rigging hardware. Deployment options include flying, ground stacking, and 35mm dual-angle pole mounting.

WLA-112 Features

12-inch passive coaxial hybrid curvature array element
Coaxial 2-way configuration
Beyma driver with ferrite LF magnet
EVO-Fold waveguide technology
450W continuous, 900W program, 1800W peak power handling
133dB maximum SPL at 1 meter
100° x 20° nominal HF coverage
Vertical splay angles of 0°, 5°, 10°, and 15°
Dedicated preset library with FIR preset support
Birch plywood trapezoid enclosure
Powder-coated perforated steel grille
Integrated 3-point rigging

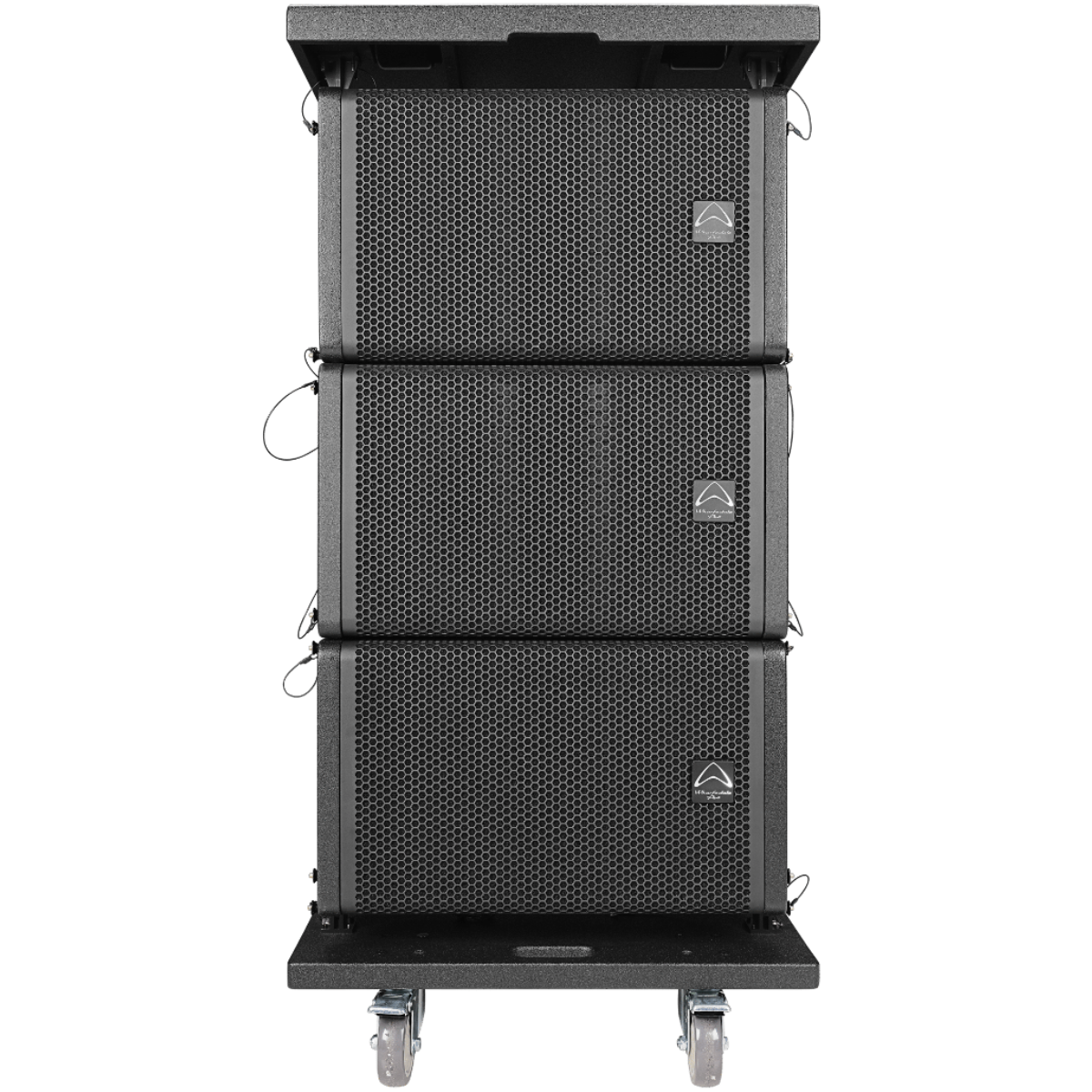

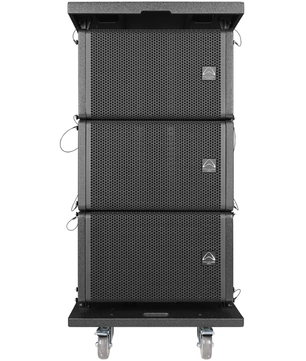

Supports flying, ground, and pole deployment

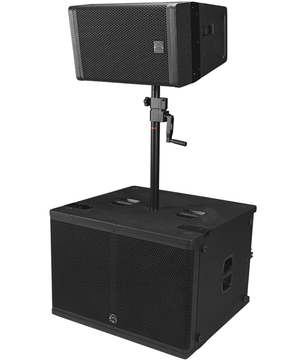

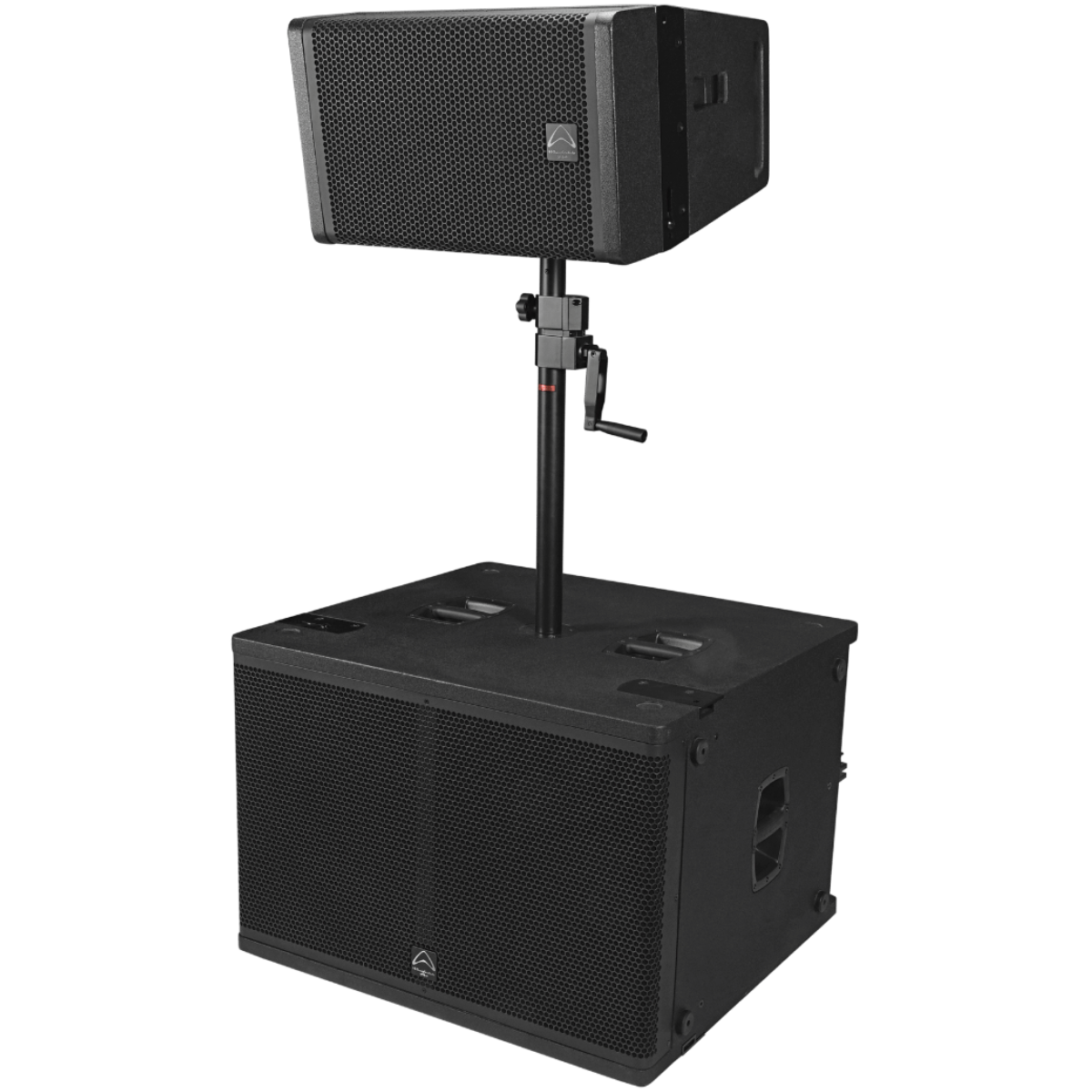

35mm dual-angle pole mount with -2.5° / +7.5° angles

WLA-112 Specifications

Active or Passive: Passive
System Type: Array element
Configuration: Coaxial 2-way
System Continuous Power: 450W
System Program Power: 900W
System Peak Power: 1800W
Max SPL: 133dB at 1m
Frequency Response: 55 Hz - 20 kHz (+/-3 dB)
Frequency Range: 35 Hz - 25 kHz (-10 dB)
Driver Brand: Beyma
LF Driver Size: 12 in
LF Magnet Material: Ferrite
LF Frame Material: Aluminum
LF Voice Coil Size: 4 in
HF Driver Type: Compression driver
HF Voice Coil Size: 2.87 in
HF Diaphragm Material: Composite titanium / polyester
HF Exit Size: 1.5 in
HF Power: 80W
HF Rated Impedance: 16 ohms
HF Nominal Coverage: 100° x 20°
Vertical Splay Angle Range: 0°, 5°, 10°, 15°
Horizontal Splay Angle: 15°
Input Connectors: 2 x 4-pole speaker connectors
Waveguide Type: EVO-Fold
Cabinet Type: Trapezoid
Enclosure Material: Birch plywood
Grille: Powder-coated perforated steel
Finish: Black Tough-Tone
Handles: 2 side / 2 back
Deployment: Flying, ground, pole
Pole Mount: 35 mm dual angle, -2.5° / +7.5°
Rigging: Integrated 3-point rigging
Sensitivity: 101dB, 2.83V / 1m
System Rated Impedance: 8 ohms
Crossover Frequency: 1.2 kHz
Recommended HPF: 30 Hz, BW 18 dB/oct
Dimensions: 13.1 x 22.3 x 18.3 in (332 x 566 x 465 mm)
Rear Height: 9.7 in (246 mm)
Weight: 64.8 lb (29.4 kg)

What's In The Box

Wharfedale Pro WLA-112 array element
Brackets
User manual
