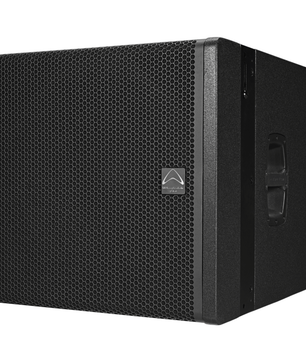

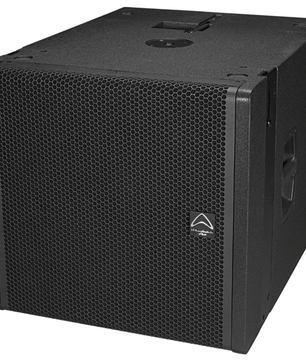

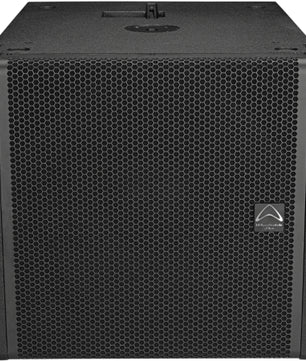

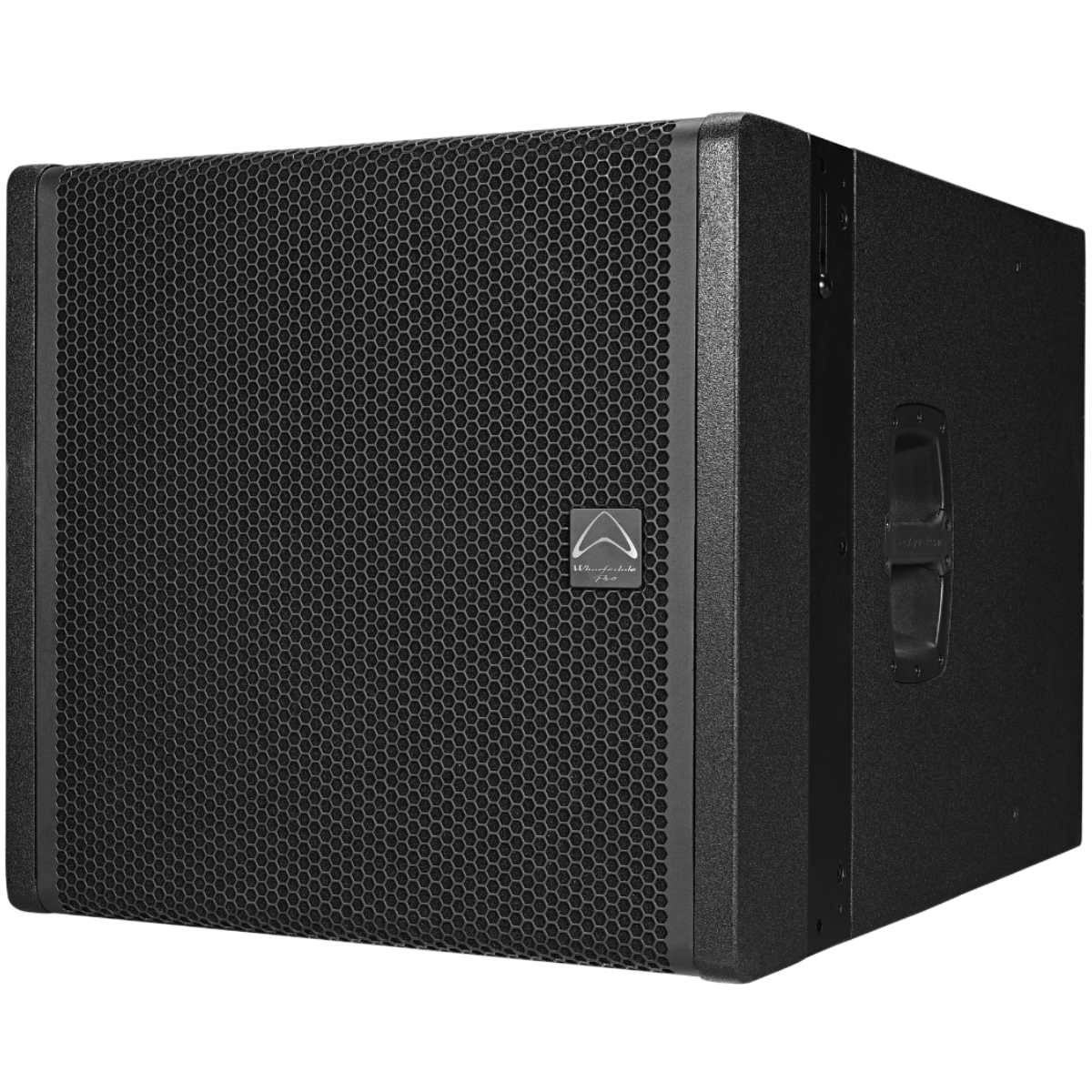

Wharfedale Pro WLA-118SUBA | 18in - 136dB | Active Flyable Subwoofer

Active Flyable Subwoofer

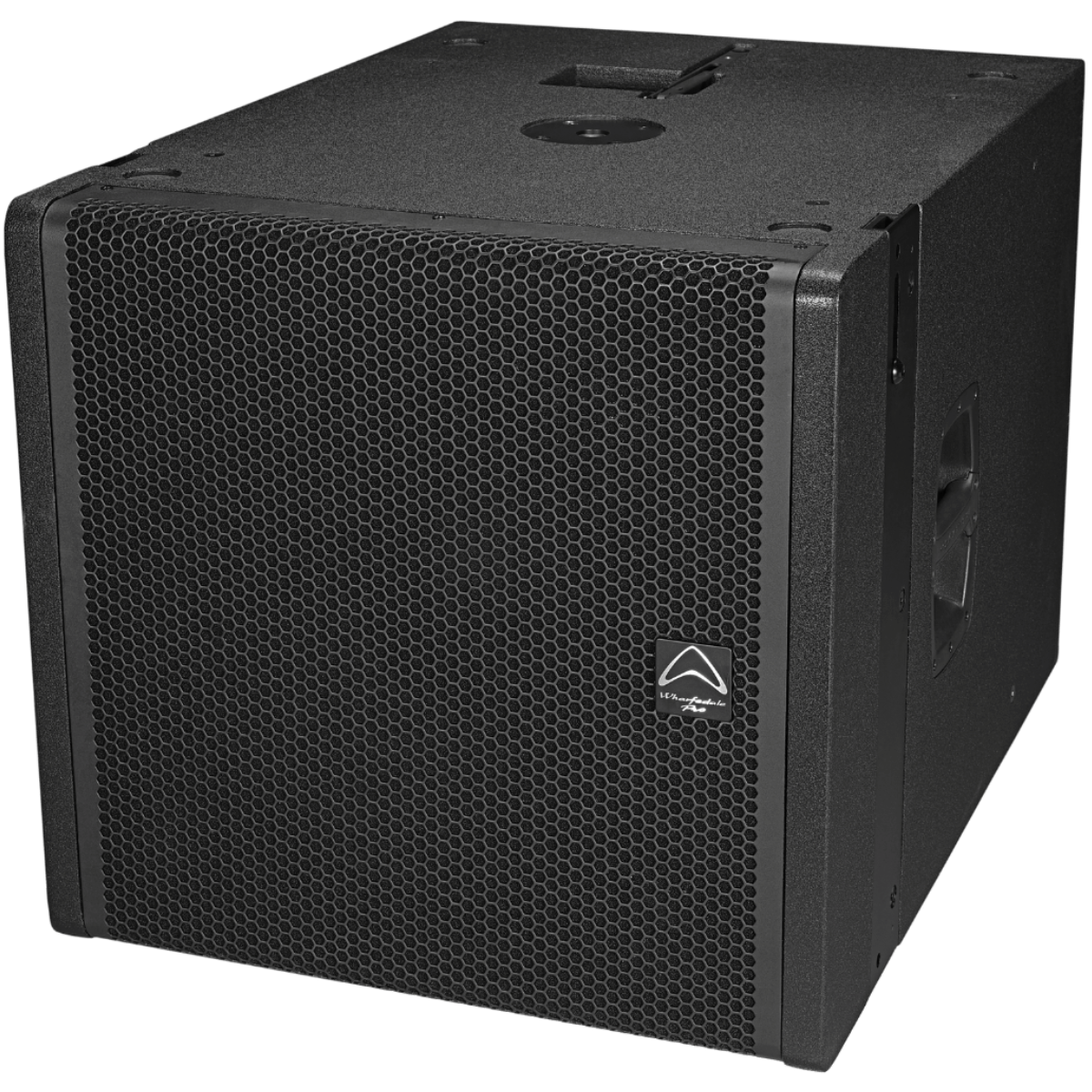

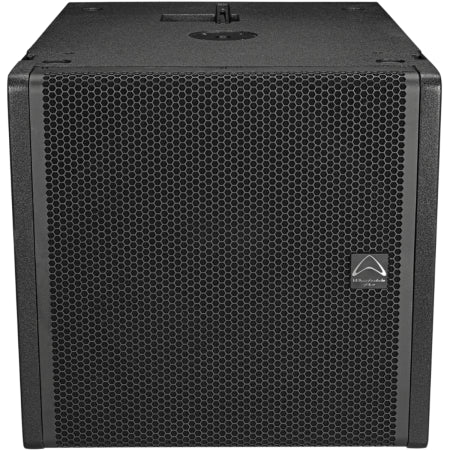

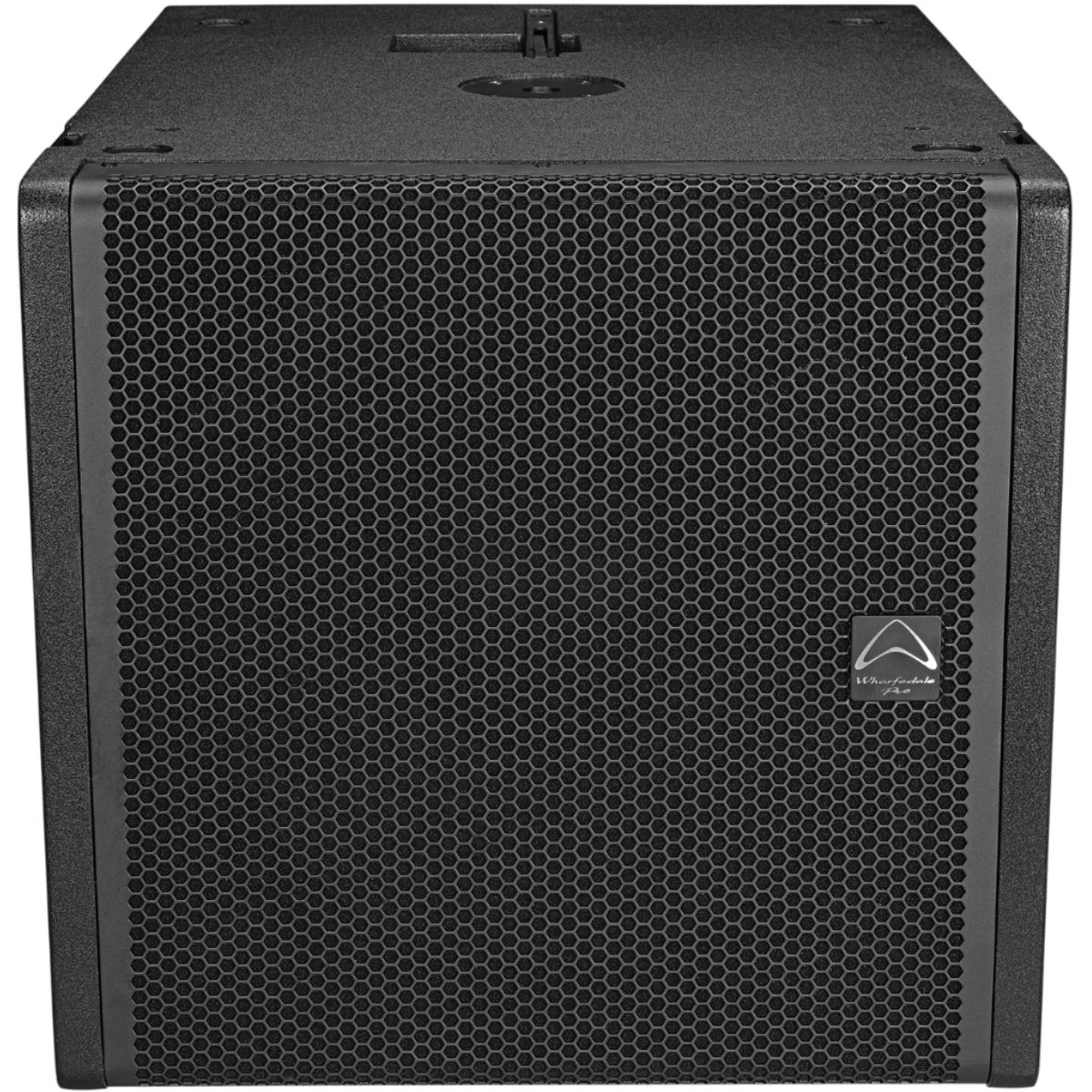

Wharfedale Pro WLA-118SUBA is an 18-inch active hybrid curvature array subwoofer designed for powerful, controlled low-frequency performance in WLA-1A touring and installation systems. With built-in Class D amplification, DSP processing, and integrated rigging, it provides a flexible bass solution for flown or ground-stacked deployments.

Wharfedale Pro WLA-118SUBA Competitive Differences

• Active 18-inch subwoofer with integrated Class D amplification
• 2200W continuous and 4400W peak power output
• Built-in DSP with 8 FIR presets for WLA-1A system deployment
• 136dB maximum SPL for strong low-frequency output
• Integrated 3-point rigging for flown or ground configurations

Wharfedale Pro WLA-118SUBA Description

The Wharfedale Pro WLA-118SUBA is built to deliver deep, defined bass for professional WLA-1A array systems. Its custom 18-inch Beyma ferrite driver uses a 4-inch Duo voice coil to provide efficient low-frequency performance with clarity and impact.

Internal DSP processing simplifies setup with 8 FIR presets, while the Class D amplifier delivers 2200W continuous power and 4400W peak output. RMS, peak limiter, DC, short, and thermal protection systems help maintain reliable operation in demanding touring and fixed-install environments.

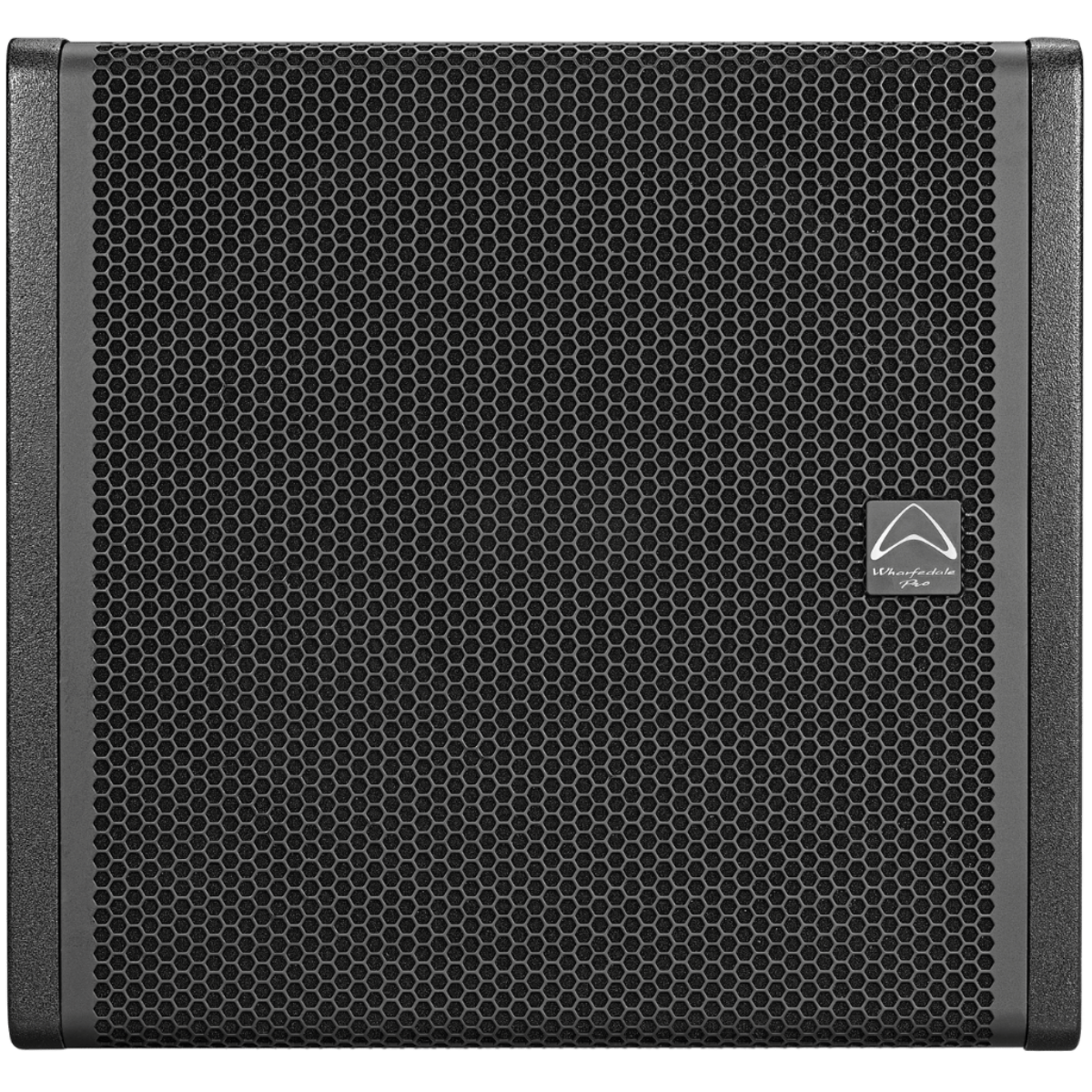

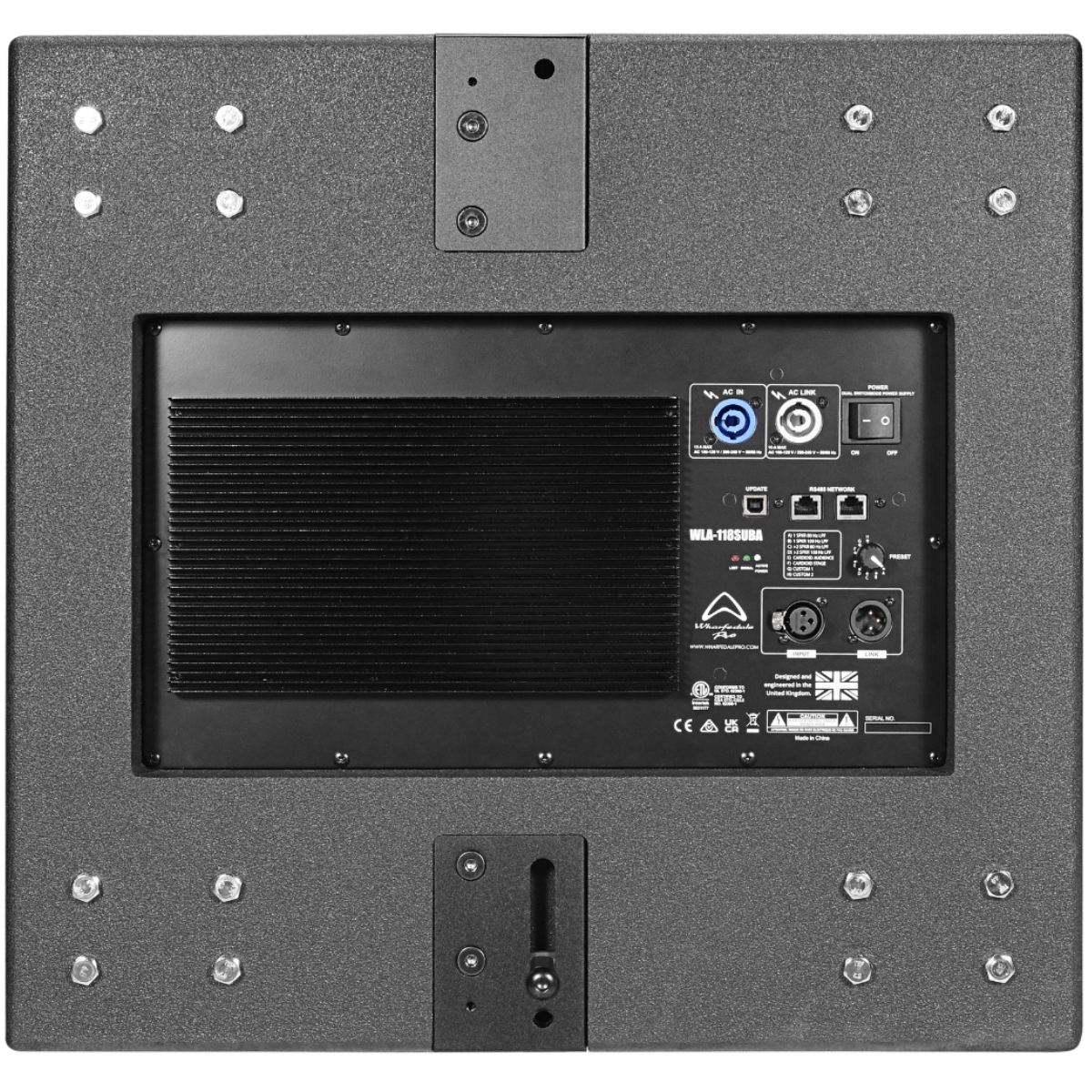

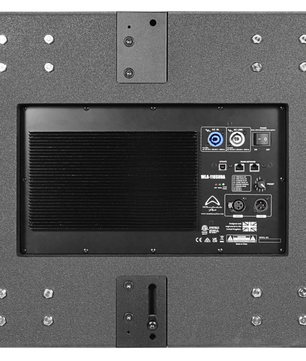

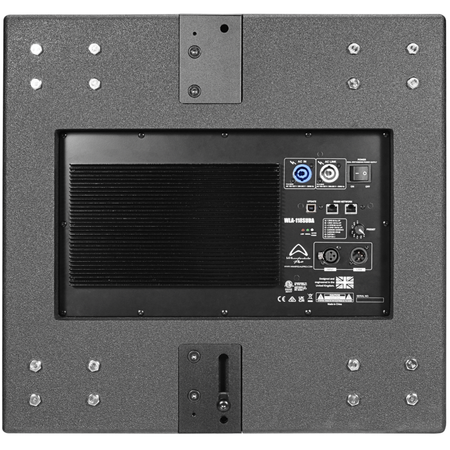

The rugged birch plywood cabinet is finished in black Tough-Tone and protected by a powder-coated perforated steel grille. With integrated 3-point rigging, an M20 pole mount, balanced XLR input and link connections, USB Type B updating, and RJ45 RS485 networking, the WLA-118SUBA is designed for flexible professional deployment.

WLA-118SUBA Features

• 18-inch active hybrid curvature array flyable subwoofer
• Built-in Class D amplifier
• 2200W continuous and 4400W peak output
• 136dB maximum SPL at 1m, half space
• Custom Beyma 18-inch ferrite driver
• 4-inch LF Duo voice coil
• DSP-based signal processing with 8 FIR presets
• Bass-reflex cabinet design
• Integrated 3-point rigging
• Flying and ground deployment options

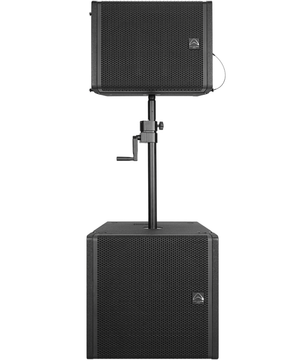

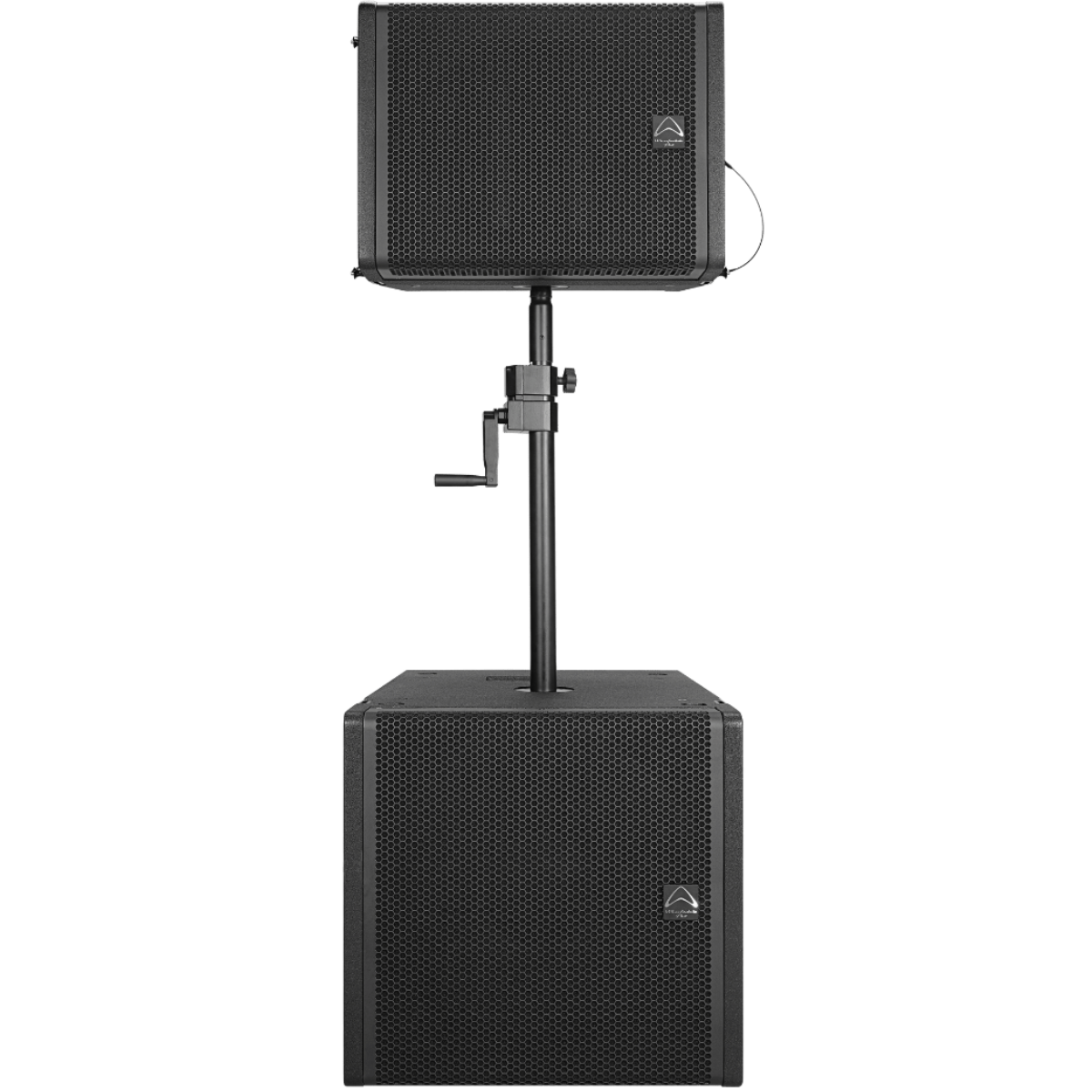

• M20 pole mount
• Balanced XLR input and link connectors
• USB Type B update port
• RJ45 RS485 network connection
• RMS, peak limiter, DC, short, and thermal protection

WLA-118SUBA Specifications

• Active or Passive: Active
• System Type: Subwoofer
• Configuration: Bass-reflex
• System Continuous Power: 2200W
• System Peak Power: 4400W
• Max SPL: 136dB at 1m, half space
• Frequency Response: 35 Hz - 125 Hz (+/-3 dB)
• Frequency Range: 28 Hz - 160 Hz (-10 dB)
• Driver Brand: Beyma
• LF Driver Size: 18 in
• LF Magnet Material: Ferrite
• LF Frame Material: Aluminum
• LF Voice Coil Size: 4 in
• Input Connector: Balanced XLR socket
• Link Connector: Balanced XLR socket
• Cabinet Type: Rectangle
• Enclosure Material: Birch plywood

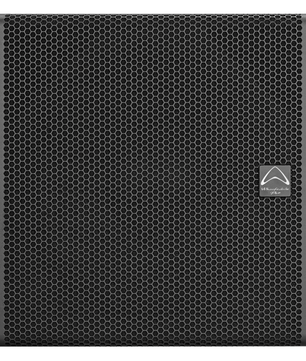

• Grille: Powder-coated perforated steel
• Finish: Black Tough-Tone
• Handles: 1 side (2 pcs)
• Deployment: Flying, ground
• Pole Mount: M20
• Rigging: Integrated 3-point rigging
• Sensitivity: 103dB, 2.83V / 1m
• Crossover Frequency: Preset dependent
• Amplifier Design: Class D
• Signal Processing: DSP based, 8 FIR presets
• Driver Protection: RMS, peak limiters, and DC
• Thermal Protection: Amplifier shutdown with auto reset
• DC and Short Protection: Yes
• Clip Limiter: Yes
• Limiter Indicator: Red LED
• Signal Indicator: Green LED
• Power/Active Indicator: White LED
• Find Function Indicator: Blue LED
• Input Impedance: Balanced, 10 kohms
• Input Sensitivity: +4 dBu
• Max Input Level: +18 dBu
• Update Port: USB Type B
• Network: RJ45 RS485
• Main Power: AC 100-120V and 220-240V, 50/60 Hz automatic
• Power Supply: High efficiency dual switching mode power supply
• Dimensions: 21.1 x 22.3 x 29.9 in (535 x 566 x 760 mm)
• Weight: 131.8 lb (59.8 kg)

What's In The Box

• Wharfedale Pro WLA-118SUBA subwoofer
• WLA-RH5 rain hood
• User manual
