Active Floor Monitor

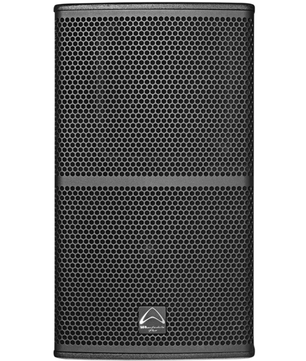

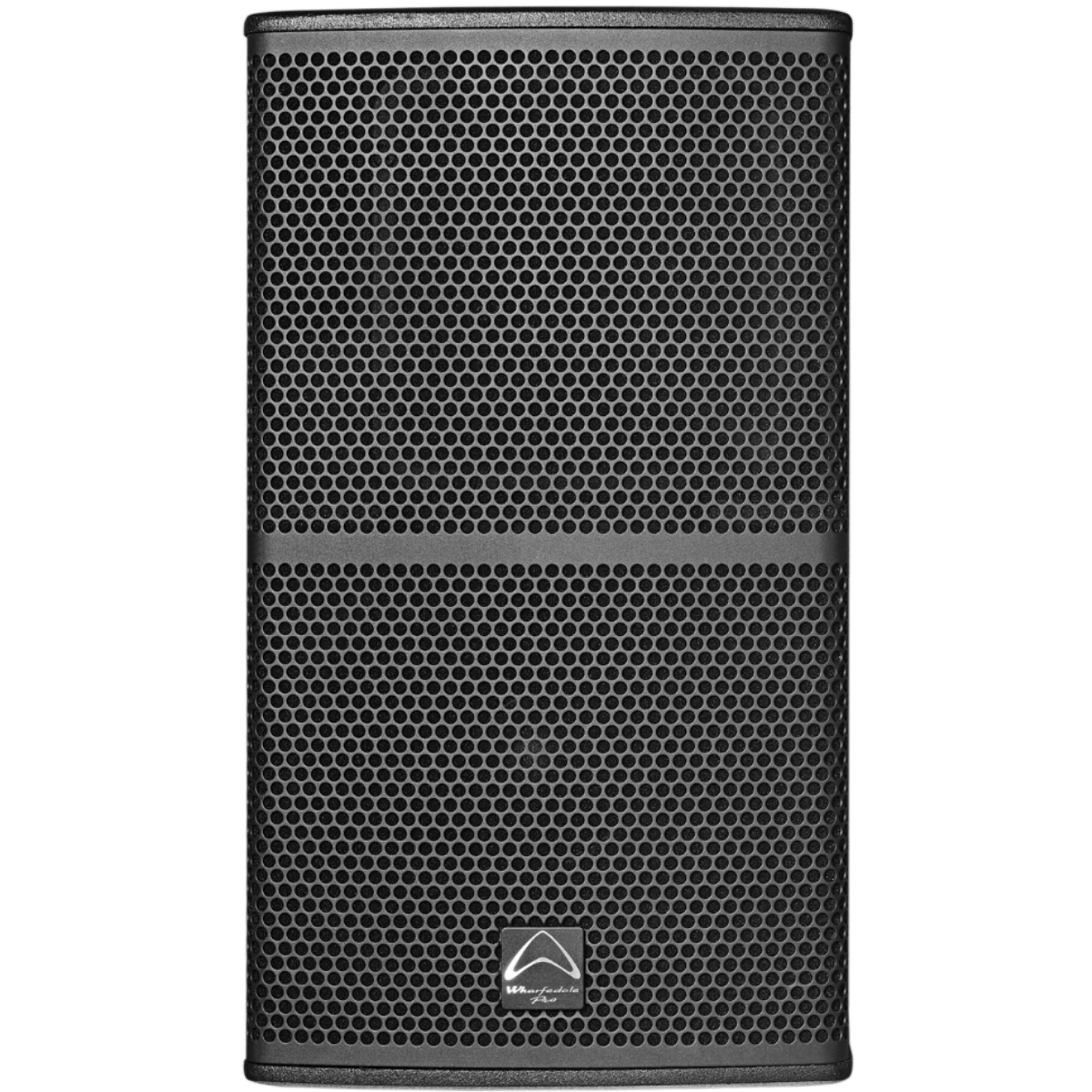

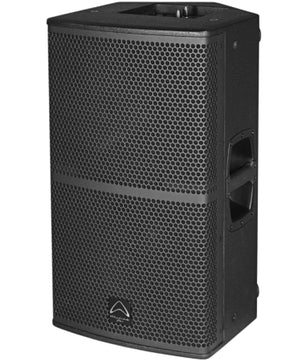

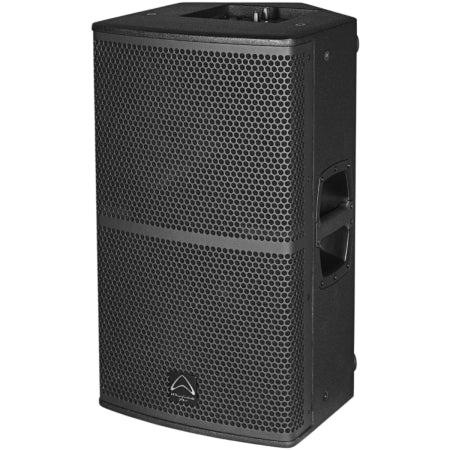

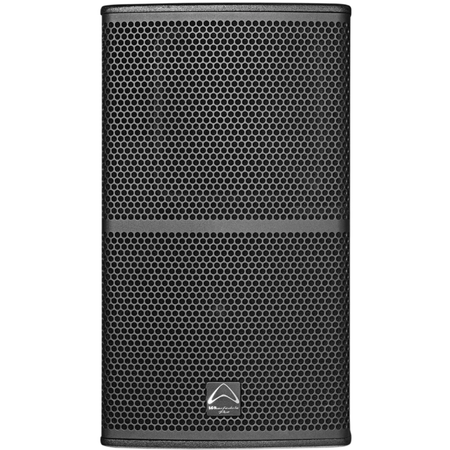

Wharfedale Pro WLA-12MA is a 12-inch active 2-way floor monitor designed for high-output stage monitoring, live sound reinforcement, and fixed installation applications. With Class D bi-amplification, DSP presets with FIR processing, rugged 15 mm birch plywood construction, and 90° x 60° coverage, it delivers clear, controlled monitoring for performers, engineers, and production teams.
Wharfedale Pro WLA-12MA Competitive Differences
- 12-inch active 2-way floor monitor with 750W continuous and 1500W peak power
- 131dB max SPL for loud, clear stage monitoring
- Integrated DSP with 8 selectable FIR presets for wedge, coupled, FOH, and custom applications
- 90° x 60° nominal coverage for focused monitor performance
- 15 mm birch plywood enclosure with M10 rigging points, 35 mm pole mount, and ground or pole deployment options
Wharfedale Pro WLA-12MA Description
The Wharfedale Pro WLA-12MA is part of Wharfedale Pro’s WLA-MA Series, built to bring DSP-controlled performance to demanding stage monitoring applications. Its 2-way design combines a 12-inch LF driver with a 1.75-inch HF compression driver, giving performers clear vocal detail, strong projection, and the dynamic headroom needed on active stages.
Internal Class D amplification provides 750W continuous power and 1500W peak power, delivering strong output while maintaining efficient operation. With a maximum SPL of 131dB at 1 meter and a frequency response of 55Hz - 20kHz, the WLA-12MA is suitable for vocal monitoring, instrument monitoring, DJ booth monitoring, compact FOH use, and stage-fill applications.
The onboard DSP includes 8 selectable FIR presets, allowing the speaker to adapt to wedge, high-pass filtered wedge, coupled monitor, FOH, and custom uses. Ethernet control allows remote adjustment and system monitoring through a single network cable, helping engineers manage stage systems more efficiently.
Built from 15 mm birch plywood with a steel grille and black paint finish, the Wharfedale Pro WLA-12MA is designed for professional touring and installation environments. M10 rigging points, a 35 mm pole mount, and ground or pole deployment options make it flexible enough for stage monitoring, front-fill, side-fill, and compact PA applications.
WLA-12MA Features
- 12-inch active 2-way floor monitor
- Bi-amplified Class D amplifier design
- 750W continuous power output
- 1500W peak power output
- 131dB max SPL at 1 meter
- 12-inch LF driver
- 1.75-inch HF compression driver
- DSP processing with 8 selectable FIR presets
- Preset options for wedge, wedge HPF, coupled, coupled HPF, FOH, FOH HPF, and custom applications
- 90° x 60° nominal coverage
- XLR 1/4-inch combo input connector
- Balanced XLR link connector
- Balanced 10k ohm input impedance
- +4dBu input sensitivity
- +18dBu maximum input level
- High-efficiency switching mode power supply
- 15 mm birch plywood enclosure construction
- Steel grille for driver protection
- Black paint finish
- Ground and pole deployment options
- 35 mm pole mount
- Rigging support with 10 M10 points
WLA-12MA Specifications
- Active or Passive: Active
- System Type: Floor Monitor
- Configuration: 2-way
- System Continuous Power: 750W
- System Continuous Power Detail: 650W LF + 100W HF
- System Peak Power: 1500W
- System Peak Power Detail: 1300W LF + 200W HF
- Max SPL: 131dB @ 1m
- Frequency Response: 55Hz - 20kHz +/-3dB
- Frequency Range: 50Hz - 20kHz -10dB
- LF Driver Size: 12 in
- HF Driver Size: 1.75 in compression driver
- Driver Brand: Wharfedale Pro
- Input Connector: XLR 1/4 in Combo Jack
- Link Connector: Balanced XLR connector
- Input Sensitivity: +4dBu
- Max Input Level: +18dBu
- Active Loudspeaker Input Impedance: Balanced 10k ohms
- Nominal Coverage: 90° x 60°
- Amplifier Design: Class D
- Preset List: Wedge, Wedge HPF, Coupled, Coupled HPF, FOH, FOH HPF, Custom, Custom
- Power Supply: High-efficiency switching mode power supply
- Enclosure Material: Birch plywood
- Grille Material and Finish: Steel
- Finish: Black paint
- Deployment: Ground, pole
- Pole Mount: 35 mm
- Rigging: Yes
- M10 Rigging Points: 10
- Bi-Amp Mode Switch: No
- Bluetooth: No
- IP Certification: None
- Unpacked Height: 25.91 in (658 mm)
- Unpacked Width Front: 14.65 in (372 mm)
- Unpacked Depth: 15.75 in (400.1 mm)
- Packed Height: 29.84 in (758 mm)
- Packed Width Front: 17.72 in (450 mm)
- Packed Width Rear: 17.72 in (450 mm)
- Packed Depth: 18.70 in (475 mm)
- Net Weight: 58.4 lb (26.5 kg)
- Gross Weight: 63.5 lb (28.8 kg)
What's In The Box
- Wharfedale Pro WLA-12MA active floor monitor
- Quick start guide
- AC cable
