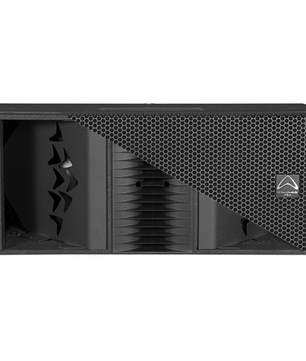

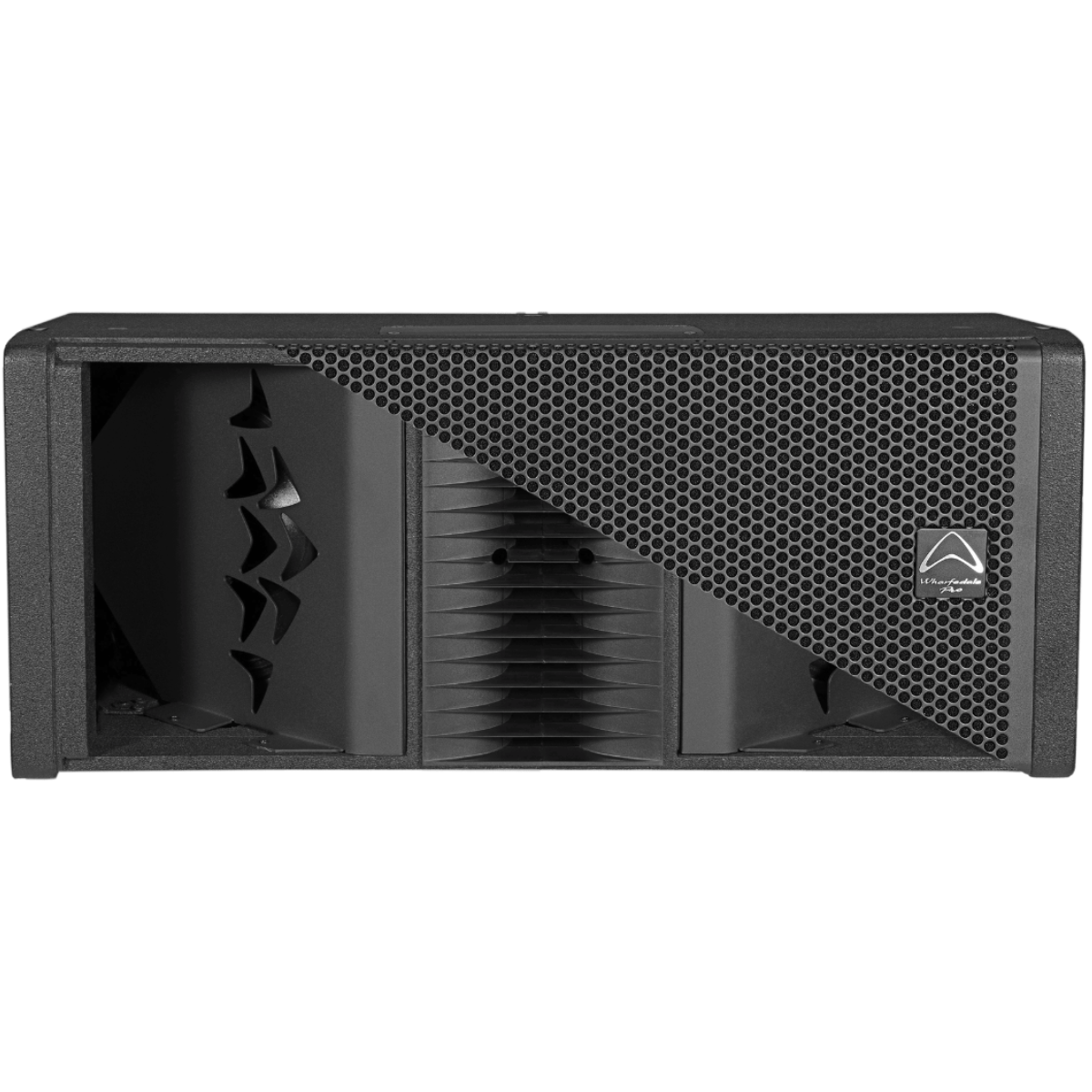

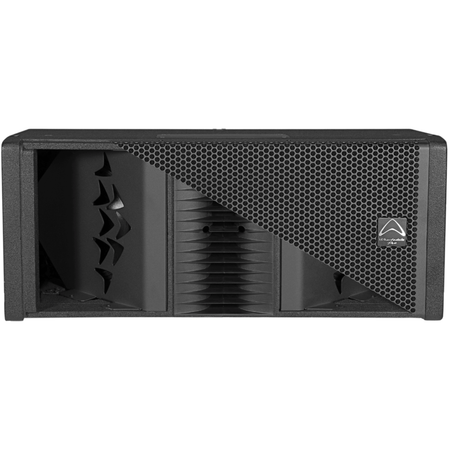

Wharfedale Pro WLA-210A | Dual 10in - 133dB | Active Line Array Element

Wharfedale Pro WLA-210A | Dual 10in - 133dB | Active Line Array Element

$2,149.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Active Line Array Element

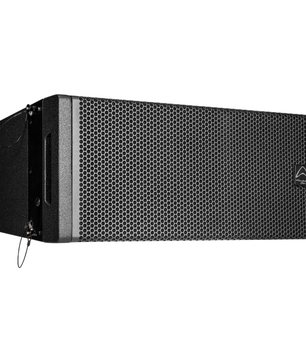

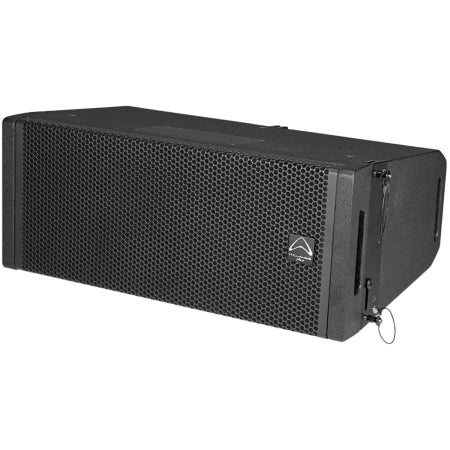

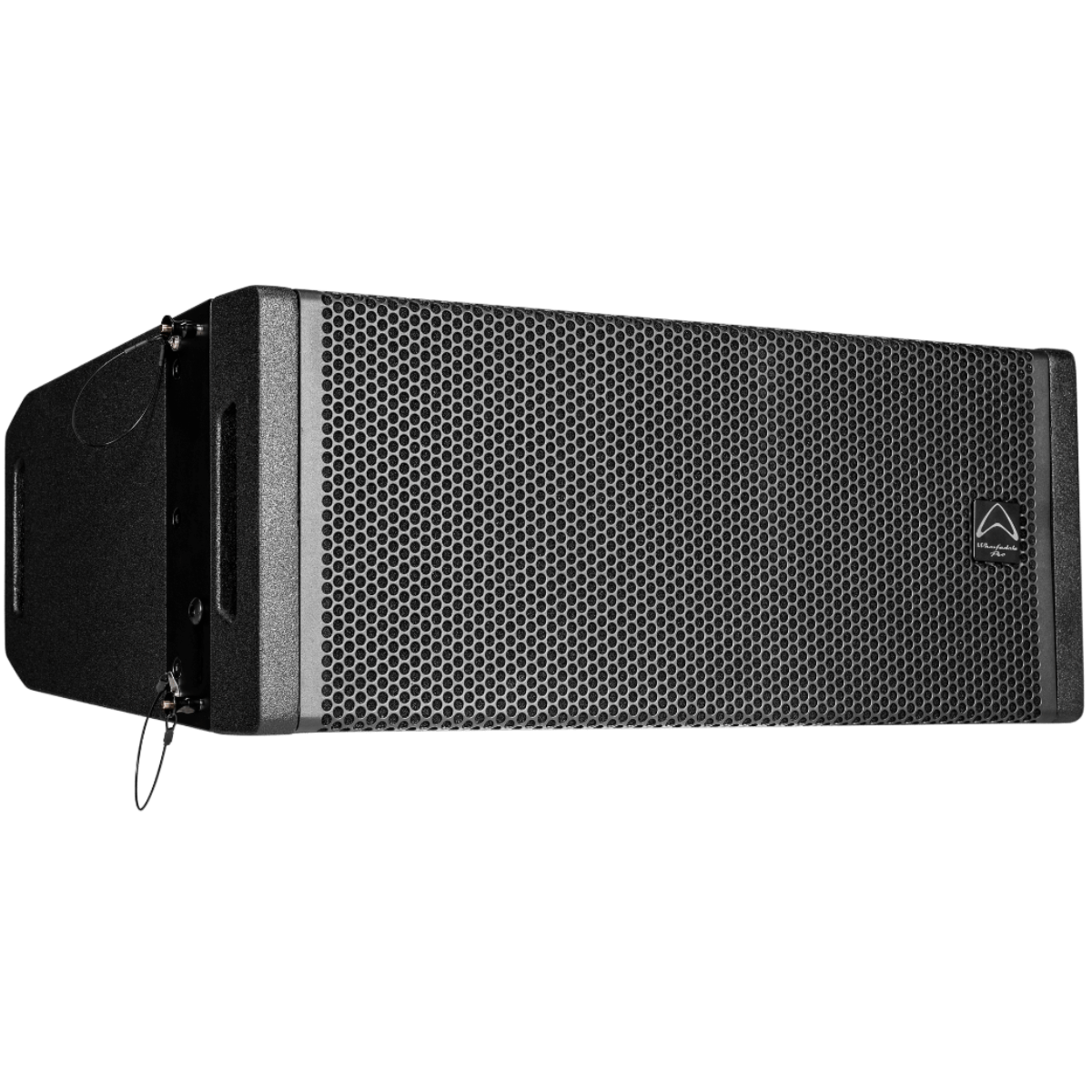

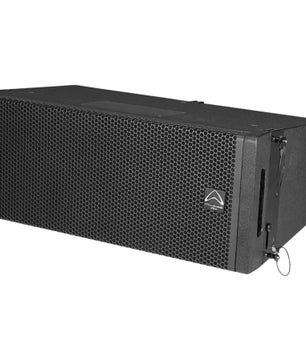

Wharfedale Pro WLA-210A is a dual 10-inch active 2-way line array element designed for compact, high-output touring and installation systems. With integrated Class D amplification, DSP control, and EVO-Fold waveguide technology, it delivers powerful, consistent coverage from a self-powered enclosure.

Wharfedale Pro WLA-210A Competitive Differences

Dual 10-inch active array element with 133dB maximum SPL
EVO-Fold waveguide provides controlled 100° x 10° coverage
Built-in Class D amplification with LF and HF power sections
DSP-based processing with 8 FIR presets for fast system setup
RS485 networking enables remote GUI-based tuning and monitoring

Wharfedale Pro WLA-210A Description

The Wharfedale Pro WLA-210A combines advanced acoustic design with active electronics for professional sound reinforcement. It uses two custom Wharfedale Pro 10-inch LF drivers and a 3-inch HF compression driver coupled to the EVO-Fold waveguide for coherent, controlled sound across the listening area.

The internal Class D amplifier provides 700W continuous power for the LF section and 100W continuous power for the HF section, with DSP-based signal processing and 8 FIR presets to support accurate array configuration. Built-in protection includes independent LF/HF RMS limiting, peak limiting, DC protection, thermal shutdown with auto reset, and low line voltage shutdown.

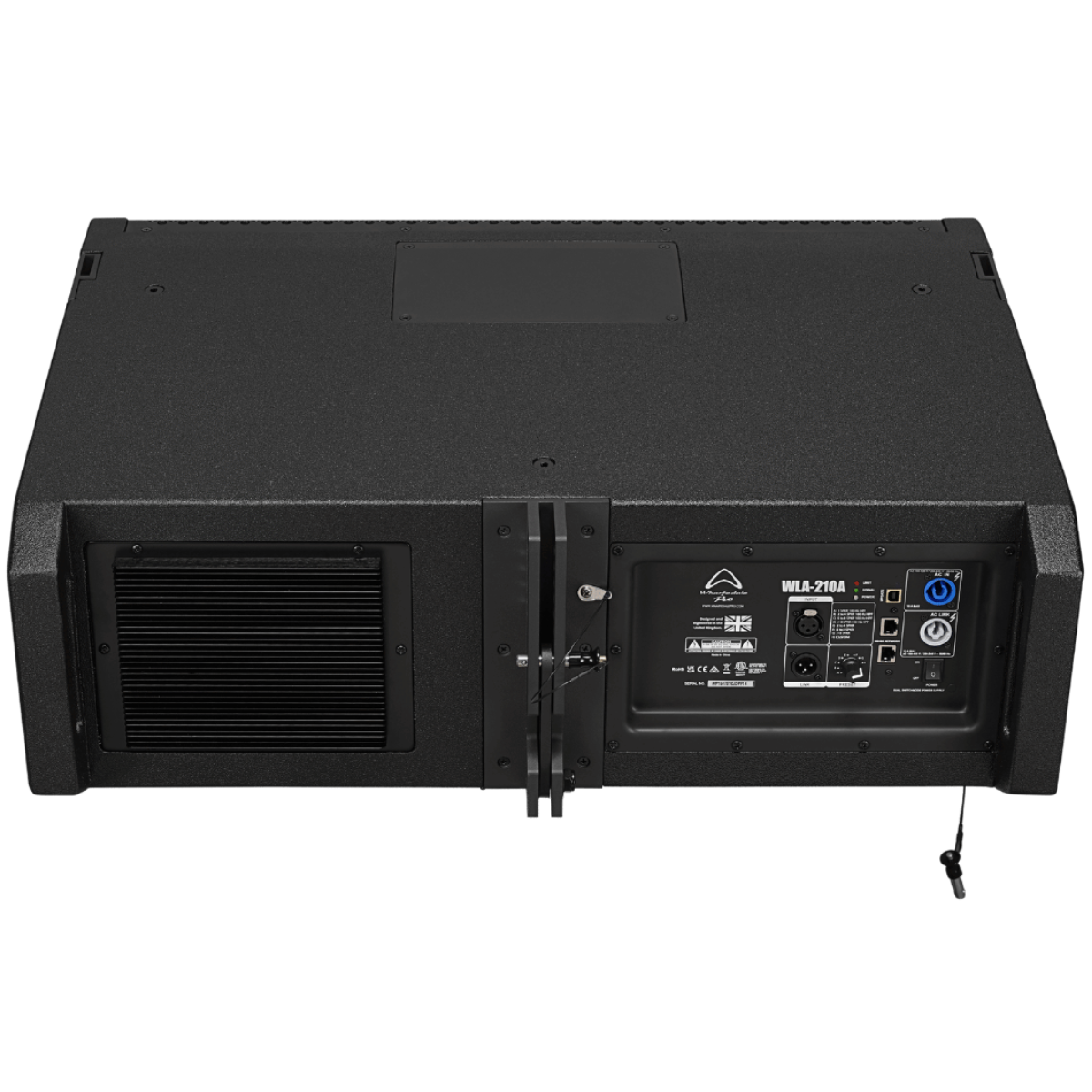

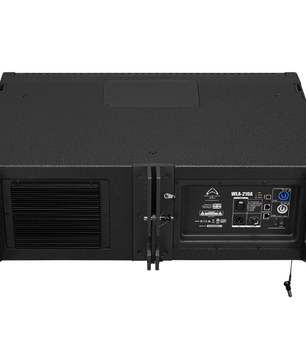

The birch plywood enclosure is finished in black Tough-Tone and includes integrated 3-point rigging for flown or ground-stacked deployments. Balanced XLR input and link connections, USB Type B updating, RJ45 RS485 networking, and powerCON AC input and loop-through connectors make the WLA-210A ready for demanding professional systems.

WLA-210A Features

Dual 10-inch active 2-way line array element
Two custom Wharfedale Pro 10-inch LF drivers
3-inch HF compression driver with titanium diaphragm
EVO-Fold waveguide technology
100° x 10° nominal HF coverage
133dB maximum SPL at 1m
Class D amplifier design
DSP-based processing with 8 FIR presets
RS485 networking for remote control and monitoring
USB Type B update port

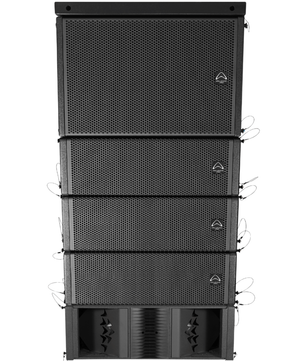

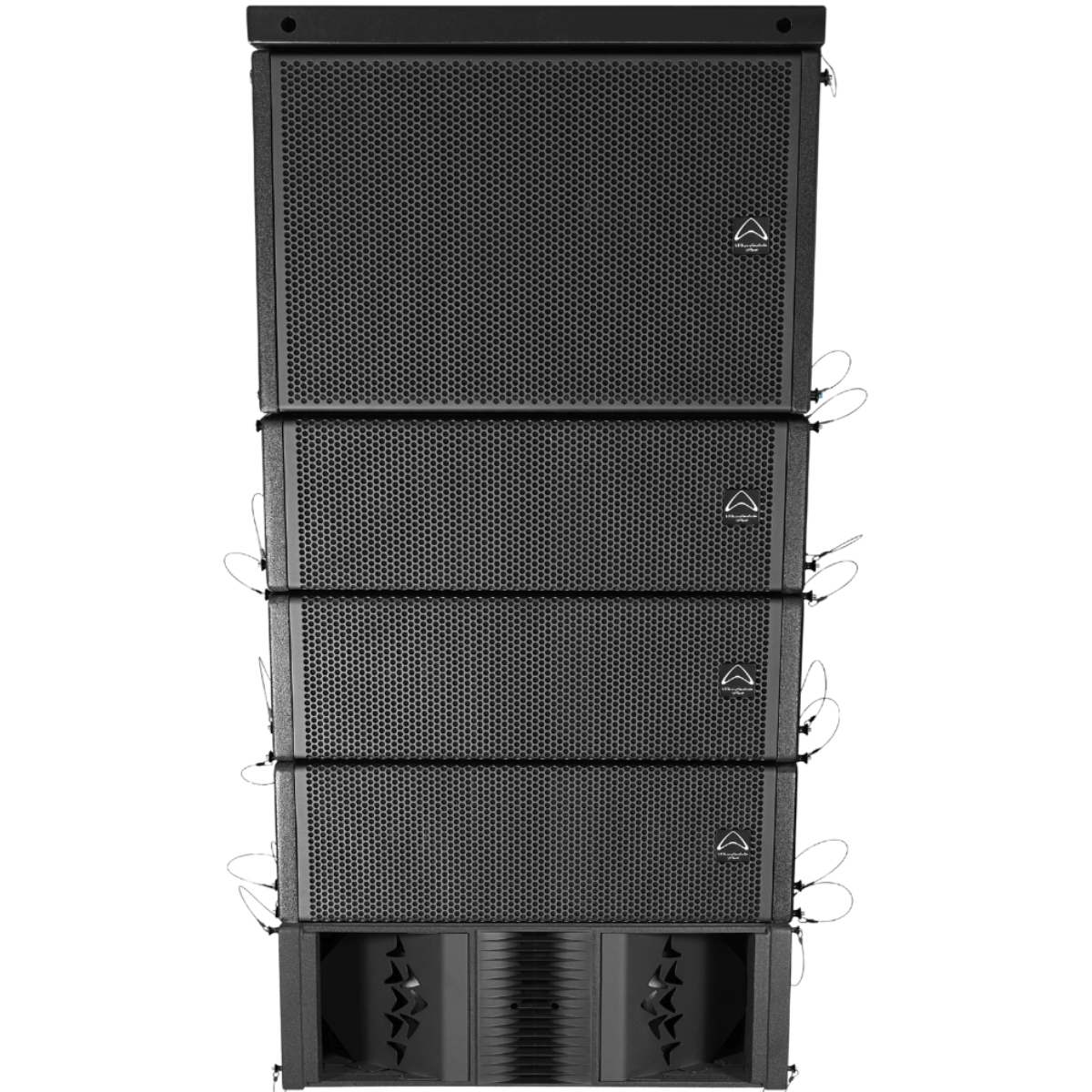

Integrated 3-point rigging
Flying and ground deployment options
Birch plywood enclosure with black Tough-Tone finish
powerCON AC input and loop-through connectors

WLA-210A Specifications

Active or Passive: Active
System Type: Array element
Configuration: 2-way
System Continuous Power: LF 700W / HF 100W
System Peak Power: LF 1400W / HF 200W
Max SPL: 133dB at 1m
Frequency Response: 55 Hz - 20 kHz (+/-3 dB)
Frequency Range: 50 Hz - 20 kHz (-10 dB)
Driver Brand: Wharfedale Pro
LF Driver Size: 2 x 10 in
LF Magnet Material: Ferrite
LF Frame Material: Aluminum
LF Voice Coil Size: 2.5 in
HF Driver Type: Compression driver
HF Voice Coil Size: 3 in
HF Diaphragm Material: Titanium
HF Exit Size: 1.4 in
HF Power: 90W
HF Rated Impedance: 8 ohms
HF Nominal Coverage: 100° x 10°
Input Connector: Balanced XLR socket
Link Connector: Balanced pin XLR
Waveguide Type: EVO-Fold
Enclosure Material: Birch plywood
Grille: Steel
Finish: Black Tough-Tone
Handles: 4
Deployment: Flying, ground
Rigging: Integrated 3-point rigging
Sensitivity: 101dB, 2.83V / 1m
Crossover Frequency: 1.5 kHz
Amplifier Design: Class D
Signal Processing: DSP based, 8 FIR presets
Driver Protection: Independent LF/HF RMS, peak limiters, and DC
Thermal Protection: Amplifier shutdown with auto reset
DC and Short Protection: Yes
Power On Protection: Power switch on/off mute
Limiter Indicator: Red LED
Signal Indicator: Green LED
Power/Active Indicator: White LED
Find Function Indicator: Blue LED
Input Impedance: Balanced, 10 kΩ
Input Sensitivity: +4 dBu
Max Input Level: +18 dBu
Update Port: USB Type B
Network: RJ45 RS485
AC Input Connector: powerCON
AC Loop Through Connector: powerCON
Main Power: AC 100-120V / 220-240V, 50/60 Hz automatic
Power Supply: High efficiency switching mode power supply
Dimensions: 12.4 x 29.9 x 19.8 in (314 x 760 x 503 mm)
Rear Height: 7.5 in (190 mm)
Weight: 87.1 lb (39.5 kg)

What's In The Box

Wharfedale Pro WLA-210A line array element
WLA-RH4 rain hood
User manual
