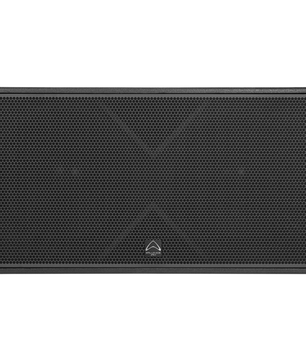

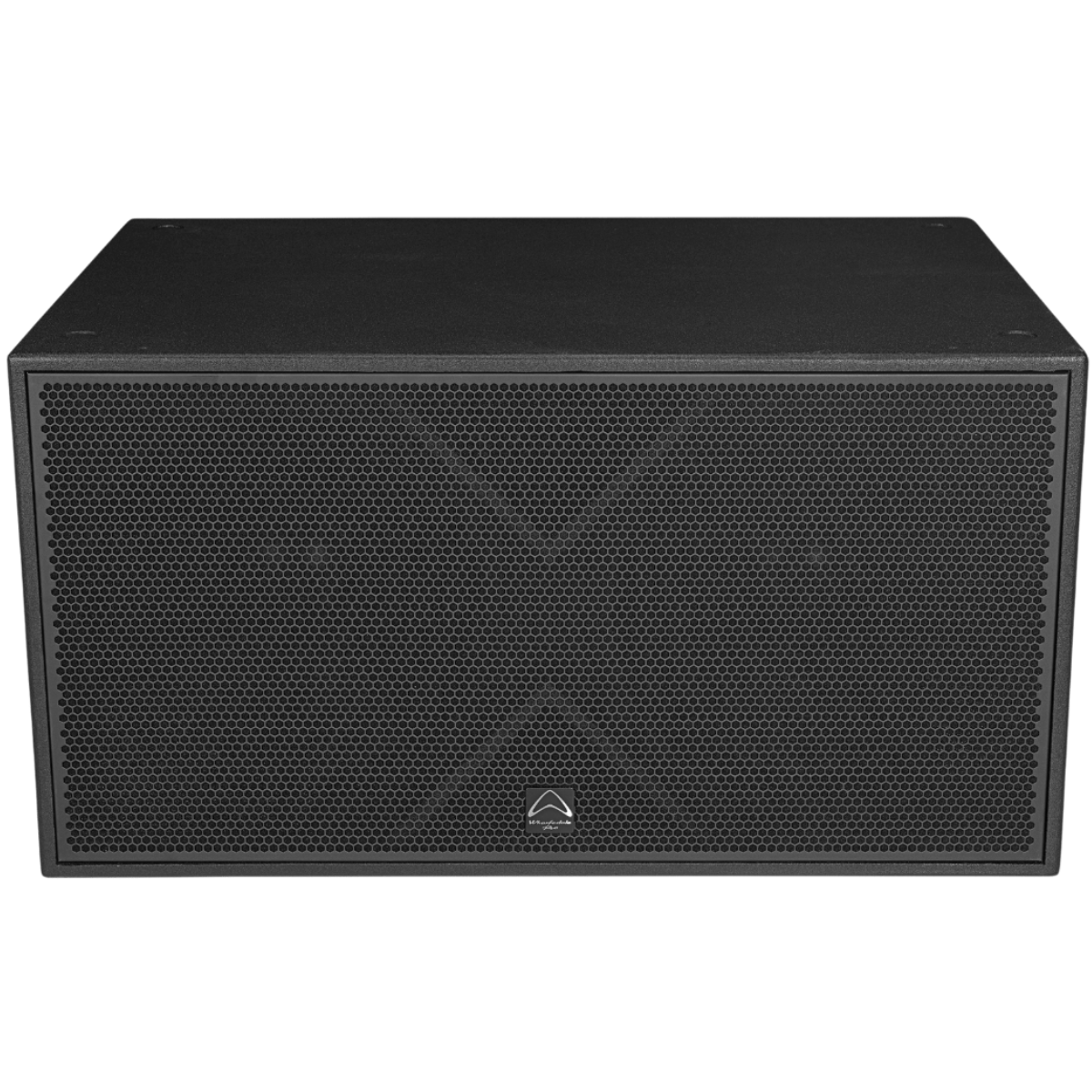

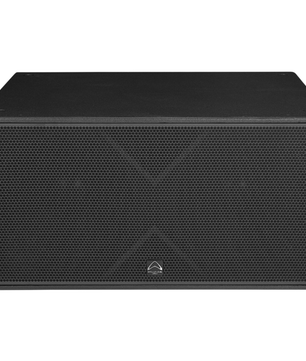

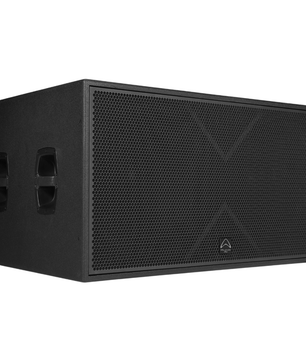

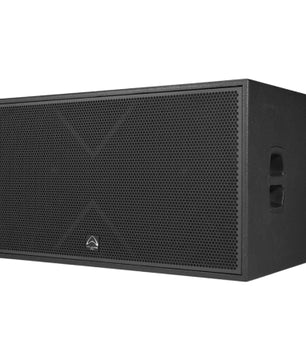

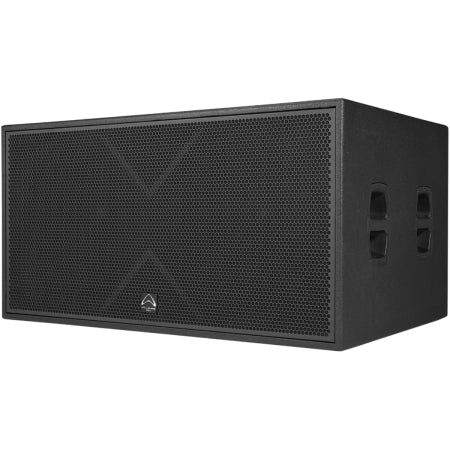

Wharfedale Pro WLA-218BA-BK | Dual 18in - 148dB | Active Subwoofer for WLA-210A Systems

Active Subwoofer

Wharfedale Pro WLA-218BA-BK is a dual 18-inch active subwoofer designed to deliver high-output low-frequency reinforcement for WLA-210A active line array systems. With 2000W continuous Class D amplification, DSP-based processing, 8 FIR presets, and rugged birch plywood construction, it provides deep bass impact for touring, production, and fixed installation applications.

Wharfedale Pro WLA-218BA-BK Competitive Differences

• Dual 18-inch active bass-reflex subwoofer with 2000W continuous and 4000W peak power
• 148dB max SPL in half space for large-scale low-frequency reinforcement
• DSP-based processing with 8 FIR presets for optimized system tuning
• Designed to integrate with WLA-210A active line array systems
• 18 mm birch plywood enclosure with black Tough-Tone finish for demanding professional use

Wharfedale Pro WLA-218BA-BK Description

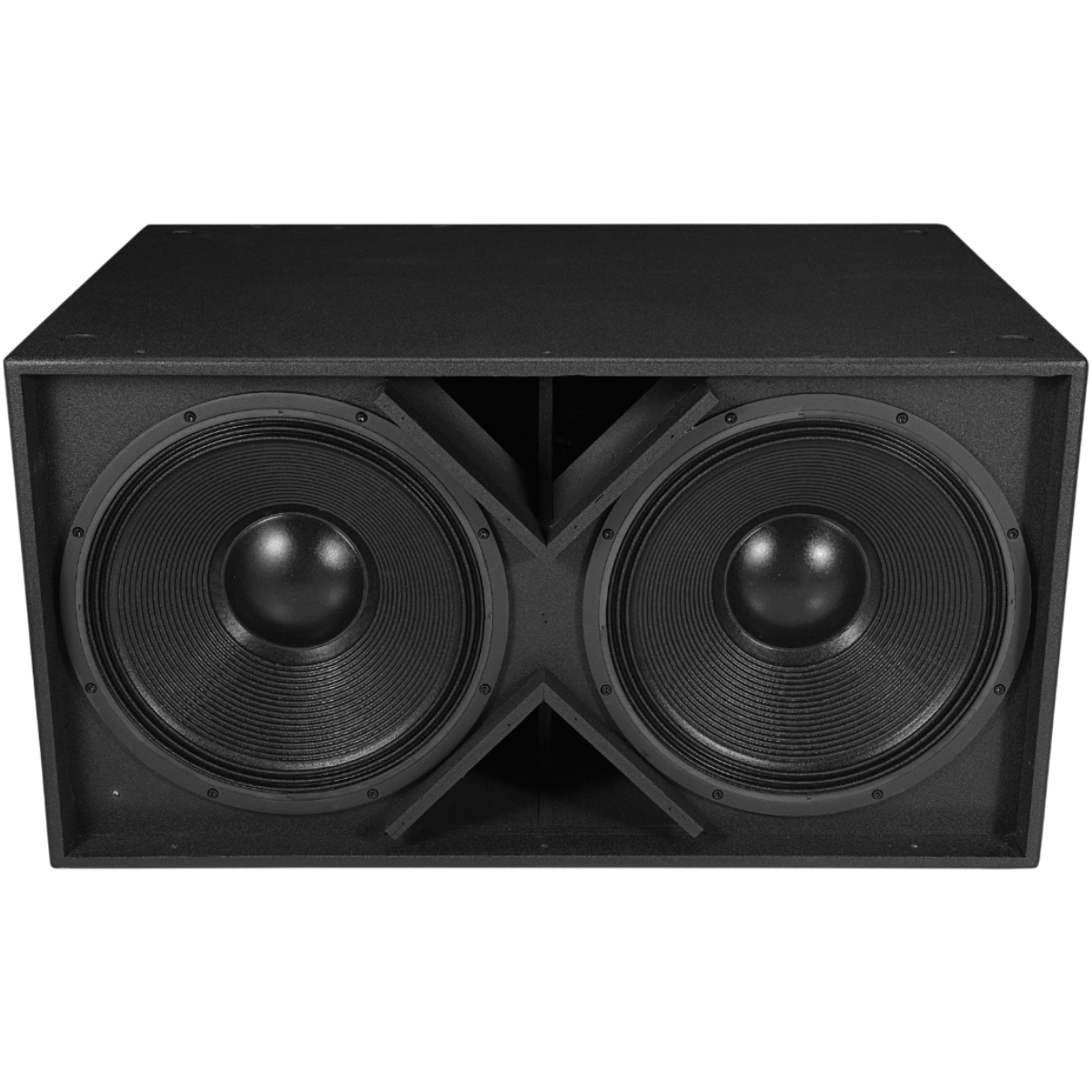

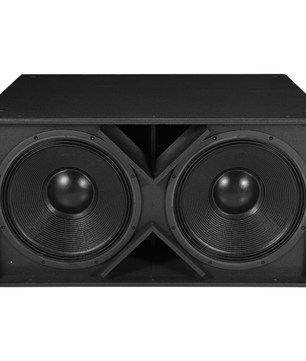

The Wharfedale Pro WLA-218BA-BK is built to provide the low-frequency foundation for high-output WLA-210A system designs. Its bass-reflex enclosure uses two custom 18-inch Wharfedale Pro ferrite LF drivers with aluminum frames and 4-inch voice coils, producing deep, authoritative bass with strong headroom and controlled response.

Internal Class D amplification delivers 2000W continuous power and 4000W peak power, giving the subwoofer the output needed for demanding live sound, DJ, touring, venue, and installation applications. With a maximum SPL of 148dB at 1 meter in half space, the WLA-218BA-BK is designed for large-scale systems that require substantial low-frequency impact.

Onboard DSP provides 8 FIR presets, allowing fast access to tunings for different system configurations. Preset-dependent crossover operation supports integration with WLA-210A array elements, helping system designers and engineers achieve consistent bass performance across ground-stacked and mixed deployments.

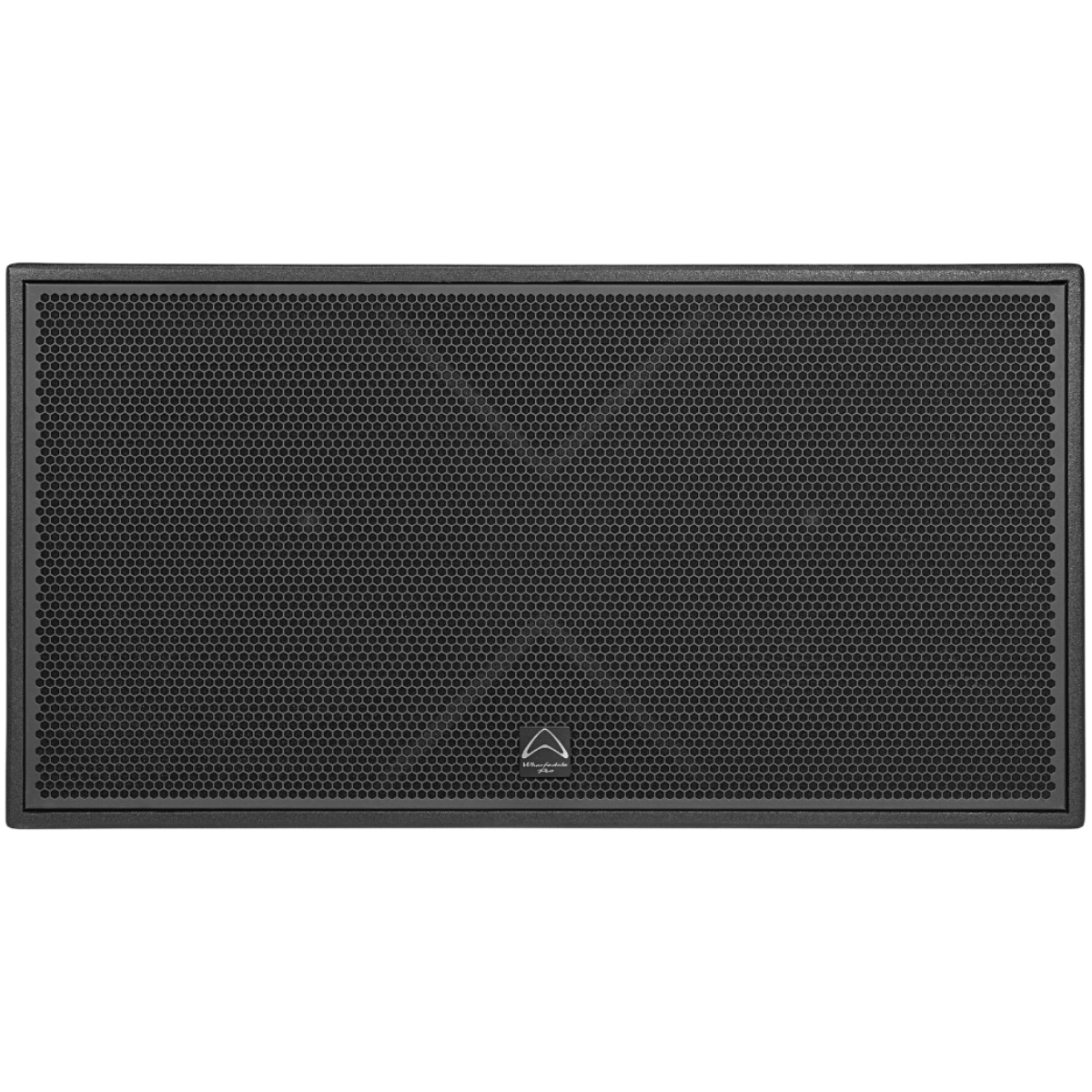

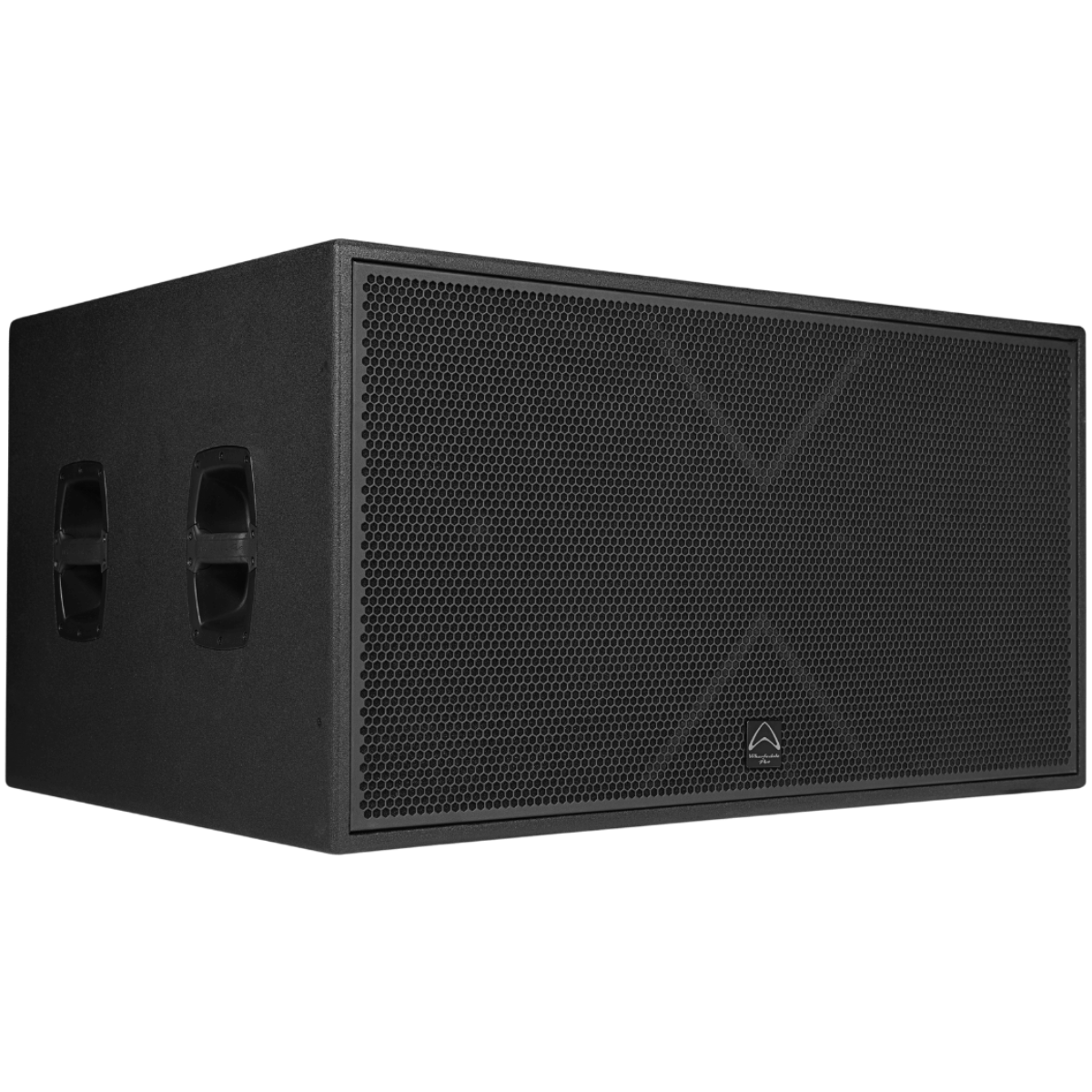

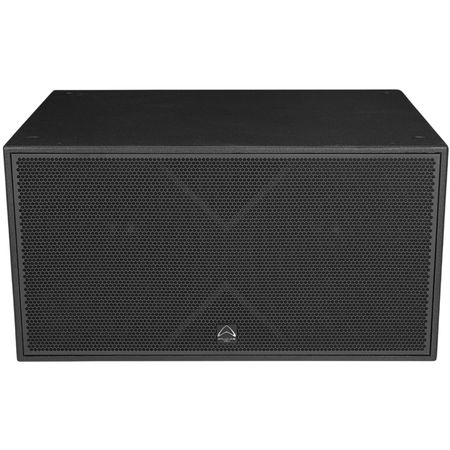

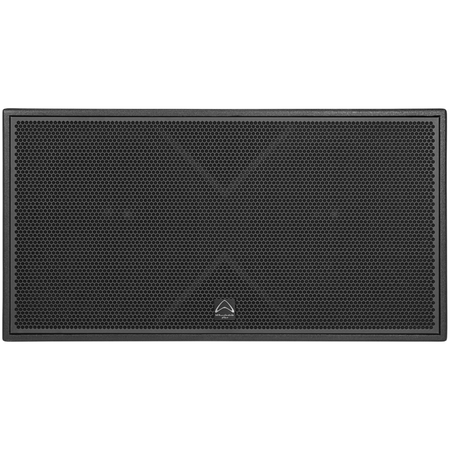

The enclosure is constructed from birch plywood and finished in black Tough-Tone for durability in professional environments. A steel grille protects the drivers, while four handles help with transport, positioning, and production use where rugged handling is required.

WLA-218BA-BK Features

• Dual 18-inch active subwoofer
• Bass-reflex enclosure configuration
• Designed for WLA-210A active line array system integration
• 2000W continuous power output
• 4000W peak power output
• 148dB max SPL measured in half space
• Internal Class D amplifier design
• DSP-based processing with 8 FIR presets
• Two Wharfedale Pro 18-inch ferrite LF drivers
• 4-inch LF voice coils

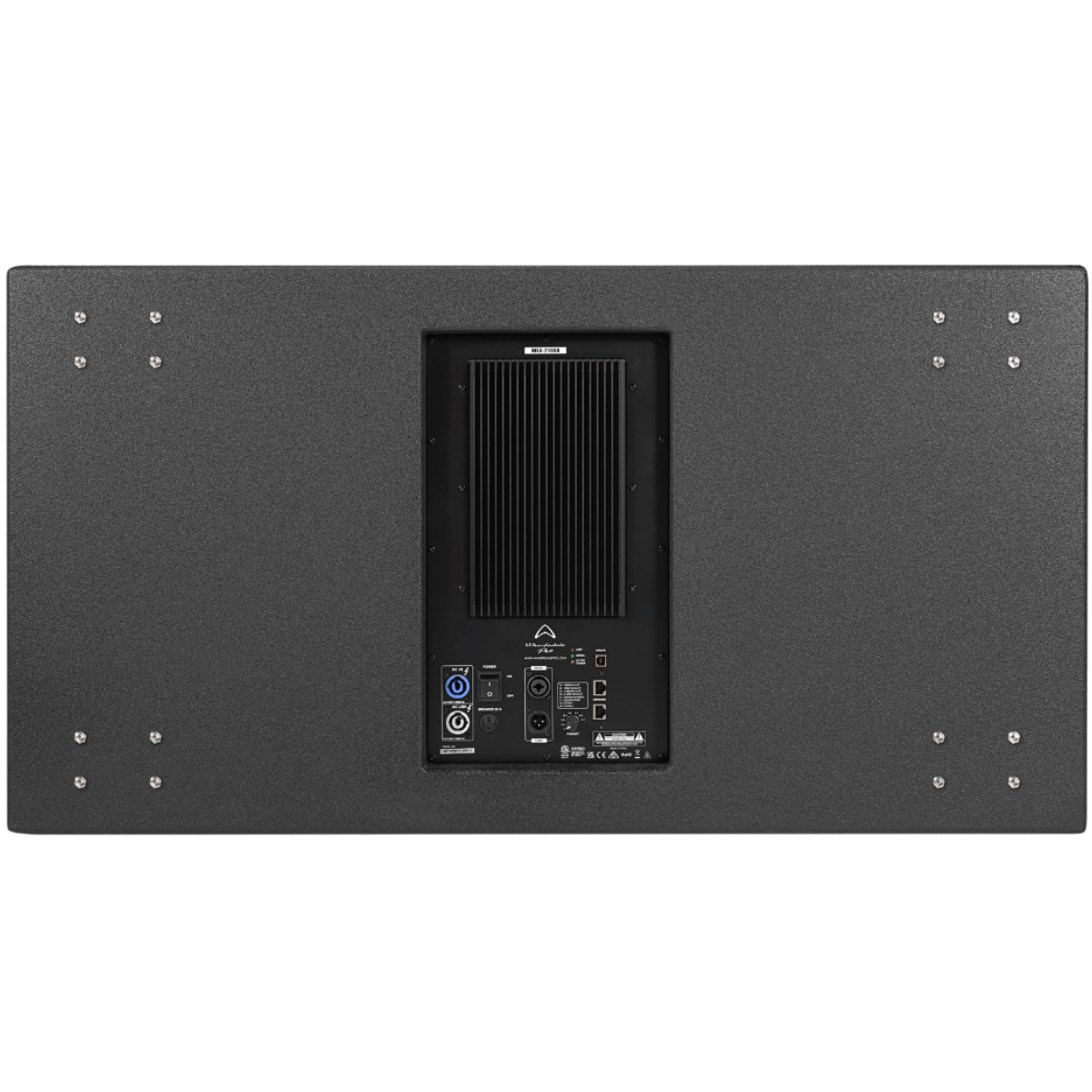

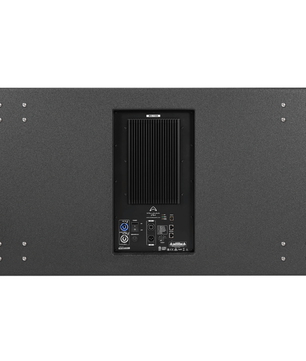

• Balanced XLR input connector
• Balanced XLR link connector
• RJ45 RS485 network connection
• USB Type B update port
• powerCON AC input and loop-through connectors
• Birch plywood enclosure construction
• Steel grille for driver protection
• Black Tough-Tone finish
• Four handles for transport and placement
• Ground deployment design
• RMS, peak limiter, and DC driver protection
• Thermal shutdown protection with auto reset
• Power switch on/off mute protection

WLA-218BA-BK Specifications

• Active or Passive: Active
• System Type: Subwoofer
• Configuration: Bass-reflex
• System Continuous Power: 2000W
• System Peak Power: 4000W
• Max SPL: 148dB @ 1m, half space
• Frequency Response: 30Hz - 100Hz +/-3dB
• Frequency Range: 25Hz - 150Hz -10dB
• LF Driver Size: 2 x 18 in
• LF Magnet Material: Ferrite
• LF Frame Material: Aluminium
• LF Voice Coil Size: 4 in
• Input Connector: Balanced XLR socket
• Link Connector: Balanced XLR
• Input Sensitivity: +4dBu
• Max Input Level: +18dBu
• Active Loudspeaker Input Impedance: Balanced 10k ohms
• Sensitivity: 109dB, 2.83V / 1m
• Crossover Frequency: Preset dependent
• Amplifier Design: Class D
• Signal Processing: DSP based, 8 FIR presets
• Driver Protection: RMS, peak limiters, and DC protection
• Thermal Protection: Amplifier shutdown with auto reset
• DC and Short Protection: Yes
• Power On Protection: Power switch on/off mute
• Low Line Voltage Shutdown: 60% nominal line voltage
• Limiter Indicator: Red LED
• Signal Indicator: Green LED
• Power/Active Indicator: White LED
• Find Function Indicator: Blue LED
• Update Connector: USB Type B
• Network Connector: RJ45, RS485
• AC Input Connector: powerCON
• AC Loop Through Connector: powerCON
• Main Power: AC 100-120V and 220-240V, 50/60Hz automatic
• Power Supply: High-efficiency switching mode power supply
• Enclosure Material: Birch plywood
• Grille Material and Finish: Steel
• Finish: Black Tough-Tone
• Handles: 4
• Deployment: Ground
• Pole Mount: None
• Brackets Included: Yes
• Rigging: No
• Bluetooth: No
• IP Certification: None
• Unpacked Front Height: 22.05 in (560 mm)
• Unpacked Rear Height: 22.05 in (560 mm)
• Unpacked Width Front: 41.93 in (1065 mm)
• Unpacked Width Rear: 41.93 in (1065 mm)
• Unpacked Depth: 29.76 in (756 mm)
• Packed Height: 25.79 in (655 mm)
• Packed Width Front: 33.07 in (840 mm)
• Packed Width Rear: 33.07 in (840 mm)
• Packed Depth: 45.28 in (1150 mm)
• Net Weight: 191.4 lb (86.8 kg)
• Gross Weight: 193.3 lb (87.7 kg)

What's In The Box

• Wharfedale Pro WLA-218BA-BK active subwoofer
• User manual
