Active Line Array Element

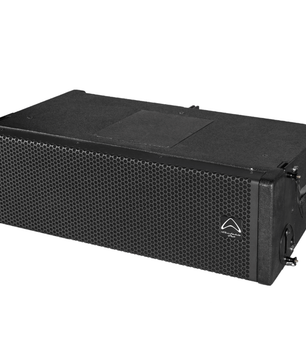

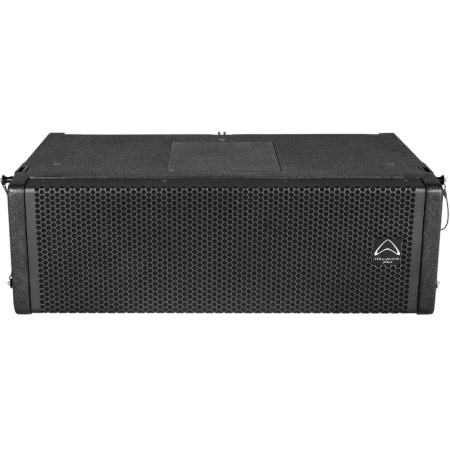

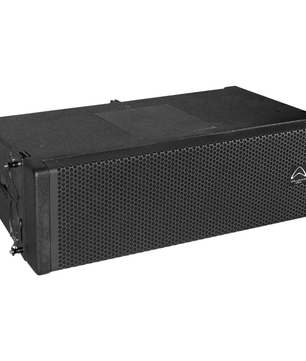

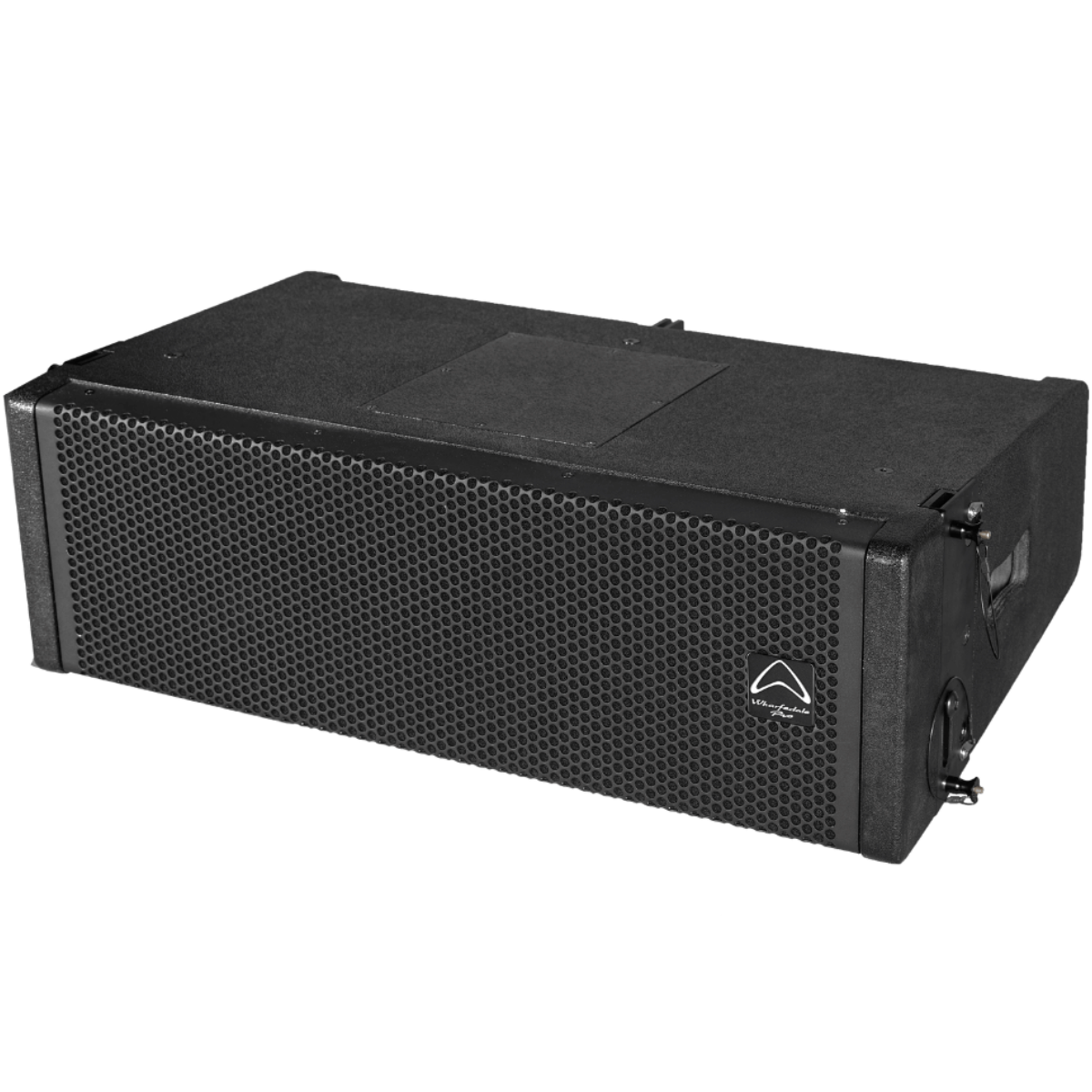

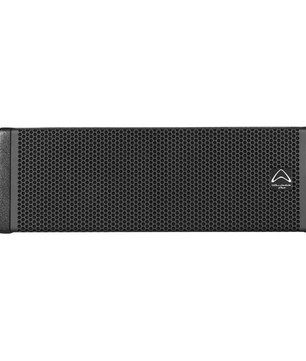

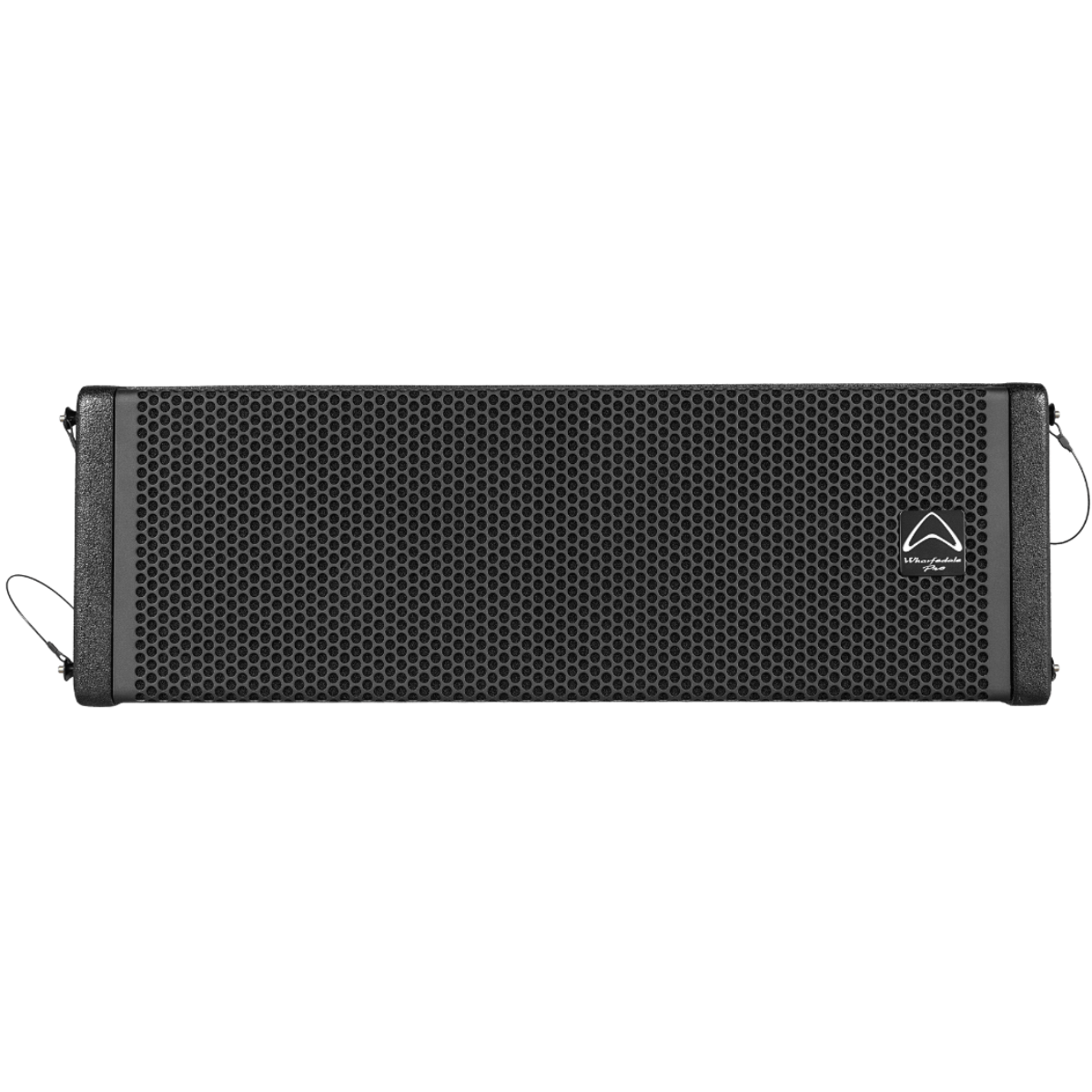

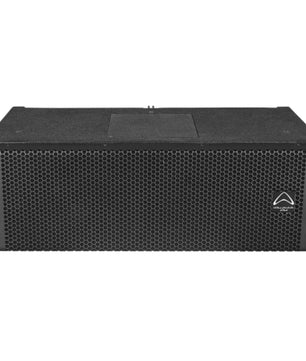

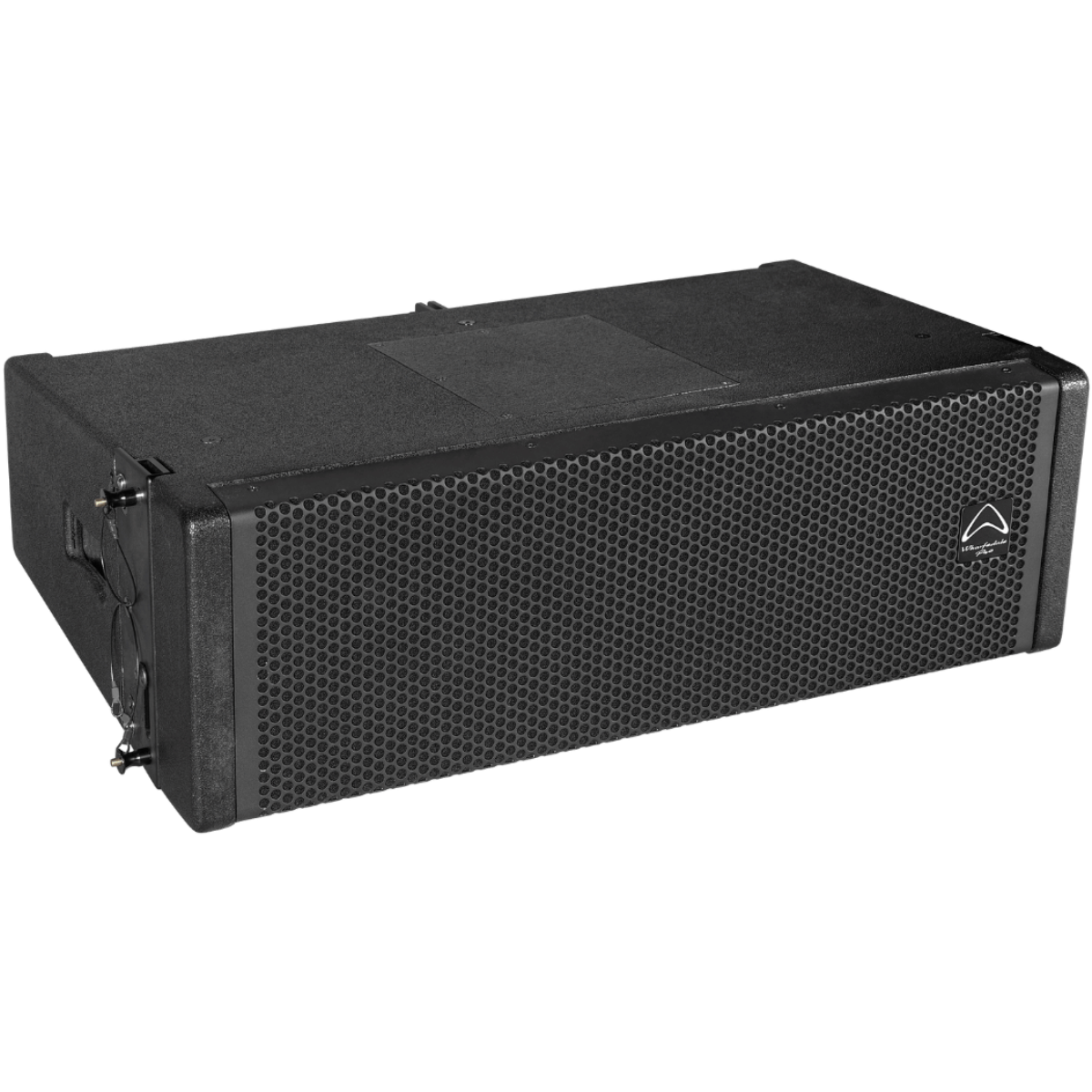

Wharfedale Pro WLA-28A-BL is a dual 8-inch active line array element designed for high-output sound reinforcement in touring systems, venues, houses of worship, and fixed installation environments. With onboard Class D amplification, DSP processing, FIR presets, and integrated rigging, it provides powerful, phase-coherent coverage in a compact birch plywood enclosure.
Wharfedale Pro WLA-28A-BL Competitive Differences
- Dual 8-inch active line array element with 650W LF + 100W HF continuous power
- Internal DSP with 8 FIR presets for optimized array performance and fast setup
- 132dB max SPL output from a compact, tour-ready enclosure
- Ethernet control via RS485 with Pro=Link software for remote system management
- Coherent Array Shaping Technology waveguide for controlled array coverage
Wharfedale Pro WLA-28A-BL Description
The Wharfedale Pro WLA-28A-BL is part of the WLA-28A active line array system, built for applications that require scalable output, precise control, and consistent coverage. Its 2-way configuration uses two 8-inch ferrite LF drivers and a 3-inch titanium diaphragm compression driver for strong low-mid projection and detailed high-frequency performance.
Powered by internal Class D amplification, the system delivers LF: 650W / HF: 100W continuous power and LF: 1300W / HF: 200W peak power. DSP-based processing with 8 resident FIR presets helps maintain accurate phase response, smooth frequency performance, and clear vocal and music reproduction across demanding live sound environments.

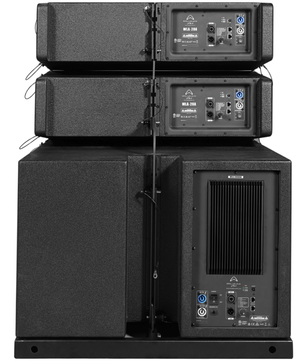

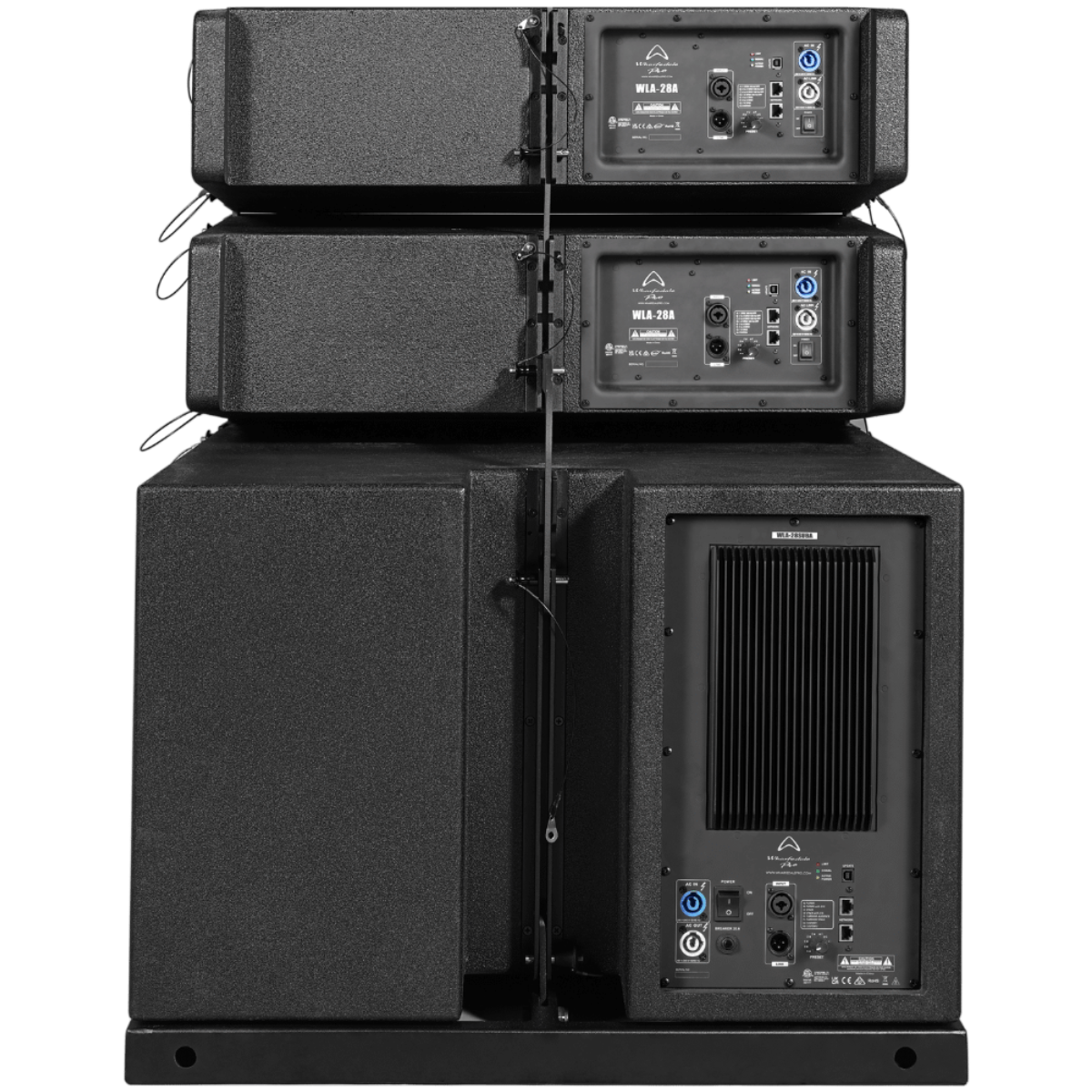

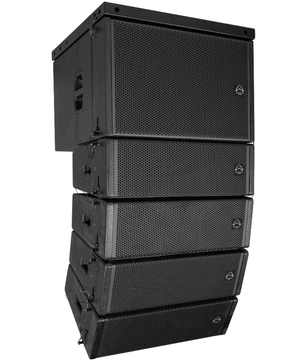

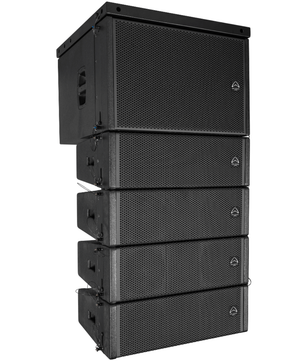

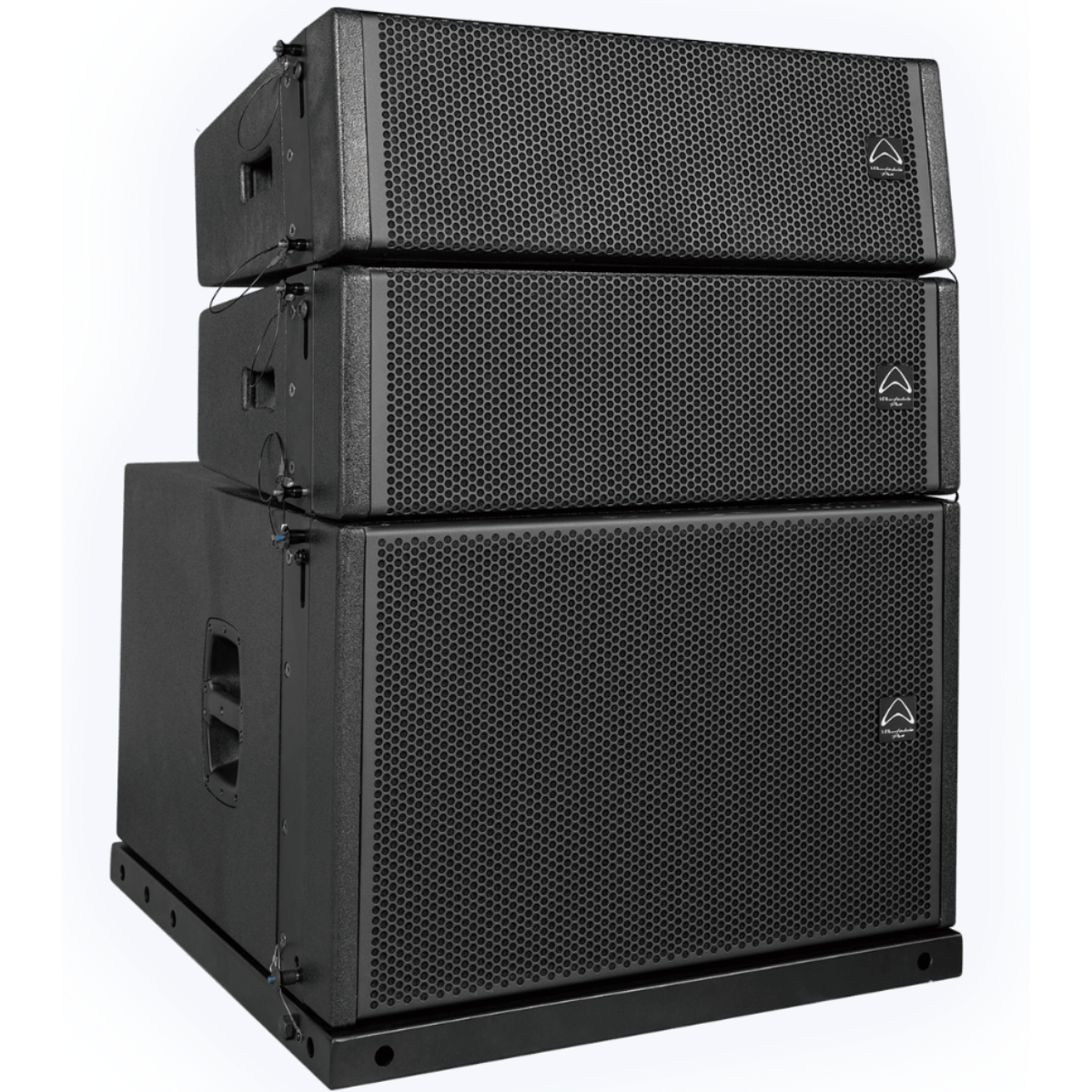

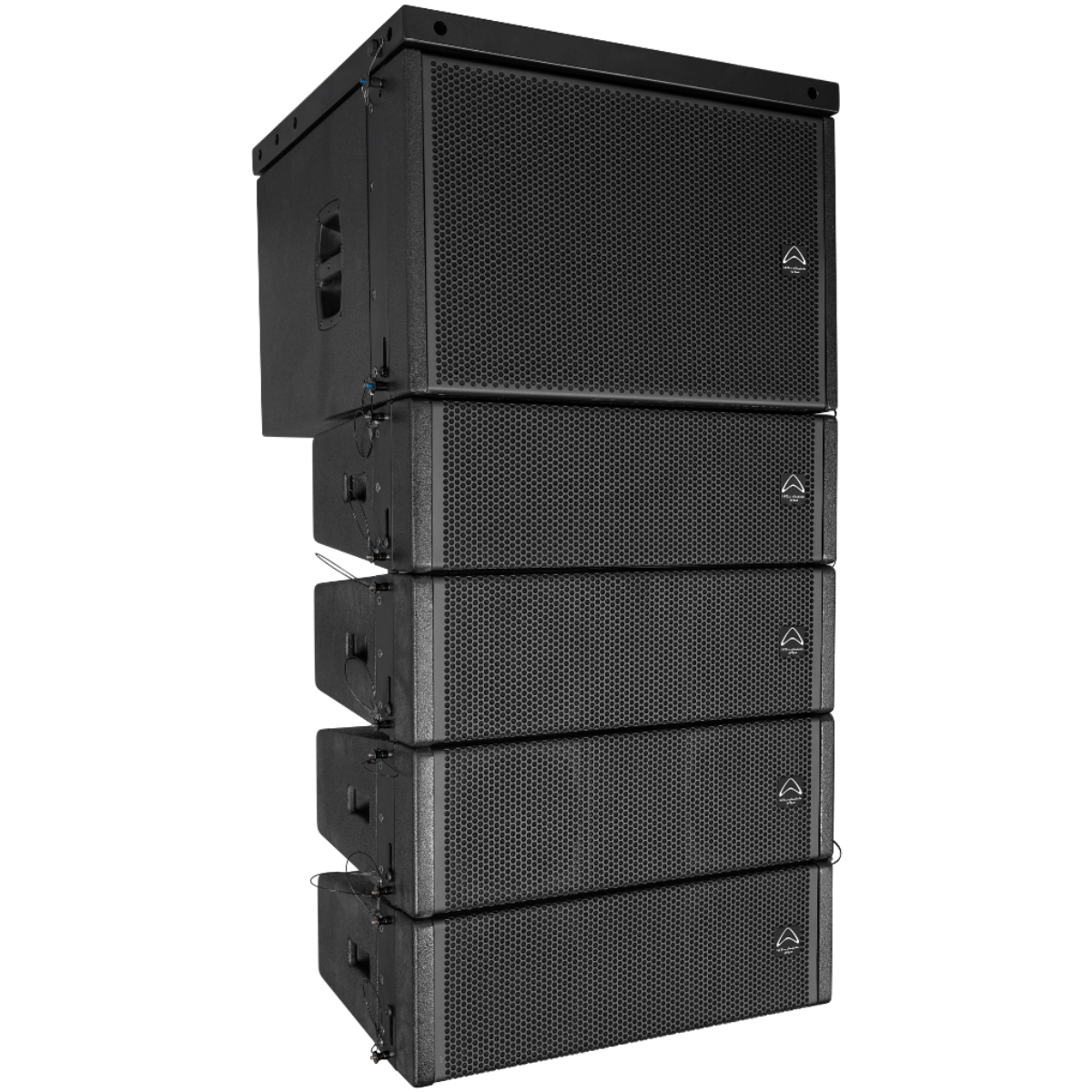

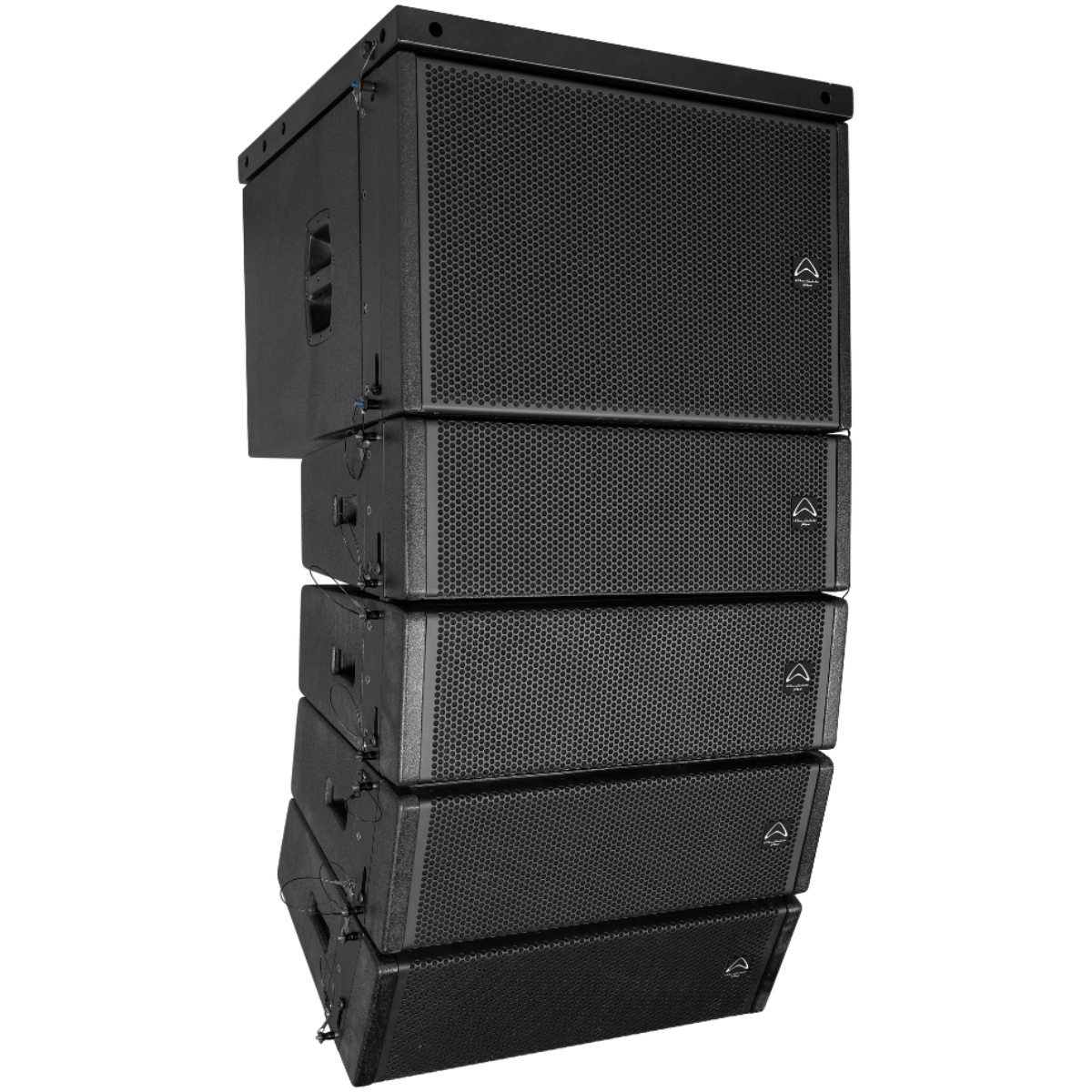

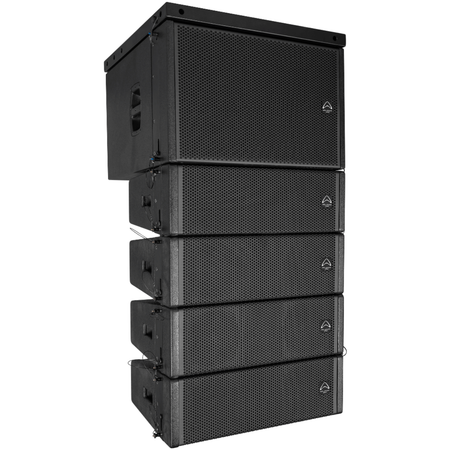

The enclosure is constructed from 15 mm / 18 mm birch plywood with a black Tough-Tone finish and steel grille, giving the WLA-28A-BL the durability needed for rental, touring, and permanent installation use. Integrated 3-point rigging supports flown deployment, while ground-stacked configurations are also supported as part of the larger WLA-28A system.

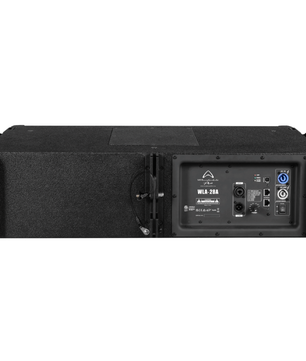

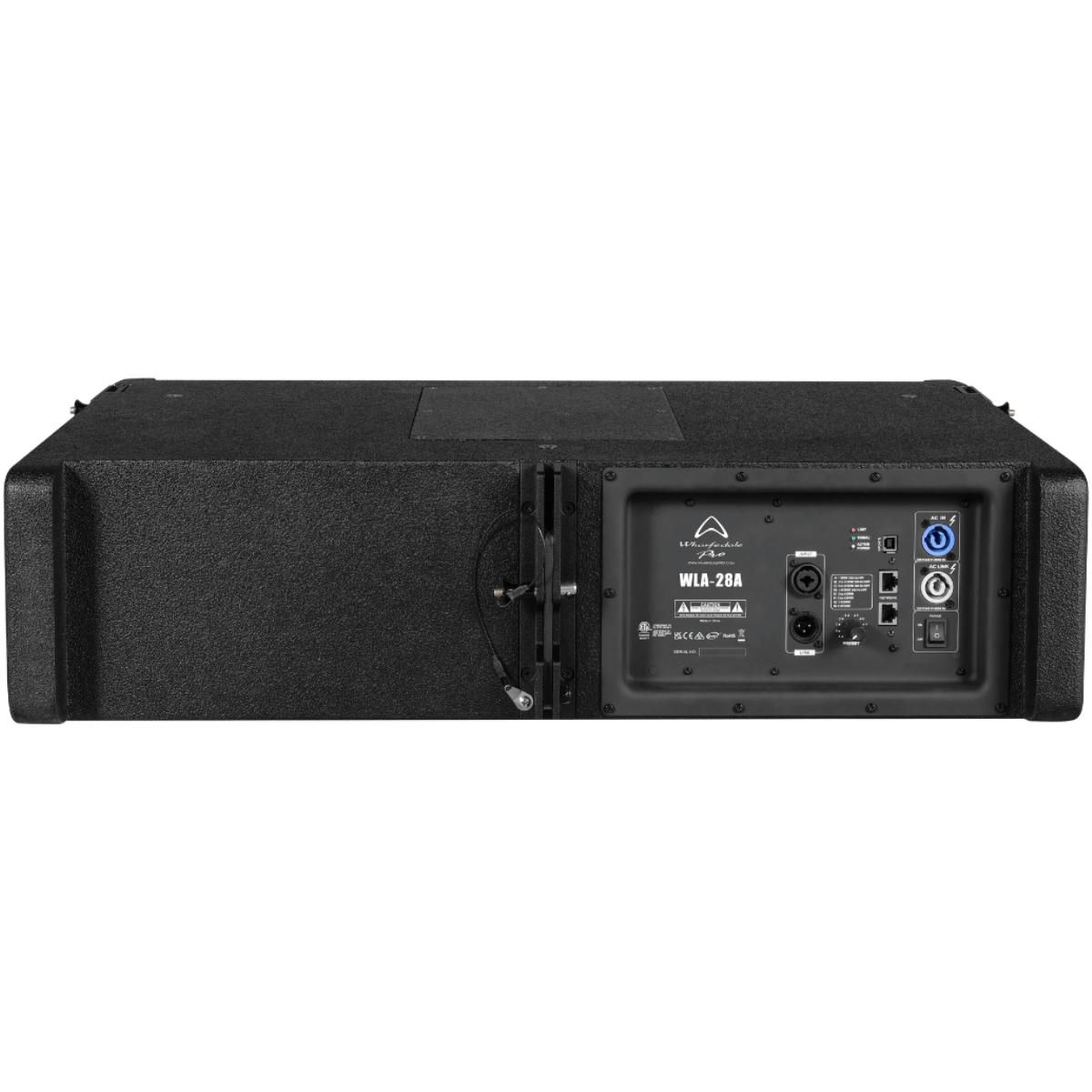

For system control and maintenance, the Wharfedale Pro WLA-28A-BL includes XLR combo input, XLR link output, USB Type B updates, RJ45 RS485 networking, powerCON AC input, and powerCON loop-through. It also includes independent LF/HF limiters, amplifier thermal protection, DC and short protection, and clear LED status indicators for reliable operation in the field.
WLA-28A-BL Features
- Dual 8-inch active line array element
- 2-way active system design
- Internal Class D amplifier platform
- DSP-based processing with 8 FIR presets
- Coherent Array Shaping Technology waveguide
- 100° horizontal coverage with system-dependent vertical coverage
- Ethernet connectivity via RS485 protocol
- Remote control and tuning with Pro=Link software
- Integrated 3-point rigging system

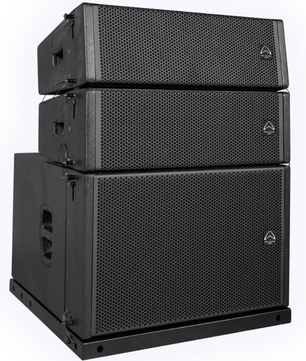

- Supports flown and ground-stacked deployment
- Birch plywood enclosure with black Tough-Tone finish
- Steel grille for driver protection
- Independent LF/HF limiters and DC protection
- Thermal shutdown protection with auto reset
- USB Type B update port
- powerCON AC input and loop-through connectors
WLA-28A-BL Specifications
- Active or Passive: Active
- System Type: Array Element
- Configuration: 2-way
- System Continuous Power: LF: 650W / HF: 100W
- System Peak Power: LF: 1300W / HF: 200W
- Max SPL: 132dB @ 1m
- Frequency Response: 60Hz - 20kHz +/-3dB
- Frequency Range: 55Hz - 20kHz -10dB
- LF Driver Size: 2 x 8 in
- LF Magnet Material: Ferrite
- LF Frame Material: Aluminium
- LF Voice Coil Size: 2 in
- HF Driver Type: Neo Compression Driver
- HF Voice Coil Size: 3 in
- HF Diaphragm Material: Titanium
- HF Exit Size: 1.4 in
- HF Power: 90W RE:AES2-2012
- HF Rated Impedance: 8 ohms
- Input Connector: XLR 1/4 in Combo Jack
- Link Connector: Balanced XLR
- Input Sensitivity: +4dBu
- Max Input Level: +18dBu
- Active Loudspeaker Input Impedance: Balanced 10k ohms
- Waveguide Type: Coherent Array Shaping Technology
- Nominal Coverage: 100° horizontal x system-dependent vertical
- Sensitivity: 100dB, 2.83V / 1m
- Crossover Frequency: 1.5kHz
- Amplifier Design: Class D
- Signal Processing: DSP based, 8 FIR presets resident in input module
- Driver Protection: Independent LF/HF limiters and DC protection
- Thermal Protection: Amplifier shutdown with auto reset
- DC and Short Protection: Yes
- Power On Protection: Power switch on/off mute
- Low Line Voltage Shutdown: 80% nominal line voltage
- Limiter Indicator: Red LED
- Signal Indicator: Green LED
- Power/Active Indicator: White LED
- Find Function Indicator: Blue LED
- Update Connector: USB Type B
- Network Connector: RJ45, RS485
- AC Input Connector: powerCON
- AC Loop Through Connector: powerCON
- Main Power: AC 100-120V / 220-240V, 50/60Hz
- Power Supply: High-efficiency switching mode power supply
- Enclosure Material: Birch plywood
- Grille Material and Finish: Steel
- Finish: Black Tough-Tone
- Handles: 2
- Deployment: Flying, ground
- Pole Mount: None
- Rigging: Yes
- Integral Rigging: 3 points
- Unpacked Front Height: 9.84 in (250 mm)
- Unpacked Rear Height: 7.13 in (181 mm)
- Unpacked Width Front: 29.92 in (760 mm)
- Unpacked Width Rear: 29.92 in (760 mm)
- Unpacked Depth: 18.24 in (463.2 mm)
- Packed Height: 33.46 in (850 mm)
- Packed Width Front: 12.80 in (325 mm)
- Packed Width Rear: 12.80 in (325 mm)
- Packed Depth: 21.26 in (540 mm)
- Net Weight: 64.6 lb (29.3 kg)
- Gross Weight: 69.4 lb (31.5 kg)
- Bluetooth: No
- IP Certification: None
What's In The Box
- Wharfedale Pro WLA-28A-BL active line array element
- User manual
- WLA-RH4 rain hood
