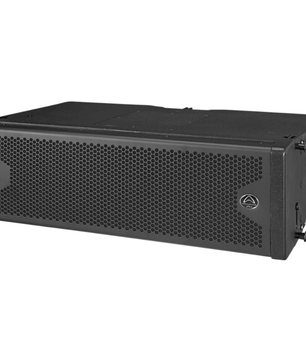

Wharfedale Pro WLA-28X | Dual 8in - 132dB | Passive Line Array Element
Wharfedale Pro WLA-28X | Dual 8in - 132dB | Passive Line Array Element
Wharfedale Pro WLA-28X | Dual 8in - 132dB | Passive Line Array Element
Wharfedale Pro WLA-28X | Dual 8in - 132dB | Passive Line Array Element
Wharfedale Pro WLA-28X | Dual 8in - 132dB | Passive Line Array Element

Wharfedale Pro WLA-28X | Dual 8in - 132dB | Passive Line Array Element

$1,124.00
Order within [hour] to get by [date_end]

Direct Ship from Our Supplier

Contact Us to Order - Most Items Ship Just As Fast

Returns & Exchanges Policy
All orders come with our industry leading 90-Day return policy.
  • Cash Back or Store Credit available for returns within 30 days.
  • Store Credit available for returns within 31-90 days.
Restocking fees
  • Unopened Items: 5%
  • Opened but Mint Condition: 15%
  • Blemished, Missing/Damaged Packing or Accessories: 25%
Shipping Costs
  • Buyer is responsible for return shipping costs
  • If "Free" or discount shipping was provided with original order, our actual shipping cost will be deducted from the amount refunded/credited
Damages & Defects
  • We will swap any item reported as damaged or defective within 7 days of delivery for free. All transportation and replacement costs will be covered by us (within US48 states).


  • Guarantee Safe
    Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Description

Shipping

Return Policies

Passive Line Array Element

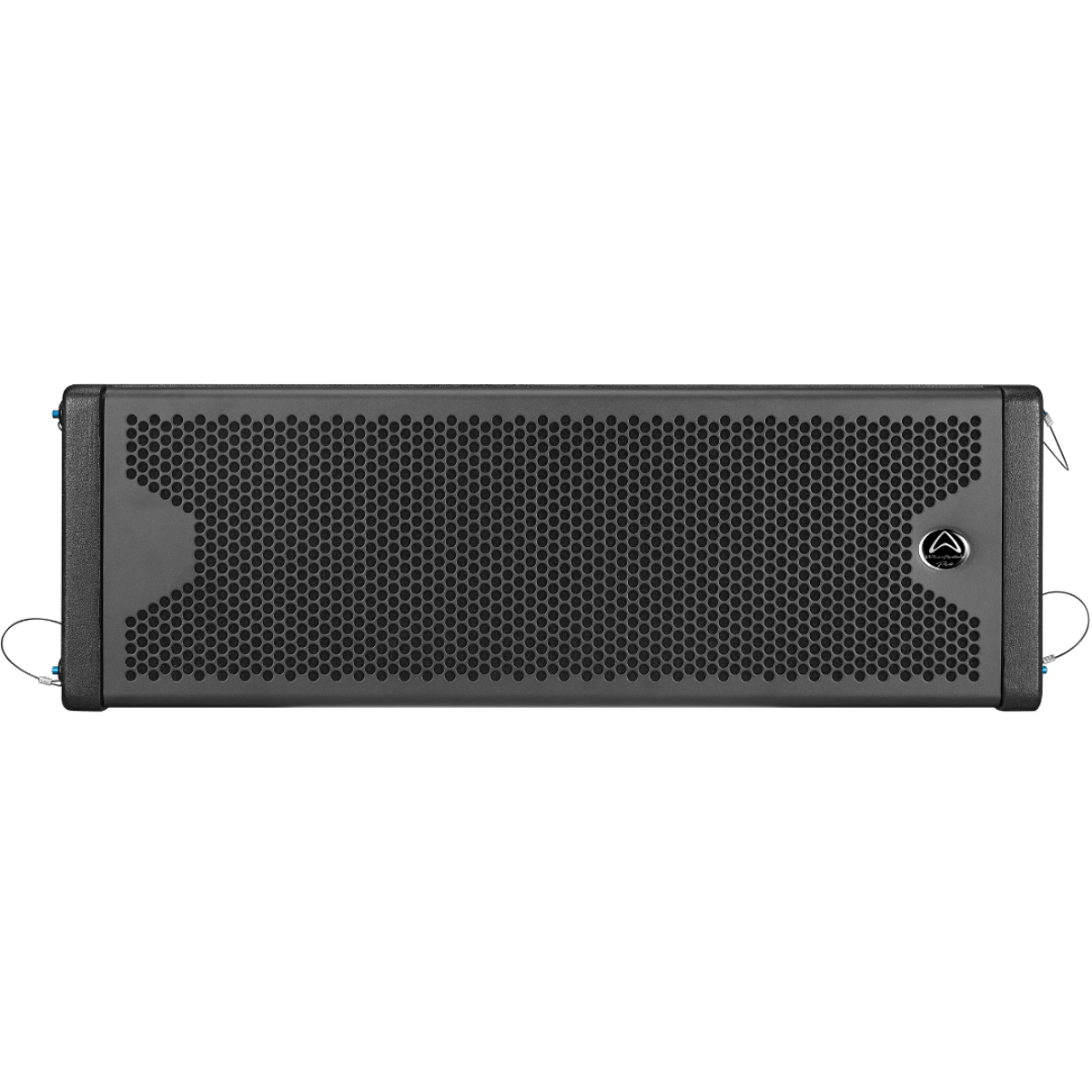

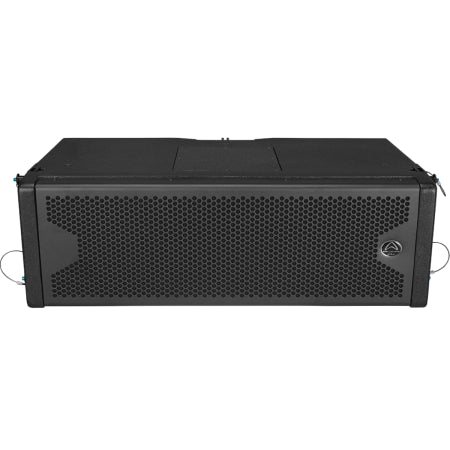

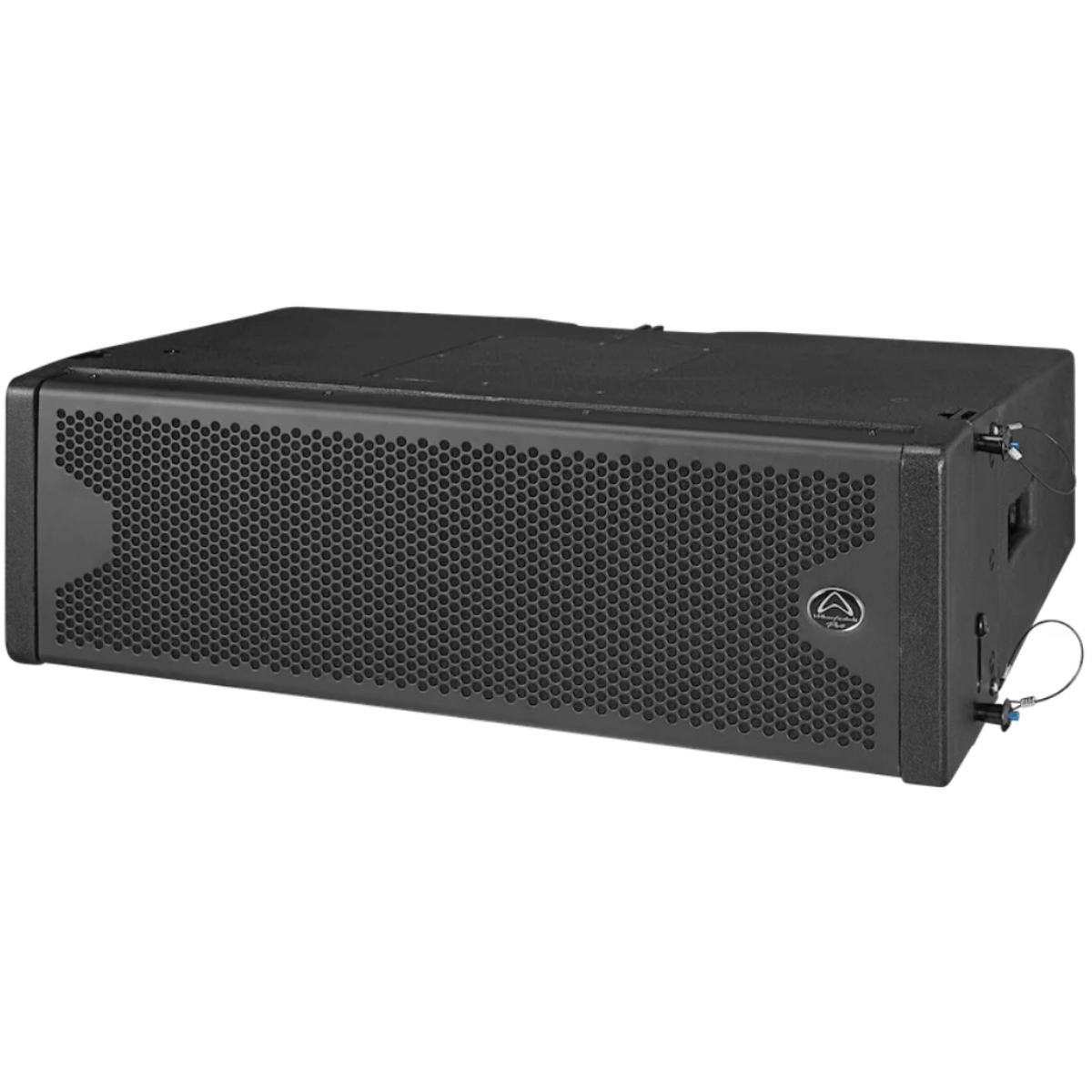

Wharfedale Pro WLA-28X is a dual 8-inch 2-way line array element designed for professional touring and installation systems requiring clarity, output, and consistent coverage. It offers flexible operation with switchable passive and bi-amp modes for system integration.

Wharfedale Pro WLA-28X Competitive Differences

  • Dual 8-inch line array element with 132dB maximum SPL
  • Switchable passive or bi-amp operation for flexible system design
  • Upgraded neo HF compression driver for improved clarity and control
  • CAST waveguide technology for controlled 100° x 10° coverage
  • Durable birch plywood enclosure with reinforced grille design

Wharfedale Pro WLA-28X Description

The Wharfedale Pro WLA-28X builds on the performance of the original WLA-28, offering refined acoustic performance and improved durability for demanding professional environments. Its dual 8-inch LF drivers and high-performance HF compression driver deliver clear, balanced sound across the listening area.

The system supports both passive and bi-amp operation, allowing users to configure the array based on amplifier and system requirements. With 400W continuous LF power handling and up to 1600W peak, the WLA-28X delivers strong output for medium to large-scale sound reinforcement applications.

The cabinet is constructed from 15 mm and 18 mm birch plywood and finished in black Tough-Tone coating. Integrated rigging with 3-point mounting allows for flown arrays or ground-stacked configurations, making it suitable for rental companies, venues, and installation projects.

WLA-28X Features

  • Dual 8-inch passive 2-way line array element
  • Switchable passive and bi-amp operation
  • Two custom Wharfedale Pro 8-inch LF drivers
  • Neo HF compression driver with 3.2-inch voice coil
  • CAST waveguide technology
  • 100° x 10° nominal coverage
  • 132dB maximum SPL at 1m
  • 400W continuous LF power handling (passive mode)
  • Integrated 3-point rigging system

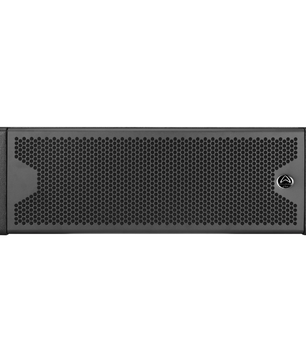

  • Durable flat steel grille design
  • Birch plywood enclosure with black Tough-Tone finish

WLA-28X Specifications

  • Active or Passive: Passive
  • System Type: Array element
  • Configuration: 2-way
  • System Continuous Power: Passive 400W / Bi-amp LF 400W / Bi-amp HF 90W
  • System Program Power: Passive 800W / Bi-amp LF 800W / Bi-amp HF 180W
  • System Peak Power: Passive 1600W / Bi-amp LF 1600W / Bi-amp HF 360W
  • Max SPL: 132dB at 1m
  • Frequency Response: 70 Hz - 20 kHz (+/-3 dB)
  • Frequency Range: 65 Hz - 20 kHz (-10 dB)
  • Bi-amp Mode Switch: Yes
  • Driver Brand: Wharfedale Pro
  • LF Driver Size: 2 x 8 in
  • LF Magnet Material: Ferrite
  • LF Frame Material: Aluminum
  • LF Voice Coil Size: 2 in
  • LF Rated Impedance: 8 ohms
  • HF Driver Type: Compression driver
  • HF Voice Coil Size: 3.2 in
  • HF Diaphragm Material: Titanium
  • HF Exit Size: 1.4 in
  • HF Power: 80W
  • HF Rated Impedance: 8 ohms
  • HF Nominal Coverage: 100° x 10°

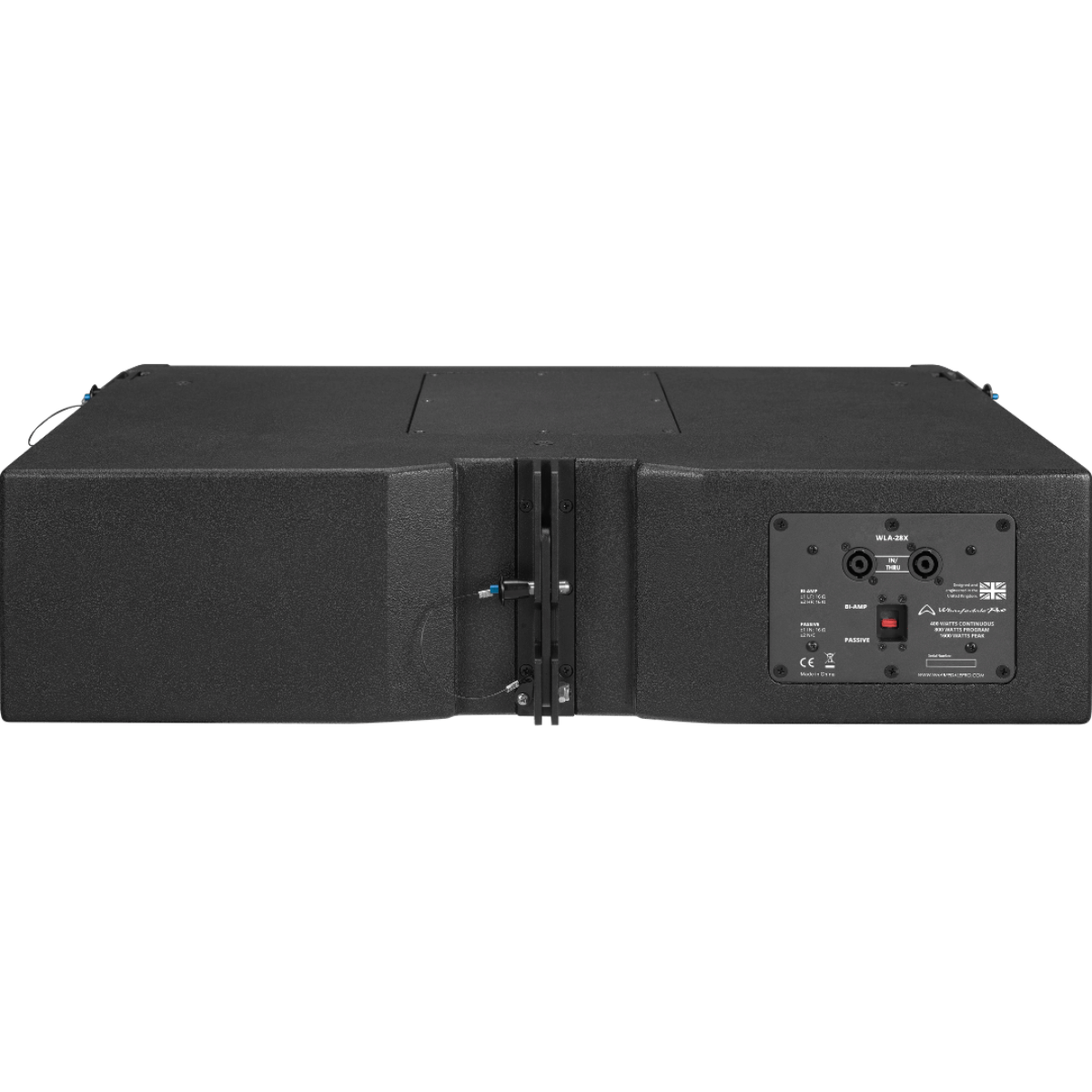

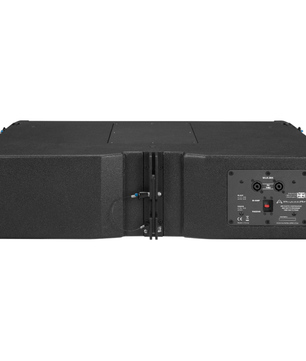

  • Input Connectors: 2 x 4-pole speaker connectors
  • Waveguide Type: CAST
  • Enclosure Material: Birch plywood
  • Grille: Steel black finish
  • Finish: Black Tough-Tone
  • Handles: 2

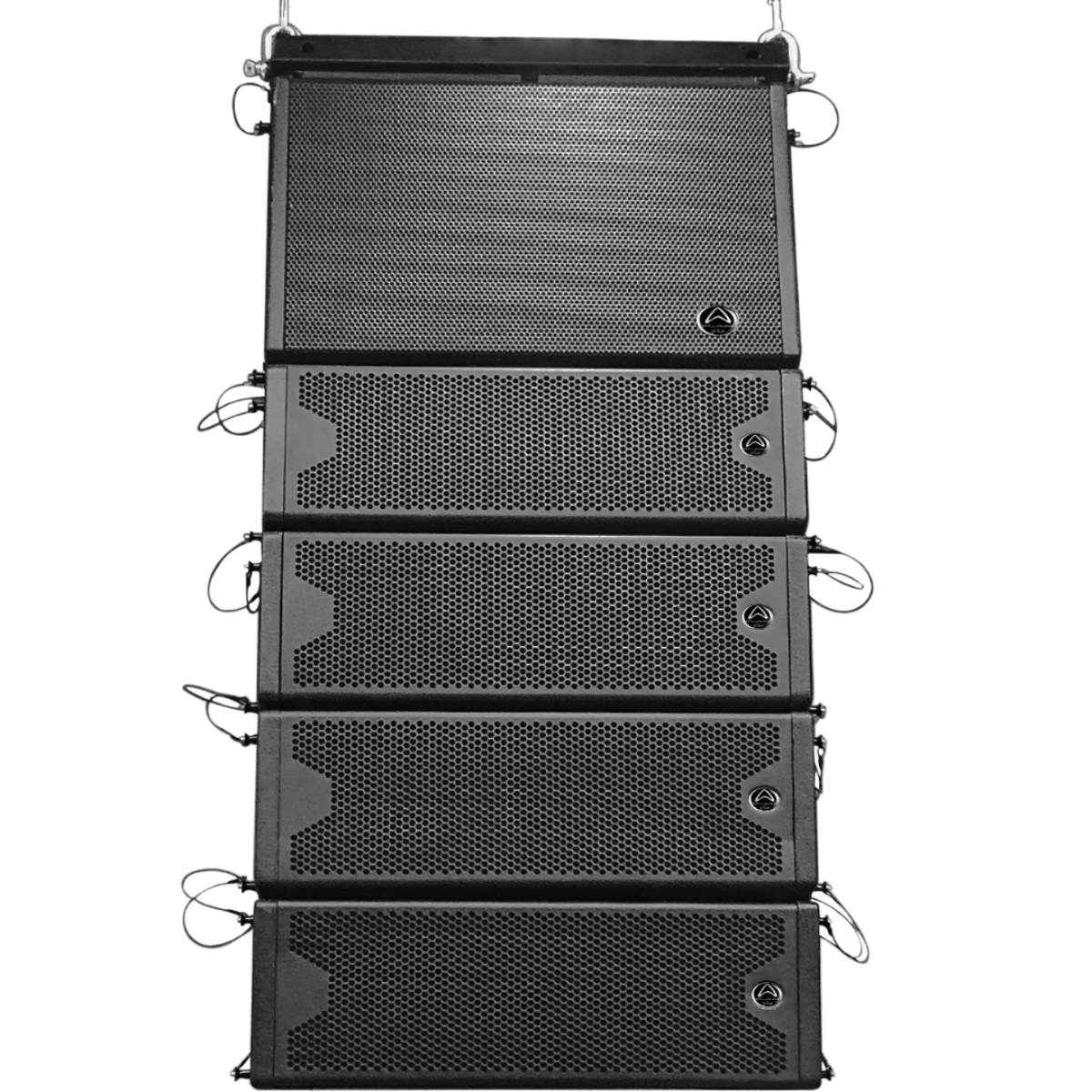

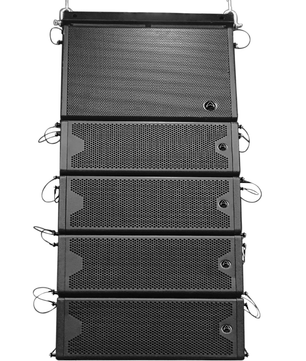

  • Deployment: Ground, flying
  • Rigging: Integrated 3-point rigging
  • Sensitivity: 100dB (2.83V / 1m)
  • System Rated Impedance: Passive 16 ohms / Bi-amp LF 16 ohms / Bi-amp HF 16 ohms
  • Crossover Frequency: 1.8 kHz
  • Recommended HPF: 65 Hz, BW 18 dB/oct
  • Dimensions: 9.8 x 29.9 x 16.7 in (250 x 760 x 424 mm)
  • Rear Height: 7.4 in (188 mm)
  • Weight: 59.5 lb (27 kg)

What's In The Box

  • Wharfedale Pro WLA-28X line array element
  • User manual
