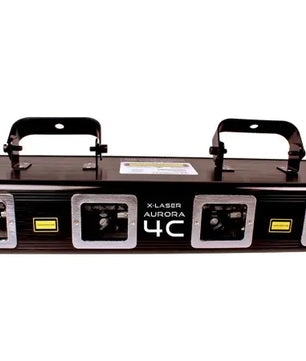

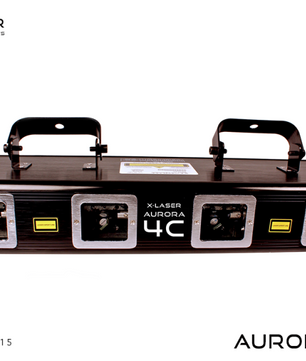

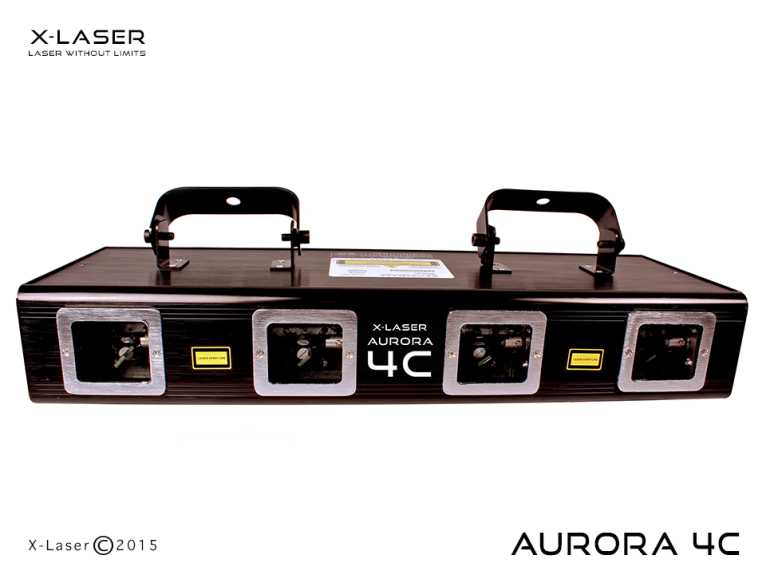

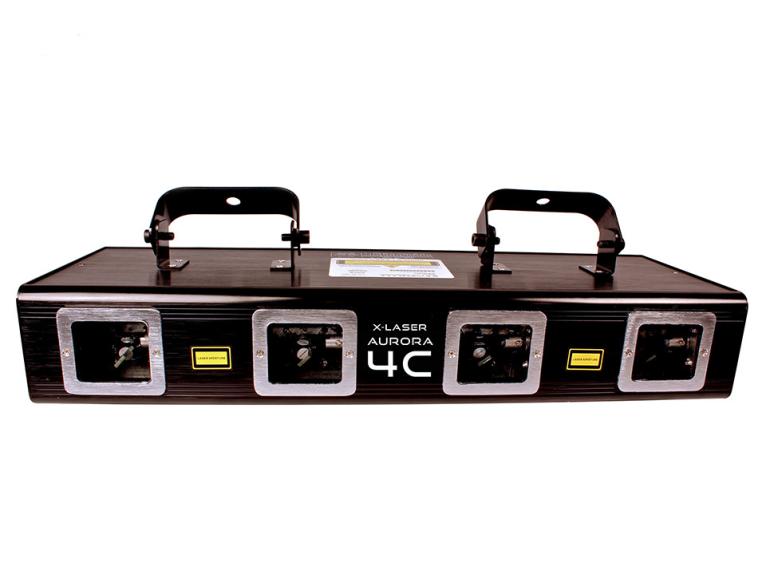

X-Laser Aurora 4C

Quad-Aperture RGBM Laser Projector

The X-Laser Aurora 4C is a quad-aperture RGBM laser projector designed to create vibrant liquid sky effects and wide aerial beam displays for DJs, nightclubs, concerts, and live entertainment. Featuring four individually selectable colors, a horizontal-only scanning system, and 9-channel DMX control, this laser delivers room-filling effects with simplified programming and setup. Its Aurora-optimized patterns produce dynamic visual displays suitable for both experienced lighting professionals and users new to laser effects.

X-Laser Aurora 4C Competitive Differences

• Quad-Aperture RGBM Design: Four laser apertures produce individually selectable red, green, blue, and magenta beams for colorful aerial effects.
• Horizontal-Only Scanning: Eliminates vertical-axis scanning to create wide liquid sky effects while simplifying beam positioning and show setup.
• Optimized Laser Patterns: Re-engineered internal patterns eliminate vertical blanking and emphasize vivid horizontal beam effects.
• Wide-Angle Projection: Extremely broad horizontal sweeps create immersive aerial displays across large performance spaces.
• 9-Channel DMX Control: Provides programmable control over pattern selection, animation speed, scan rate, horizontal positioning, strobe effects, and color selection.
• Multiple Operating Modes: Supports programmable DMX effects along with automatic demonstration and sound-active modes accessible through DMX.
• EZ Variance Kit Eligible: Compatible with X-Laser's EZ Variance program for applicable U.S. laser light show regulatory requirements.

X-Laser Aurora 4C Description

The X-Laser Aurora 4C brings dynamic multicolor laser effects to live performances through its distinctive four-aperture design. Based on the earlier X4C platform, the Aurora 4C features redesigned internal patterns optimized for bright, wide horizontal projections. Its red, green, blue, and magenta output options allow lighting operators to create vivid liquid sky effects and sweeping aerial beams without relying on complex two-axis laser programming.

Unlike traditional laser projectors that scan across both horizontal and vertical axes, the Aurora 4C uses horizontal-only scanning to simplify the creation of wide aerial effects. This configuration is particularly useful for appropriately rigged installations in venues with limited ceiling height. Its broad sweep angles can cover large performance spaces, while multiple units can be combined to produce more expansive laser displays.

The Aurora 4C offers flexible operation through 9-channel DMX control with 3-pin DMX input and output connections. Users can select built-in patterns, adjust animation speed, modify scan rates, control horizontal positioning, and choose color combinations. Automatic demonstration and sound-active modes are also accessible through DMX, providing convenient options for operators who prefer preset effects rather than extensive manual programming.

Constructed with a black anodized 6061 aluminum housing, open-loop micro stepper motors, and filtered forced-air cooling, the Aurora 4C is designed for professional entertainment applications. Its compact operating controls and versatile effects make it suitable for mobile DJs, nightclubs, concert productions, theatrical events, and permanent lighting installations.

The Aurora 4C is classified as a Class 3B laser projector and requires appropriate safety procedures, secure mounting, and compliance with applicable laser regulations. U.S. laser light show operation generally requires an FDA variance, with the EZ Variance Kit available separately. Horizontal-only scanning does not eliminate the need for safe beam positioning, audience protection, or outdoor airspace precautions.

Aurora 4C Features

• Quad-aperture laser projector for multicolor aerial and liquid sky effects
• Four individually selectable beam colors: red, green, blue, and magenta
• Horizontal-only scanning system eliminates vertical-axis movement
• Re-engineered Aurora-optimized patterns for bright horizontal projection
• Designed to deliver up to three times the apparent brightness of the earlier X4C platform
• Wide horizontal sweep angles for room-filling laser effects
• 9-channel DMX control for detailed effect programming
• Automatic demonstration and sound-active operating modes available through DMX
• Built-in static and dynamic laser patterns
• Adjustable animation speed, scan rate, pattern size, and horizontal position
• DMX-controlled strobe effects and color/aperture selection
• 3-pin DMX input and output for integration with lighting control systems
• DIP-switch interface for fixture configuration
• Open-loop micro stepper motor scanning system
• Black anodized 6061 aluminum housing
• Filtered forced-air cooling system
• Suitable for mobile DJs, nightclubs, concerts, and professional event lighting
• Eligible for the X-Laser EZ Variance Kit, available separately
• Class 3B laser projector requiring appropriate regulatory compliance and safe operation

Aurora 4C Specifications

• Brand: X-Laser
• Model: Aurora 4C
• Product Type: Quad-Aperture RGBM Laser Projector
• Laser Colors: Red, Green, Blue, Magenta
• Laser Wavelengths: 532 nm Green, 650 nm Red, 445 nm Blue
• Beam Effects: Liquid Sky and Aerial Laser Effects
• Scanning System: Horizontal-Only, Open-Loop Micro Stepper Motors
• Control Protocol: DMX512
• DMX Channels: 9
• DMX Connections: 3-Pin Input and Output
• Operating Modes: DMX, Automatic Demonstration via DMX, Sound Active via DMX
• Color Modulation: TTL
• Settings Interface: DIP Switches
• Beam Divergence: 1.5-3 mrad
• Beam Source: Direct-Injection DPSS Diode
• Housing: Black Anodized 6061 Aluminum
• Cooling: Filtered Forced Air
• Power Input: 110V AC (Manufacturer-Listed Configuration)
• Power Connection: 3-Pin IEC
• Power Consumption: 40W Typical, 60W Peak
• Dimensions (L x W x H): 21.75 x 8.5 x 6 in (552.5 x 215.9 x 152.4 mm)
• Weight: 9.2 lb (4.17 kg)
• FDA/IEC Laser Hazard Classification: Class 3B
• U.S. Regulatory Compliance: FDA/CDRH 21 CFR 1040.10 and 1040.11(c)
• International Laser Safety Standard: IEC 60825-1
• FDA Variance: Required for applicable U.S. laser light show operations
• EZ Variance Kit: Eligible (Available Separately)
