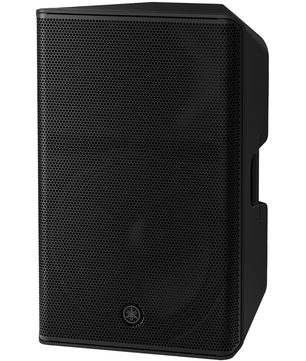

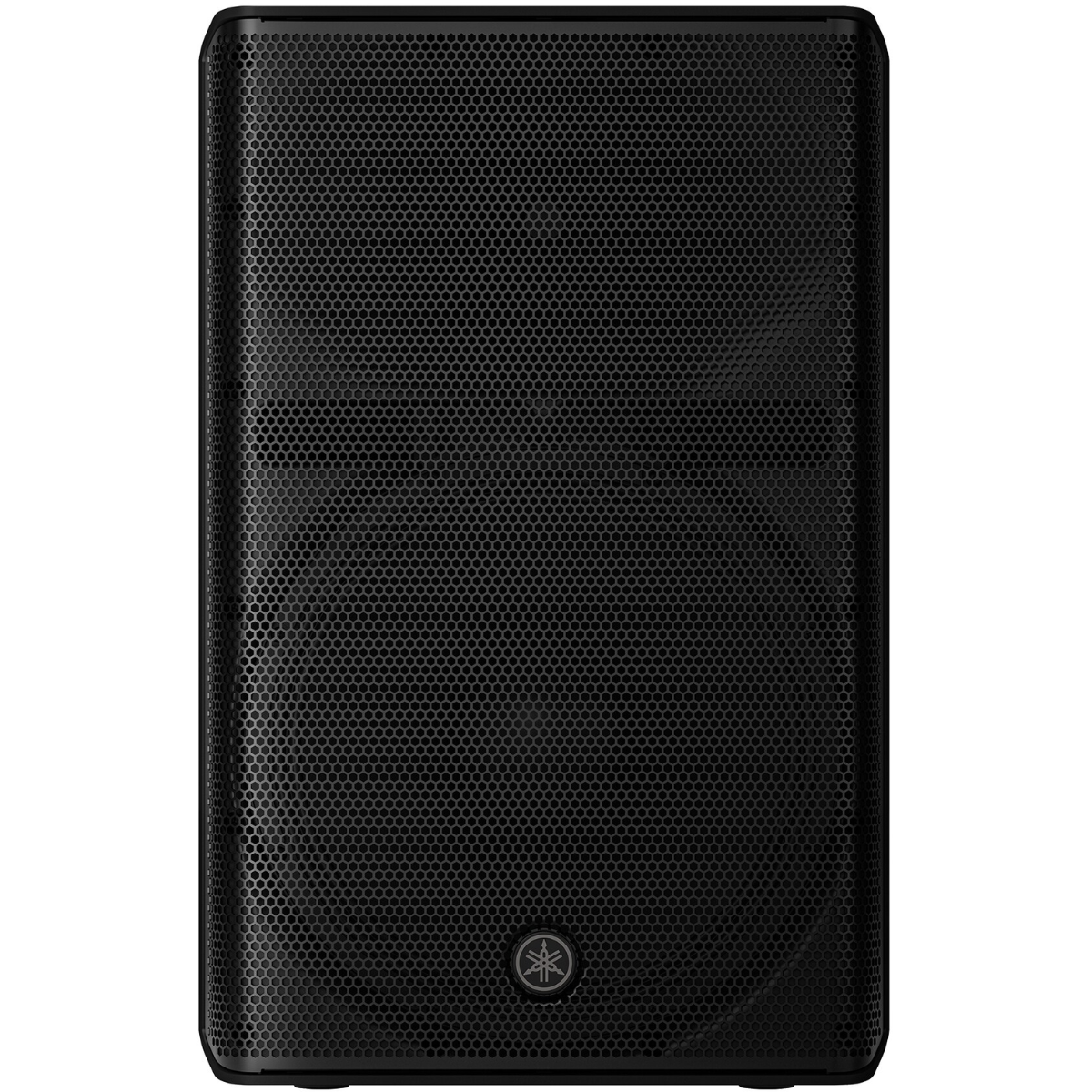

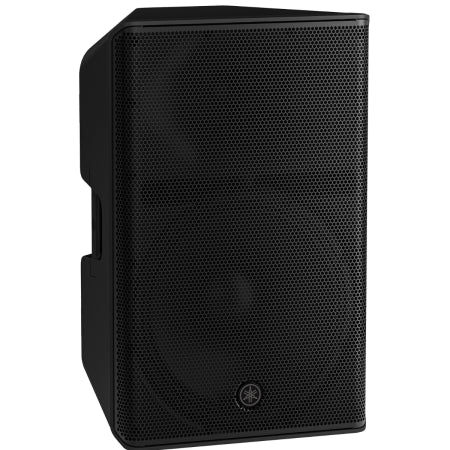

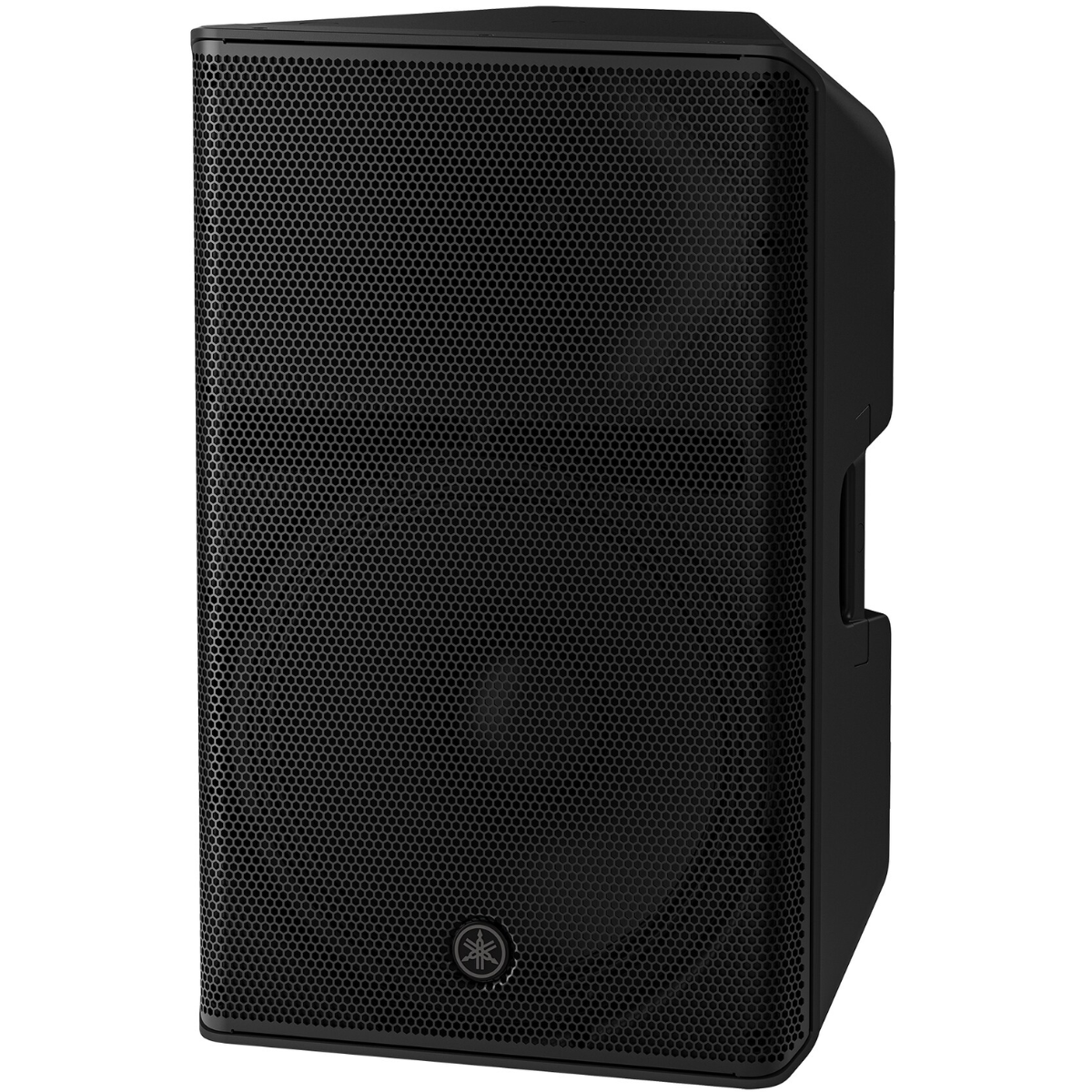

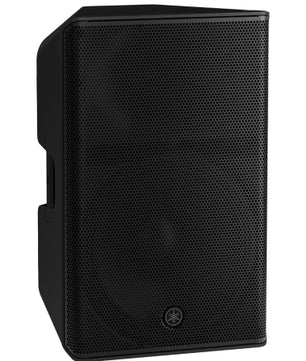

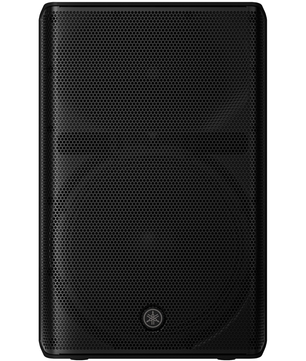

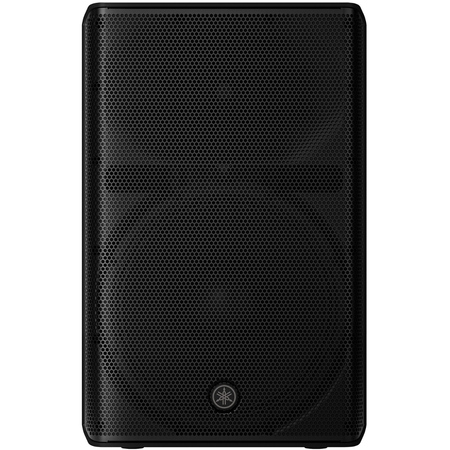

Yamaha CXR15 MK3 | 15in Passive Loudspeaker - 126dB SPL | High-Output PA Speaker with Deep Low End

Passive PA Speaker

Yamaha CXR15 MK3 is a 2-way passive loudspeaker built for professional sound reinforcement, stage use, and fixed installation applications. As the largest full-range model in the CXR mk3 series, it combines strong output, extended low-frequency performance, and flexible deployment options for users who need a dependable passive speaker for demanding audio environments.

Yamaha CXR15 MK3 Competitive Differences

• 15-inch passive design with 126 dB SPL peak output for front-of-house, live sound, and DJ applications that need stronger low-frequency presence
• Lightweight molded enclosure with optimized horn and port design, dual-angle pole sockets, and compatibility with Yamaha processor tuning

Yamaha CXR15 MK3 Description

The Yamaha CXR15 MK3 is designed for users who want a passive full-range loudspeaker with more low-end authority than smaller cabinet sizes can provide. Its 15-inch low-frequency driver and 1.75-inch high-frequency compression driver are housed in a 2-way bass-reflex enclosure that makes it well suited for mobile DJs, live bands, event production, houses of worship, and venues that need strong, clear full-range reinforcement.

Yamaha equips the CXR15 MK3 with proprietary high-durability LF and HF drivers engineered for reliable performance and precise sound reproduction. A large-diameter horn helps maintain directivity control across a wide frequency range, while optimized port positioning reduces standing wave effects for smoother and more accurate low-frequency response. This gives the speaker a balanced sound with added low-end weight for main PA use.

The lightweight polypropylene enclosure is built for practical handling and flexible placement in both portable and installed systems. Its symmetrical cabinet supports consistent monitor placement, while dual-angle pole sockets allow either a 0-degree or -7-degree down tilt for improved audience coverage. Integrated rigging points and support for the optional UB-DXR15A U-bracket also make the speaker suitable for suspended or mounted installation.

When paired with compatible Yamaha PX and PC-D Series amplifiers or other supported signal processors, the Yamaha CXR15 MK3 can take advantage of dedicated speaker processor tuning settings for optimized system performance. This makes it a strong option for users building a passive Yamaha sound system with matched processing and amplification.

CXR15 MK3 Features

• 2-way passive loudspeaker with bass-reflex design
• 15-inch low-frequency driver with 3-inch voice coil
• 1.75-inch diaphragm high-frequency compression driver with 1-inch throat
• Large-diameter horn for wide-range directivity control
• Optimized port positioning for smoother and more accurate low-frequency response
• Lightweight high-performance molded polypropylene enclosure
• Symmetrical cabinet design for monitor placement
• Compatible with dedicated Yamaha speaker processor tuning settings
• Dual-angle pole sockets with 0-degree or -7-degree tilt
• Rigging points for eyebolt suspension
• Compatible with optional UB-DXR15A U-bracket
• Compatible with optional SPCVR-DXR153 protective cover

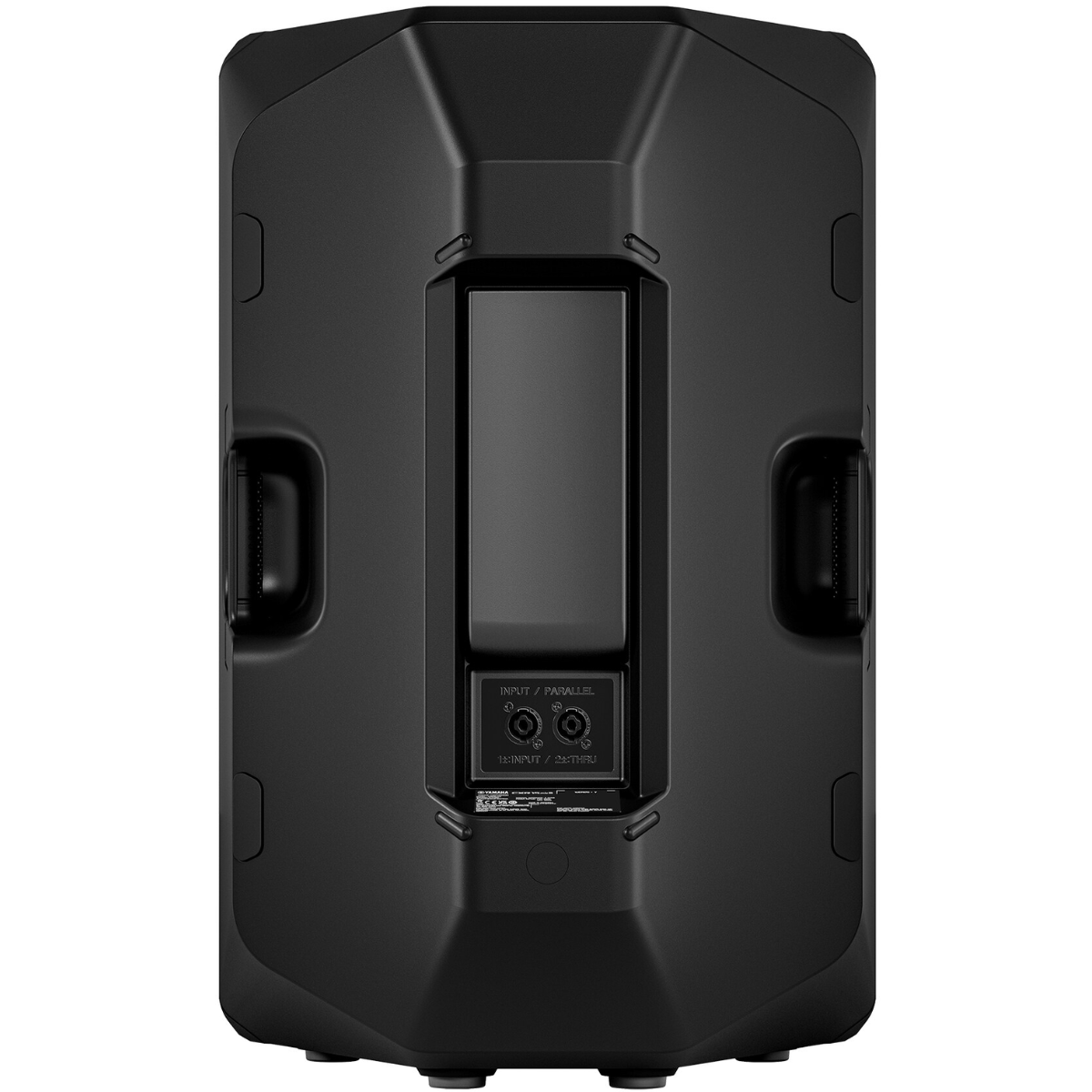

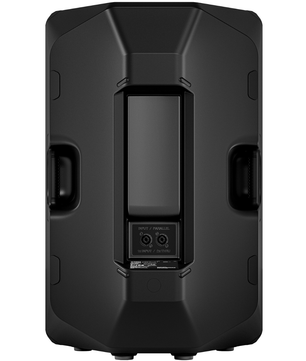

• SpeakON NL4MP input connectors wired in parallel

CXR15 MK3 Specifications

• Speaker Type: 2-way speaker, bass-reflex
• Frequency Range (-10 dB): 50 Hz - 20 kHz
• Coverage: 90° H x 60° V
• Crossover: 1.8 kHz
• Nominal Impedance: 8 Ω
• Sensitivity: 95 dB SPL (1W, 1m on axis)
• Peak SPL: 126 dB SPL
• LF Driver: 15 in cone, 3 in voice coil
• HF Driver: 1.75 in diaphragm, 1 in throat compression driver
• Power Rating (Noise): 300W
• Power Rating (PGM): 600W
• Power Rating (Peak): 1200W
• Connectors: SpeakON NL4MP x2 (parallel connected)
• Cabinet Material: Plastic (PP)
• Finish: Black
• Handle: Side x2
• Pole Socket: 35 mm x2, bottom, 0° or -7°
• Rigging: Top x2, Rear x1 for M10 x 18 mm eyebolts, Bottom x2, Side x2 for M8 x 25 mm UB-DXR15A
• Floor Monitor Angle: 52°
• Dimensions: 17.6 x 27.5 x 15.0 in (447 x 699 x 380 mm)
• Weight: 41.9 lb (19.0 kg)
• Optional Accessories: UB-DXR15A U-bracket, SPCVR-DXR153 cover
