Yamaha CXS12 MK3 | 12in Passive Subwoofer - 125dB SPL | Compact Band-Pass Sub with Deep Bass

Passive Subwoofer

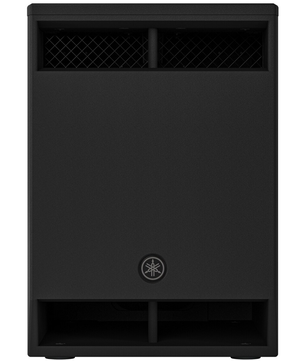

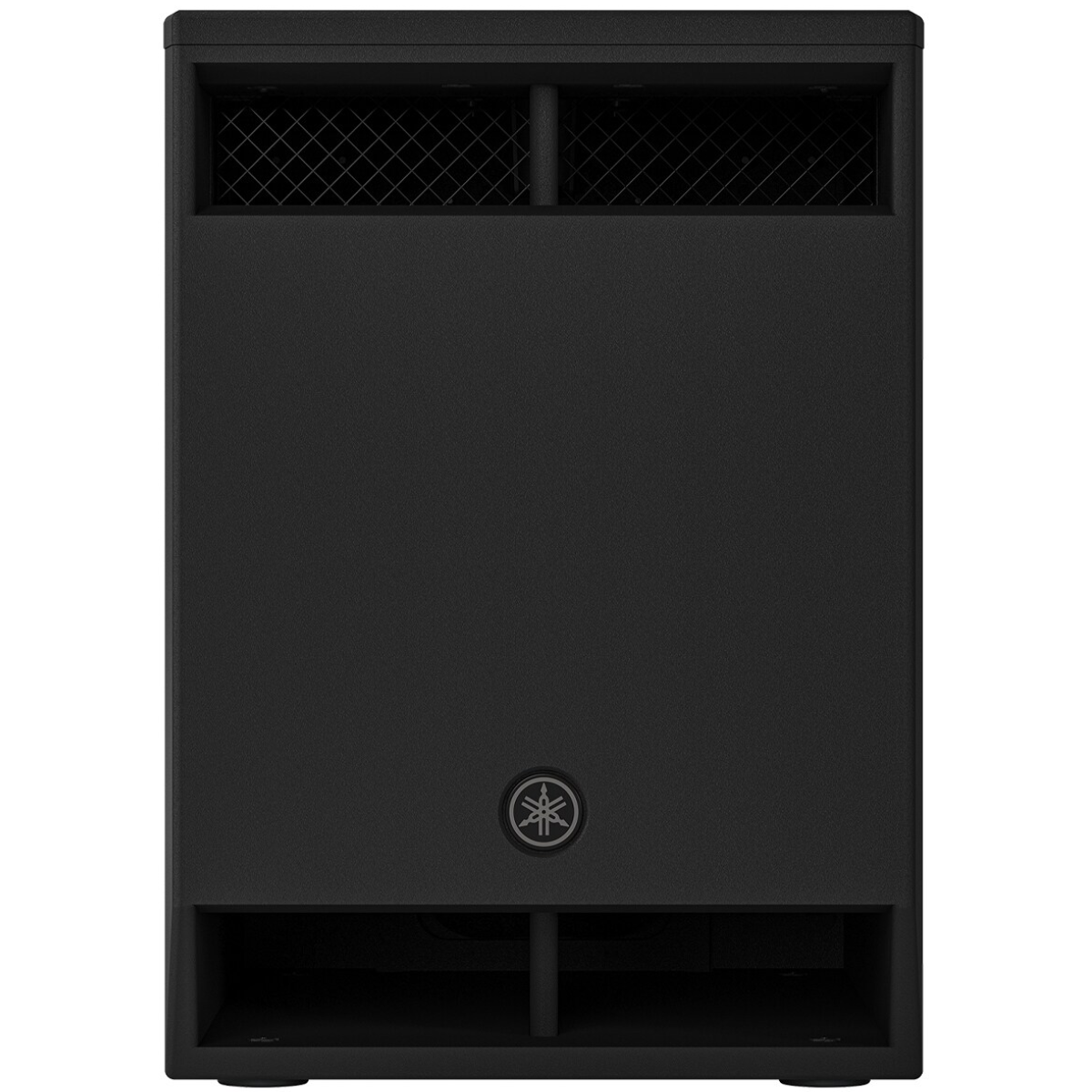

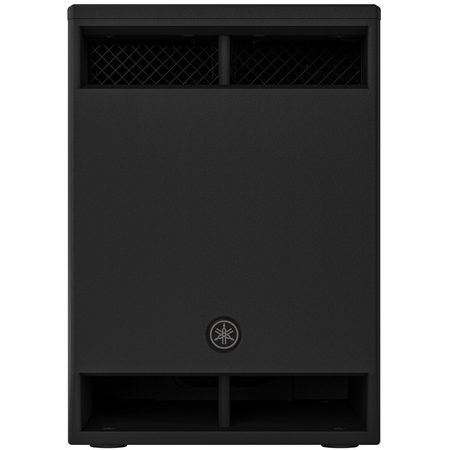

Yamaha CXS12 MK3 is a band-pass passive subwoofer built to provide deep, controlled low-frequency reinforcement for professional sound systems. As the most portable model in the CXS mk3 series, it combines compact size, strong bass output, and a durable plywood enclosure for mobile DJ rigs, live sound setups, and fixed installation applications.

Yamaha CXS12 MK3 Competitive Differences

• Compact 12-inch passive band-pass design with 125 dB SPL peak output for portable low-frequency reinforcement
• Durable plywood enclosure with polyurea coating, dual pole sockets, and compatibility with Yamaha processor tuning and cardioid setups

Yamaha CXS12 MK3 Description

The Yamaha CXS12 MK3 is designed for users who need serious low-frequency performance in the most compact format of Yamaha’s passive subwoofer lineup. Its 12-inch long-excursion woofer with a 3-inch voice coil is housed in an optimized band-pass enclosure that helps reduce unwanted cabinet and port noise while delivering deep, clear, and controlled bass. This makes it a strong fit for portable PA systems, DJ setups, small live venues, and installed audio systems that need added low-end authority without taking up excessive space.

Yamaha engineers the CXS12 MK3 for smooth and reliable low-frequency reproduction, with a cabinet structure that supports linear very-low-frequency performance and minimizes turbulence at higher output levels. When paired with Yamaha PX or PC-D Series amplifiers or other compatible signal processors, the subwoofer can take advantage of dedicated speaker processor tuning settings for improved system integration and optimized performance.

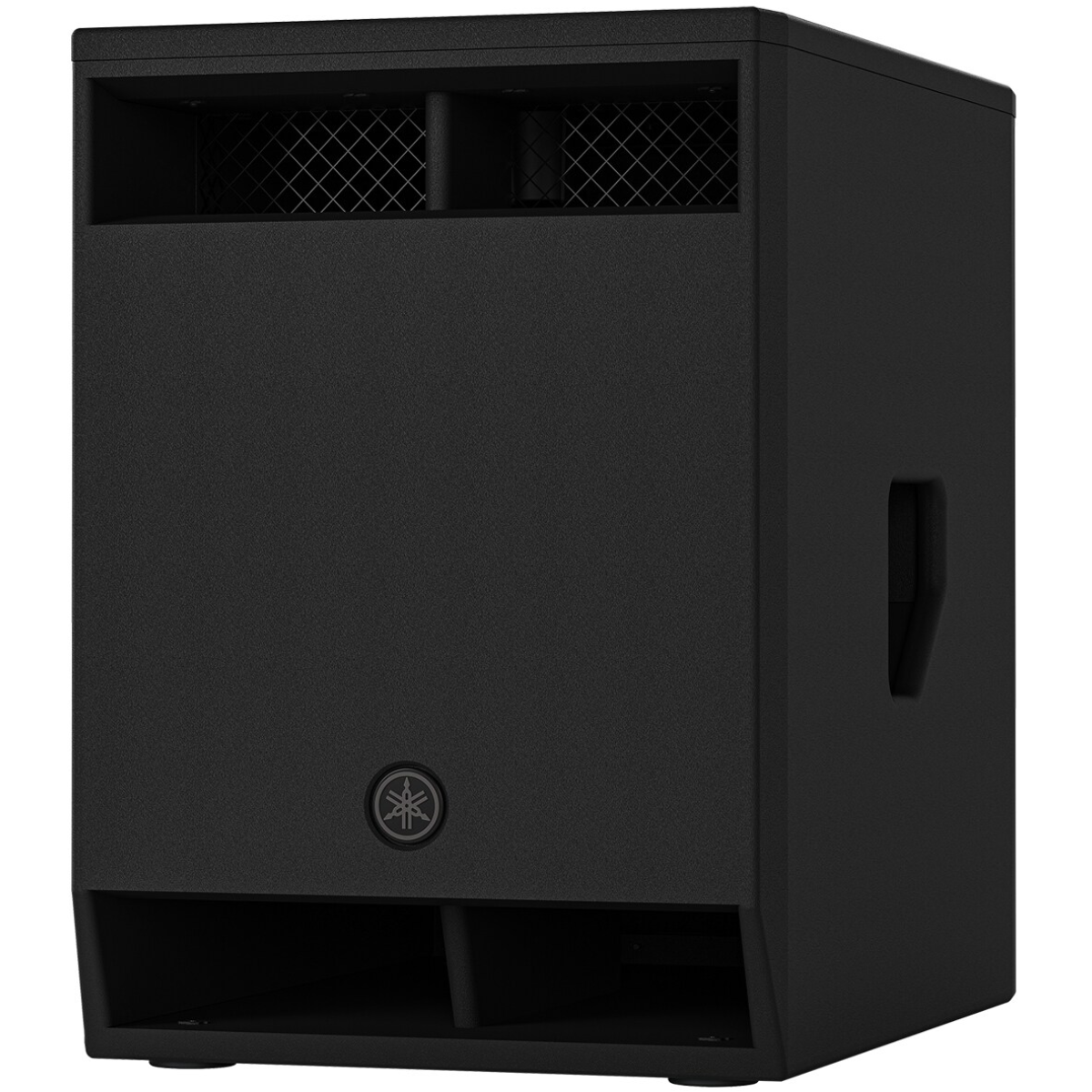

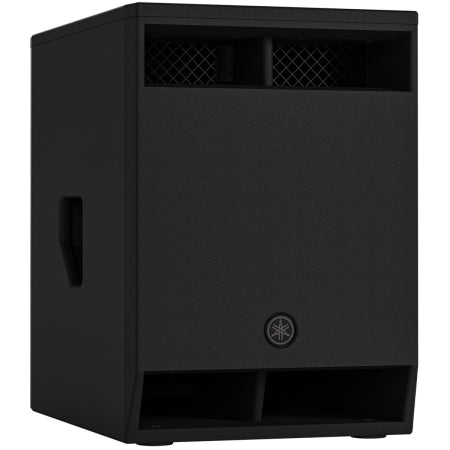

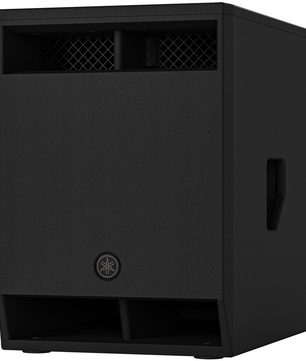

The enclosure is constructed from plywood and finished with a durable black polyurea coating for long-term reliability in transport, setup, and daily use. Dual side handles make the cabinet easier to carry, while the integrated 35 mm and M20 pole sockets support flexible full-range speaker mounting. Optional SPW-1 wheels and the SPCVR-DXS123 cover add convenience for transport and protection.

For more advanced system design, the Yamaha CXS12 MK3 can also be used in cardioid configurations when combined with two or more matching units and compatible Yamaha amplification or processing. This makes it a versatile passive subwoofer for users who want compact size, strong bass impact, and flexible deployment options in a professionally tuned sound system.

CXS12 MK3 Features

• Passive band-pass subwoofer design
• 12-inch long-excursion woofer with 3-inch voice coil
• Optimized band-pass structure for deep and controlled bass response
• Compact format for portable and installed sound systems
• Dedicated Yamaha speaker processor tuning compatibility
• Supports cardioid mode configurations with compatible Yamaha amplification and processing
• Durable plywood cabinet with polyurea coating
• Dual pole sockets with 35 mm and M20 threaded support
• Dual side handles for easier transport

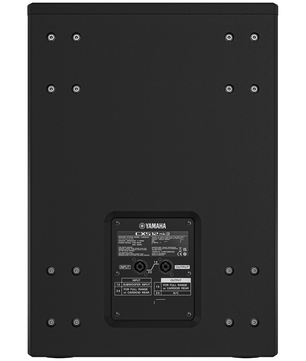

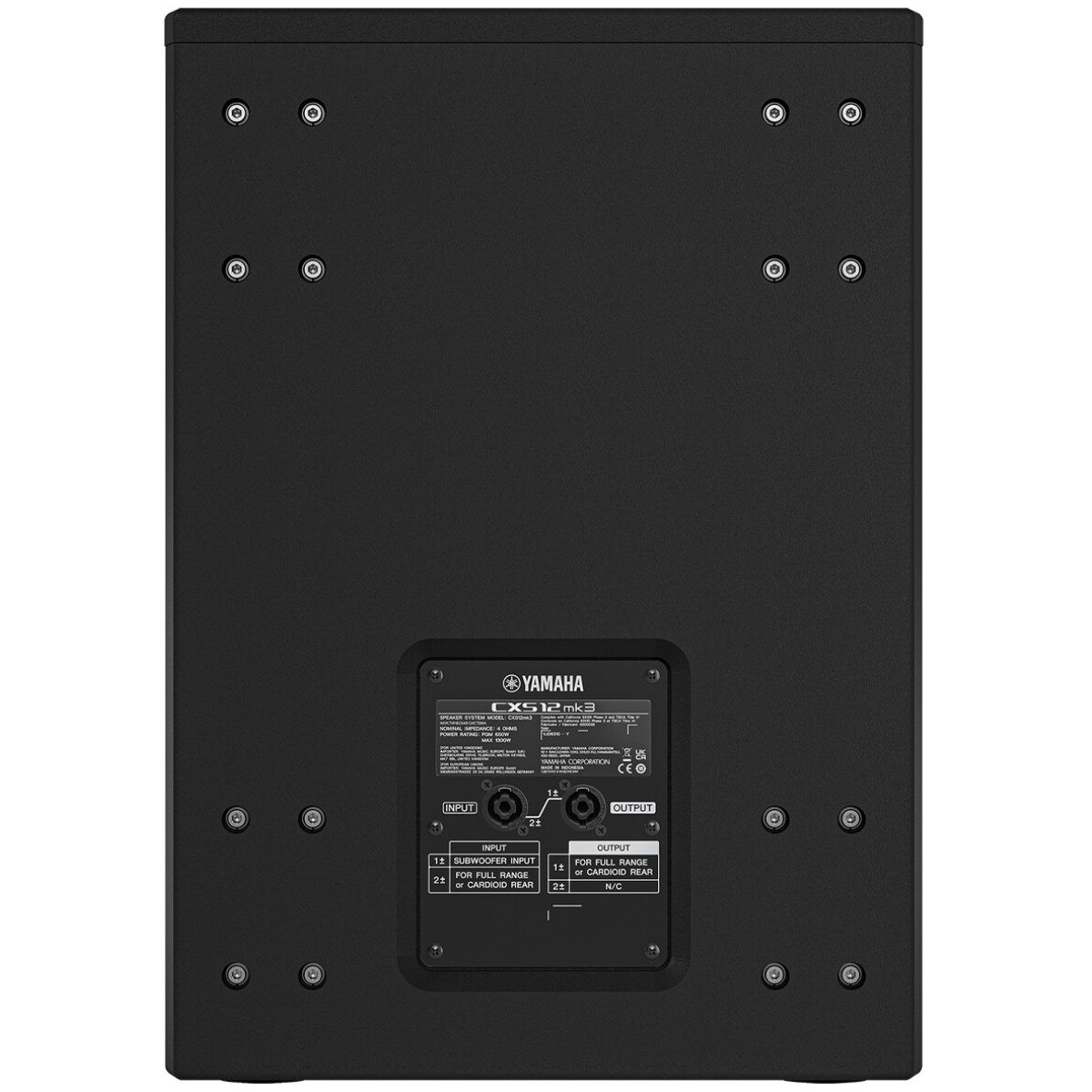

• SpeakON NL4MP input and output connectors
• Compatible with optional SPW-1 caster kit
• Compatible with optional SPCVR-DXS123 protective cover

CXS12 MK3 Specifications

• Speaker Type: Subwoofer, band-pass
• Frequency Range: Passive 42 Hz - 180 Hz; Extend 38 Hz - 140 Hz
• Nominal Impedance: 4 Ω
• Sensitivity: 94 dB SPL (1W, 1m on axis)
• Peak SPL: 125 dB SPL
• LF Driver: 12 in cone, 3 in voice coil
• Power Rating (Noise): 325W
• Power Rating (PGM): 650W
• Power Rating (Peak): 1300W
• Connectors: SpeakON NL4MP x2 (Input x1, Output x1)
• Cabinet Material: Plywood
• Finish: Durable polyurea painting, black
• Handles: Side x2
• Pole Socket: 35 mm (depth 80 mm), M20 threaded (depth 25 mm)
• Dimensions: 15.7 x 22.3 x 22.4 in (400 x 567 x 570 mm)
• Weight: 70.5 lb (32.0 kg)
• Optional Accessories: SPW-1 caster kit, SPCVR-DXS123 cover
