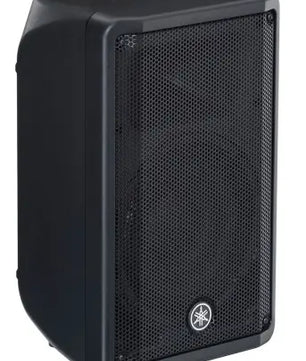

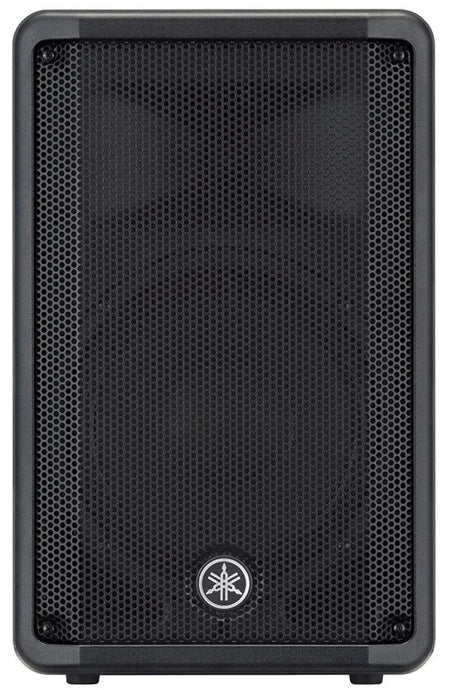

Yamaha DBR10 | 10in Powered PA Speaker - 129dB SPL | Lightweight Design with Built-In Mixer

Powered PA Speaker

Yamaha DBR10 is a compact, high-performance 10” powered speaker designed for portable PA, live sound, and floor monitoring. Combining Yamaha’s DSP and amplifier technology with a lightweight cabinet and built-in mixer, it offers pro-level clarity and output in a highly transportable form factor.

Yamaha DBR10 Competitive Differences

• 700W Class-D power with 129dB max SPL
• 2-channel onboard mixer with mic/line and stereo inputs

Yamaha DBR10 Description

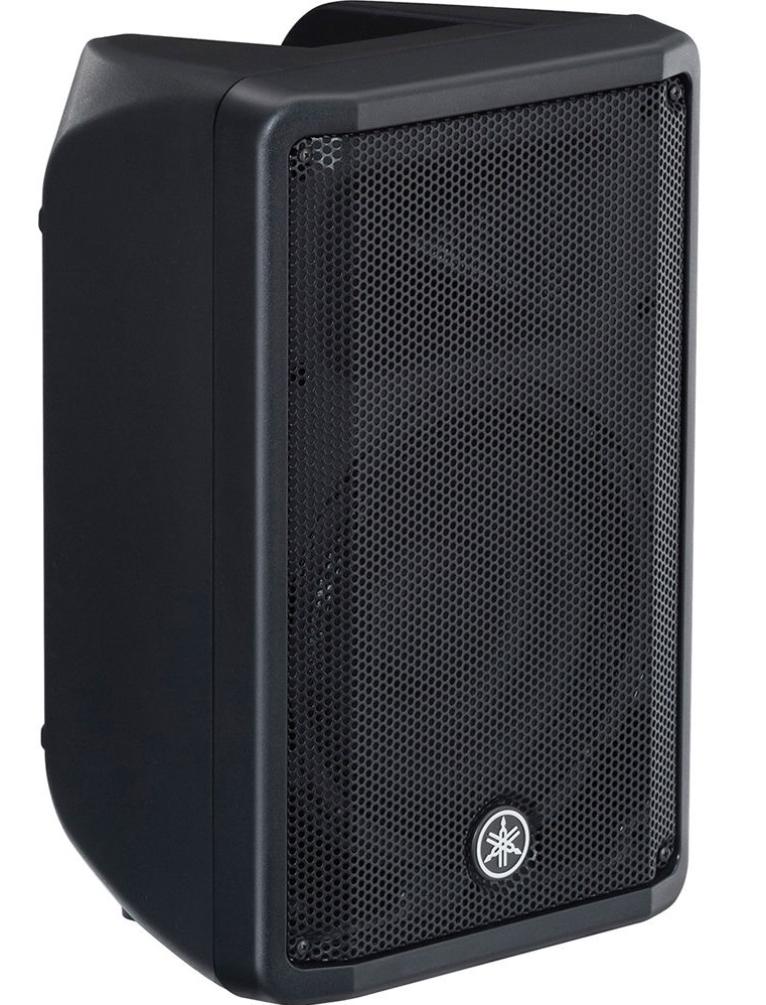

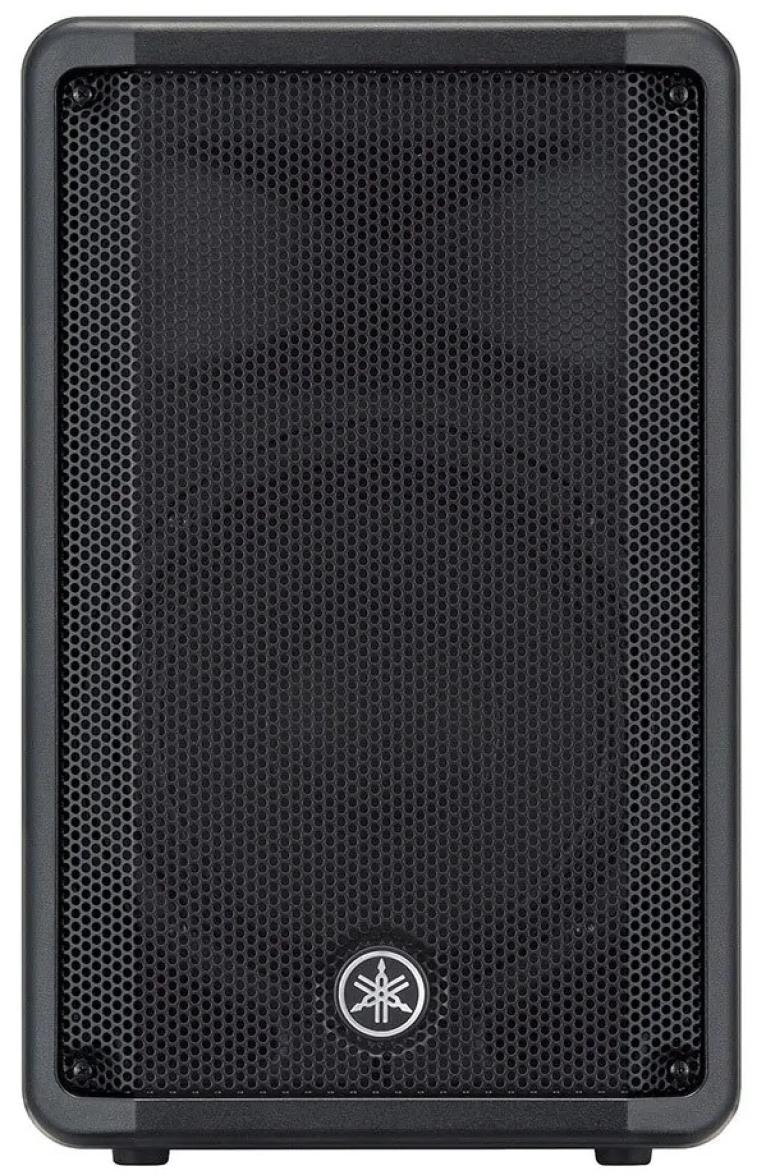

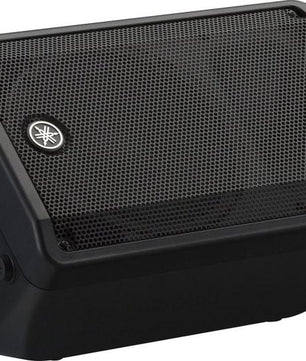

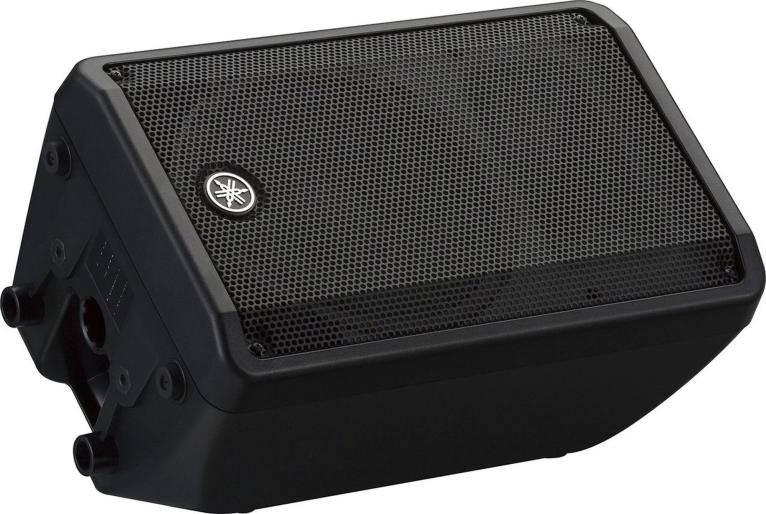

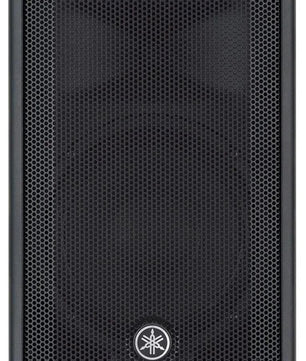

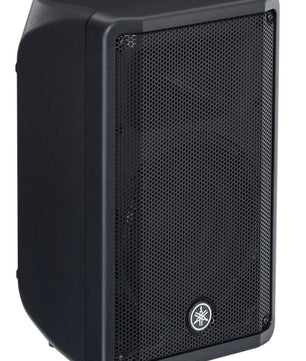

The Yamaha DBR10 is the most portable model in Yamaha’s DBR speaker line, offering exceptional sound quality and flexibility in a rugged yet lightweight cabinet. Equipped with a custom-designed 10" woofer and a 1" compression driver, the DBR10 delivers clean lows and crisp highs with minimal distortion, reaching up to 129dB SPL—ideal for small to mid-size venues, mobile DJs, performers, and speakers. A 700W bi-amped Class-D amplifier (500W LF / 200W HF) ensures efficient power delivery and consistent performance, whether used as a front-of-house speaker, stage monitor, or installed solution. With a built-in 2-channel mixer, the DBR10 simplifies setup for solo performers and plug-and-play events. CH1 supports mic or line signals via combo XLR/TRS input, while CH2 offers an additional combo input and stereo RCA input for media players or other stereo sources. Its enclosure is built for versatility, featuring pole mount capability, a 50° floor wedge angle, and M8 rigging points for permanent installations. Weighing just 23.2 lbs., the DBR10 is built for the road without sacrificing sound quality.

Model Features

• 700W peak bi-amped Class-D amplifier (500W LF + 200W HF)
• 10” custom woofer and 1” compression driver
• Onboard 2-channel mixer with mic/line and RCA inputs
• 129dB max SPL with wide 90° x 60° coverage
• Lightweight plastic cabinet with steel grille
• Pole mount, floor wedge, and rigging options
• Optimized for FOH, floor monitoring, or installations

Model Specifications

• LF Driver Size: 10"
• HF Driver Size: 1"
• Total Power: 700W (500W LF + 200W HF)
• Max SPL: 129dB
• Frequency Range: 55Hz–20kHz (-10dB)
• Crossover Frequency: 2.1kHz

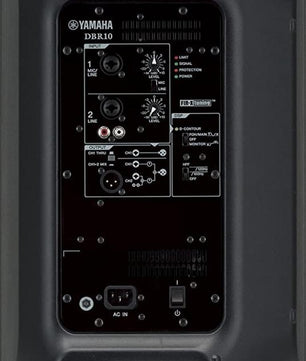

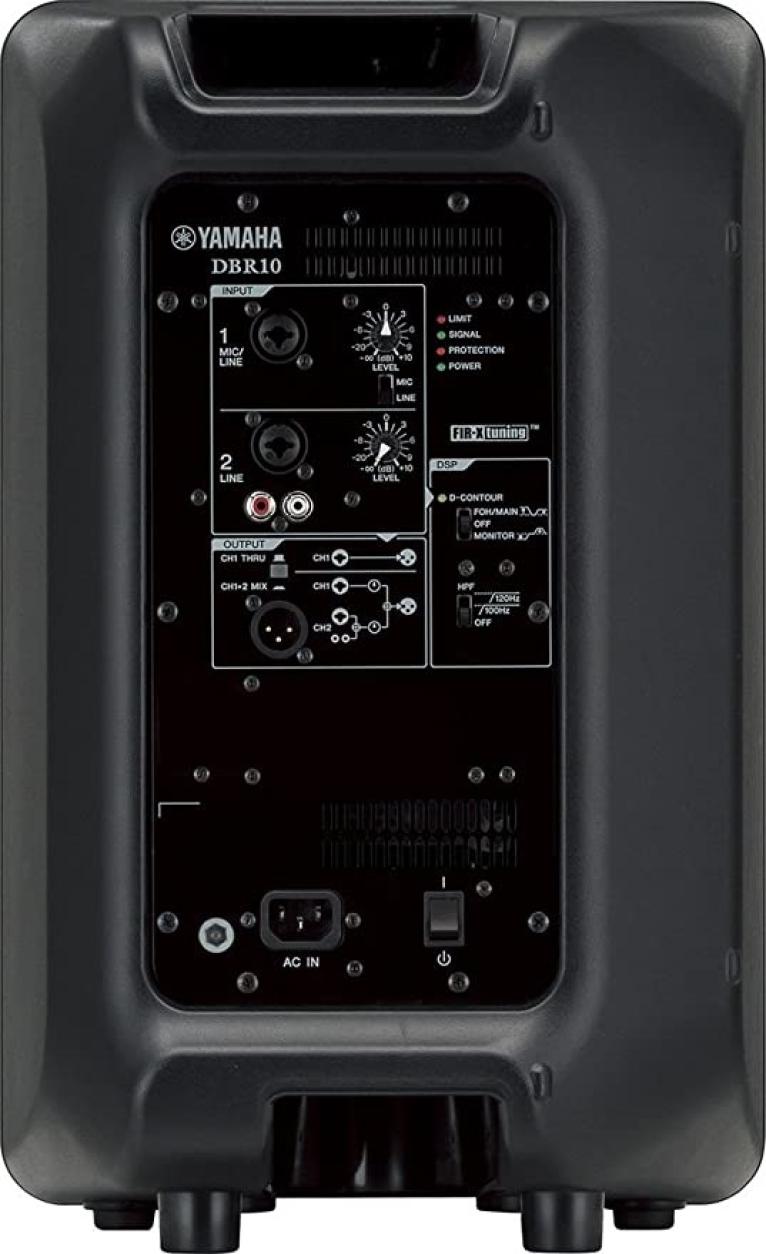

• Inputs: 2 x XLR/TRS combo, 1 x Dual RCA stereo
• Output: 1 x XLR
• Coverage: 90° horizontal x 60° vertical
• Mounting: Pole mount, floor wedge, 2 x M8 fly points
• Enclosure: Durable plastic with steel grille
• Power Source: Standard IEC cable
• Dimensions: 19.4 x 12.1 x 11.4 in
• Weight: 23.2 lb
• Manufacturer Part Number: DBR10

What's In The Box

• Yamaha DBR10 speaker
• IEC power cable
• Owner’s manual
