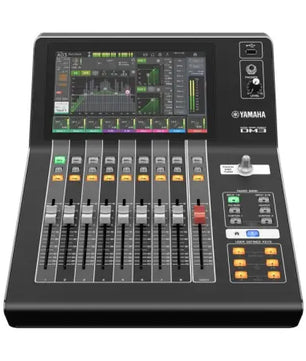

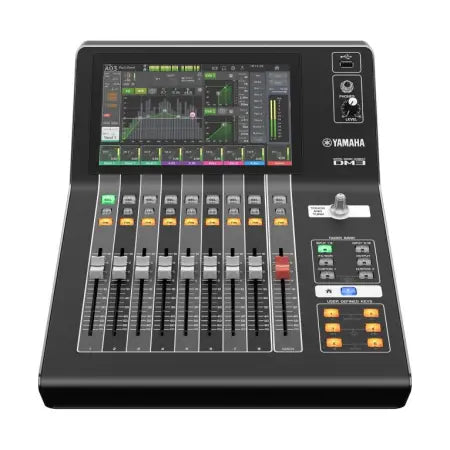

Yamaha DM3-D | 22-Channel Digital Mixer with Dante | 96kHz, Touchscreen, 18 FX & DAW Control

Digital Mixing Console with Dante

Yamaha DM3-D is an ultra-compact 22-channel digital mixer with full Dante integration, high-resolution 96kHz audio, and professional features for live sound, recording, streaming, and production. With its 9” multitouch screen, motorized faders, and intuitive interface, the DM3-D delivers premium power and flexibility in a portable format.

Yamaha DM3-D Competitive Differences

• 16x16 Dante interface and 18x18 USB I/O for advanced routing and recording
• 9" touchscreen with QuickPro presets and full DAW control mode

Yamaha DM3-D Description

The Yamaha DM3-D combines Dante networking, 96kHz processing, and multi-format recording into one compact digital console. Designed for engineers, creators, and performers, this 22-channel mixer includes 16 analog mic/line inputs (12 XLR + 4 combo), 8 XLR outputs, stereo USB and Dante connectivity, and integrated multi-effects—all housed in a rack-mountable unit under 15 lbs. Equipped with a 9” multitouch display and 8 motorized channel faders plus a master fader, the DM3-D puts intuitive control at your fingertips. Its innovative QuickPro presets—developed with industry leaders like Shure, Sennheiser, and Audio-Technica—make setup fast, while 200 scene presets and channel libraries streamline show recall. With 18 onboard effects and GEQ on all mix and stereo buses, the DM3-D handles everything from front-of-house and monitor mixing to professional live streaming and broadcast. The 18x18 USB audio interface enables multitrack recording directly into a DAW (Cubase AI included), and simple 2-track USB stick recording is also supported. Full DAW Remote mode allows physical fader and transport control over compatible software, and wireless mixing is available through Yamaha’s iPad apps for individual monitor or master control. Its customizable user interface and multilingual support make it ideal for shared use in schools, churches, houses of worship, and rentals.

Model Features

• 22 input channels: 16 mono, 1 stereo, 2 FX returns
• 9" multitouch screen with touch-and-turn control
• 8 motorized channel faders + 1 motorized master fader
• 96kHz processing, 24/32-bit recording, and 110dB dynamic range
• Built-in 18 effects including REV HD and REV R3
• 16x16 Dante I/O, 18x18 USB audio interface
• 12 XLR + 4 XLR/TRS combo inputs, 8 XLR outputs
• 6 mix buses, 2 FX buses, 2 matrix outputs
• QuickPro and Scene presets with user memory
• DAW Remote mode for Cubase and other DAWs
• 2-track USB stick recording and playback
• Wireless control via DM3 StageMix and MonitorMix iPad apps
• Rack-mountable with optional RK-DM3 kit

Model Specifications

• Mic Preamps: 16
• Inputs: 12 x XLR, 4 x XLR-1/4" combo, 2 x FX return
• Outputs: 8 x XLR, 2 x Matrix
• Dante I/O: 16 in / 16 out
• USB I/O: 18 in / 18 out via USB-B, 2-track via USB-A
• Faders: 9 motorized (8 channel + 1 master)
• Sample Rates: 48 / 96kHz
• Built-in FX: 18 multi-effects
• GEQ: On Mix 1–6 & Stereo
• Display: 9" color touchscreen
• DAW Control: Yes (Cubase AI included)
• Rack Mountable: Yes (with optional kit)
• Dimensions: 12.6 x 5.5 x 17.9 in (320 x 140 x 455 mm)
• Weight: 14.3 lb (6.5 kg)

What's In The Box

• Yamaha DM3-D digital mixer
• USB cable
• Power cable
• Cubase AI download info
• Owner’s manual
