Powered PA Speaker
Yamaha DXR12MKIII is a 2-way, bi-amped powered loudspeaker built for professional sound reinforcement in live performance, mobile DJ, installed audio, and monitoring applications. Its combination of strong output, precise coverage, advanced DSP control, and portable molded enclosure makes it a practical solution for users who need dependable full-range sound across a wide variety of venues and event setups.
Yamaha DXR12MKIII Competitive Differences
- 2000W Class-D amplification with up to 134 dB SPL for high-output front-of-house and monitor use
- Advanced DSP platform with FIR-X tuning, Drive Motion Calibration, intelligent feedback suppression, Bluetooth audio streaming, and D-Remote app control
Yamaha DXR12MKIII Description
The Yamaha DXR12MKIII delivers a strong balance of portability and performance, making it one of the most versatile models in the DXR mk3 powered speaker range. Its 12-inch low-frequency driver and 1.75-inch high-frequency compression driver are paired with a 2-way bi-amped bass-reflex design that supports clear, powerful reproduction for live music, DJs, corporate AV, houses of worship, and fixed installation use.
Powered by a newly developed 2000W Class-D amplifier, the DXR12MKIII is capable of producing up to 134 dB SPL while maintaining clarity and precision. Yamaha’s FIR-X tuning combines linear-phase FIR filters with corrective EQ to reduce phase distortion and improve crossover performance, while Drive Motion Calibration helps produce more linear and reliable low-frequency response. Together, these technologies help the speaker deliver refined full-range sound with controlled coverage and strong punch.
The lightweight polypropylene enclosure is designed for practical, everyday use in demanding environments. Its symmetrical cabinet supports flexible positioning for mirror-image monitor setups, while the dual-angle pole socket allows mounting at either 0 degrees or a -7 degree down tilt. The cabinet can also be used as a floor monitor with a 52-degree monitor angle, and integrated rigging points support suspended or installed applications with compatible hardware.
For added flexibility, the speaker includes DSP modes for FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, and OFF, along with AUTO V/H POSITION for automatic mode changes based on speaker orientation. Bluetooth 5.0 audio streaming and Yamaha’s D-Remote app support make the Yamaha DXR12MKIII easy to control wirelessly from iOS and Android devices, with access to level, EQ, delay, crossover, feedback suppression, scene recall, and other system parameters.
DXR12MKIII Features
- 2-way, bi-amped powered loudspeaker with bass-reflex design
- 12-inch low-frequency driver with 2.5-inch voice coil
- 1.75-inch diaphragm high-frequency compression driver with 1-inch throat
- 2000W peak Class-D amplifier
- 1000W RMS power output
- Maximum output level of 134 dB SPL
- FIR-X tuning with linear-phase FIR filtering and corrective EQ
- Drive Motion Calibration for more linear low-frequency reproduction
- 96 kHz internal DSP processing
- DSP modes: FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF
- AUTO V/H POSITION automatic orientation-based mode setting
- Intelligent feedback suppressor with DYNAMIC and FIXED modes
- Bluetooth 5.0 audio streaming with SBC and AAC support
- D-Remote app control for iOS and Android devices

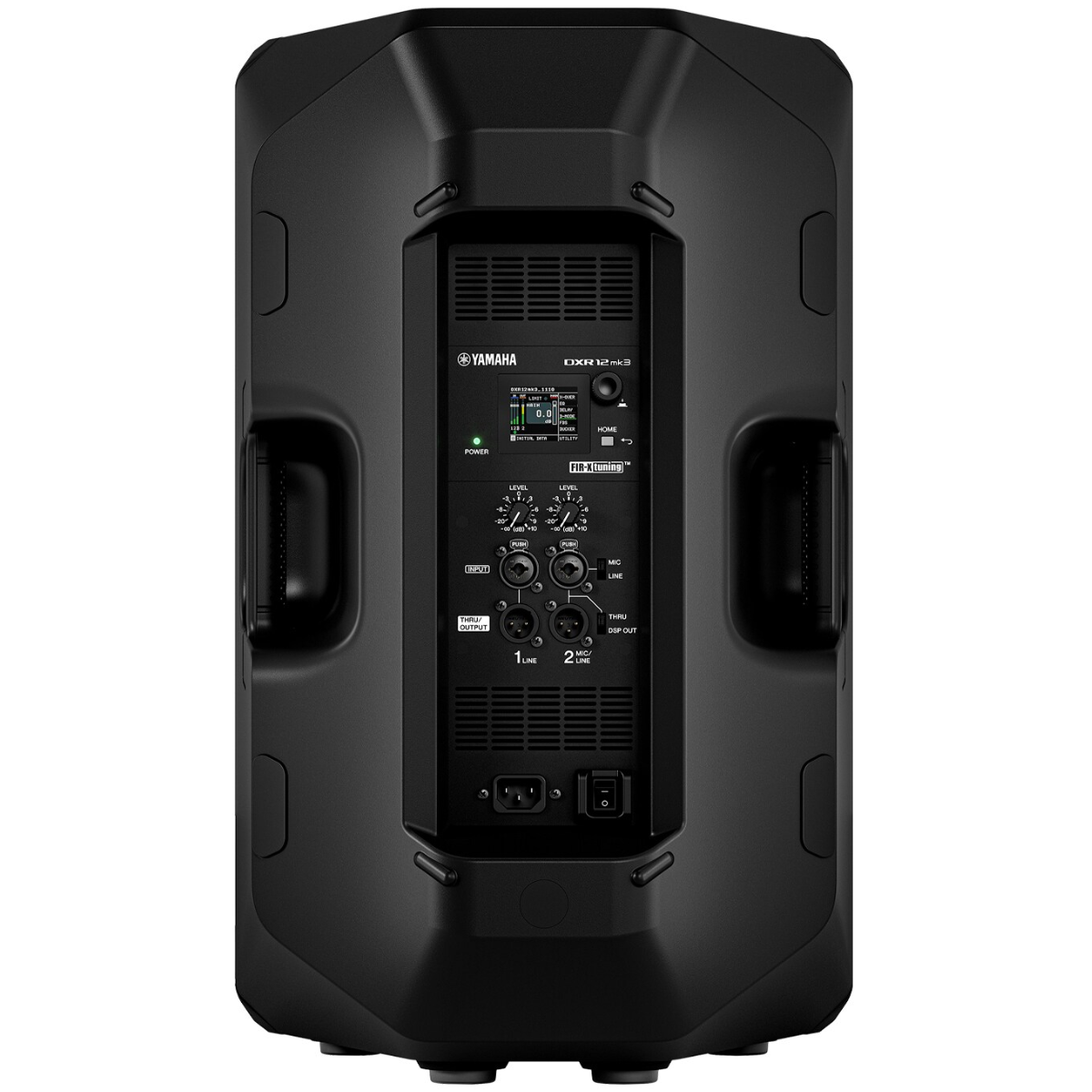

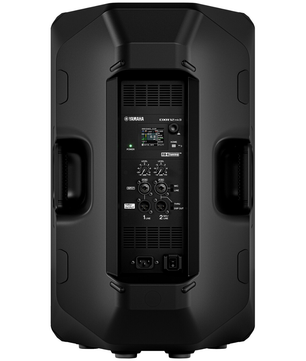

- Rear LCD panel and encoder for parameter access and preset recall
- Dual-angle pole sockets with 0-degree or -7-degree tilt
- Rigging points for eyebolt suspension
- Compatible with optional UB-DXRDHR12A U-bracket and SPCVR-DXR123 cover
DXR12MKIII Specifications
- Speaker Type: 2-way, bi-amped powered speaker, bass-reflex
- Frequency Range (-10 dB): 50 Hz - 20 kHz
- Coverage: 90° H x 60° V
- Crossover: 1.8 kHz, FIR-X tuning
- Maximum Output Level: 134 dB SPL
- LF Driver: 12 in cone, 2.5 in voice coil
- HF Driver: 1.75 in diaphragm, 1 in throat compression driver
- Amplifier Class: Class-D
- Power Output (Peak): 2000W (LF: 1700W, HF: 300W)
- Power Output (RMS): 1000W (LF: 850W, HF: 150W)
- Cooling: Fan cooling, 5 speeds
- Power Consumption: 120W (1/8 power), 35W (idle)
- Power Requirements: 100V - 240V, 50/60 Hz
- A/D D/A Conversion: 32-bit / 96 kHz sampling
- Processors: HPF OFF, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; DSP Mode: FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF
- Analog Input 1: Combo x1, 20 kΩ balanced / 10 kΩ unbalanced, max input +24 dBu
- Analog Input 2: Combo x1, 6 kΩ balanced / 3 kΩ unbalanced, max input +24 dBu line / -6 dBu mic
- Analog Outputs: OUTPUT1 XLR3-32 THRU; OUTPUT2 XLR3-32 THRU or DSP OUT
- Bluetooth: Version 5.0, A2DP, SBC/AAC, Class 1
- Other Control: D-Remote app support for iOS and Android
- Cabinet Material: Plastic (PP)
- Finish: Black
- Handle: Side x2
- Pole Socket: 35 mm x2, 0° or -7°
- Rigging: Top x2, Rear x1 for M10 x 18 mm eyebolts, Bottom x2, Side x2 for M8 x 25 mm UB-DXRDHR12A
- Floor Monitor Angle: 52°
- Dimensions: 14.4 x 23.6 x 13.8 in (366 x 600 x 350 mm)
- Weight: 38.4 lb (17.4 kg)
- Optional Accessories: UB-DXRDHR12A U-bracket, SPCVR-DXR123 cover
