Yamaha DXS12 MK3 | 12in - 132dB | Compact High-Output Powered Subwoofer with DSP

Powered Subwoofer

Yamaha DXS12 MK3 is a band-pass powered subwoofer built to deliver deep, controlled low-frequency reinforcement for live sound, DJ systems, and installed audio setups. Designed as the most portable model in the DXS mk3 series, it combines high-output performance, advanced DSP processing, and a durable plywood enclosure to provide impactful bass in a compact footprint.

Yamaha DXS12 MK3 Competitive Differences

• 2500W Class-D amplifier with band-pass design delivering up to 132 dB SPL in a compact 12-inch format
• Advanced DSP with D-XSUB processing, cardioid mode support, Bluetooth control, and flexible crossover settings

Yamaha DXS12 MK3 Description

The Yamaha DXS12 MK3 is engineered for users who need powerful low-end performance without sacrificing portability. Its 12-inch long-excursion woofer with a 3-inch voice coil is housed in an optimized band-pass enclosure that reduces unwanted noise while maximizing bass output. This design enables the subwoofer to produce deep, clear, and impactful low frequencies that perform well in mobile DJ setups, live bands, event production, and venue installations.

Driven by a high-efficiency 2500W Class-D amplifier, the DXS12 MK3 delivers up to 132 dB SPL with impressive clarity and control. The built-in D-XSUB processing allows users to tailor the bass response, with NORMAL mode providing balanced output and XTENDED LF mode extending the low-frequency range down to 38 Hz for applications that demand deeper bass presence.

The cabinet is constructed from durable plywood with a rugged polyurea coating that protects against wear during transport and use. The enclosure is acoustically optimized for consistent performance, while large ports and an advanced grille design help minimize airflow noise even at high output levels. Optional accessories such as the SPW-1 wheel kit and SPCVR-DXS123 cover further enhance portability and protection.

For system flexibility, the subwoofer includes adjustable crossover settings, cardioid mode for directional bass control, and Bluetooth connectivity for integration with Yamaha’s D-Remote app. When paired with DXR mk3 series speakers, the Yamaha DXS12 MK3 creates a cohesive and powerful full-range system suitable for a wide range of professional audio environments.

DXS12 MK3 Features

• Powered band-pass subwoofer design
• 12-inch long-excursion woofer with 3-inch voice coil
• 2500W peak Class-D amplifier
• 1250W RMS power output
• Maximum output level of 132 dB SPL
• D-XSUB processing with NORMAL and XTENDED LF modes
• Extended low-frequency response down to 38 Hz
• Cardioid mode capability for directional bass control (with multiple units)
• 96 kHz internal DSP processing
• Flexible crossover settings with HPF adjustment
• Bluetooth 5.0 audio connectivity (SBC, AAC)
• D-Remote app support for iOS and Android control

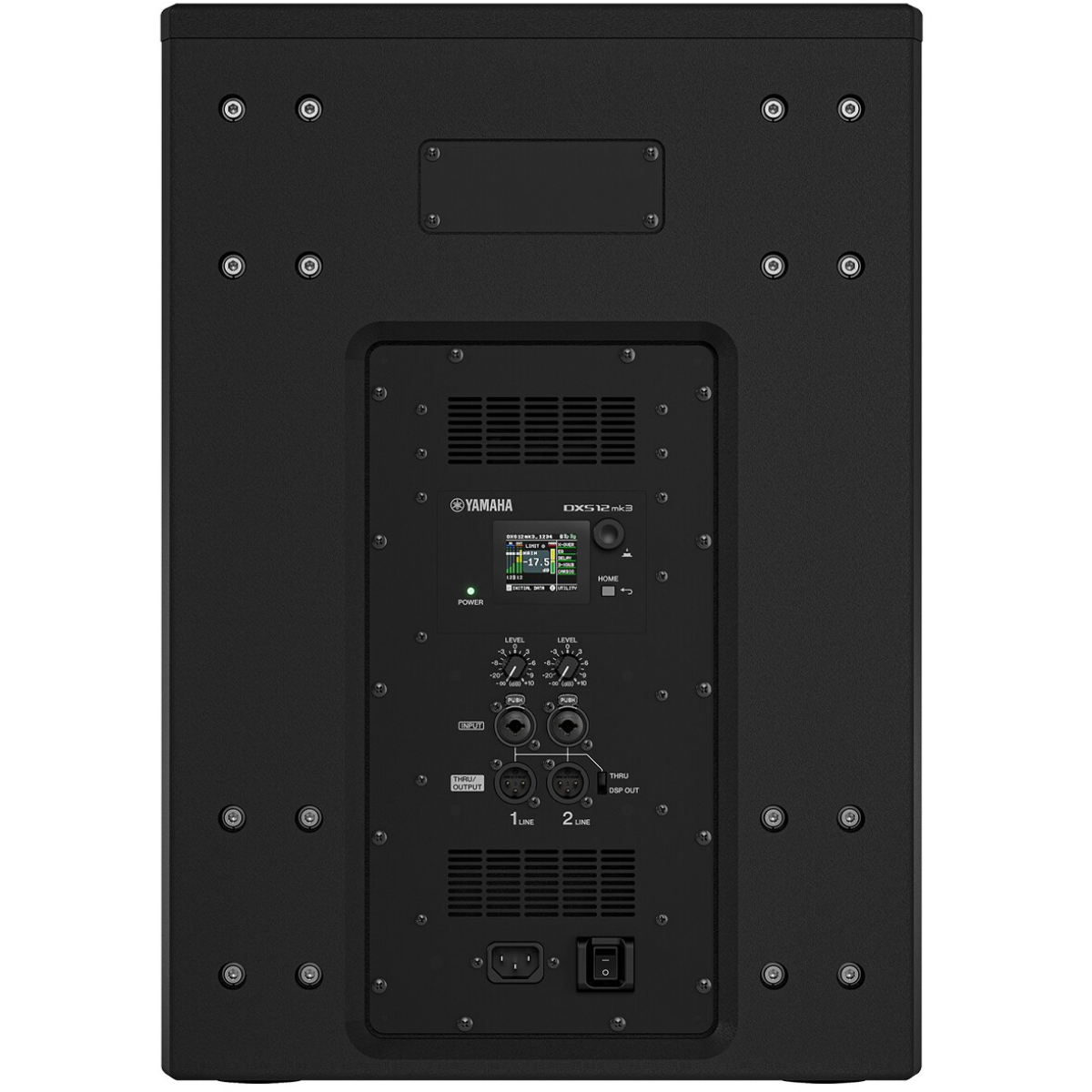

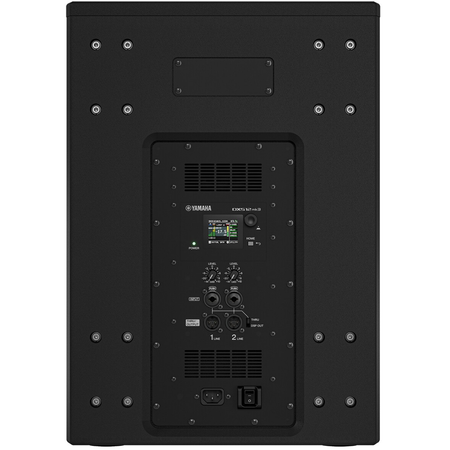

• Rear LCD panel with encoder for setup and control
• Durable plywood cabinet with polyurea coating
• Dual pole sockets: 35 mm and M20 threaded
• Optional SPW-1 caster kit for mobility
• Optional SPCVR-DXS123 protective cover

DXS12 MK3 Specifications

• Speaker Type: Powered subwoofer, band-pass
• Frequency Range (-10 dB): 38 Hz - 140 Hz
• Maximum Output Level: 132 dB SPL
• LF Driver: 12 in cone, 3 in voice coil
• Amplifier Class: Class-D
• Power Output (Peak): 2500W
• Power Output (RMS): 1250W
• Cooling: Fan cooling, 5 speeds
• Power Consumption: 130W (1/8 power), 40W (idle)
• Power Requirements: 100V - 240V, 50/60 Hz
• A/D D/A Conversion: 32-bit / 96 kHz sampling
• Processors: HPF OFF, 50 Hz - 118 Hz; D-XSUB: NORMAL, XTENDED LF
• Analog Inputs: INPUT 1 & 2 Combo, 20 kΩ balanced / 10 kΩ unbalanced, max input +24 dBu
• Analog Outputs: OUTPUT 1 & 2 XLR3-32 THRU or DSP OUT
• Bluetooth: Version 5.0, A2DP, SBC/AAC, Class 1
• Cabinet Material: Plywood
• Finish: Durable polyurea coating, black
• Handles: Side x2
• Pole Socket: 35 mm (depth 80 mm), M20 threaded (depth 25 mm)
• Dimensions: 15.7 x 22.3 x 22.4 in (400 x 567 x 570 mm)
• Weight: 72.8 lb (33.0 kg)
• Optional Accessories: SPW-1 caster kit, SPCVR-DXS123 cover
