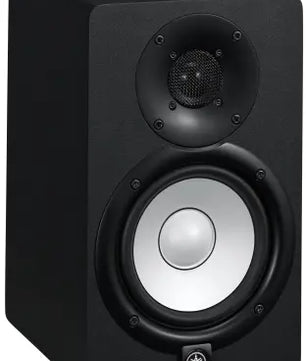

Yamaha HS5 | 5in Powered Studio Monitor - 70W | Bi-Amped Nearfield Speaker with Room Control

Powered Studio Monitor

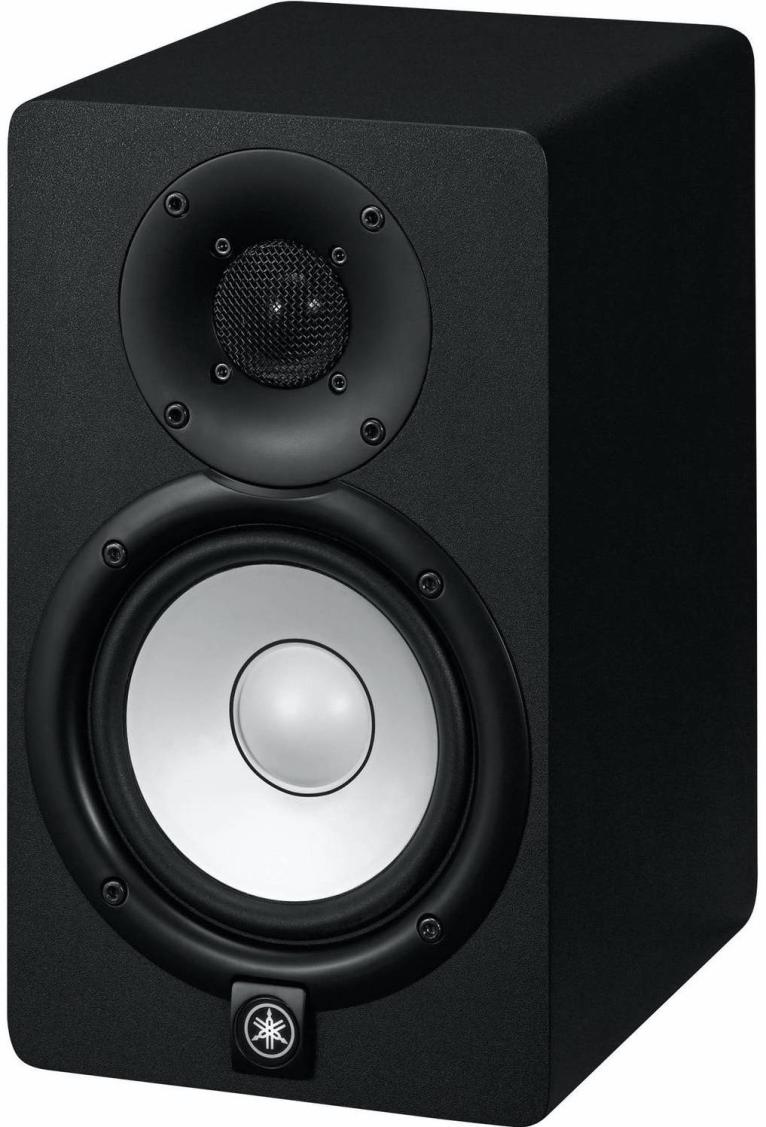

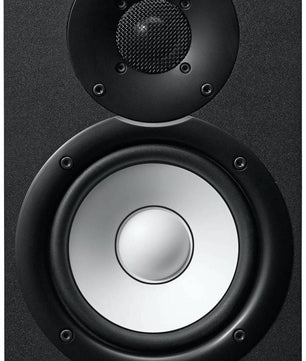

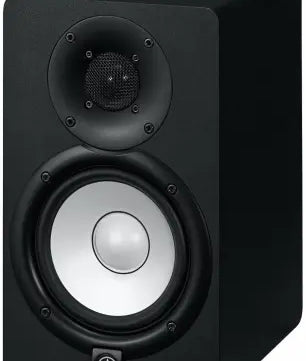

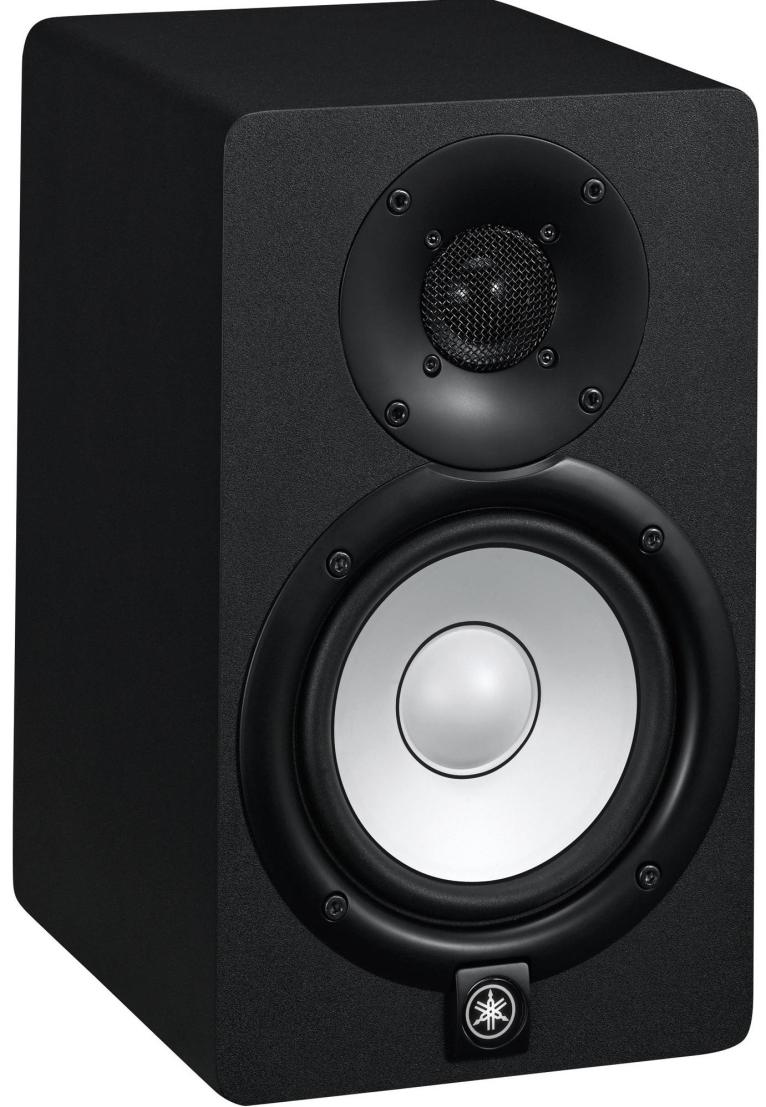

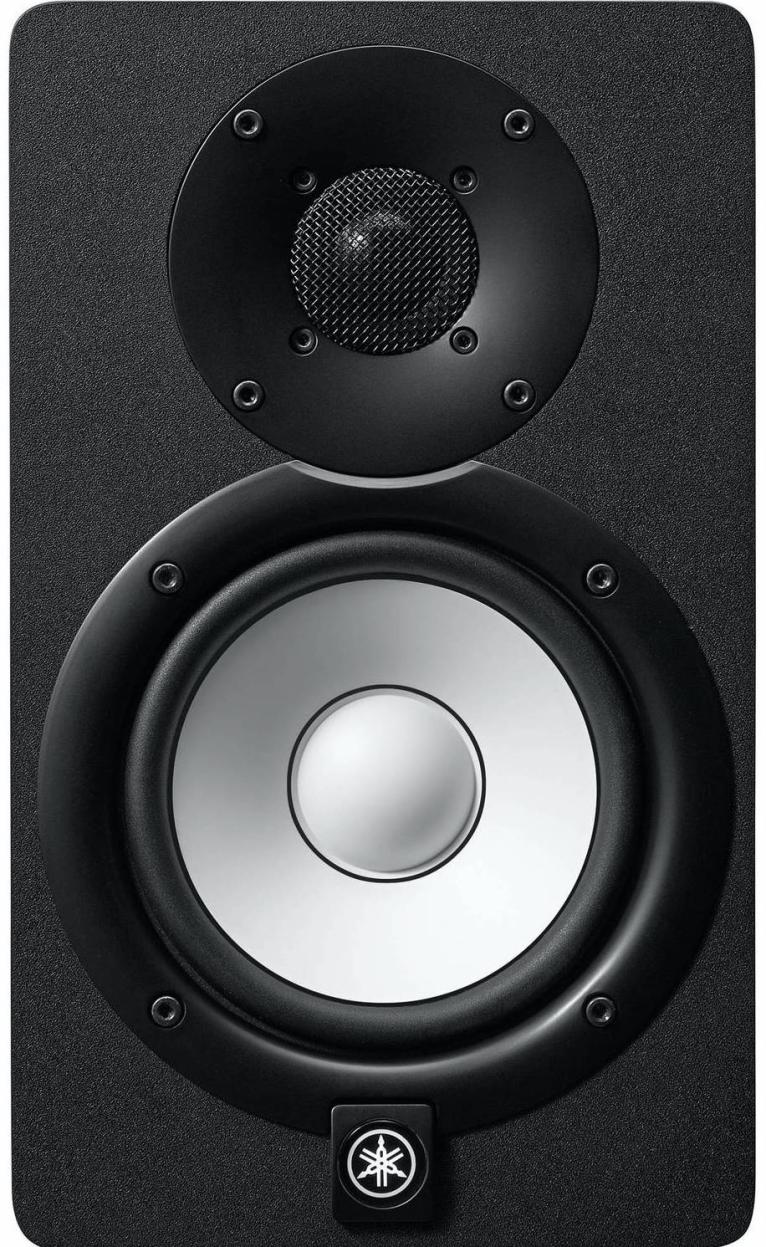

Yamaha HS5 is a compact, bi-amplified studio monitor built for critical listening and accurate sound reproduction. With its 5" woofer and 1" dome tweeter, the HS5 delivers tight lows and precise highs, making it ideal for small control rooms, project studios, and media production environments.

Yamaha HS5 Competitive Differences

• 70W bi-amped design with Class-D amplifiers for clear, consistent output
• Room Control and High Trim EQ settings for room-specific tuning

Yamaha HS5 Description

The Yamaha HS5 delivers the trusted accuracy of the HS Series in a compact footprint, offering the same clarity and flat frequency response trusted by professionals worldwide. Powered by 70 watts of bi-amplified output (45W LF / 25W HF), the HS5 ensures a balanced sound profile, ideal for nearfield mixing and reference monitoring. Its 5" woofer and 1" dome tweeter reproduce frequencies from 54Hz to 30kHz, with a smooth transition across the 2kHz crossover point. The MDF enclosure is built using a three-way mitered-joint design to reduce resonance and improve rigidity, while Yamaha’s proprietary port design minimizes noise caused by airflow. Integrated Room Control and High Trim switches allow you to tailor the response of the monitor to your studio space—perfect for tight setups or wall-mounted installations where bass buildup is common. Connectivity is professional and versatile, with both balanced XLR and 1/4" TRS inputs that accept line-level signals from interfaces, mixers, and audio gear.

Model Features

• Bi-amped powered monitor with 70W total output (45W LF / 25W HF)
• 5" cone woofer and 1" dome tweeter for full-range clarity
• Room Control and High Trim EQ switches for room adaptation
• Low-resonance MDF enclosure with advanced noise-reduction port
• Balanced XLR and 1/4" TRS inputs for flexible integration
• Flat, accurate response ideal for mixing, mastering, and production

Model Specifications

• Driver Size: 5" woofer, 1" dome tweeter
• Total Power Output: 70W (45W LF + 25W HF)
• Frequency Response: 74Hz – 24kHz (-3dB), 54Hz – 30kHz (-10dB)
• Crossover Frequency: 2kHz
• EQ Controls: LF Shelf (-4 to 0dB @500Hz), HF Shelf (-2 to +2dB @2kHz)

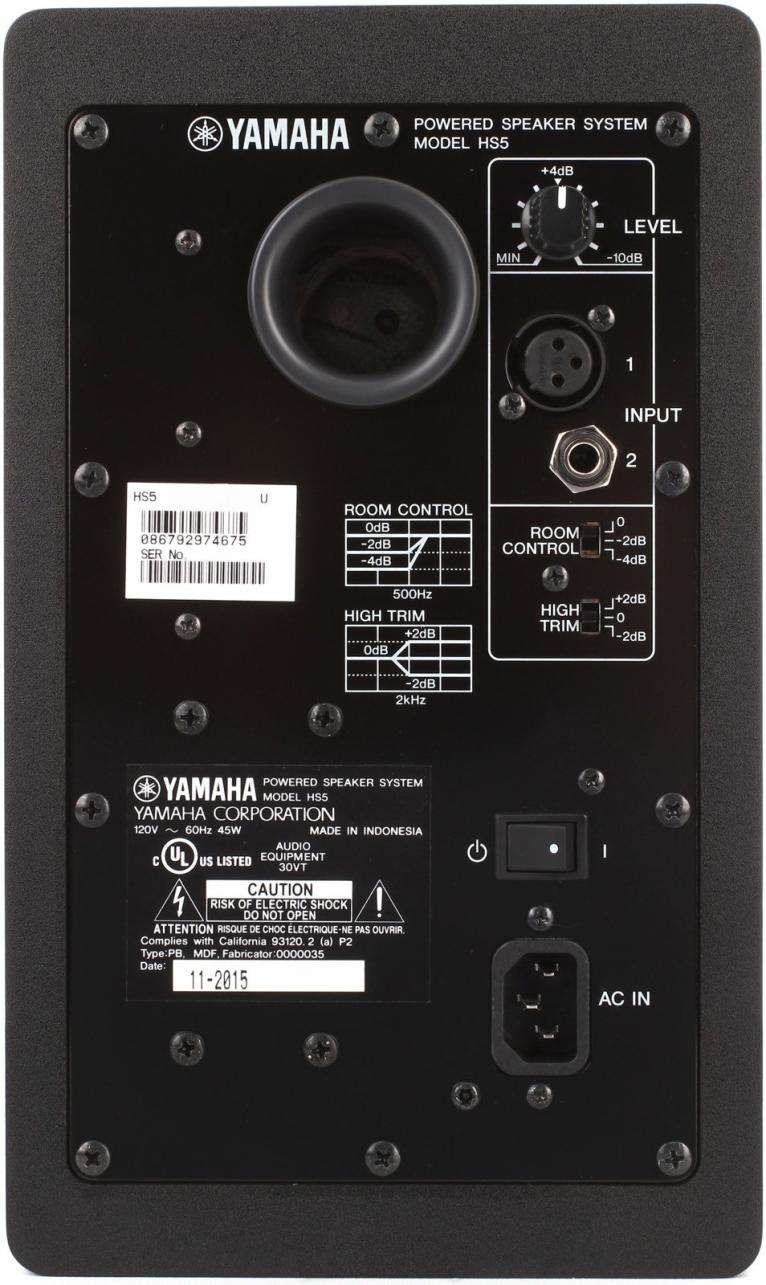

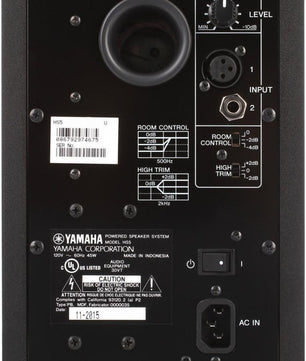

• Inputs: 1 x XLR (balanced), 1 x 1/4" TRS (balanced)
• Enclosure Material: MDF
• Dimensions: 6.7 x 11.2 x 8.7 in (170 x 285 x 222 mm)
• Weight: 11.7 lb (5.3 kg)

What's In The Box

• Yamaha HS5 monitor (single)
• Power cable
• Owner’s manual
