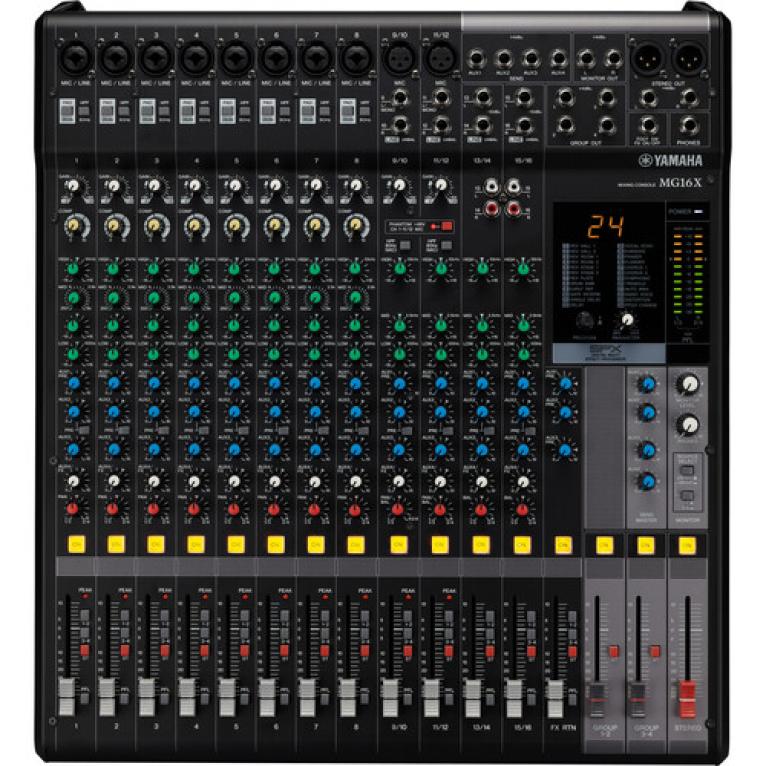

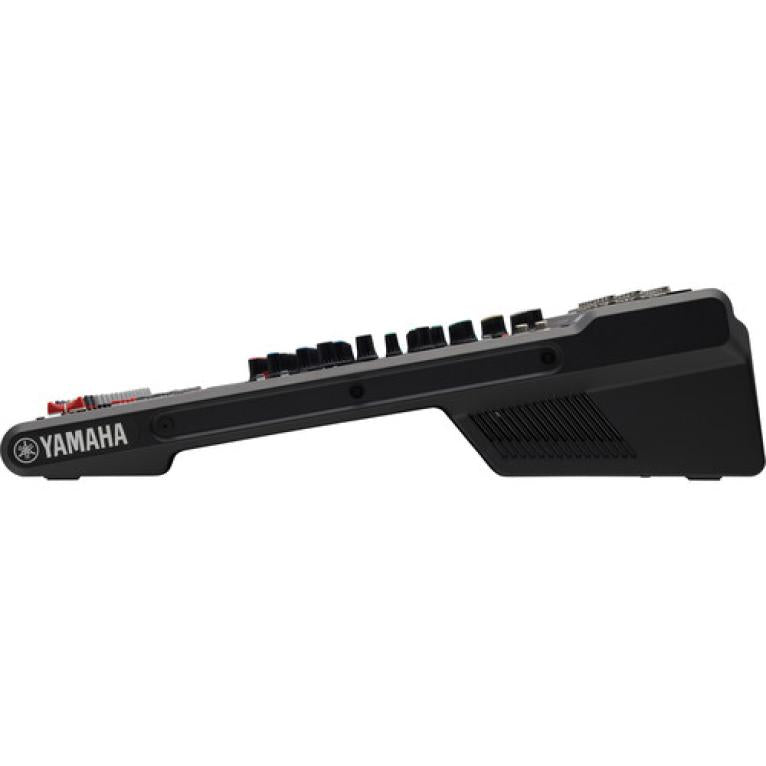

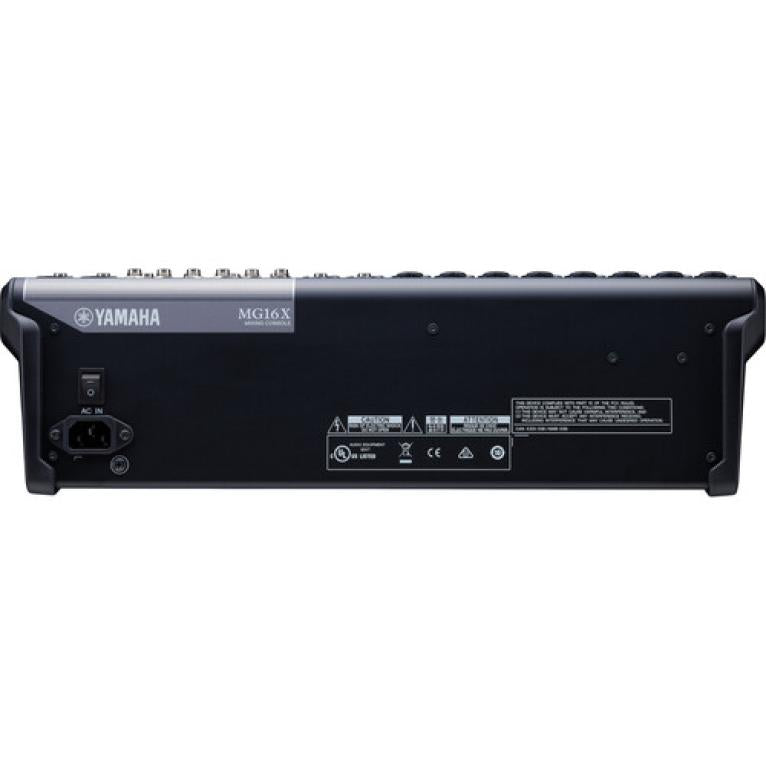

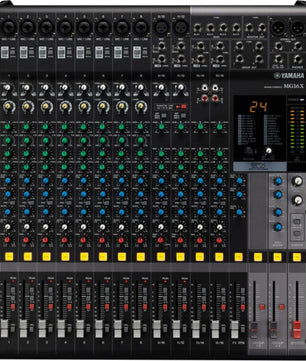

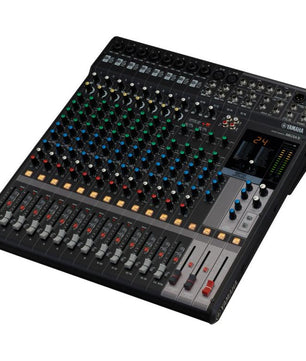

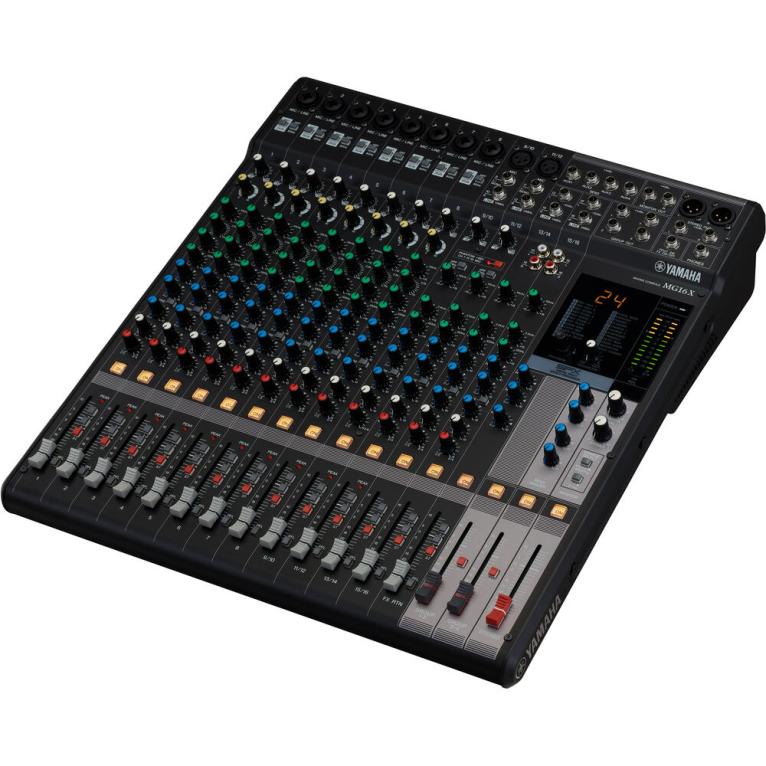

Yamaha MG16X CV | 16X4 Channel Mixer

Audio professionals looking for a high-quality analog mixer with integrated effects will be impressed with the Yamaha MG16X, a compact 16-input mixer with built-in effects for performances, lectures, recordings, and similar applications. The mixer features eight mono mic/line combo input channels, two stereo line input channels that can also be used as mono mic or line inputs (XLR and stereo 1/4" inputs), and two stereo line inputs with 1/4" and RCA jacks. Channels 1 to 12 are each equipped with D-Pre mic preamps, 3-band EQ, pan control and a high-pass filter. The D-Pre mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-8 include a microphone pad, which provides 26 dB of attenuation for use with loud sound sources such as guitar amplifiers and drums. Channels 1 to 8 are also equipped with Yamaha's 1-knob compression for easy adjustment and professional results.

The MG16X mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers, or devices such as digital recorders. Each of the MG16X's channels feature a dedicated FX-bus-send level, and there are 24 effect presets to choose from. The overall level of the FX bus is controlled by the dedicated FX-return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion, and more, these effects can be used to help vocals and instruments sit better in your mix.

Features:
10 Mic Inputs
16 Line Inputs
Built-In FX with 24 Presets
XLR and TRS 1/4" Stereo Outs
Four Group Buses and Four Aux Sends
D-Pre Mic Preamps with 48V Phantom
HPF and 3-Band EQ on Channels 1-8
1/4" Headphone Output with Level Control
Pad, 1-Knob Compressor on Channels 1-8

Specifications:
Mixer
Number of Analog Input Channels 16 (10 Mono / 4 Stereo)
Number of Mic Preamps 10
Analog Output Channels 1 x Stereo Master Output
2 x Stereo ALT Bus/Subgroup Output
1 x Stereo Control Room/Monitor Output
4 x Mono Aux Send Output
Max I/O Capacity 16 x Input / 4 x Output
Mix Routing Stereo Main Mix / Stereo Bus/Subgroup
Faders 12 x Channel Fader
1 x Master Fader
2 x Bus/Subgroup Fader
1 x FX Fader
Meters 2 x 12-Segment LED
Meter Range -30 dB to +17 dB Peak/Clip
Signal Processing
Gain/Trim Range -6 dB to +64 dB
Input Pad -26 dB
Dynamic Processing Input Channels:
Compressor
Sidechain Filters None
EQ 3-Band EQ (Mono Channels)
2-Band EQ (Stereo Channels)
EQ Parameters Mono Channels:
High: ±15 dB at 10 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Bell)
Low: ±15 dB at 100 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 10 kHz (Shelving)
Low: ±15 dB at 100 Hz (Shelving)
Graphic EQ None
Filters Input Channels:
10 x High-Pass: 80 Hz
Solo/Mute PFL per Input Channel, Bus, FX Bus
Channel Output/Source Monitoring PFL
Built-In Effects 24 x Stereo Effect (Type Unspecified)
Performance
Frequency Response 20 Hz to 48 kHz +0.5/-1.5 dB (at 1 kHz, Gain Min)
Output Level +30 dBu at Max Gain
I/O Impedance Combo XLR-1/4", XLR Mic Input:
3 Kilohms
1/4" Line Input:
10 Kilohms (Unbalanced)
Crosstalk -78 dB at 1 kHz
EIN -128 dBu at Max Gain
Noise Floor -102 dBu (Residual Output Noise)
THD+N 0.03% at Min Gain (+14 dBu, 20 Hz to 20 kHz)
0.005% at Min Gain (+24 dBu, 1 kHz)
Connectivity
Analog Inputs 8 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input
2 x XLR 3-Pin Balanced Mic Input
8 x 1/4" TS Unbalanced Line Input (4 Stereo Pairs)
1 x 1/4" TS Footswitch Input
Analog Outputs 2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2 x 1/4" TRS Balanced Stereo Main Output (1 Stereo Pair)
4 x 1/4" TRS Balanced Stereo Bus Output (1 Stereo Pair)
2 x 1/4" TRS Balanced Stereo Monitor Output (1 Stereo Pair)
4 x 1/4" TRS Balanced Mono Aux Send
1 x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power +48 V
Digital I/O None
Bluetooth None
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC Input
Power Consumption 30 W
Physical
Dimensions 19.7 x 17.5 x 5.1" / 50 x 44.5 x 13 cm
Weight 15 lb / 6.8 kg
Packaging Info
Package Weight 20.94 lb
Box Dimensions (LxWxH) 22 x 20 x 8.25"
