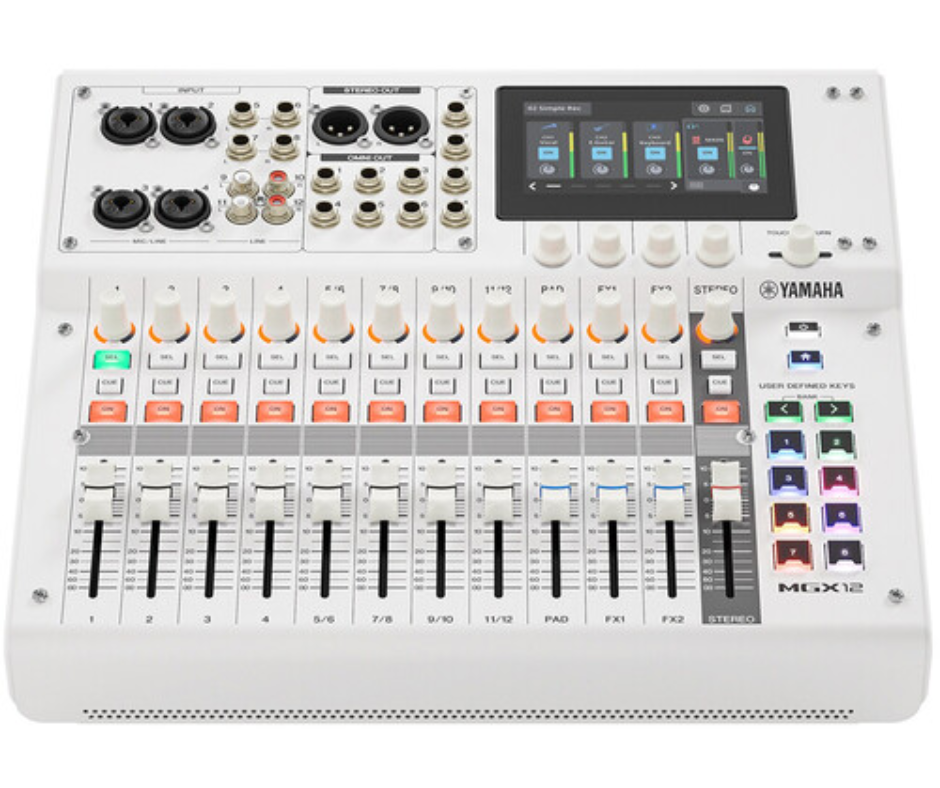

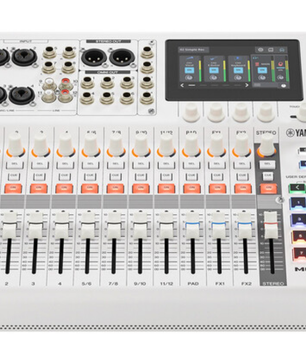

Yamaha MGX12 W | 18-Channel Digital Mixer with USB & SD Recording | White Finish with Bluetooth and Touchscreen FX

Digital Mixing Console for Live Sound, Streaming & Recording

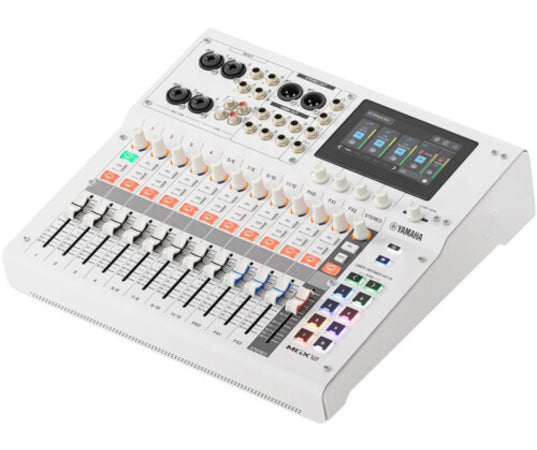

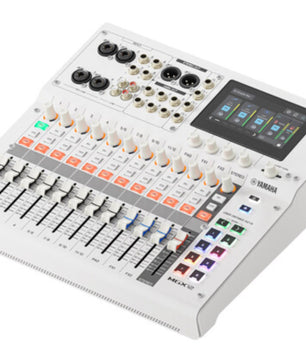

The Yamaha MGX12 W is a compact 18-channel digital mixing console in a sleek white finish, designed for live sound, streaming, podcasting, and content creation. With dual USB audio interfaces, Bluetooth input, and a built-in 4.3" touchscreen, it offers an intuitive and flexible workflow with pro-level sound shaping, routing, and recording capabilities.

Yamaha MGX12 W Competitive Differences

• Modern white finish for clean, contemporary studio and live environments
• Bluetooth 5.0 audio input and dual USB-C ports for 18x18 and 2x2 audio interfaces

Yamaha MGX12 W Description

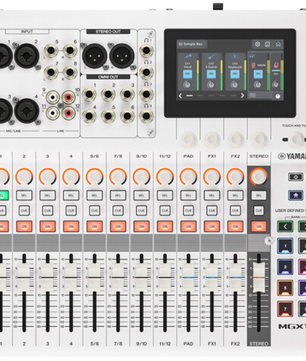

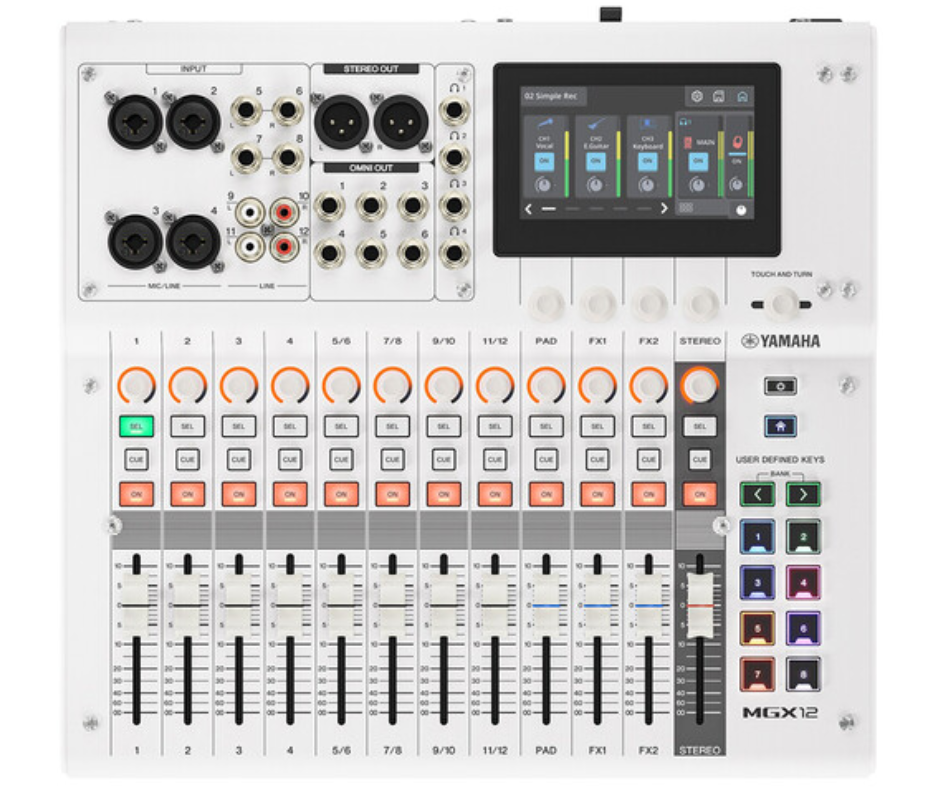

The Yamaha MGX12 W delivers hands-on digital mixing with the streamlined feel of the classic MG series—upgraded for today’s hybrid audio workflows. Designed for quick setup and easy operation, it includes a 4.3" touchscreen, 11 channel faders, and 5 dedicated control knobs for intuitive access to levels, FX, routing, and settings. With four combo XLR-1/4" mic/line inputs and four stereo line inputs (TRS and RCA), it offers essential connectivity for microphones, instruments, and playback devices. The mixer supports multitrack 18-in/18-out recording over USB MAIN, a secondary USB 2-in/2-out SUB interface, and onboard 16-track microSD recording/playback. The MGX12 W includes Yamaha’s signature studio-quality DSP with compression, gate, ducking, pitch shifting, amp simulation, and morphing EQ. Assistive features like Auto Gain, Clip Safe, and Scene Recall ensure smooth operation even in fast-paced environments. The mixer also comes with an extensive Steinberg software suite, making it a complete production solution out of the box. Perfect for portable rigs, worship AV systems, home studios, or streaming setups, MGX12 W combines visual appeal, intuitive control, and unmatched Yamaha sound reliability.

Model Features

• 18-channel digital mixer with touchscreen GUI
• 4 mic/line combo inputs with +86dB gain range
• Bluetooth 5.0 wireless audio input
• microSD recording: 16-track record / 2-track playback
• USB MAIN: 18x18 interface (32-bit / 96 kHz)
• USB SUB: 2x2 interface (16-bit / 48 kHz)
• Built-in DSP FX: Reverb, delay, pitch fix, amp sim, morph EQ
• Customizable sound pads and user-defined knobs
• Assistive functions: Auto Gain, Clip Safe, Scene Recall
• Included Steinberg software bundle (Cubase AI, WaveLab Cast LE, Basic FX Suite)

Model Specifications

• Max I/O Capacity: 16 input / 8 output
• Mic Preamps: 4x Combo XLR-1/4"
• Line Inputs: 4x 1/4" TRS + 4x RCA stereo
• Main Outputs: 2x XLR
• Other Outputs: 8x 1/4" TRS, 4x 1/4" headphone
• Faders: 11+1 non-motorized
• Display: 4.3" color touchscreen
• Built-in Effects: 13 stereo FX types
• Dynamic Range: 125 dB output / 115 dB input-to-output
• Frequency Response: 20 Hz – 20 kHz
• THD: < 0.002% (Mic input at min gain, +4 dBu)
• Sample Rates: Up to 96 kHz
• Recording: SD / USB Drive (MP3, WAV), max 1 GB
• Phantom Power: +48V
• Rack Mountable: Yes
• Dimensions: 13.2 x 12.5 x 3.8 in (33.5 x 31.8 x 9.7 cm)
• Weight: 8.6 lb (3.9 kg)

What's In The Box

• Yamaha MGX12 W digital mixer (white)
• AC power adapter
• Steinberg software license card
