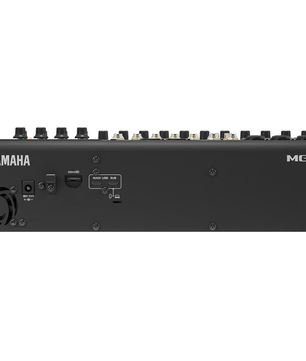

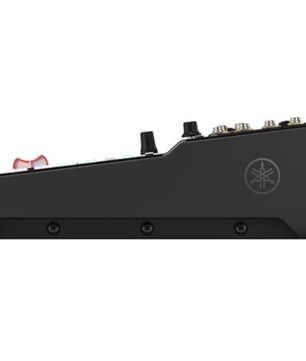

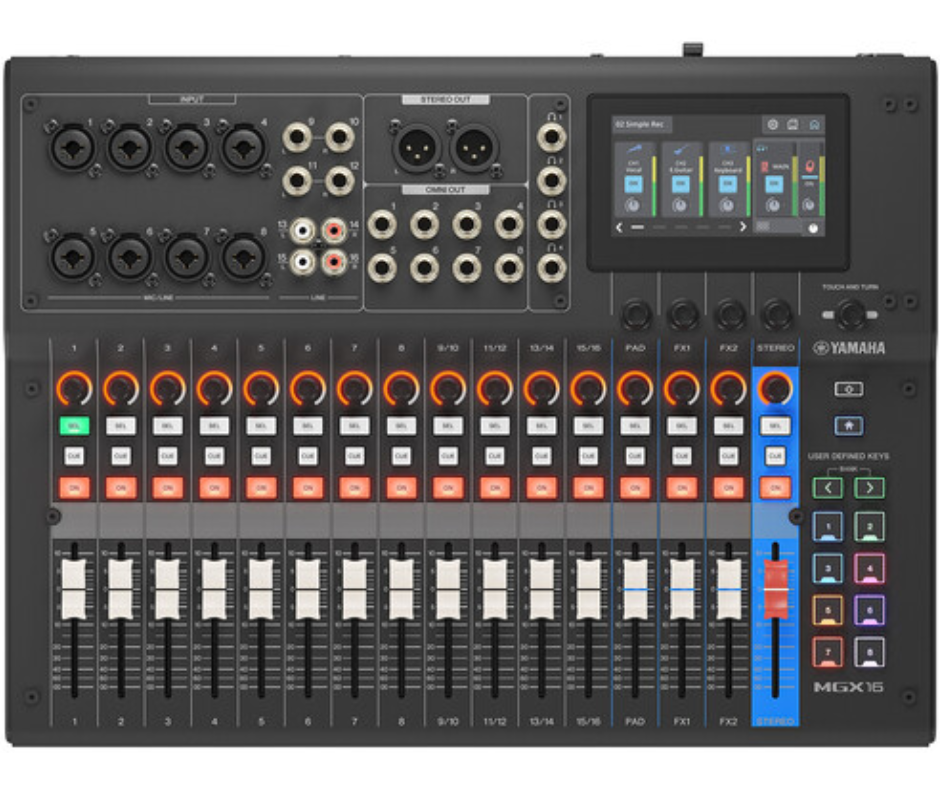

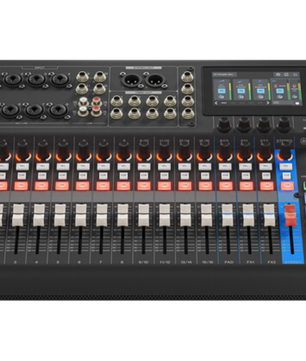

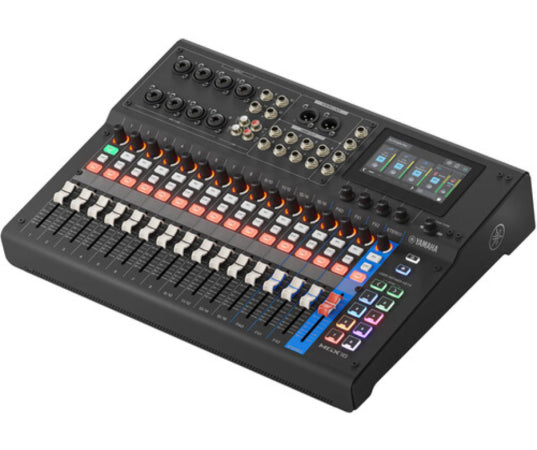

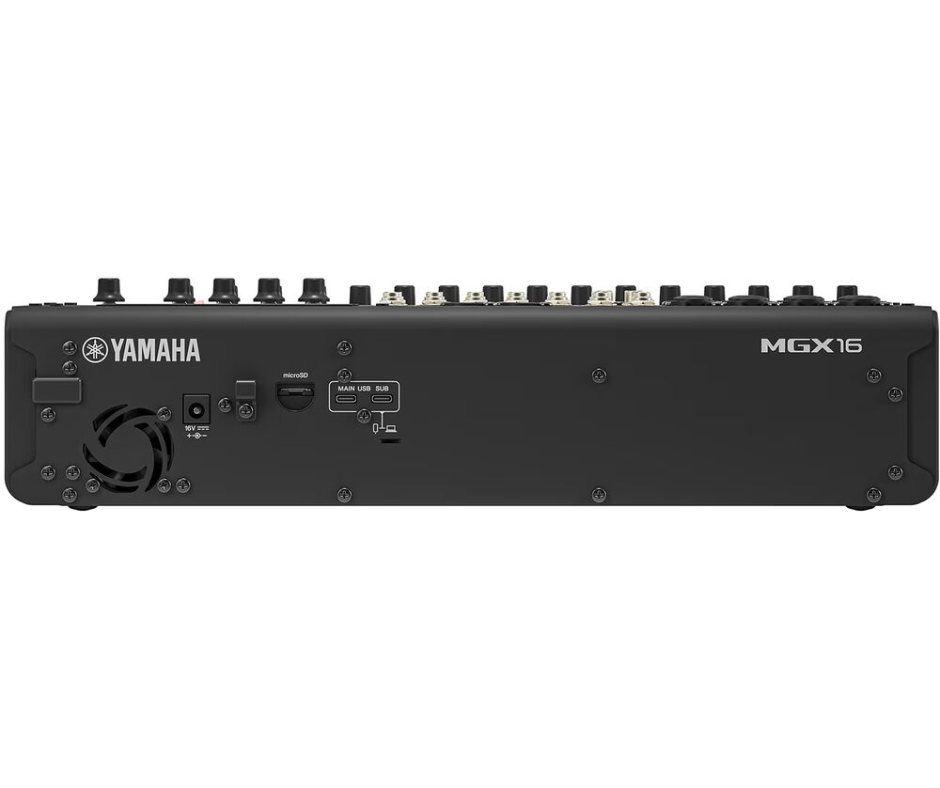

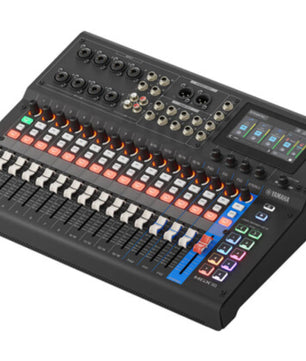

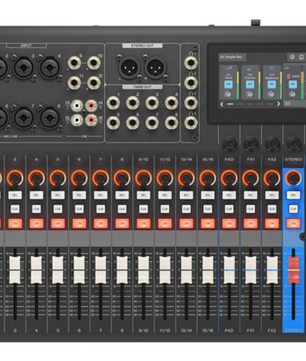

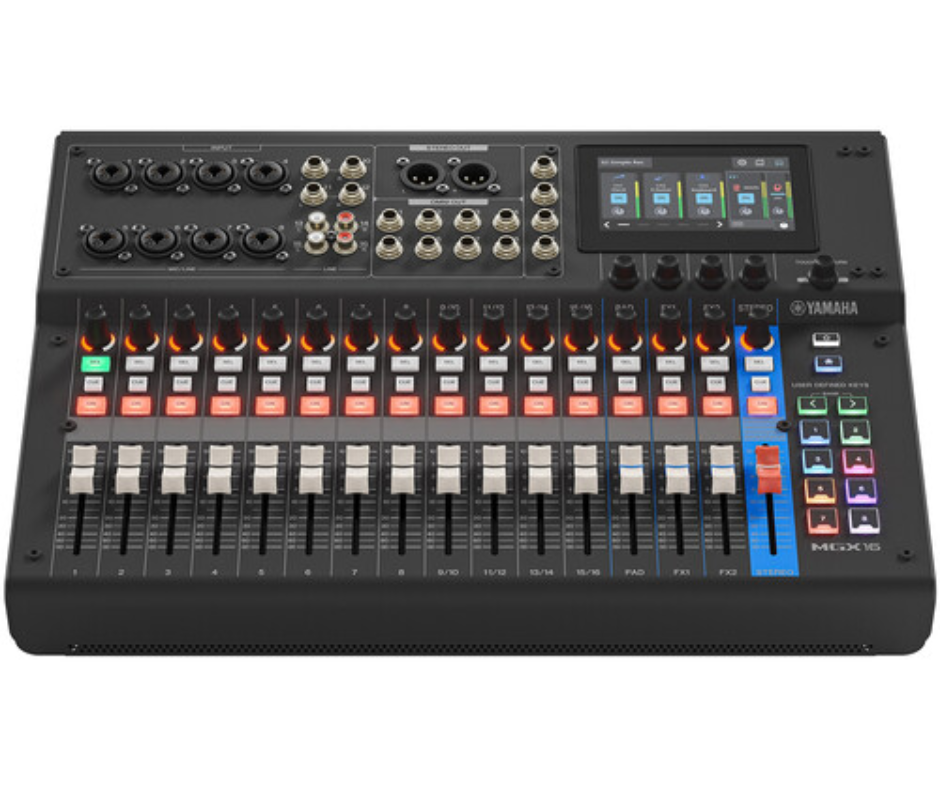

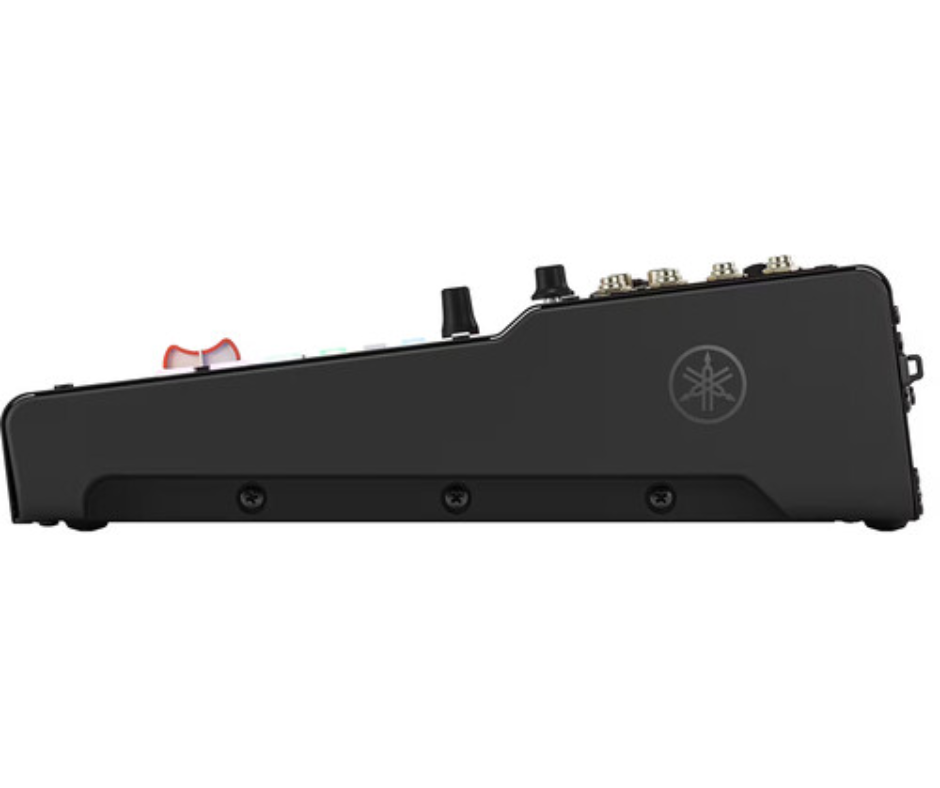

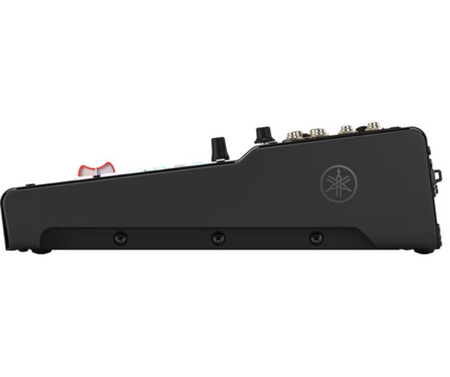

Yamaha MGX16 B | 22-Channel Digital Mixer with Touchscreen, Bluetooth & Dual USB Interface – Black

Yamaha MGX16 B | 22-Channel Digital Mixer with Touchscreen, Bluetooth & Dual USB Interface – Black

$1,099.99

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Yamaha MGX16 B – 22-Channel Digital Mixer with Bluetooth, USB & Touchscreen

The Yamaha MGX16 B is a premium 22-channel digital mixer engineered to deliver pro-level performance in today’s hybrid audio environments. Whether you're mixing a live performance, podcast, livestream, or studio session, the MGX16 B provides the tools and flexibility to keep your sound clean, dynamic, and fully under control.

Feature-Rich and Ready for Anything

Designed for intuitive operation, the MGX16 B combines touchscreen control with 16 motorized faders, comprehensive I/O, advanced DSP, and powerful integration features like dual USB interfaces and Bluetooth audio input. Its refined build and versatile workflow make it the perfect fit for venues, content creators, houses of worship, and mobile setups.

Key Features:

22-channel digital mixing console (16 analog + 6 stereo)
8x Combo XLR-1/4" TRS Mic/Line Inputs
4x 1/4" TRS + 2x RCA Line Inputs
Dual USB-C ports:
- USB MAIN: 22-track record / 18-track playback
- USB SUB: 2-track record/playback & control
Bluetooth 5.0 audio input (built-in)
microSD card recording: 16-track record / 2-track playback
Studio-grade mic preamps with 86 dB gain range
Smart Gain, Clip Safe, Scene Recall, and Assistive Modes
Gate, Compressor, Morph EQ, Ducker, Amp Simulators, Voice Changer, and more
4.3” LCD touchscreen + 16x 60mm motorized faders + Touch & Turn knob
8 sound pads and 4 customizable knobs (user-defined functions)
Includes Steinberg Cubase AI, WaveLab Cast LE, MixKey, and more

Professional Workflow & Sound

The MGX16 B is more than a digital mixer—it's a production powerhouse. Use customizable sound pads and advanced FX to shape your audio with creativity and precision. With scene memory, real-time metering, and flexible routing, the MGX16 gives engineers, performers, and creators everything they need to stay focused and deliver their best.

Perfect for:

Live sound in venues, cafés, or churches
Podcasting and live streaming
Music recording and mixing
Hybrid events with mobile or desktop setups

MGX16 B Specifications

I/O Capacity: 16 inputs / 14 outputs
Mic Preamps: 8x Combo XLR-1/4”
Outputs: 2x XLR, 8x 1/4” bus, 4x 1/4” headphone
USB: Dual USB-C ports (MAIN & SUB)
Bluetooth: Yes (5.0, built-in)
Multitrack Recording: 18 tracks via USB / 16 tracks via SD card
Effects: 11 types + Ducker, Delay, Reverb, Compressor, Amp Sim
Dynamic Range: 125 dB (out), 115 dB (input to output)
Frequency Response: 20 Hz – 20 kHz (+1/-2 dB)
Touchscreen: 4.3" LCD with full GUI
Weight: 10.4 lb / 4.7 kg
Dimensions: 16.5 x 3.8 x 12.5 in

What's in the Box:

Yamaha MGX16 B Digital Mixer (Black)
Power Adapter
Steinberg Software License Card
