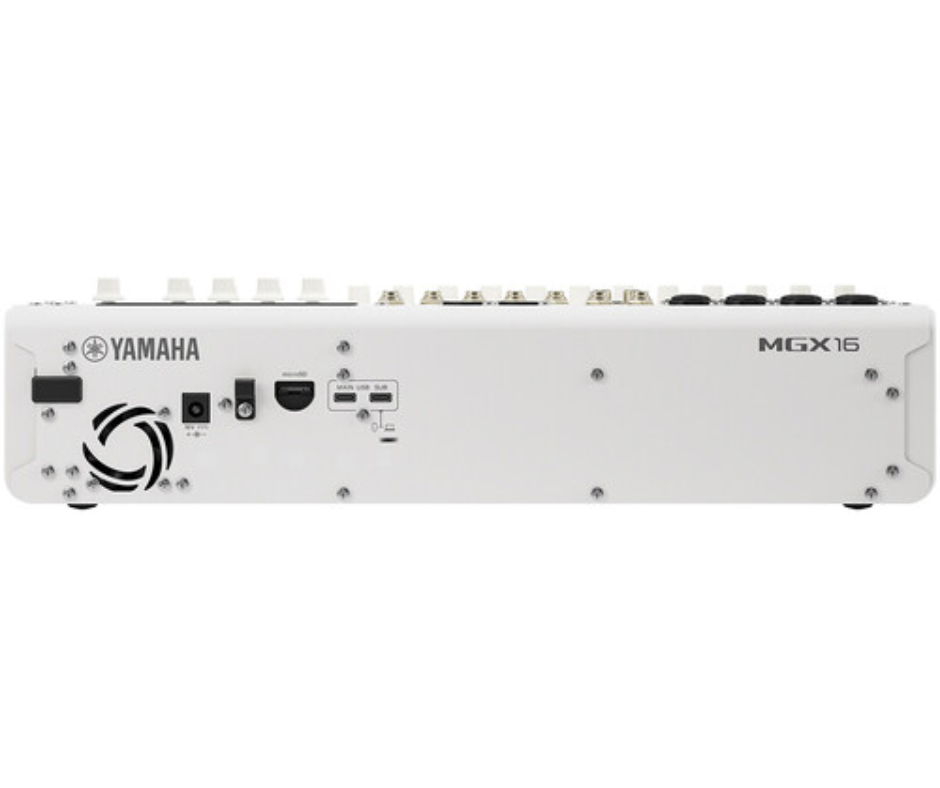

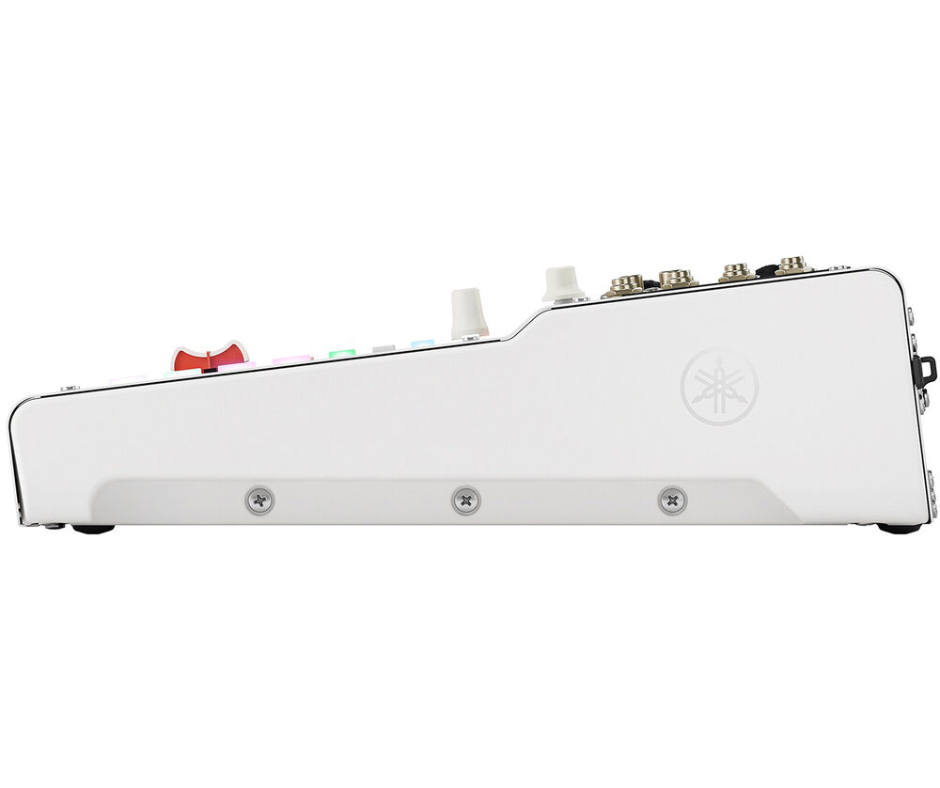

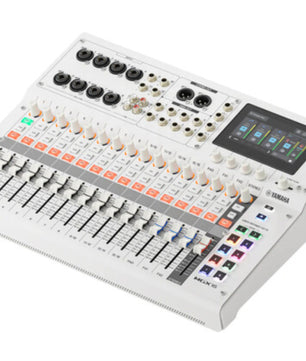

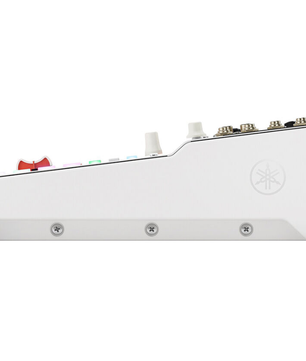

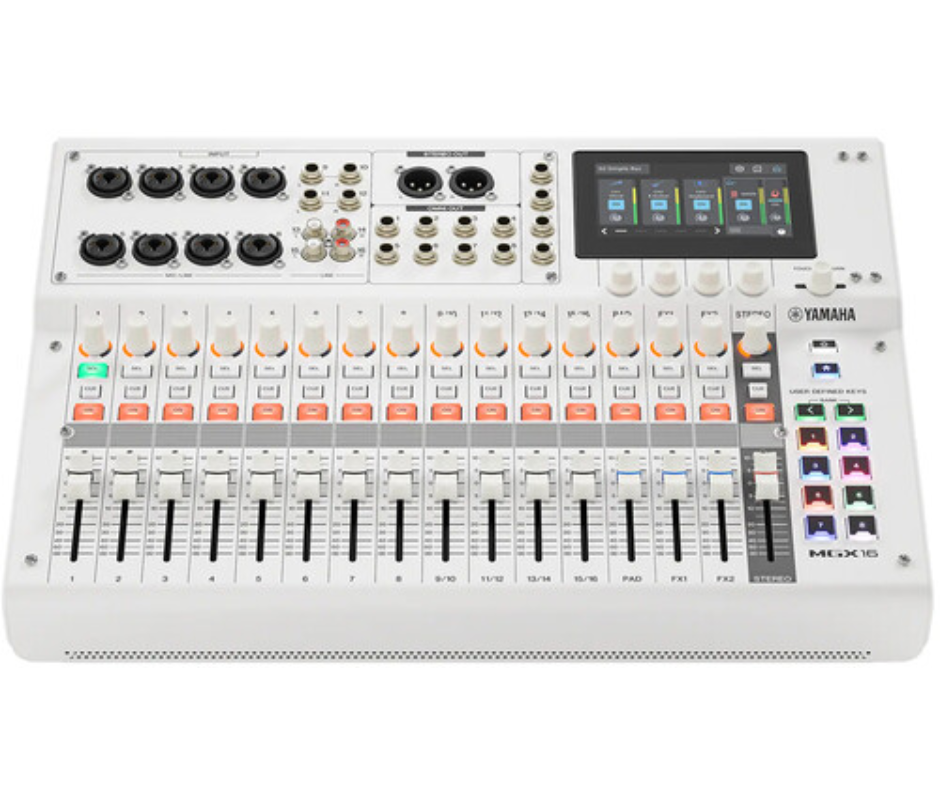

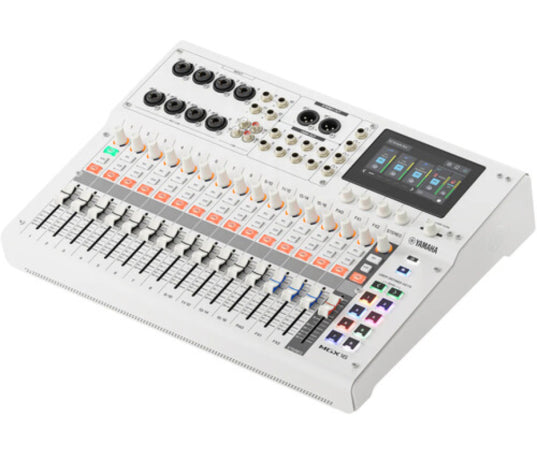

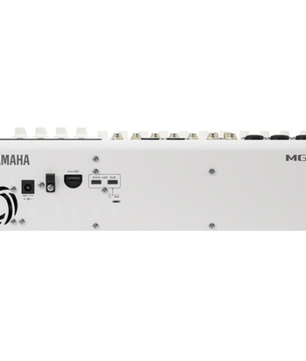

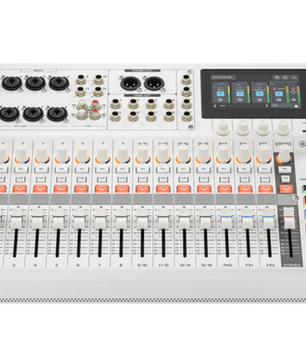

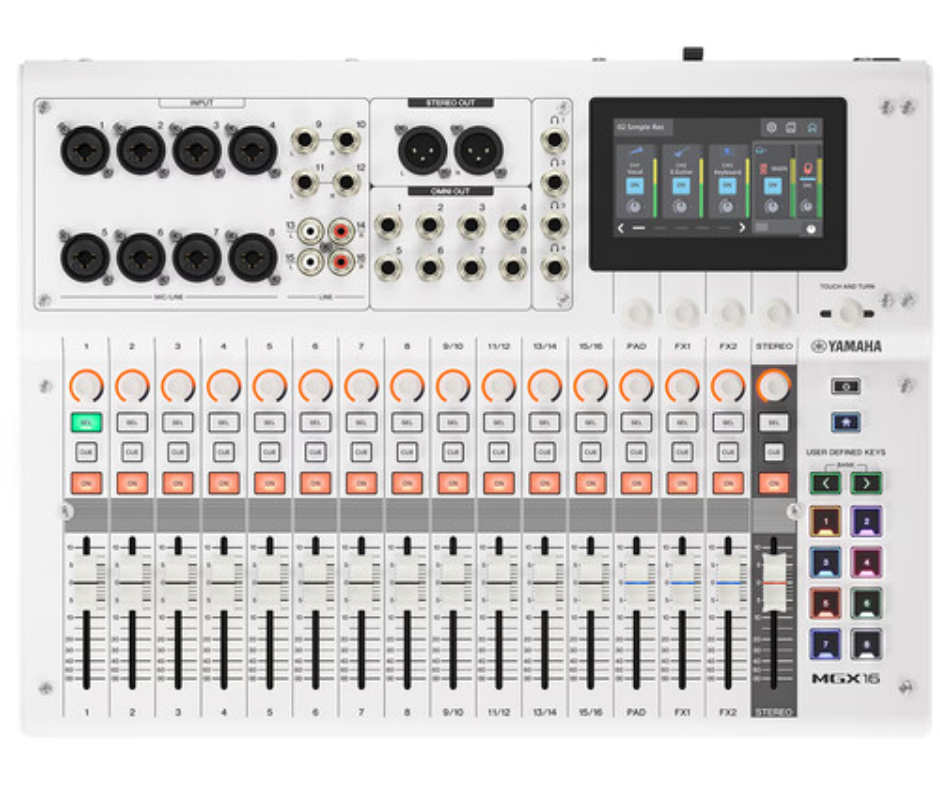

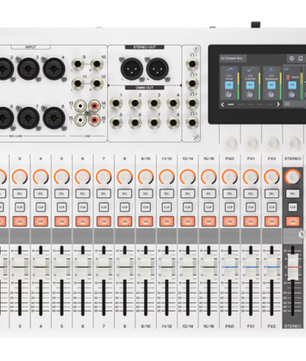

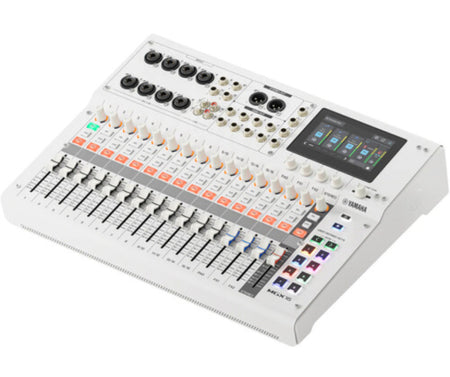

Yamaha MGX16 W | 22-Channel Digital Mixer with Dual USB & Touchscreen | Bluetooth & FX – White

22-Channel Digital Mixing Console

The Yamaha MGX16 W is a flexible and powerful 22-channel digital mixer that combines high-end performance with an intuitive interface. Designed for live sound, podcasting, streaming, and studio production, it brings together advanced routing, customizable FX, and Bluetooth connectivity—all in a portable, rugged chassis with a modern white finish.

Yamaha MGX16 W Competitive Differences

• Dual USB ports: 22x18 recording/playback + 2x2 secondary interface
• Customizable sound pads and scene recall for creative flexibility

Yamaha MGX16 W Description

The Yamaha MGX16 W takes the legacy of Yamaha’s MG analog mixers into the digital realm—offering a hands-on mixing experience tailored for hybrid workflows. Its 4.3” touchscreen GUI, motorized faders, and customizable user-defined controls make it easy to shape your sound, route signals, and recall presets across a variety of environments. Whether you’re producing a livestream, recording a band, managing sound for an event, or setting up for a podcast, the MGX16 W adapts to your workflow with ease. Dual USB-C ports support both multitrack and two-track recording/playback. Bluetooth audio input, built-in DSP, and microSD card support give you creative freedom and fail-safe recording options on the go. Despite its pro-level specs, the MGX16 W remains lightweight and compact—perfect for gigging musicians, mobile engineers, and fixed installations alike.

Model Features

• 22-channel mixing with 8 mono and 4 stereo channels
• Built-in studio-quality FX: EQ, Compression, Gate, Reverb, Delay, Amp Sim
• Smart Gain and Clip Safe prevent distortion and simplify setup
• Touchscreen GUI with TOUCH AND TURN encoder and 16 motorized faders
• Scene memory and customizable pads for fast workflow switching

Model Specifications

• Max I/O: 16x Input / 14x Output
• Power Output: USB Main 22-in / 18-out, USB Sub 2-in / 2-out
• Analog Inputs: 8x Combo XLR-1/4", 4x 1/4" TRS, 2x RCA
• Analog Outputs: 2x XLR, 8x 1/4" Bus, 4x 1/4" Headphone
• Max SPL: Not specified
• Frequency Response: 20 Hz to 20 kHz (+1/-2 dB)
• Dynamic Range: 125 dB (output), 115 dB (input to output)
• USB: 2x USB-C ports (multitrack and playback/control)
• Wireless: Bluetooth 5.0 (built-in)
• Recording: 18-track USB, 16-track microSD (WAV/MP3)
• Dimensions: 16.5 x 3.8 x 12.5 in (419.1 x 96.5 x 317.5 mm)
• Weight: 10.4 lb (4.7 kg)

What's In The Box

• Yamaha MGX16 W Digital Mixer (White)
• Power Cable
• Steinberg Software License Card (Cubase AI, WaveLab Cast LE, FX Suite)
